M80-5434205

Description

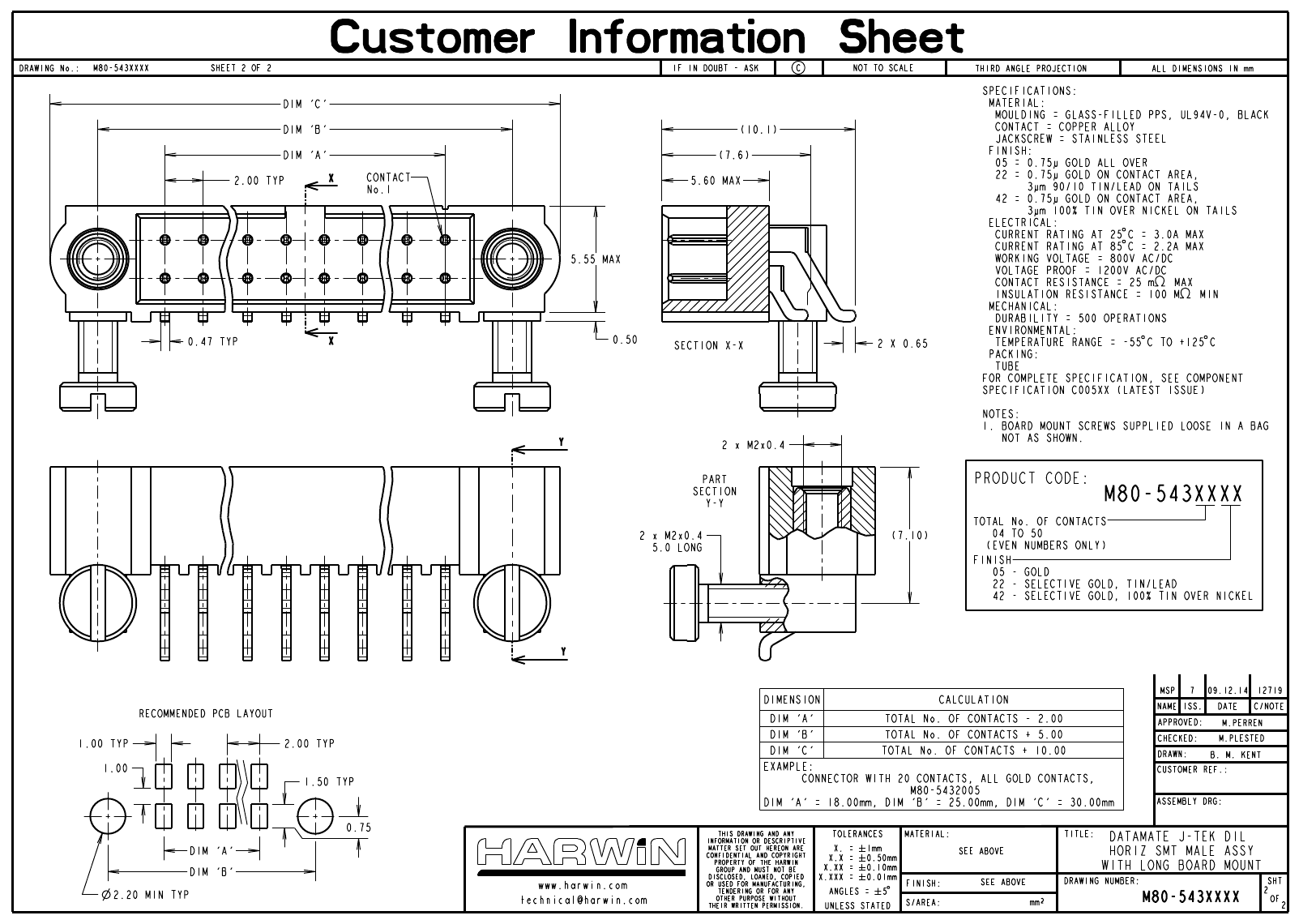

Headers & Wire Housings 21+21 MALE HORIZ SMT DATAMATE
CategoryThe connector    The connector
File Size88KB，1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

M80-5434205 Online Shopping

Suppliers Part Number Price MOQ In stock
M80-5434205 - - View Buy Now

M80-5434205 Overview

Headers & Wire Housings 21+21 MALE HORIZ SMT DATAMATE

M80-5434205 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHarwin
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.238 inch
subject depth0.398 inch
body length2.047 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGold (Au)
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force2.78 N
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation option 2JACKSCREW
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.4892 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2 mm
Termination typeSURFACE MOUNT
Total number of contacts42
UL Flammability Code94V-0
Base Number Matches1

Preview

Download Datasheet

M80-5434205 Related Products

M80-5434205 M80-5431005 M80-5430405 M80-5431622 M80-5430605 M80-5431405
Description Headers & Wire Housings 21+21 MALE HORIZ SMT DATAMATE Headers & Wire Housings 05+05 MALE HORIZ SMT DATAMATE Headers & Wire Housings 02+02 MALE HORIZ SMT B/MOUNT Headers & Wire Housings Datamate J-Tek DIL Horiz PCB Conn Headers & Wire Housings 03+03 MALE HORIZ SMT DATAMATE Headers & Wire Housings 07+07 MALE HORIZ SMT DATAMATE
Is it lead-free? Lead free Lead free Lead free Contains lead Lead free Lead free
Is it Rohs certified? conform to conform to conform to incompatible conform to conform to
Maker Harwin Harwin Harwin Harwin Harwin Harwin
Reach Compliance Code compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
body width 0.238 inch 0.238 inch 0.238 inch 0.238 inch 0.238 inch 0.238 inch
subject depth 0.398 inch 0.398 inch 0.398 inch 0.398 inch 0.398 inch 0.398 inch
body length 2.047 inch 0.787 inch 0.551 inch 1.024 inch 0.63 inch 0.945 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact completed and terminated Gold (Au) Gold (Au) Gold (Au) Tin/Lead (Sn/Pb) Gold (Au) Gold (Au)
Contact point gender MALE MALE MALE MALE MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ 25 mΩ
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT
DIN compliance NO NO NO NO NO NO
Durability 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles
Filter function NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO
maximum insertion force 2.78 N 2.78 N 2.78 N 2.78 N 2.78 N 2.78 N
Insulation resistance 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω 100000000 Ω
Insulator color BLACK BLACK BLACK BLACK BLACK BLACK
insulator material GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code e4 e4 e4 e0 e4 e4
MIL compliance NO NO NO NO NO NO
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Mixed contacts NO NO NO NO NO NO
Installation option 1 LOCKING LOCKING LOCKING LOCKING LOCKING LOCKING
Installation option 2 JACKSCREW JACKSCREW JACKSCREW JACKSCREW JACKSCREW JACKSCREW
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE
PCB row number 2 2 2 2 2 2
Number of rows loaded 2 2 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.4892 mm 2.4892 mm 2.4892 mm 2.4892 mm 2.4892 mm 2.4892 mm
Plating thickness 30u inch 30u inch 30u inch 30u inch 30u inch 30u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 3 A 3 A 3 A 3 A 3 A 3 A
Guideline UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal pitch 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 42 10 4 16 6 14
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Other features ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT - ROHS COMPLIANT ROHS COMPLIANT
Base Number Matches 1 1 1 - - 1
