502426-2030 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 502426-2030

502426-2030: DescriptionBoard to Board & Mezzanine Connectors 0.4 B/B REC ASSY W/TAPE 20P; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

502426-2030 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	502426-2030	-	-	View	Buy Now

502426-2030 Overview

Board to Board & Mezzanine Connectors 0.4 B/B REC ASSY W/TAPE 20P

502426-2030 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LOW HALOGEN AND ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	16 weeks
Other features	SLIMSTACK
Board mount options	FITTING NAIL
body width	0.102 inch
subject depth	0.039 inch
body length	0.28 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	80 mΩ
Contact style	CENTRONIC
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.016 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.413 mm
Plating thickness	39u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Base Number Matches	1

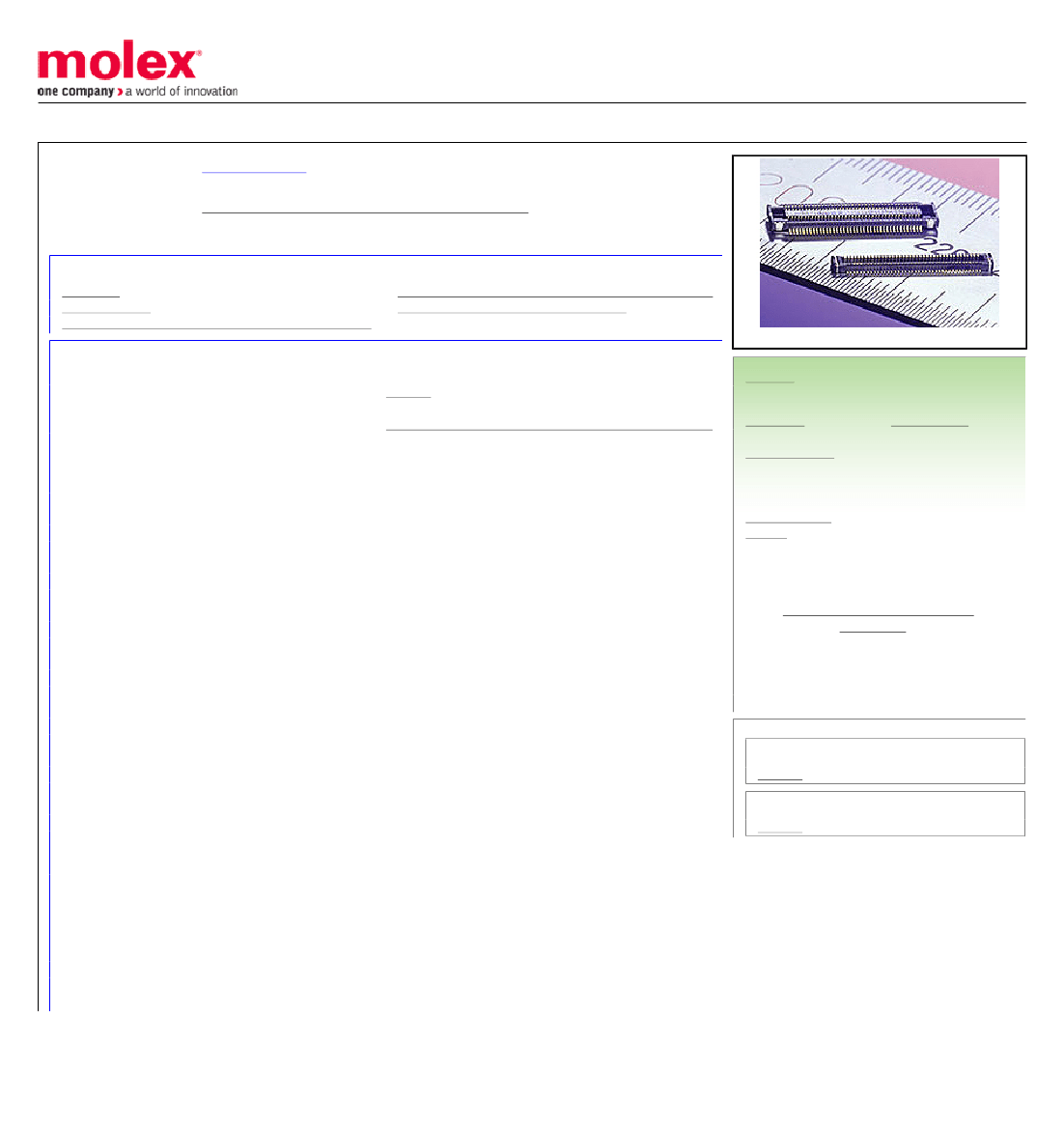

Preview

Download Datasheet

View All

This document was generated on 02/28/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5024262030

Active

SlimStack™ 0.40mm Pitch Board-to-Board Connectors

0.40mm Pitch SlimStack Board-to-Board Receptacle, Surface Mount, Dual Row,

Vertical, 1.00mm Stacking Height, with Solder Tabs, with Vacuum Tape, 20 Circuits

Documents:

3D Model

Drawing (PDF)

Application Specification AS-502426-001-001 (PDF)

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Capable

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Sales Drawing

Packaging Specification SPK-502426-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

PCB Receptacles

502426

Board-to-Board, Signal

SlimStack™ 0.40mm Pitch Board-to-Board Connectors

SlimStack

800756832289

Black

Yes

1.00mm

Phosphor Bronze

Gold

24.861/mg

Vertical

Yes

Embossed Tape on Reel

0.40mm

-25°C to +85°C

Surface Mount

0.3A

50V AC/DC

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

502426 Series

Mates With

502430 PCB Header

AS-502426-001-001

SPK-502426-001-001

SD-502426-003, SD-502426-004

This document was generated on 02/28/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
