52746-1870: DescriptionFFC & FPC Connectors 18CKT RA SMT ZIF BOTTOM CONTACT; CategoryThe connector The connector; File Size409KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

52746-1870 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52746-1870	-	-	View	Buy Now

52746-1870 Overview

FFC & FPC Connectors 18CKT RA SMT ZIF BOTTOM CONTACT

52746-1870 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Molex FFC/FPC SMT 52746 Series 0.5mm Pitch 18 Way Right Angle SMT Female FPC Connector
Other features	MXJ
Board mount options	FITTING NAIL
body width	0.079 inch
subject depth	0.177 inch
body length	0.594 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

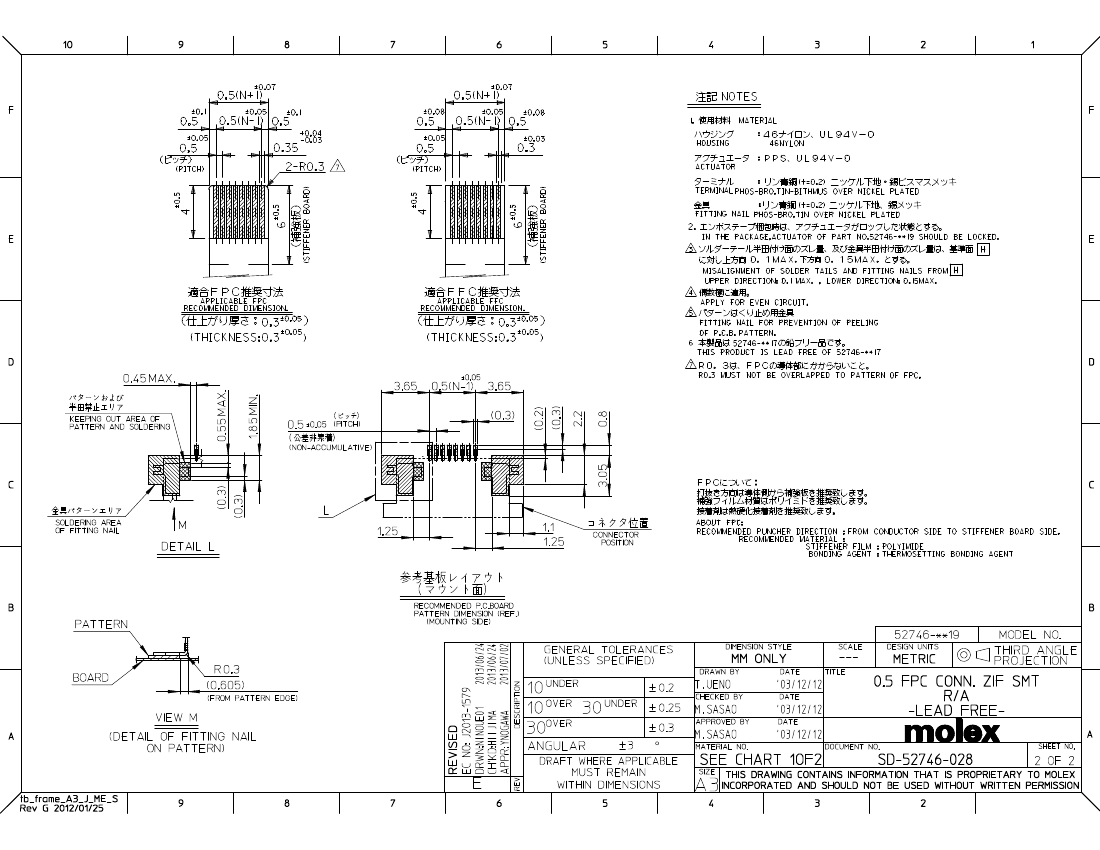

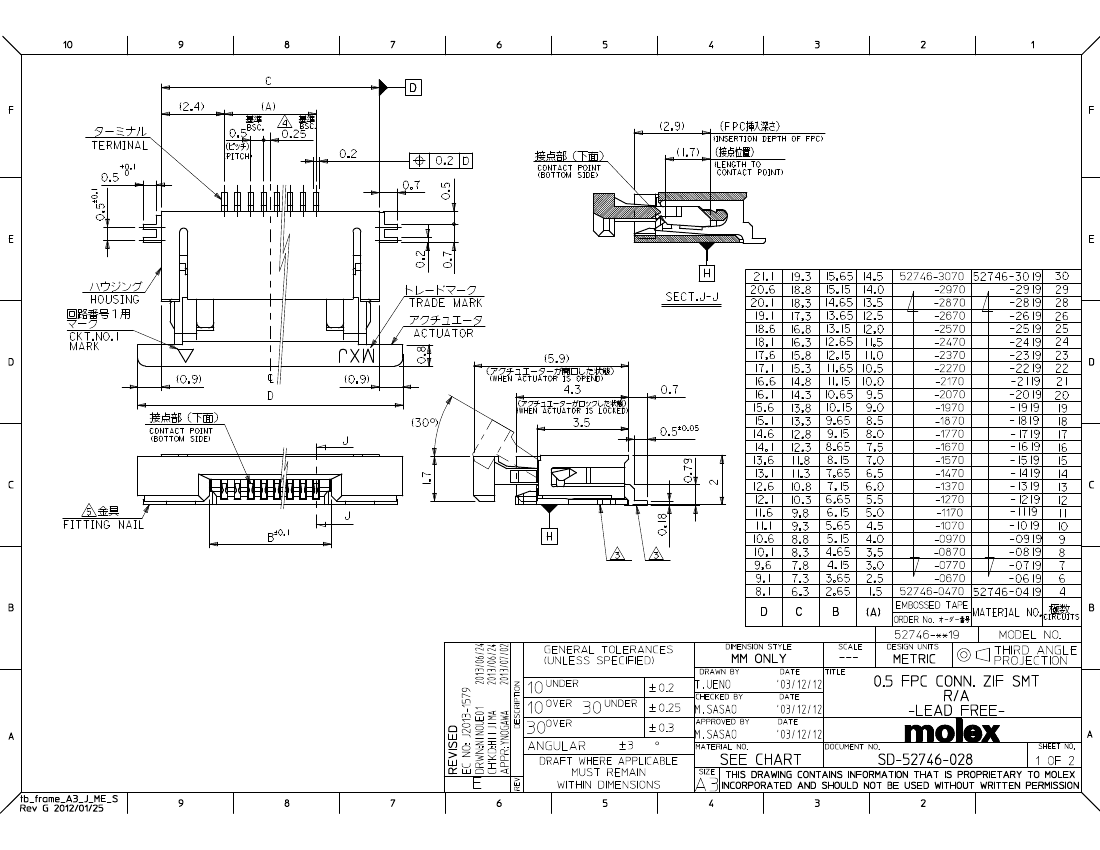

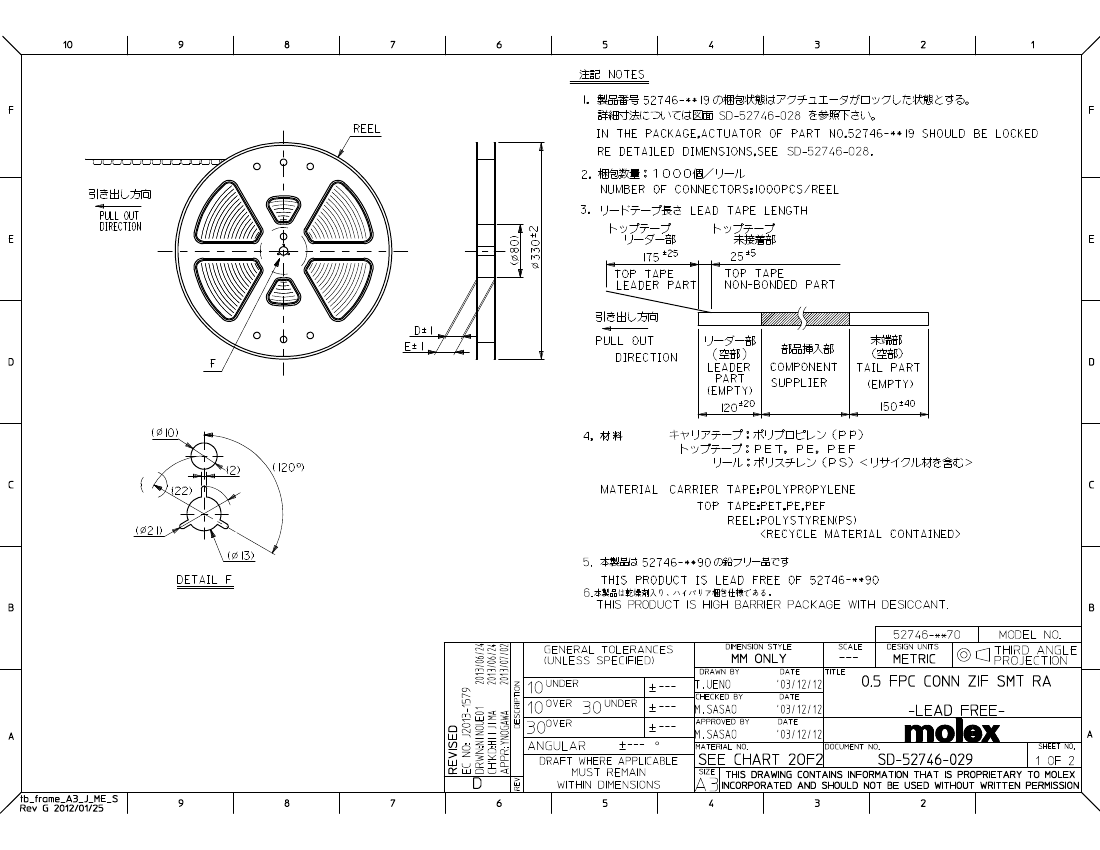

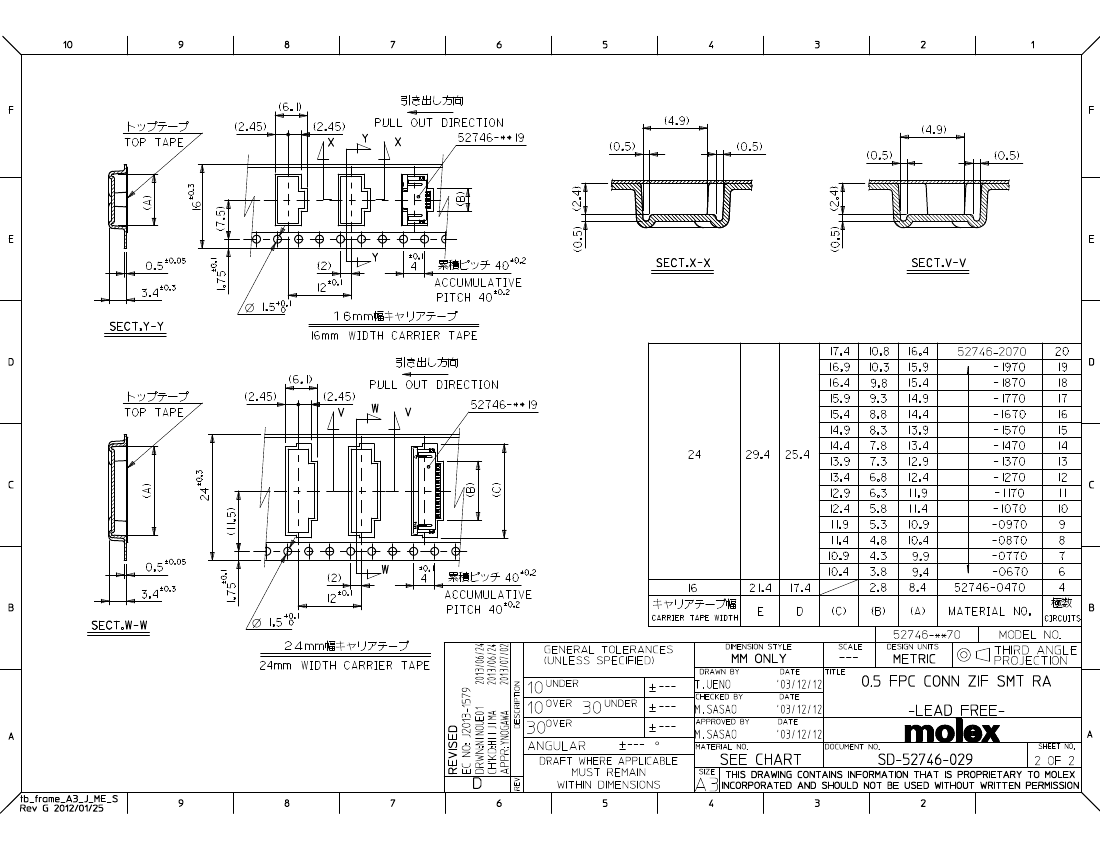

Preview

Download Datasheet

View All

52746-1870 Related Products

	52746-1870	52746-0870	52746-1270	52746-1670	52746-1470
Description	FFC & FPC Connectors 18CKT RA SMT ZIF BOTTOM CONTACT	FFC & FPC Connectors RA SMT ZIF BOTTOM 8P	FFC & FPC Connectors RA SMT ZIF BOTTOM 12	FFC & FPC Connectors RA SMT ZIF BOTTOM 16	FFC & FPC Connectors RA SMT ZIF BOTTOM 14 bottom contact style
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	MXJ	MXJ	MXJ	MXJ	MXJ
Board mount options	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
subject depth	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch
body length	0.594 inch	0.398 inch	0.476 inch	0.555 inch	0.516 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	TIN BISMUTH OVER NICKEL	TIN BISMUTH OVER NICKEL	TIN BISMUTH OVER NICKEL	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Durability	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Insulation resistance	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON
MIL compliance	NO	NO	NO	NO	NO
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	1	1	1	1	1
Number of rows loaded	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	18	8	12	16	14
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N
Maker	Molex	-	Molex	Molex	Molex
ECCN code	EAR99	EAR99	-	-	EAR99
Samacsys Description	Molex FFC/FPC SMT 52746 Series 0.5mm Pitch 18 Way Right Angle SMT Female FPC Connector	-	-	Molex FFC/FPC SMT 52746 Series 0.5mm Pitch 16 Way Right Angle SMT Female FPC Connector	Molex FFC/FPC SMT 52746 Series 0.5mm Pitch 14 Way Right Angle SMT Female FPC Connector
Base Number Matches	1	1	-	1	1
Contact completed and terminated	-	TIN BISMUTH OVER NICKEL	TIN BISMUTH OVER NICKEL	TIN/BISMUTH (SN/BI) - WITH NICKEL (NI) BARRIER	-
