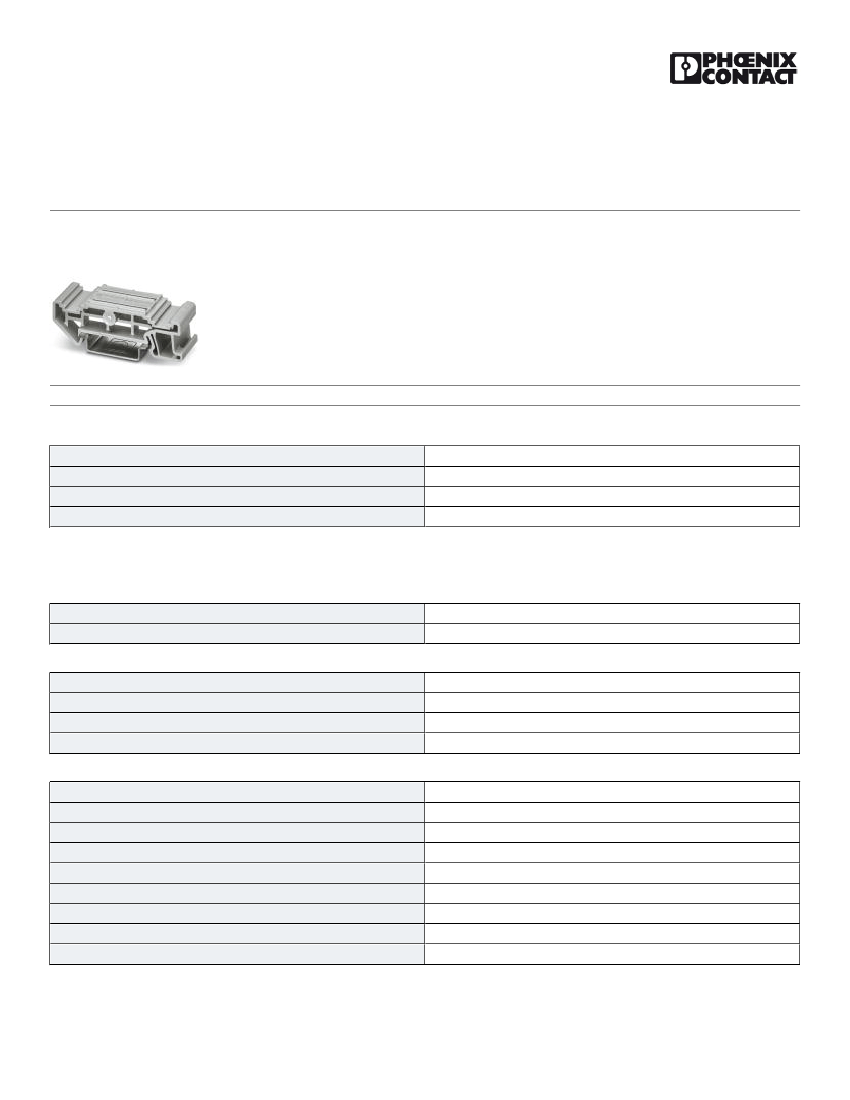

Adapter - DF-PTMC-NS - 3270403
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Adapter, for mounting on a DIN rail, Length: 64 mm, Width: 22 mm, Color: gray
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 STK
10 STK
85389099
Poland

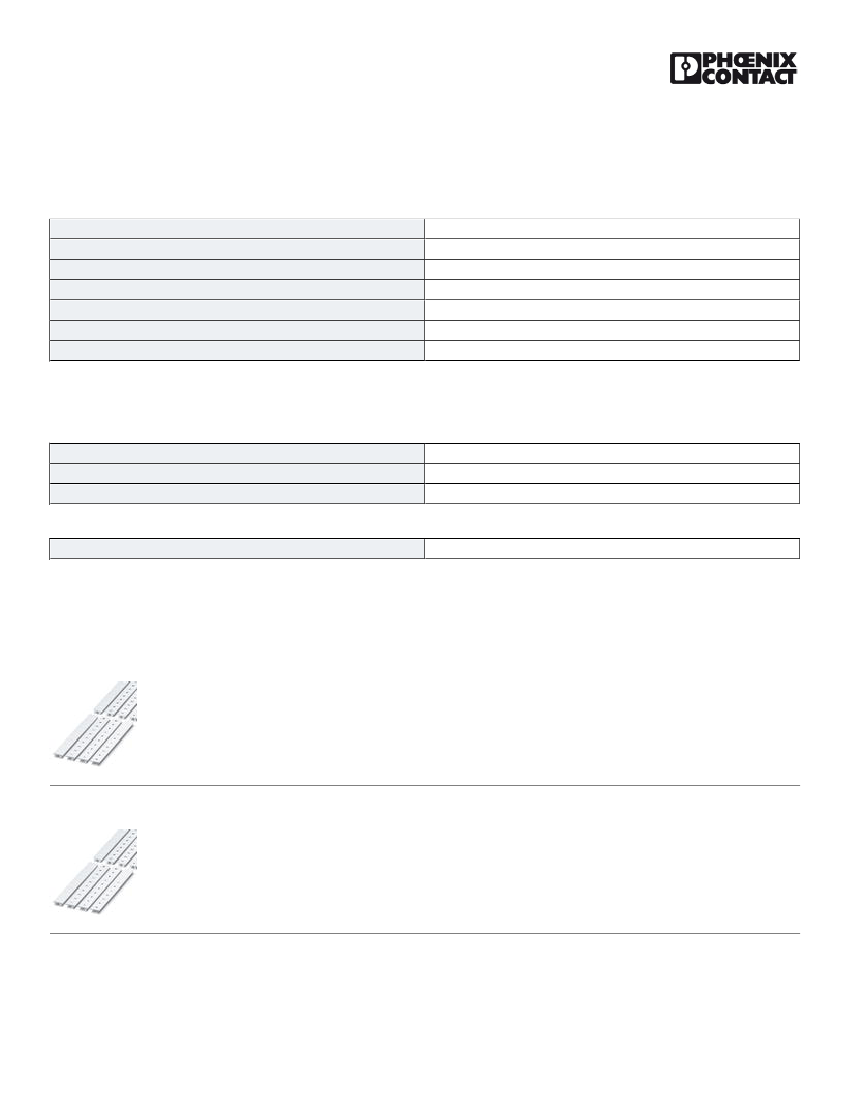

Technical data
General
Color
Material
gray
PA
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
22 mm
64 mm
21.5 mm
29 mm
General
Relative insulation material temperature index (Elec., UL 746 B)
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
08/08/2016 Page 1 / 6
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
https://www.phoenixcontact.com/us/products/3270403
Adapter - DF-PTMC-NS - 3270403
Technical data
General
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
passed
passed
27,5 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
27141120
27141120
27440209
ETIM
ETIM 5.0
EC002635
Accessories
Accessories
Labeled terminal marker
Zack marker strip - ZB 10 CUS - 0824941
Zack marker strip, can be ordered: Strip, white, labeled according to customer specifications, Mounting type: Snap into
tall marker groove, for terminal block width: 10.2 mm, Lettering field: 10.15 x 10.5 mm
Zack marker strip - ZB10,LGS:FORTL.ZAHLEN - 1053014
Zack marker strip, Strip, white, labeled, can be labeled with: Plotter, Printed horizontally: Consecutive numbers 1 - 10, 11
- 20, etc. up to 991 - 1000, Mounting type: Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field:
10.15 x 10.5 mm
08/08/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/3270403
Adapter - DF-PTMC-NS - 3270403
Accessories
Zack marker strip - ZB10,QR:FORTL.ZAHLEN - 1053027
Zack marker strip, Strip, white, labeled, can be labeled with: Plotter, Printed vertically: Consecutive numbers 1 - 10, 11 -
20, etc. up to 991 - 1000, Mounting type: Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field:
10.15 x 10.5 mm
Zack marker strip - ZB10,LGS:GLEICHE ZAHLEN - 1053030
Zack marker strip, Strip, white, labeled, can be labeled with: Plotter, Printed horizontally: Identical numbers 1 or 2, etc. up
to 100, Mounting type: Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field: 10.15 x 10.5 mm
Marker for terminal blocks - ZB10,LGS:L1-N,PE - 1053412
Marker for terminal blocks, Strip, white, labeled, can be labeled with: Plotter, Horizontal: L1, L2, L3, N, PE, L1, L2, L3, N,
PE, Mounting type: Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field: 10.15 x 10.5 mm
Marker for terminal blocks - ZB10,LGS:U-N - 1053438
Marker for terminal blocks, Strip, white, labeled, can be labeled with: Plotter, Horizontal: U, V, W, N, GND, U, V, W, N,
GND, Mounting type: Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field: 10.15 x 10.5 mm
Marker for terminal blocks - UC-TM 10 CUS - 0824605
Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, Mounting type:
Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field: 9.6 x 10.5 mm
08/08/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/3270403
Adapter - DF-PTMC-NS - 3270403

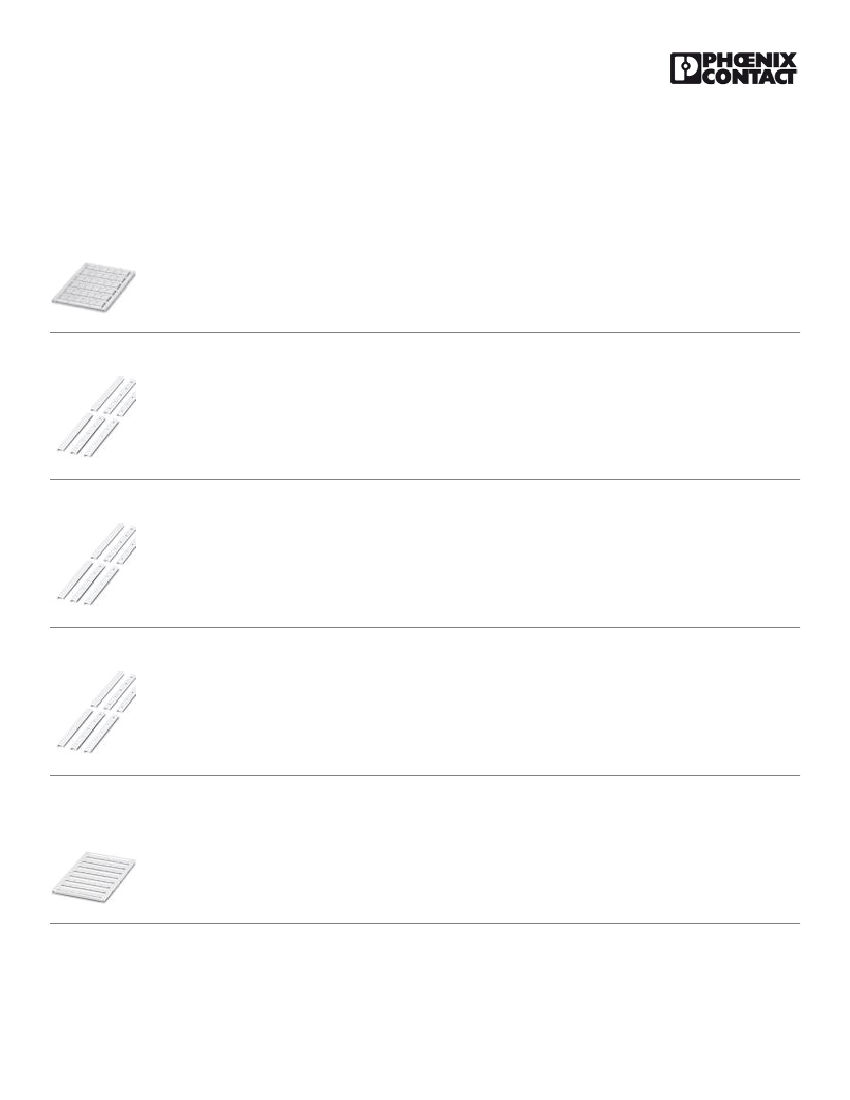

Accessories
Marker for terminal blocks - UCT-TM 10 CUS - 0829623
Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, Mounting type:
Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field: 8.9 x 9.6 mm
Zack Marker strip, flat - ZBF10 CUS - 0825031
Zack Marker strip, flat, can be ordered: Strip, white, labeled according to customer specifications, Mounting type: Snap
into flat marker groove, for terminal block width: 10 mm, Lettering field: 5.15 x 10 mm
Zack Marker strip, flat - ZBF10,LGS:FORTL.ZAHLEN - 0810009
Zack Marker strip, flat, Strip, white, labeled, Printed horizontally: Consecutive numbers 1 - 10, 11 - 20, etc. up to 991 -
1000, Mounting type: Snap into flat marker groove, for terminal block width: 10 mm, Lettering field: 5.15 x 10 mm
Zack Marker strip, flat - ZBF10,QR:FORTL.ZAHLEN - 0810025
Zack Marker strip, flat, Strip, white, labeled, Printed vertically: Consecutive numbers 1 - 10, 11 - 20, etc. up to 991 - 1000,
Mounting type: Snap into flat marker groove, for terminal block width: 10 mm, Lettering field: 5.15 x 10 mm
Marker for terminal blocks - UC-TMF 10 CUS - 0824662
Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, Mounting type:
Snap into flat marker groove, for terminal block width: 10.2 mm, Lettering field: 9.6 x 5.1 mm
08/08/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/3270403
Adapter - DF-PTMC-NS - 3270403

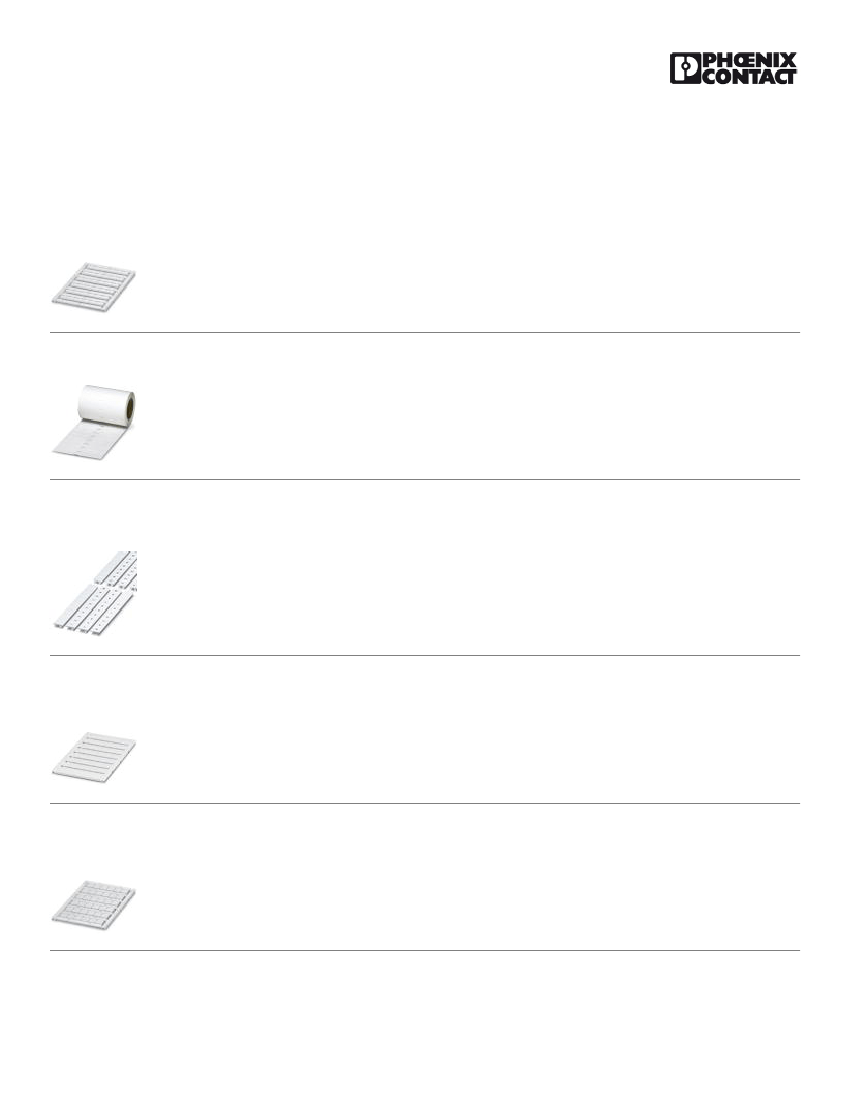

Accessories
Marker for terminal blocks - UCT-TMF 10 CUS - 0829679
Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, Mounting type:
Snap into flat marker groove, for terminal block width: 10.2 mm, Lettering field: 9.4 x 4.7 mm
Marker for terminal blocks - TMT 10 R CUS - 0824500
Marker for terminal blocks, can be ordered: By line, white, labeled according to customer specifications, Mounting type:
Snap into universal marker groove, Snap into flat marker groove, for terminal block width: 10.2 mm, Lettering field: 6.35 x
10.15 mm
Terminal marking
Zack marker strip - ZB 10:UNBEDRUCKT - 1053001
Zack marker strip, Strip, white, unlabeled, can be labeled with: Plotter, Mounting type: Snap into tall marker groove, for
terminal block width: 10.2 mm, Lettering field: 10.5 x 10.15 mm
Marker for terminal blocks - UC-TM 10 - 0818069
Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: BLUEMARK CLED, BLUEMARK LED, Plotter,
Mounting type: Snap into tall marker groove, for terminal block width: 10.2 mm, Lettering field: 9.6 x 10.5 mm
Marker for terminal blocks - UCT-TM 10 - 0829142
Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: THERMOMARK CARD, BLUEMARK CLED,
BLUEMARK LED, TOPMARK LASER, Mounting type: Snap into tall marker groove, for terminal block width: 10.2 mm,
Lettering field: 8.9 x 9.6 mm
08/08/2016 Page 5 / 6
