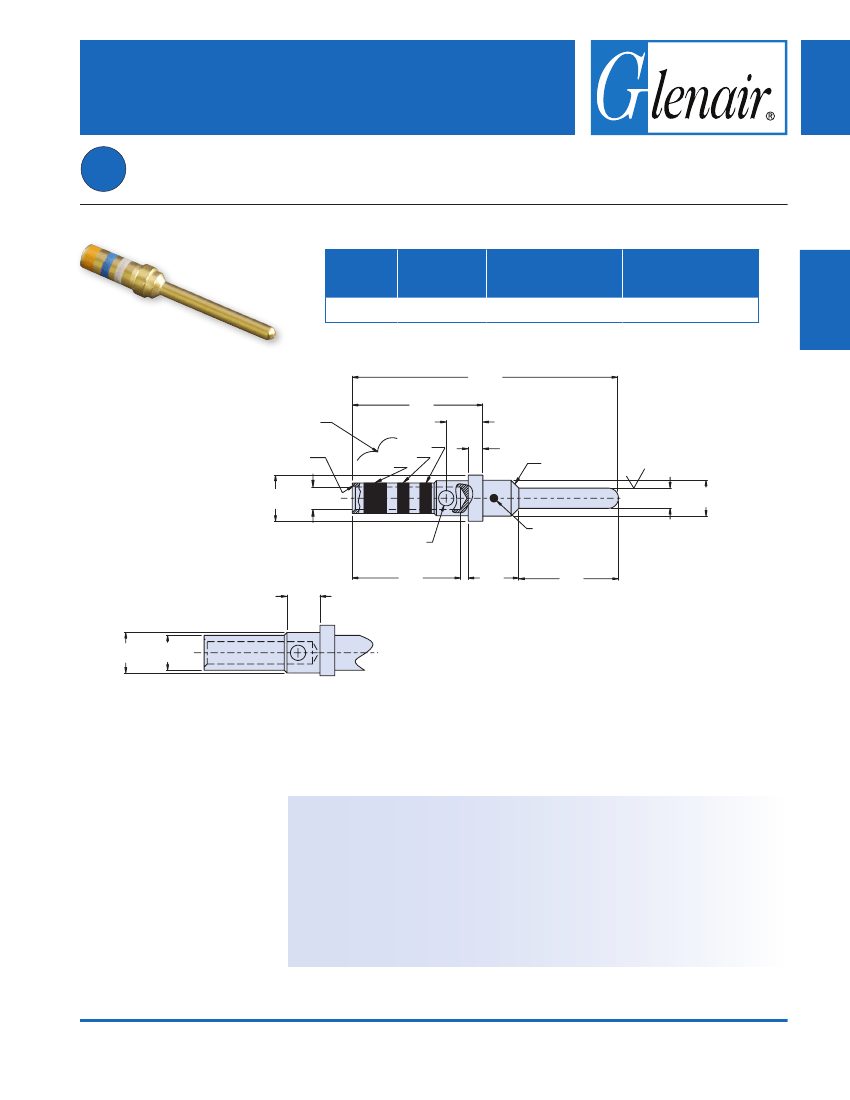

Standard Duty Electrical Pin Contact
M24308
Standard Pin Crimp Contact for MIL-DTL-24308
Mating End
Size
20
Wire
Accomodation
20-24 AWG
Military Part Number
M39029/64-369
Glenair Part Number
850-022-20-369
A
.549
.194
.189
White
Blue
Color Bands
45°
.046
Ø .085
Ø .043
.082
.055
.049
Orange
.033
.029
45°
32
.041
Ø .039
Ø .073
.070
Thru One Side Only
.033
Ø .025
.185
.150
Manufacturer’s
Symbol
.069
.065
.325
.321
.049
.040
.071
Ø .068
Ø .068
.065
Material and Finish*
Pin Contact: Copper Alloy/Gold Plated
Socket Contact: Copper Alloy/Gold Plated
Socket Contact Hood: Passivated Stainless Steel
*See pages A-4 and A-5 for detailed material specifications
Tools
Crimp Tool: M22520/2-01
Positioner: M22520/2-08
Insertion/Extraction Tools: M81969/14-02 or M81969/1-02
