3221-40010 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3221-40010

3221-40010: DescriptionRF Connectors / Coaxial Connectors SMPM Female Blkhd Mt .047 Cable Conn; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

3221-40010 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3221-40010	-	-	View	Buy Now

3221-40010 Overview

RF Connectors / Coaxial Connectors SMPM Female Blkhd Mt .047 Cable Conn

3221-40010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

ROHS COMPLIANT

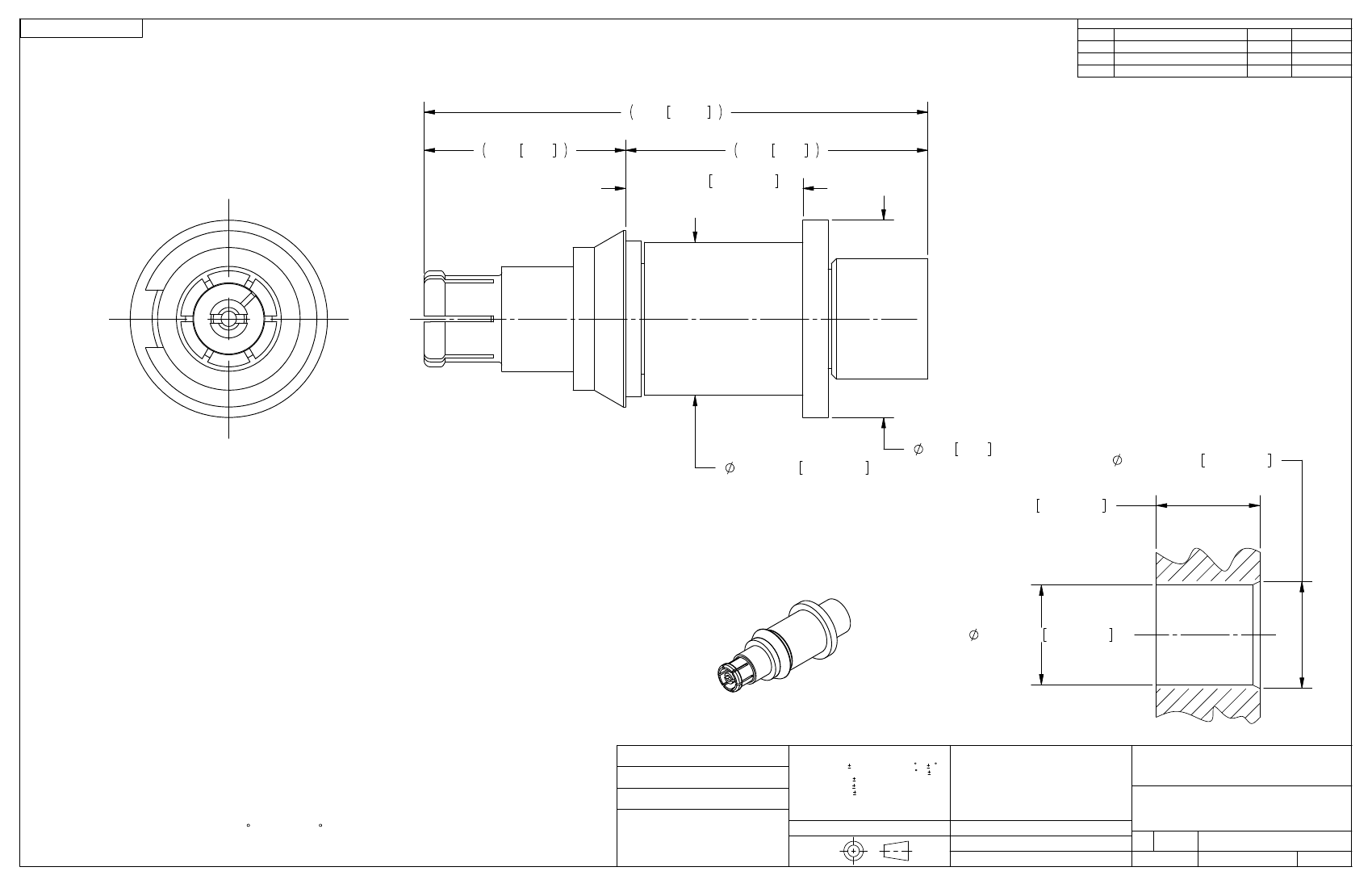

PRODUCT DATA DRAWING

.480 12.19

.192 4.88

.288 7.32

.160±.002 4.06±0.05

PANEL

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

DCN 36736

DCN 37918

REV. DCN 39825

05/09

12/10

05/24/13

PJS

STW

.188 4.78

.146±.001 3.71±0.03

.160±.002 4.06±0.05

.1655±.0025 4.20±0.06

MATERIAL:

BODY, LOCK RING &

CONTACT:

FERRULE:

INSULATORS:

BERYLLIUM COPPER PER ASTM B196,

ALLOY No. UNS C17300, TD04

BRASS PER ASTM B16, ALLOY UNS No. C36000

PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B

.155±.001 3.94±0.03

FINISH:

BODY, CONTACT,

LOCK RING &

FERRULE:

GOLD PER ASTM B488, TYPE II,

CODE C, CLASS 1.27, OVER NICKEL

PER AMS-QQ-N-290, CLASS 1, .00005" MIN.

MATERIAL:

PERFORMANCE:

FINISH:

SEE NOTES

N/A

PROPRIETARY

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

DECIMAL: .X

.XX

.XXX

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]

2) ALL DIMENSIONS ARE AFTER PLATING.

3) BREAK CORNERS & EDGES .005 R. MAX.

4) CHAM. 1ST & LAST THREADS.

5) SURFACE ROUGHNESS 63

MIL-STD-10.

6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN .005 T.I.R.

7) REMOVE ALL BURRS

SV Microwave, Inc.

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

TITLE:

IMPEDANCE:

FREQ. RANGE:

DWV:

OPERATING TEMP.:

50 OHMS

DC TO 65.0 GHz

325 VRMS

-55 C TO +125 C

SURFACE AREA:

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

SMPM FEMALE FOR

T-FLEX 405 CABLE

SIZE CAGE CODE DWG. NO.

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

THIRD ANGLE PROJECTION

DRAWN:

CHECKED:

APPROVED:

DAL 05/05/09

PJS 05/05/09

95077

SCALE: 13:1

3221-40010

SHEET 1 OF 1
