35180-0600: DescriptionHeaders & Wire Housings 070 MULTI W/W MALE H MALE HSG-6 351800600; CategoryThe connector The connector; File Size27KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

35180-0600 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35180-0600	-	-	View	Buy Now

35180-0600 Overview

Headers & Wire Housings 070 MULTI W/W MALE H MALE HSG-6 351800600

35180-0600 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	MK2,COMPATIBLE CONTACTS: 35745-0310;35745-0410;35746-0210;35746-0510;35747-0110;35747-0610
body width	1 inch
subject depth	1.138 inch
body length	1.346 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	34.2496 N
Minimum insulation diameter	0.098 inch
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	35180
Plug contact pitch	0.335 inch
Match contact row spacing	0.315 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	120 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
polarization key	POLARIZED HOUSING
Rated current (signal)	15 A
Guideline	UL
reliability	COMMERCIAL
Shell material	PBT-POLYESTER
Termination type	CRIMP
Total number of contacts	6
UL Flammability Code	94V-0
Maximum wire diameter	14 AWG
Minimum wire diameter	22 AWG
Evacuation force-minimum value	7.5616 N
Base Number Matches	1

Preview

Download Datasheet

View All

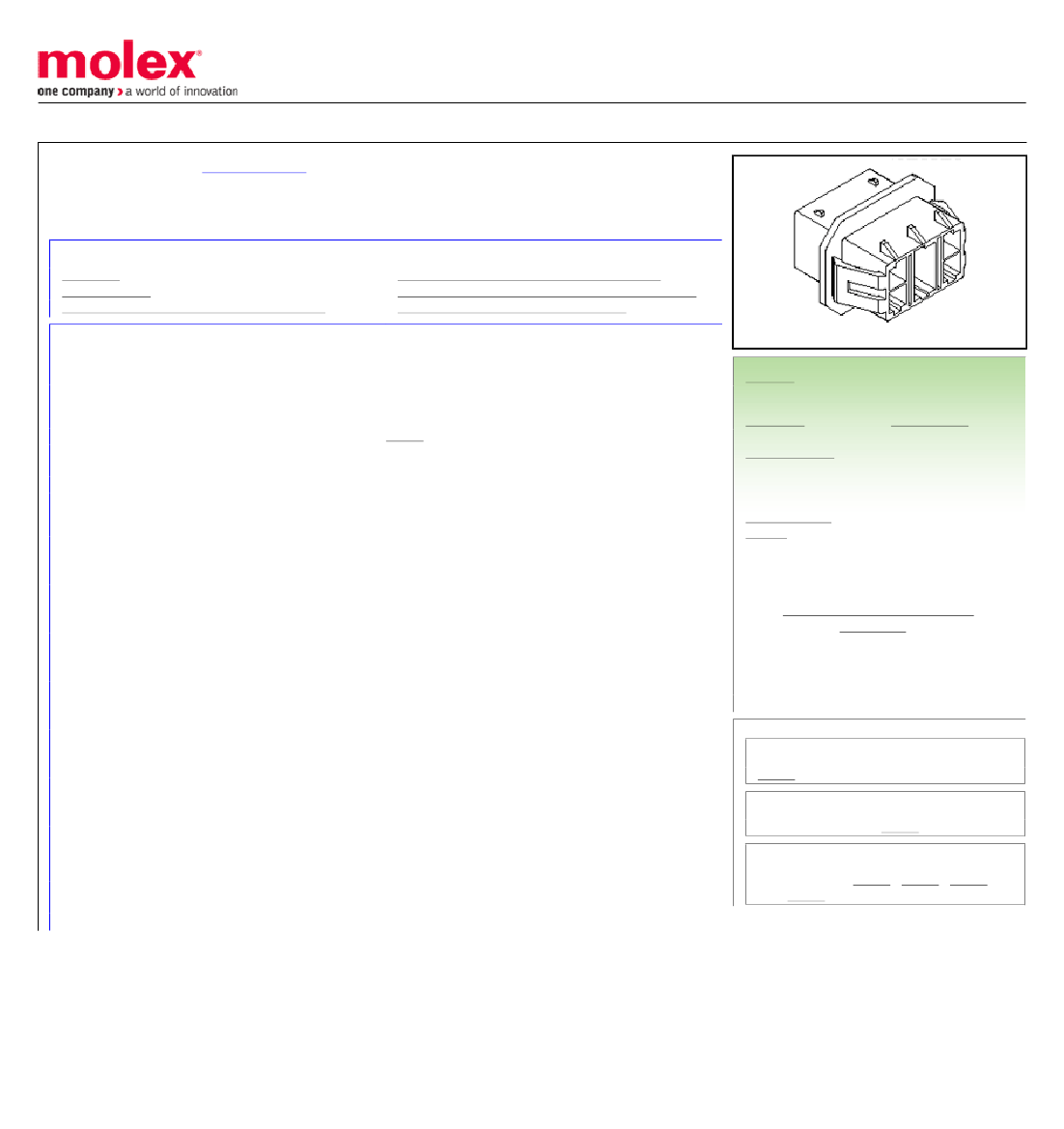

This document was generated on 05/17/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0351800600

Active

1.78mm Tab Multiple Wire-to-Wire Plug Housing with Mounting Ears, 6 Circuits,

Vertical, Polyester UL94V-0, Natural

Documents:

3D Model

Drawing (PDF)

Product Specification 351800400-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Product Name

UPC

Physical

Breakaway

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Capable

Keying to Mating Part

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Product Specification 351800600-001 (PDF)

Packaging Specification PK-35180-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

Crimp Housings

35180

Power, Wire-to-Wire

Polarized to Mating Part, Positive Lock

VersaBlade

800754249812

Natural

94V-0

Plug

None

Yes

Polyester

8.066/g

Bag

Yes

8.50mm

Yes

-40°C to +120°C

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

35180 Series

Mates With

Receptacle Housing 35181

Use With

Crimp Terminal 35745 , 35746 , 35747 ,

TPA 35182

PK-35180-001-001

351800400-001, 351800600-001

SD-35180-060*

This document was generated on 05/17/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
