Jones
Plugs/Sockets
Series 300
Multiple Density
Solder Eyelet
■

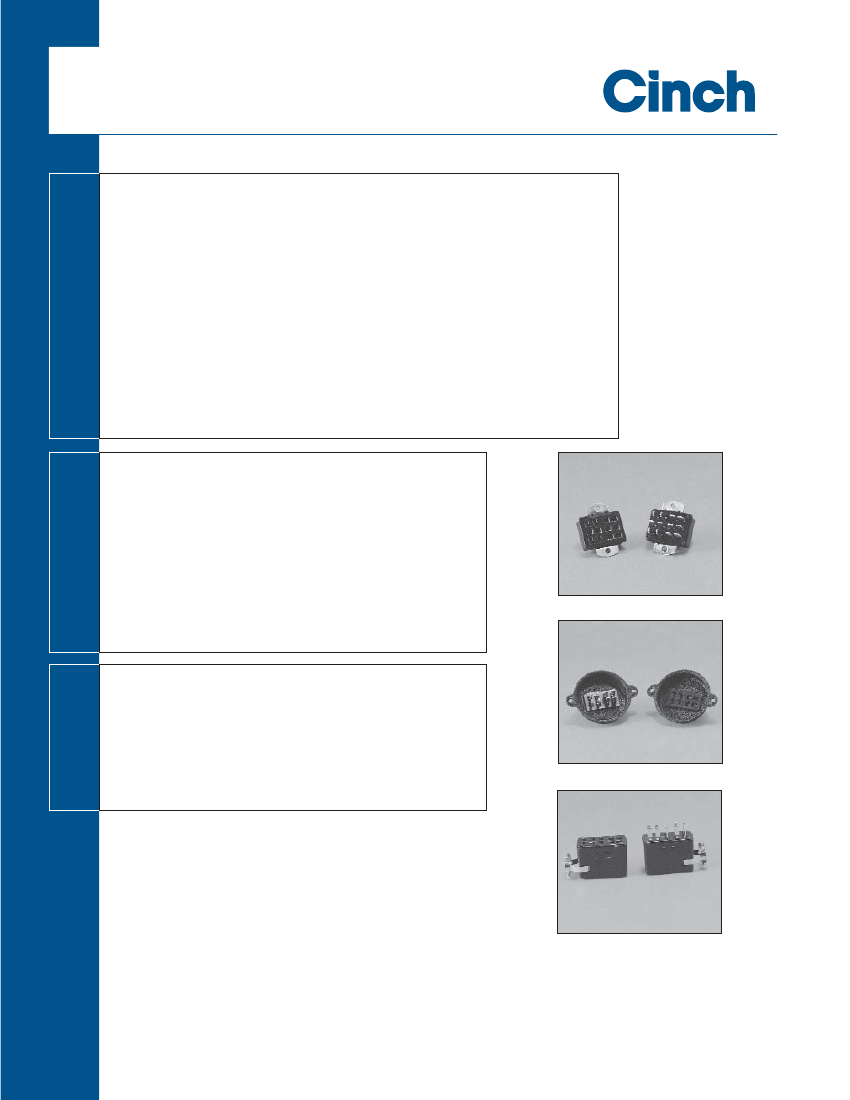

Solder lug terminals with .093" x .062" (2.36mm x 1.57mm) wiring holes.
■
Two-contact "Jones" connector is round, all others are rectangular.
■
For use in cable-to-panel and cable-to-cable applications.
■
Designed for light and medium duty.
F
EATURES
M
ATERIALS
E
LECTRICAL
■
Plug prongs are .156" (3.96mm) wide and .047" (1.19mm) thick.
■
Polarized to prevent wrong-way insertion.
■
Plugs have projecting flat blades, sockets have recessed twin bellows.
■
Cable clamps of zinc and clear irridite-plated steel used for strain relief.
■
UL Recognized-file E170218 (UL 1977), E130965 (UL1863).
■
CSA-LR31996.
■
See Panel Cutout dimension on page (2-38).
Insulation Material:
Molded monoblock, general purpose
phenolic, black UL94V-1
Contact Material:
Plug: Brass
Socket: Phosphor bronze
Contact Plating:
Cadmium
Operating Temperature:
Up to +105°C
Hood Material:
UL 94V-0 rated thermoplastic
Operating Voltage:
Current Rating:
Contact Resistance:
250 VAC RMS maximum
10 Amps
16 Milliohms maximum
Marketed exclusively through distribution.
Call Toll Free: 1 (800) 323-9612
2-36
Jones
Plugs/Sockets
Series 300

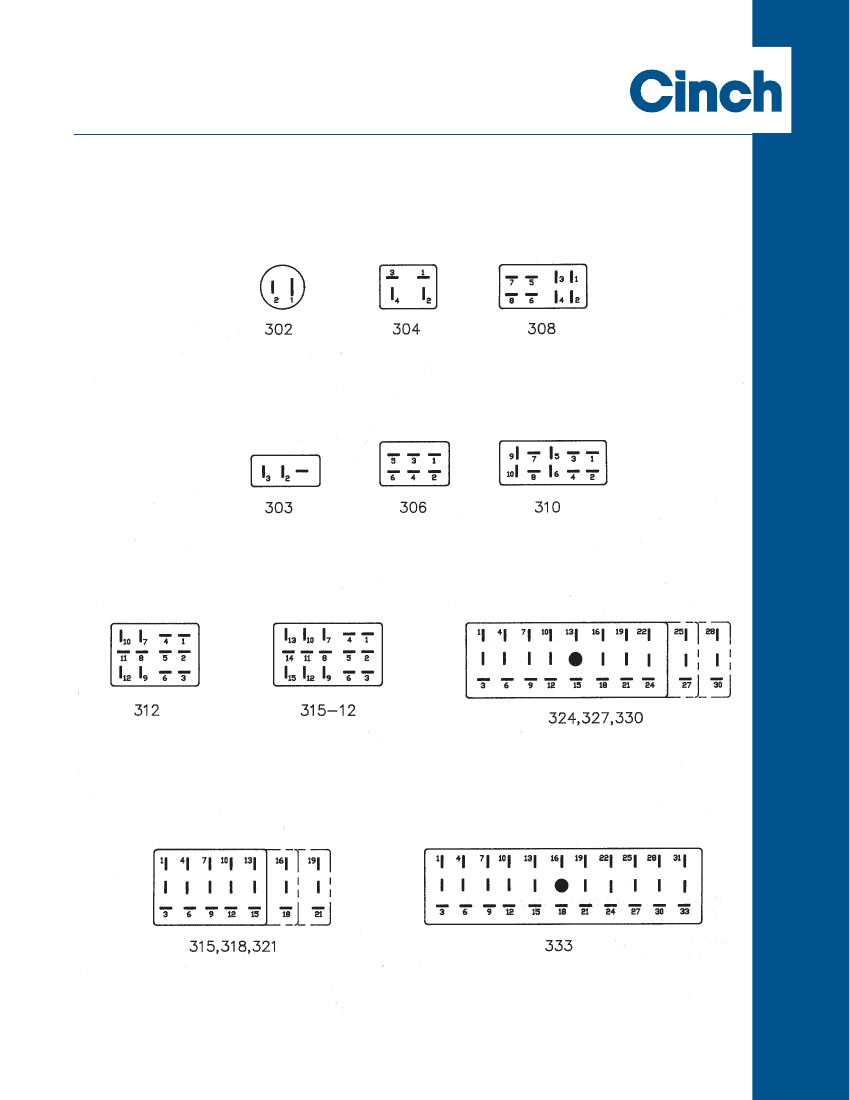

Polarizing Patterns - 300 Series
Multiple Density
Solder Eyelet
Marketed exclusively through distribution.
2-37
Call Toll Free: 1 (800) 323-9612
Jones
DURA-CON
®
Plugs/Sockets
High Reliability
Series 300
All-Plastic

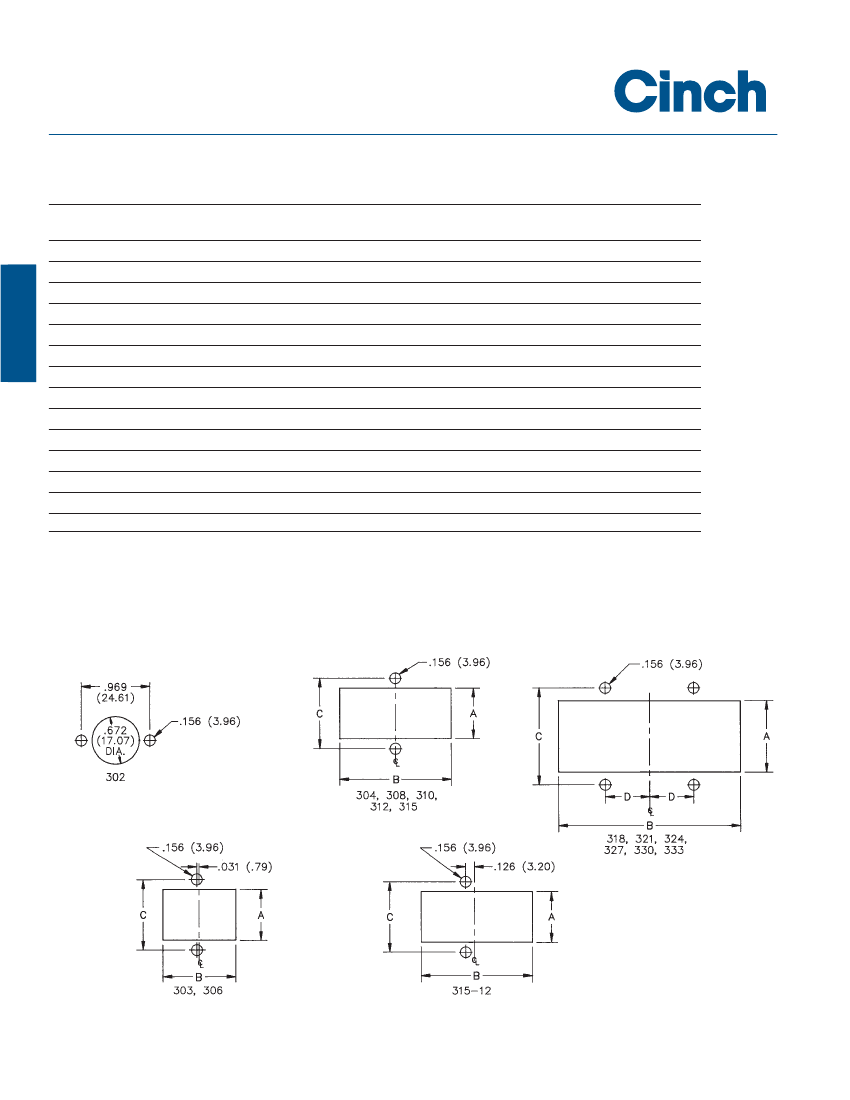

Mounting Dimensions
A
Reference
303
304
306
in
.453
.719
.719
.719
.719
.953
.953
1.016
1.016
1.016
1.016
1.016
1.016
1.016
mm
11.51
18.26
18.26
18.26
18.26
24.21
24.21
25.81
25.81
25.81
25.81
25.81
25.81
25.81
in
Multiple Density
Solder Eyelet
B
mm
25.81
19.84
26.19
32.54
40.08
32.16
38.51
41.68
49.61
57.56
65.48
73.43
81.36
89.31
in
.750
1.000
1.000
1.000
1.000
1.250
1.250
1.375
1.375
1.375
1.375
1.375
1.375
1.375
1.016
.781
1.031
1.281
1.578
1.266
1.516
1.641
1.953
2.266
2.578
2.891
3.203
3.516
C
mm
19.05
25.40
25.40
25.40
25.40
31.75
31.75
34.93
34.93
34.93
34.93
34.93
34.93
34.93
in
-
-
-
-
-
-
-
-
.625
.469
.625
.781
.938
1.094
D
mm
-
-
-
-
-
-
-
-
15.88
11.91
15.88
19.84
23.83
27.79
2
308
310
312
315-12
315
318
321
324
327
330
333
NOTE: For 300 Series 2 through 33 contact angle bracket connectors. All mounting holes are .156" (3.96mm) dia. Maximum chassis
thickness is .063" (1.59mm) for bottom mounting. Mounting holes are located on center line unless otherwise shown.
Marketed exclusively through distribution.
Call Toll Free: 1 (800) 323-9612
2-38
Jones
Plugs/Sockets
Series 300
No. of
Contacts
2
3
4
6
8
10
12
15*
15
18
21
24
27
30
33

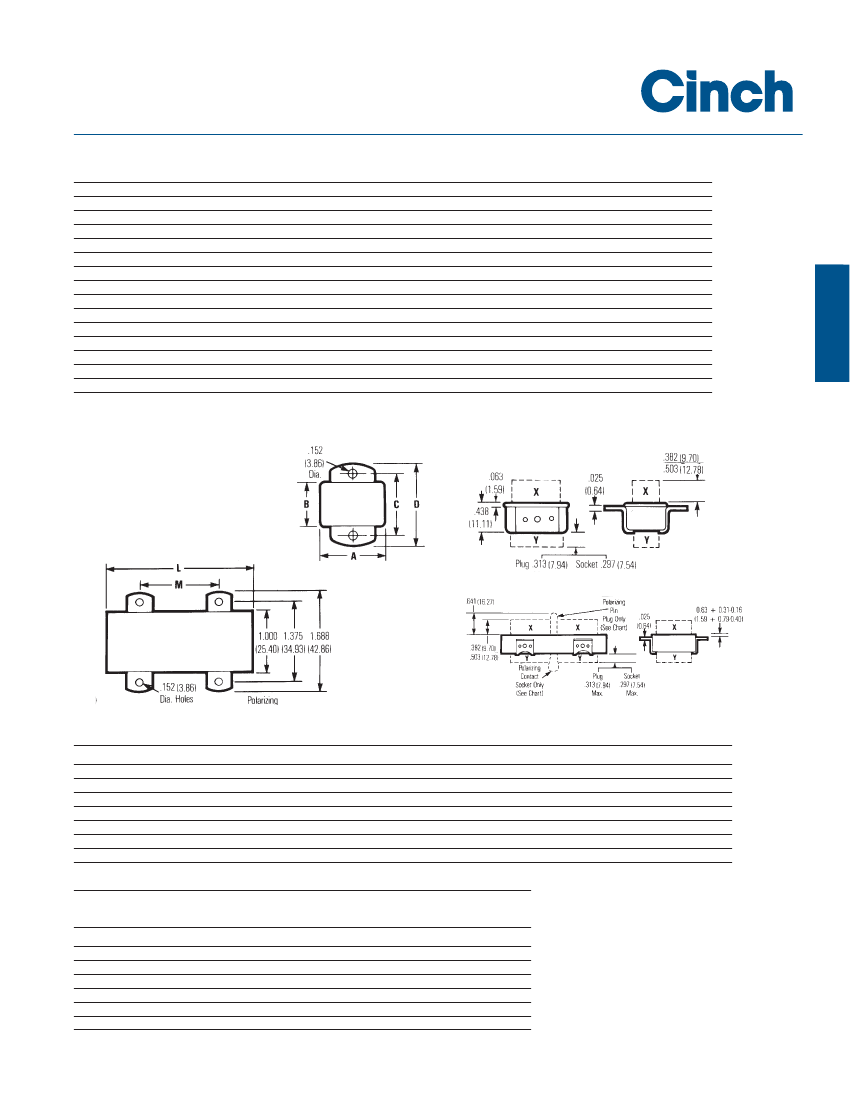

[.050” (1.27mm) Density
Multiple Density
Solder Cup/Wire
Solder Eyelet With Angle
D-Microminiature] Bracket
Bracket/Less Angle
No. of
Contacts
2
3
4
6
8
10
12
15
15
18
21
24
27
30
33
Less Angle Bracket
Catalog No.
Catalog No.
Plug
Socket
P-302-LAB
S-302-LAB
P-303-LAB
S-303-LAB
P-304-LAB
S-304-LAB
P-306-LAB
S-306-LAB
N/A
N/A
P-310-LAB
N/A
P-312-LAB
N/A
N/A
S-315-12-LAB
P-315-LAB
S-315-LAB
P-318-LAB
S-318-LAB
P-321-LAB
S-321-LAB
P-324-LAB
S-324-LAB
P-327-LAB
S-327-LAB
P-330-LAB
S-330-LAB
P-333-LAB
S-333-LAB
With Angle Bracket
Catalog No.
Catalog No.
Plug
Socket
P-302-AB
S-302-AB
P-303-AB
S-303-AB
P-304-AB
S-304-AB
P-306-AB
S-306-AB
N/A
N/A
P-310-AB
N/A
P-312-AB
N/A
N/A
S-315-12-AB
P-315-AB
S-315-AB
P-318-AB
S-318-AB
P-321-AB
S-321-AB
P-324-AB
S-324-AB
P-327-AB
S-327-AB
P-330-AB
S-330-AB
P-333-AB
S-333-AB
2
X = length of plug contacts. This dimension does not apply to sockets.
Y = length of plug or socket tails.
No. of
Contacts
2
3
4
6
8
10
12
15*
A
in
.656
1.000
.750
1.000
--
1.562
1.250
1.500
mm
16.67
25.40
19.05
25.40
--
39.69
31.75
38.10
in
-
.438
.688
.688
--
.688
.938
.938
B
mm
-
11.11
17.46
17.46
--
17.46
23.81
23.81
in
.969
.750
1.000
1.000
--
1.000
1.250
1.250
C
mm
24.61
19.05
25.40
25.40
--
25.40
31.75
31.75
in
1.219
1.062
1.312
1.312
--
1.312
1.562
1.562
D
mm
30.96
26.99
33.34
33.34
--
33.34
39.69
39.69
*Special
15 contact arrangement to allow 12-position mating.
L
Reference
15
18
21
24
27
30
33
in
1.625
1.938
2.250
2.563
2.875
3.188
3.500
mm
41.28
49.23
57.15
65.10
73.03
80.98
88.90
in
M
mm
-
31.75
23.81
31.75
39.69
47.63
55.58
See note
1.250
.938
1.250
1.562
1.875
2.188
Polarizing
Pin
NO
NO
NO
14
14
14
17
Marketed exclusively through distribution.
NOTE: 15-position plug and socket require only two mounting brackets, mounted on center of connector.
2-39
Call Toll Free: 1 (800) 323-9612
Jones
DURA-CON
®
Plugs/Sockets
High Reliability
Series 300
All-Plastic
[.050” (1.27mm) Density
Multiple Density
Solder Cup/Wire
Solder Eyelet
D-Microminiature]

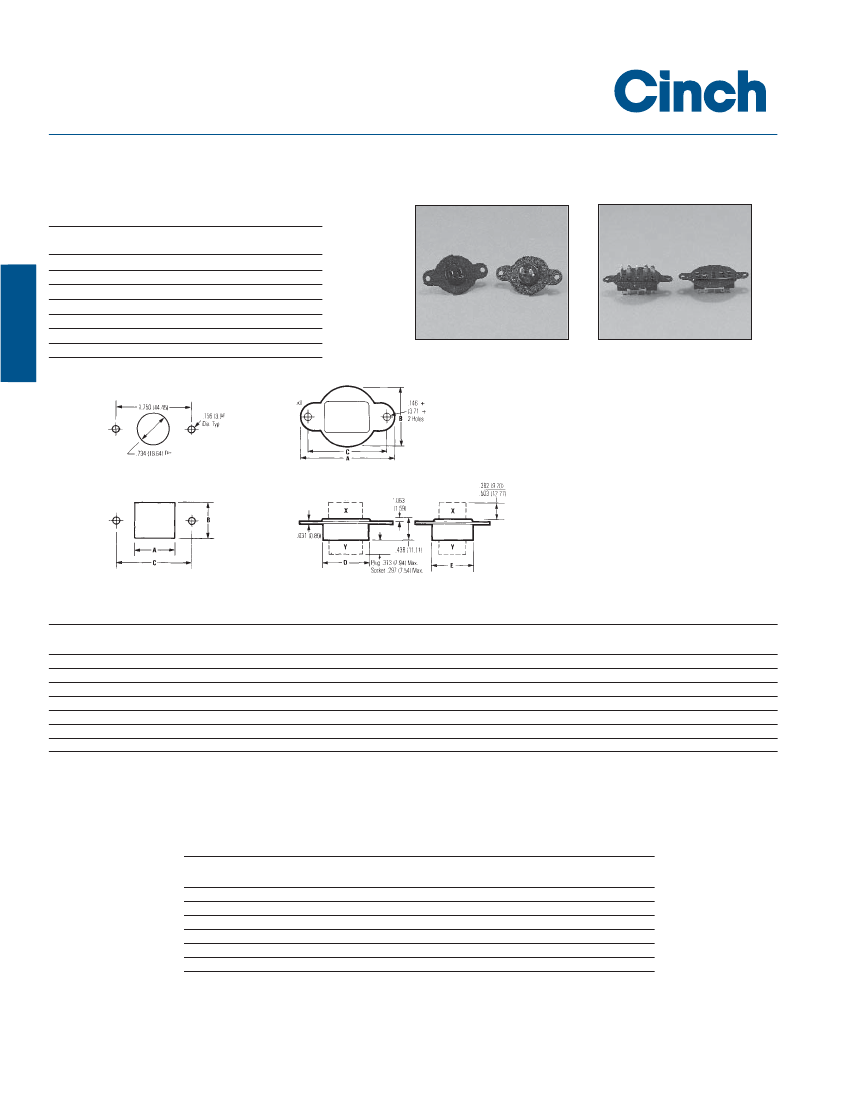

Flush Plate
300 Series with Flush Plate (FP)
No. of
Catalog No.
Catalog No.
Contacts
Plug
Socket
2
P-302-FP
S-302-FP
3
P-303-FP
S-303-FP
4
P-304-FP
S-304-FP
6
P-306-FP
S-306-FP
8
N/A
N/A
10
P-310-FP
N/A
12
P-312-FP
N/A
NOTE: Not available in contact sizes 15-33.
2
X = length of plug contacts. This dimension does not apply to sockets.
Y = length of plug or socket tails.
Dimensions - Plug or Socket
No. of
Contacts
2
3
4
6
8
10
12
A
in
2.063
2.063
2.063
2.063
--
2.563
2.563
mm
52.40
52.40
52.40
52.40
--
65.10
65.10
in
1.250
1.250
1.250
1.250
--
1.750
1.750
B
mm
31.75
31.75
31.75
31.75
--
44.45
44.45
in
1.750
1.750
1.750
1.750
--
2.250
2.250
C
mm
44.45
44.45
44.45
44.45
--
57.15
57.15
in
-
.938
.688
.938
--
1.500
1.188
D
mm
-
23.81
17.46
23.81
--
38.10
30.16
E Max.
in
mm
.719
18.26
.500
12.70
.750
19.05
.750
19.05
--
--
.750
19.05
1.000
25.40
Panel Cutout Dimensions
A
Reference
303-FP
304-FP
306-FP
308-FP
310-FP
312-FP
in
.953
.703
.953
--
1.516
1.203
mm
24.21
17.86
24.21
--
38.51
30.56
in
.516
.766
.766
--
.766
1.016
B
mm
13.11
19.46
19.46
--
19.46
25.81
in
1.750
1.750
1.750
--
2.250
2.250
C
mm
44.45
44.45
44.45
--
57.15
57.15
Marketed exclusively through distribution.
Call Toll Free: 1 (800) 323-9612
2-40
