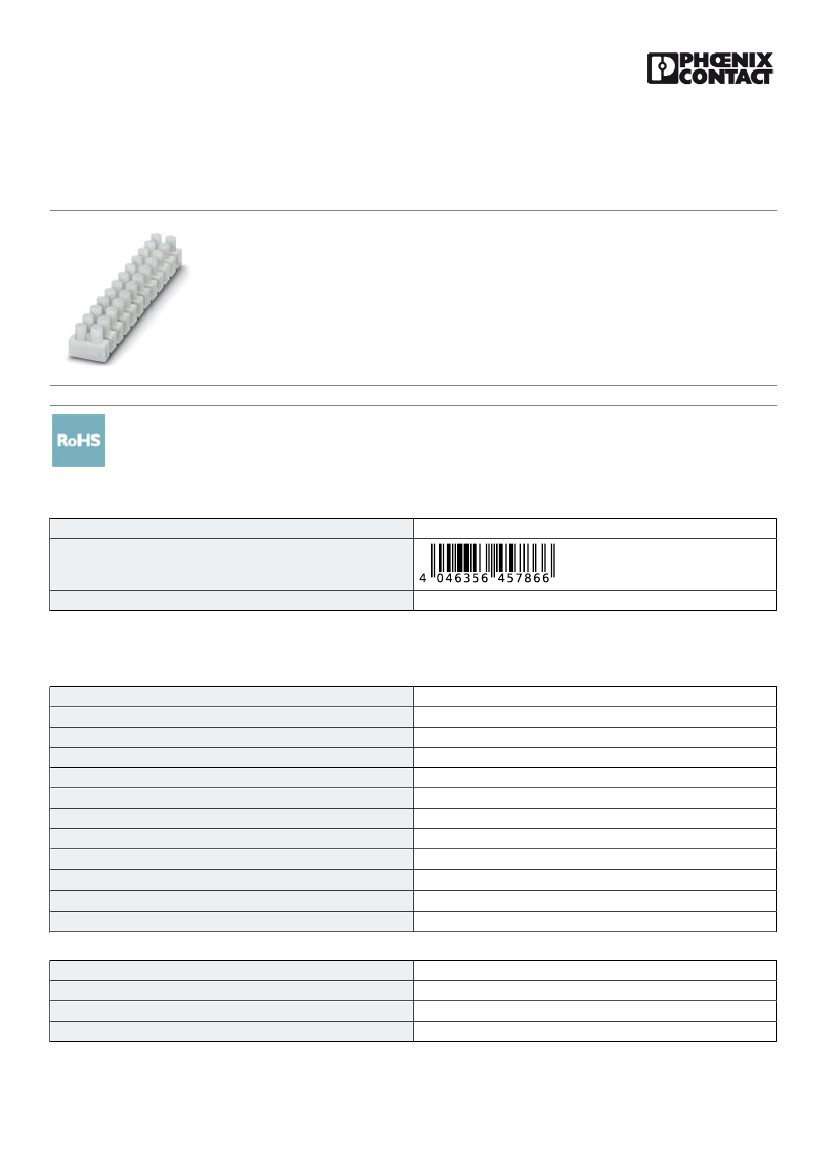

Europe connectors - EC 16 TR - 3240181
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Polyamide Europe terminal strip, transparent, for connecting solid conductors and stranded conductors with
ferrules with a cross section of 6 to 16 mm²
Key Commercial Data
Packing unit
GTIN
GTIN
4046356457866
10 pc
Technical data
General
Number of positions
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Ambient temperature (operation)
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
12
1
24
16 mm²
transparent
PA
V2
-40 °C ... 110 °C
76 A (with 16 mm² conductor cross section)
76 A (with 16 mm² conductor cross section)
450 V
No
Dimensions
Width
Length
Height
Depth
25.2 mm
173.9 mm
20.8 mm
25.2 mm
10/21/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/3240181
Europe connectors - EC 16 TR - 3240181
Technical data
Dimensions
Drill hole spacing
Pitch
15 mm
15 mm
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Stripping length
Screw thread
Tightening torque, min
Tightening torque max
Screw connection
1.5 mm²
16 mm²
14
6
2.5 mm²
16 mm²
14
6
1.5 mm²
1.5 mm²
10 mm²
1.5 mm²
4 mm²
0.75 mm²
2.5 mm²
1.5 mm²
2.5 mm²
8 mm
M4
1.2 Nm
1.5 Nm
Conductor cross section flexible, with ferrule without plastic sleeve max. 10 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
V2
Environmental Product Compliance
REACh SVHC
Lead 7439-92-1
Approvals
Approvals
10/21/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/3240181
Europe connectors - EC 16 TR - 3240181
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
300 V
55 A
10-6
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
55 A
10-6
C
300 V
55 A
10-6
FILE E 60425
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
300 V
55 A
10-6
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
55 A
10-6
C
300 V
55 A
10-6
FILE E 60425
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/21/2018 Page 3 / 3
