PCSB2/0-8-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> PCSB2/0-8-4

PCSB2/0-8-4: DescriptionTerminals Multi-Tap Conn Double-Sided Clear; CategoryThe connector; File Size150KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PCSB2/0-8-4 Overview

Terminals Multi-Tap Conn Double-Sided Clear

PCSB2/0-8-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panduit
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Fastening method	SCREW
Installation type	CABLE
Number of layers	1
Rows	1
Number of channels	8
Rated voltage	600 V
safety certificate	UL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Wire gauge	10 AWG

Preview

Download Datasheet

View All

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

CLAMPING SCREW

ACCESS PORT (TYP.)

"N" PLCS

.42

.67

(TYP.)

LISTED

NOTES:

1. UL486A-UL486B LISTED, DUAL RATED CU9AL FOR ALUMINUM OR COPPER

CONDUCTORS. MEETS OR EXCEEDS ANSI C119.4

CERTIFIED

2. SEE TABLE FOR WIRE RANGE.

3. STRIP LENGTH: .56 +.06/-0

4. FOR TIGHTENING TORQUE SEE TABLE

THREE PORT CONNECTOR BLOCK SHOWN

WITH PLASTIC CLOSURE PLUGS REMOVED.

SEE TABLE FOR DIMENSIONS OF PARTS

WITH ADDITIONAL PORTS

CONDUCTOR

PORT (TYP.)

5. VOLTAGE RATING: 600 V. MAX. BUILDING WIRE,

1000 V. MAX. IN SIGNS & FIXTURES.

6. TEMPERATURE RATING: 90 C (CU9AL).

7. CONNECTOR BLOCK BODY ARE MADE FROM ALUMINUM.

CONDUCTOR PORTS IN CONNECTOR BLOCK

ARE PREFILLED WITH AN OXIDE-INHIBITING COMPOUND.

"N" PLCS

8. CONNECTOR TO INCLUDE TIN PLATED ALUMINUM CLAMPING

SCREWS FOR EACH CONDUCTOR PORT.

1.36

9. INSULATION MATERIAL IS CLEAR PVC.

10. CLAMPING SCREW ACCESS PORTS AND ALL WIRE ENTRY PORTS ARE

PROVIDED WITH REMOVABLE PLASTIC CLOSURE PLUGS.

11. ALL DIMENSIONS SHOWN ARE NOMINAL.

12. ONLY ONE CONDUCTOR PER PORT ALLOWED.

13. PACKAGE QTY: -12 = 12 PCS.

-6 = 6 PCS.

-4 = 4 PCS.

14. THIS PART IS RoHS COMPLIANT

.42

.67

(TYP.)

1.56

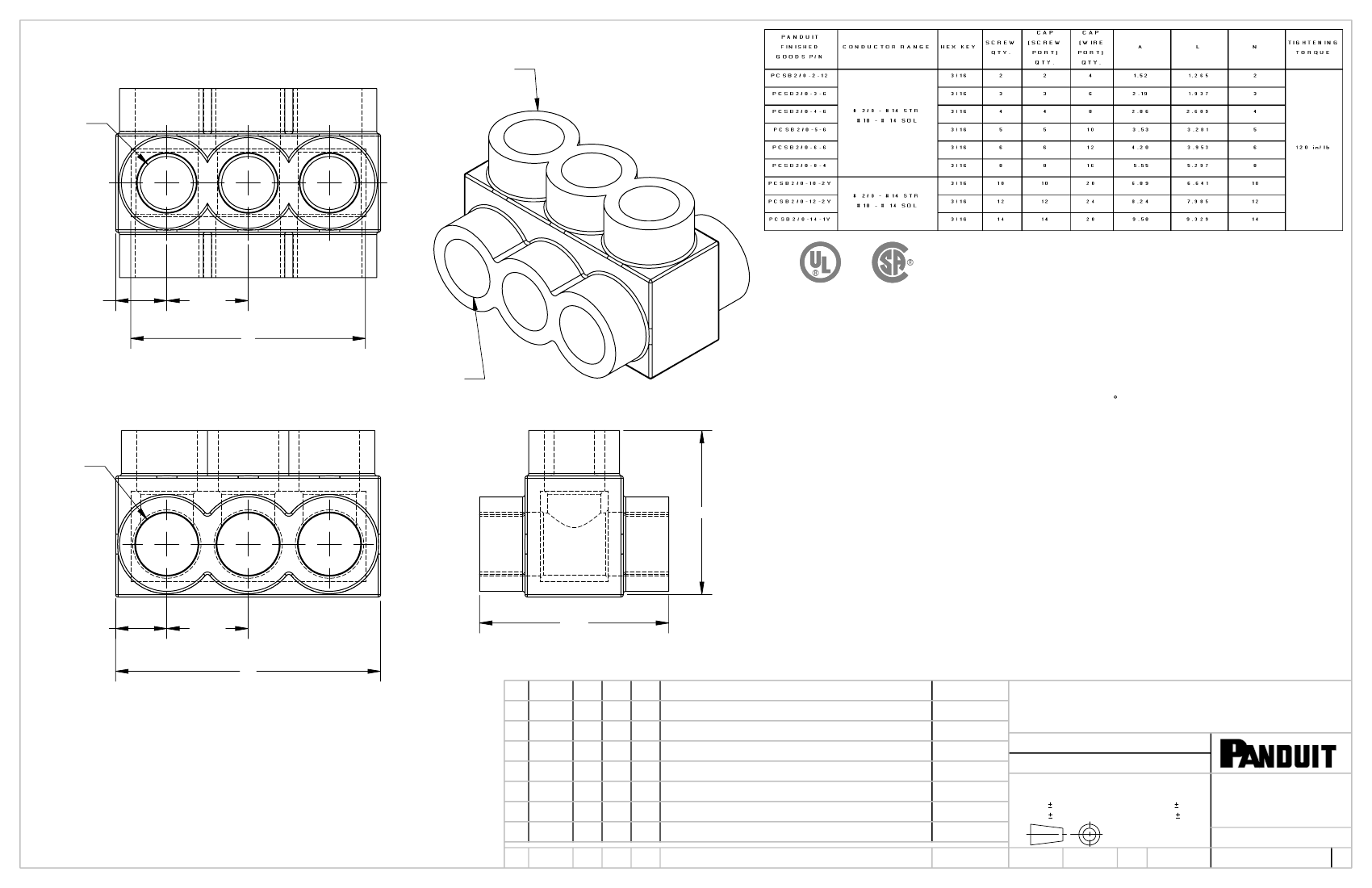

TITLE

MULTI-TAP INSULATED CONNECTORS

PCSB 2/0 SERIES

CUSTOMER DRAWING

N41244BB-C41244/09

C41244/09.SLDDRW

MATERIAL

ITEM REVISION NAME

DATASET FILE NAME

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE: IN [mm]

.XXX

.XX

.02

ANGLES

2/13

JHNU JHNU RGB

REVISED TITLE BLOCK

N41244BB-C41244

SEE NOTES

DRAWING NUMBER

THIRD ANGLE

PROJECTION

DRAWN BY

C41244_09

SIZE

REV

DATE

CHK APR

DESCRIPTION

ECN

DATE

8/99

CHK

RLS

SCALE

NONE

SHEET 1 0F 1
