502386-0971 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 502386-0971

502386-0971: DescriptionHeaders & Wire Housings 1.25CLIKMATE PCB REC SR RA GLD PLTG 9CKT; CategoryThe connector; File Size41KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

502386-0971 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	502386-0971	-	-	View	Buy Now

502386-0971 Overview

Headers & Wire Housings 1.25CLIKMATE PCB REC SR RA GLD PLTG 9CKT

502386-0971 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Headers & Wire Housings
RoHS	Details
Number of Positions	9 Position
Pitch	1.25 mm
Number of Rows	1 Row
Packaging	Reel
Factory Pack Quantity	1200
Unit Weight	0.014716 oz

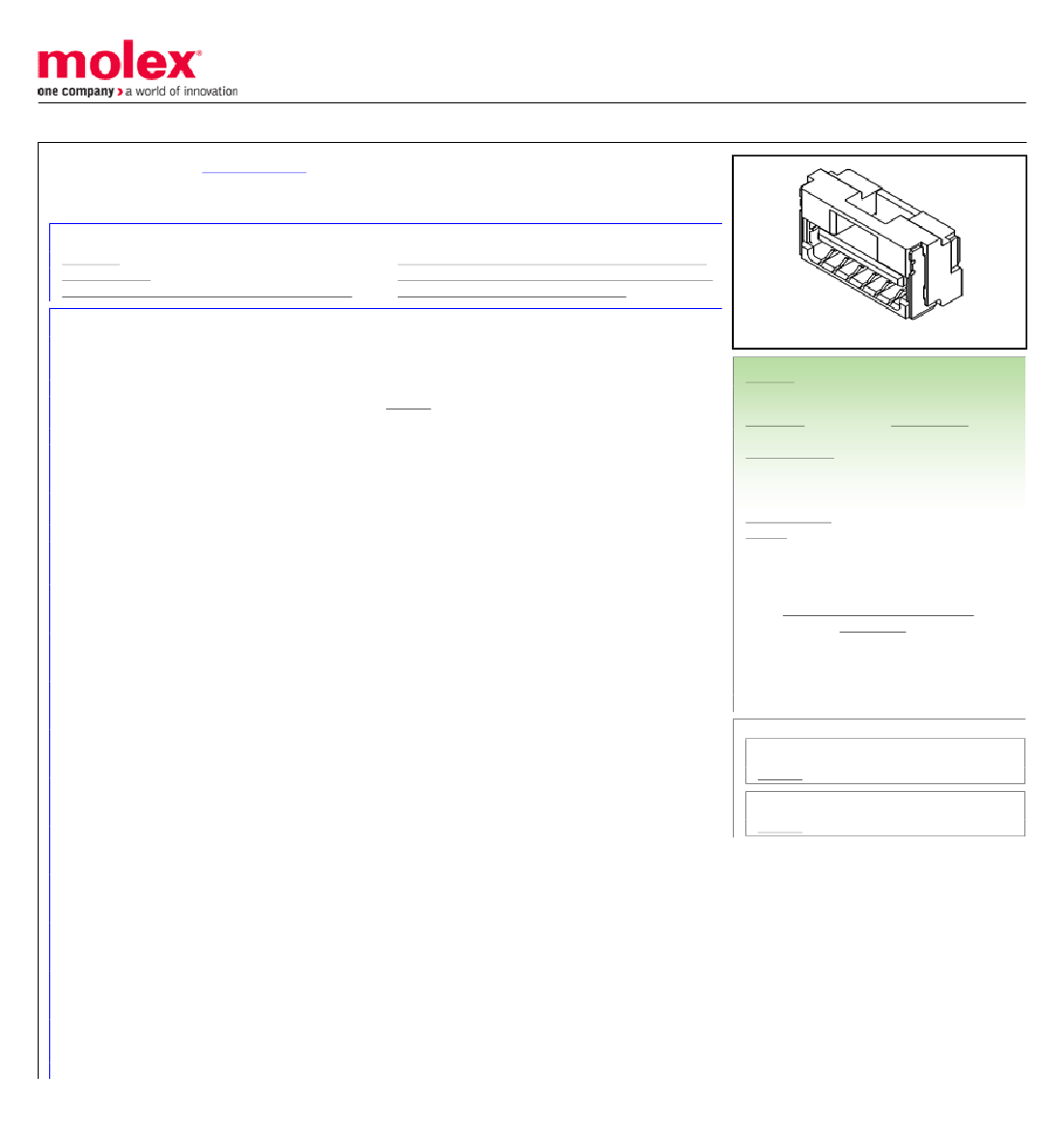

Preview

Download Datasheet

View All

This document was generated on 03/01/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

5023860570

Active

1.25 W/B Sgl R/A Rec Assy 5CktEmbsTpPkg

Documents:

3D Model

Drawing (PDF)

Product Specification PS-502382-001-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Data Load Status

Doc Info - Component

Application Specification AS-502380-002-001 (PDF)

Packaging Specification SPK-502386-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

E29179

PCB Receptacles

502386

Signal, Wire-to-Board

Collected FY08-Verified FY08

E-502386-001_A, E-502386-003_A, PS-502382-001_C,

RPS-502382-003_A, SD-502386-001_B,

SD-502386-003_B, SPK-502386-001_A

5023840509, 5023850028, 5023870028

CLIK-Mate

822350895705

Natural

Yes

5.55mm

Copper Alloy

Tin

High Temperature Thermoplastic

271.601/mg

Right Angle

Yes

Embossed Tape on Reel

1.25mm

1.016µm

Yes

-40°C to +105°C

Surface Mount

1.0A

50V AC (RMS)/DC

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Made From

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Capable

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Search Parts in this Series

502386 Series

Mates With

502380 CLIK-Mate Housing

502386-0971 Related Products

	502386-0971	502386-1371	502386-1171	502386-0871	502386-1271	502386-0570
Description	Headers & Wire Housings 1.25CLIKMATE PCB REC SR RA GLD PLTG 9CKT	Headers & Wire Housings 1.25CLIKMATE PCB REC SR RA GLD PLTG 13CKT	Headers & Wire Housings 1.25CLIKMATE PCB REC SR RA GLD PLTG 11CKT	Headers & Wire Housings 1.25CLIKMATE PCB REC SR RA GLD PLTG 8CKT	Headers & Wire Housings 1.25CLIKMATE PCB REC SR RA GLD PLTG 12CKT	Headers & Wire Housings 5P CLIKMATE RECPT RIGHT ANGLE TIN
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	-
Manufacturer	Molex	Molex	Molex	Molex	Molex	-
Product Category	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings	-
RoHS	Details	Details	Details	Details	Details	-
Number of Positions	9 Position	13 Position	11 Position	8 Position	-	-
Pitch	1.25 mm	1.25 mm	1.25 mm	1.25 mm	-	-
Number of Rows	1 Row	1 Row	1 Row	1 Row	-	-
Packaging	Reel	Reel	Reel	Reel	Reel	-
Factory Pack Quantity	1200	1200	1200	1200	1200	-
Unit Weight	0.014716 oz	0.019852 oz	0.017284 oz	0.013432 oz	0.018544 oz	-

Recommended Resources
