BP/HFB Overview

Fuse Holder BUSS FUSEHOLDER

BP/HFB Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Eaton
Product Category	Fuse Holder
RoHS	N
Product	Fuse Holders
Mounting Style	In-Line
Number of Poles	1 Pole
Current Rating	30 A
Voltage Rating	32 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 150 C
Packaging	Blister Card
Color	White
Illumination	Not Illuminated
Factory Pack Quantity	5
Unit Weight	1.120000 oz

Preview

Download Datasheet

View All

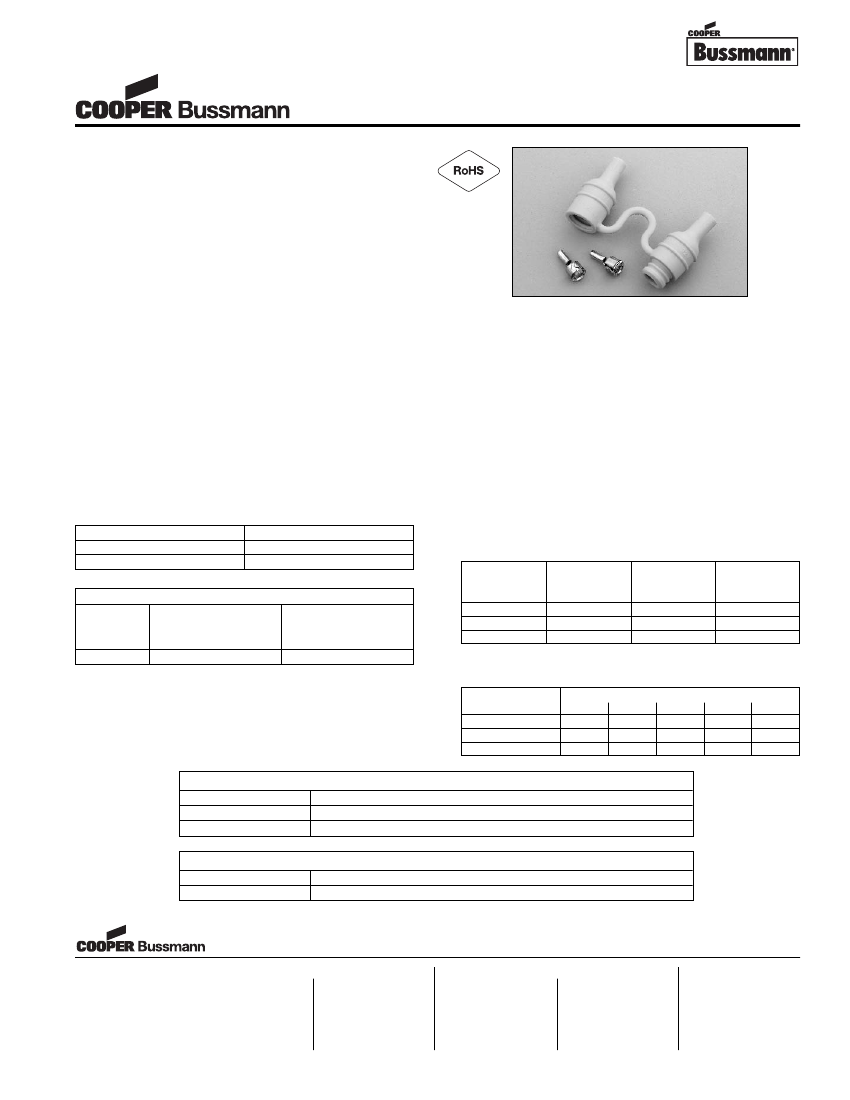

1/4" x 1-1/4" Fuse Holders

HFB In-Line Water-Resistant Series

Description

• For 1/4" x 1-1/4" (6.35mm x 31.8mm) fuses

• Ideal for harsh environments

• Water

• Salt Spray

• Ultraviolet Light

• Ozone

• -40° to 150°C temperature range

• Withstands many organic solvents

and rigorous shock and vibration

• Accepts #18 to #12 AWG copper wire

• High visibility yellow color

• Recommended crimp tools:

• Thomas & Betts – WT-112M

• California Terminal Products No. 1250

• Channelock No. 909

• Replacement contact clip: BK/1A2294

• UL flammability rating 94 HB

Ordering

• Specify packaging, product, and option code

Component

Body

Crimp

Material

Thermoplastic Rubber

Copper Tin-Plated

Environmental Data

• Temperature Rating (RTI): 100°C

• Water-resistant

• Vibration Resistance: Per MIL STD 810C

• Humidity: 85°C/85% relative humidity for 96 hours

• Brittle Point: Less than -60°C

• Abrasion: 54% NBS index

• Fluid resistance: Type and Class AA, BA, BC, BE, CA,

CE per ASTM D-2000 Standard Classification System

for rubbers

• Flame Resistance: Pass FMVSS302 and related slow

burning when tested in accordance with UL 94HB

• Ozone Resistance: Passed 70 Hours in 50 ppm ozone

per ASTM D-5

• Salt Spray: 15% for 166 hours = 0% volume swell

• Xenon Arc Weatherometer

Time

(Hrs)

500

1000

Tensile

Strength

(psi)

1100

1130

1190

Elong.

(%)

375

350

100%

Mod.

(psi)

470

520

SPECIFICATIONS

Product

Code

HFB

Voltage

Rating

32V

Current

Rating

30A

• Heat Aging (% Retention of Mechanical

Properties at 125°C)

Parameters

Tensile Strength

% Elongation

100% Mod.

100

105

110

Days

115

120

41.7

120

PACKAGING CODE

Packaging Code

Blank

Description

10 pieces of fuseholders packed into a carton

100 pieces of fuseholders packed into a poly bag

OPTION CODE

Option Code

-R

Description

RoHS compliant version

Visit us on the web at:

www.cooperbussmann.com

2102 1111

North America

Cooper Electronic Technologies Cooper Bussmann

1225 Broken Sound Parkway NW P.O. Box 14460

St. Louis, MO 63178-4460

Suite F

Tel: 1-636-394-2877

Boca Raton, FL 33487-3533

Fax: 1-800-544-2570

Tel: 1-561-998-4100

Fax: 1-561-241-6640

Toll Free: 1-888-414-2645

Europe

Cooper Electronic Technologies Cooper Electronic Technologies

Avda. Santa Eulalia, 290

Cooper (UK) Limited

08223

Burton-on-the-Wolds

Terrassa, (Barcelona), Spain

Leicestershire • LE12 5TH UK

Tel: +34 937 362 812

Tel: +44 (0) 1509 882 737

+34 937 362 813

Fax: +44 (0) 1509 882 786

Fax: +34 937 362 719

Asia Pacific

Cooper Electronic Technologies

1 Jalan Kilang Timor

#06-01 Pacific Tech Centre

Singapore 159303

Tel: +65 278 6151

Fax: +65 270 4160
