Technical Data 2158
Effective December 2016
Supersedes January 2013
DIN-Rail mount BNC connector data signal surge protective
devices for coaxial cable systems
Common applications include protecting outdoor
video surveillance systems or video control
centers or coaxial data lines. For BSPD5BNCDI,
the cable shield is indirectly grounded via a gas
discharge tube to avoid being influenced by
leakage pickups.
Agency information
•
•
UL
®
497B Listed
RoHS compliant
Features:
Plug-in surge protective device for easy retrofitting
•
The space-saving surge arrester with BNC
socket is mounted on supplied rail terminal lug
or standard 35mm DIN-Rail
Integrated direct or indirect shield grounding
avoids leakage pickups
Easily adaptable due to BNC sockets
•
•
Catalog numbers:
•
•
Dimensions — mm
19.00
12.70

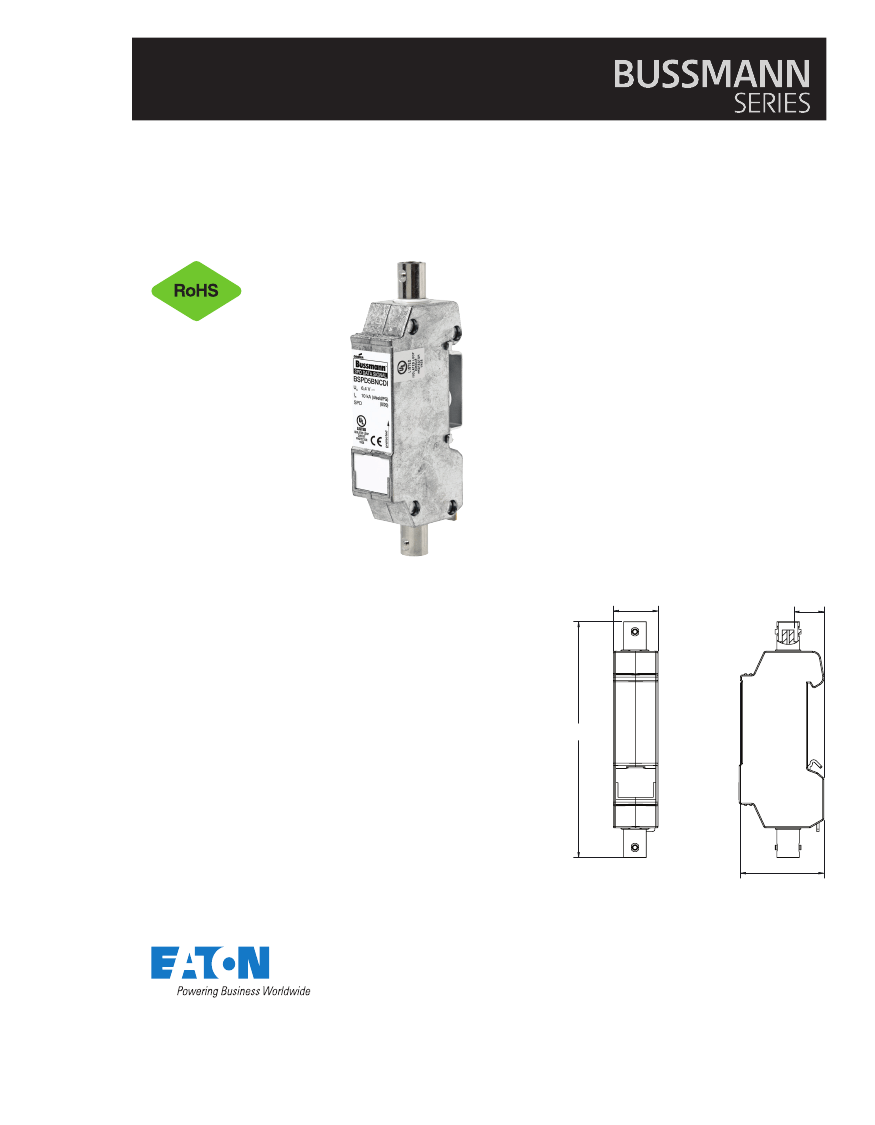

BSPD5BNCDD
BSPD5BNCDI
Description:
The Bussmann™ series BSPD5BNCDD and
BSPD5BNCDI two-stage DIN-Rail mounted
surge arresters are for protecting coaxial cable-
connected systems (such as video and camera
systems) from potential damage.
The BSPD5BNCDD features direct (VCD) shield
connection while the BSPD5BNCDI features
indirect shield connection (VCID) to prevent
leakage pickups.
The BSPD5BNCDD and BSPD5BNCDI shielded
surge arresters are mounted on the supplied
bracket with cable lug or mounted on a rack-
mounted DIN-Rail with suitable grounding.
BNC connector terminated data or video signal
cables are plugged into surge arrester with the
equipment plugged into the protected side.
100.08
35.50
Technical Data
Effective December 2016
DIN-Rail mount BNC connector data signal surge protective devices for
coaxial cable systems

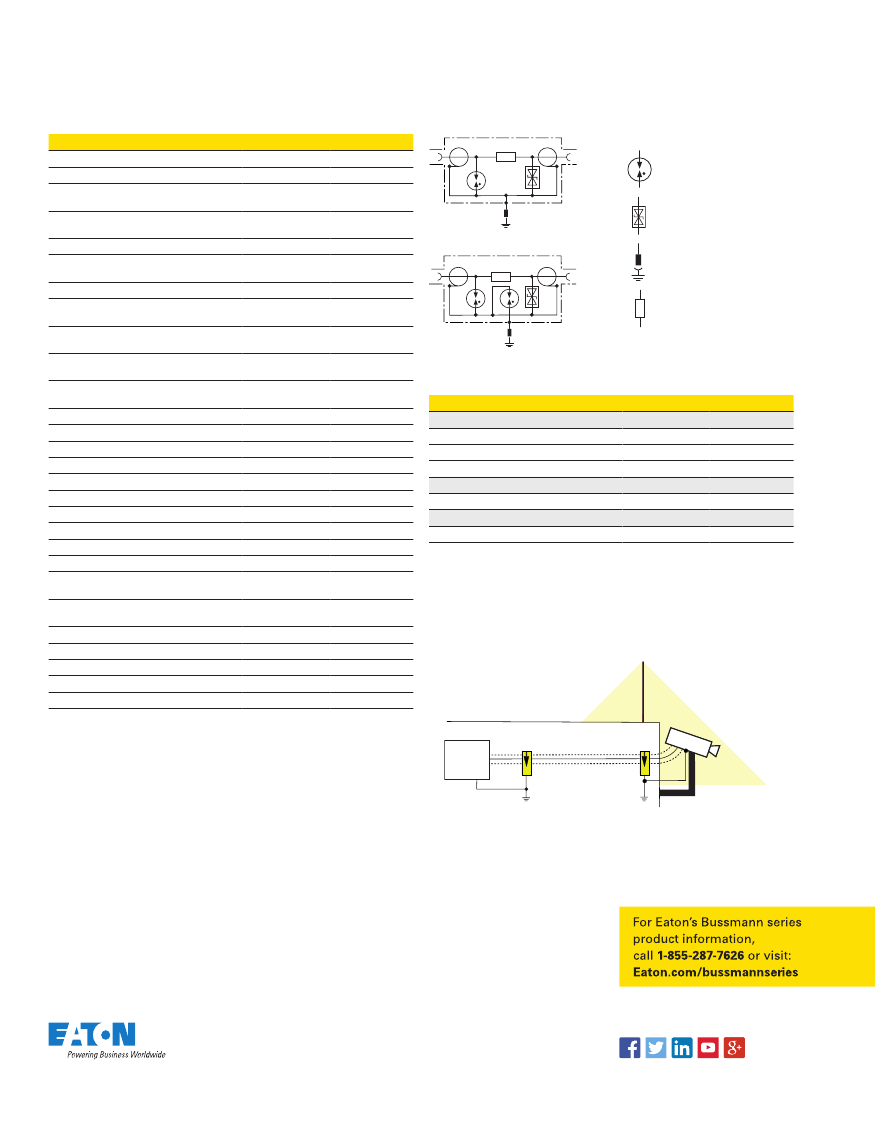

Circuit diagrams
BSPD5BNCDI
≥10
dB
≤20pF
≤650
V
≤600
V
5V
6.4 V
0.1 A
10 kA
5 kA
≤35
V
≤13
V
0-300 MHz
≤0.4
dB
≤3
dB
≥20
dB
50
Ω
4.7
Ω
≤25
pF
-40°C to +80°C
IP10
35mm DIN-Rails per EN 60715
BNC Socket (female) / BNC
Socket (female)
Via 35 mm DIN-Rail per EN
60715
Zinc die casting
Bare surface
IEC 61643-21 / EN 61643-21
UL 497B
5 Years*
Bi-polar suppressor diode
Protected
side
Catalog numbers and specifications
Catalog numbers
Return loss at 300 MHz
Capacitance shield-PG (C)
Voltage protection level shield-PG for
In C2 (U
p
)
Voltage protection level shield-PG at
1 kV/µs C3 (U
p
)
Nominal voltage (U
N
)
Max. continuous operating DC
voltage (U
C
)
Nominal current (I
L
)
C2 Nominal discharge current (8/20
µs) shield-PG (I
n
)
C2 Nominal discharge current (8/20
µs) line-shield (I
n
)
Voltage protection level line-shield for
In C2 (U
p
)
Voltage protection level line-shield at
1 kV/µs C3 (U
p
)
Frequency range
Insertion loss at 160 MHz
Insertion loss at 300 MHz
Return loss at 130 MHz
Impedance (Z)
Series impedance per line
Capacitance line-shield (C)
Operating temperature range
Degree of protection
For mounting on
Connection (input / output)
Grounding
Enclosure material
Color
Test standards
Agency Information
Warranty
BSPD5BNCDD
≥8
dB
—
—
—
Gas discharge tube
Direct shield BSPD5BNCDD
Pluggable earthing contact
Protected
side
Decoupling resistor
Indirect shield BSPD5BNCDI
DIN-Rail BNC SPD applications
Catalog numbers
BSPD5BNCDD
Bus systems and measuring, and control technology
Control Net
X
Melsec Net 2
X
N1 LAN
X
Data networks
Arcnet
X
Video systems
Video (coax)
X
BSPD5BNCDI
X
X
X
X
X
Direct vs. indirect shielding - example
Apply the BSPD5BNCDD (direct shield) at the equipment location
and apply the BSPD5BNCDI (indirect shield) near exterior protected
equipment. The indirect shield grounding at the exterior device
will help avoid picking up leakage currents that can degrade
signal quality while providing surge protection when needed. See
illustration below for installation locations.
* See Bussmann SPD Limited Warranty Statement (3A1502) for details at
www.cooperbussmann.com/Surge.
Video
system
Cam
protected
side
era
coaxial cable
protected
side
BSPD5BNCDD
Direct Shield SPD
BSPD5BNCDI
Indirect Shield SPD
