Part Number

Search

3414.0115.22

Description
Surface Mount Fuses USF 0402 FUSE 1A
CategoryCircuit protection    Circuit protection
File Size873KB,3 Pages
ManufacturerSCHURTER
Websitehttp://www.schurterinc.com/
Environmental Compliance
Download Datasheet Parametric View All

3414.0115.22 Overview

Surface Mount Fuses USF 0402 FUSE 1A

3414.0115.22 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSCHURTER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time12 weeks
Other featuresRATED BREAKING CAPACITY AT 32 VDC: 35A; JOULE-INTEGRAL-NOM AT 32 VDC: 0.016
Fusing characteristicsSUPER FAST
body width0.55 mm
body height0.48 mm
Body length or diameter1.05 mm
Circuit protection typeELECTRIC FUSE
JESD-609 codee4
Joule integral nominal
Installation featuresSURFACE MOUNT
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
method of packingBLISTER TAPE AND REEL
physical size1.05mm x 0.55mm x 0.48mm
Pre-discharge rating0.016 A2/s
Pre-discharge time - minutes5000 ms
Rated breaking capacity35 A
Rated current1 A
Rated voltage32 V
Rated voltage (DC)32 V
GuidelineCCC; CSA; CUL; UL
surface mountYES
Terminal surfaceGold (Au)
Terminal shapeWRAPAROUND
Base Number Matches1
Fuses
https://www.schurter.com /PG01_2
USF 0402
Surface Mount Fuse, 1.05 x 0.55 mm, Super-Quick-Acting FF, 32 VDC
UL 248-14 · 32 VDC · Super-Quick-Acting FF
Description
-
-
-
-
See below:
Approvals and Compliances
Applications
-
-
-
-
Secondary Protection
Circuits without inrush
Semiconductor protection
Digital Consumer Electronics
UL characteristic
Low melting I²t-values, fast interruption
Marking optional
Impermeable to potting compound
Unique Selling Proposition
- Space constrained applications
References
Weblinks
Packaging Details
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Distributor-Stock-Check, Detailed request for product, Microsite
Technical Data
Rated Voltage
Rated current
Breaking Capacity
Characteristic
Mounting
Admissible Ambient Air Temp.
Climatic Category
Material: Housing
Material: Terminals
Unit Weight
Storage Conditions
Product Marking
32 VDC
0.25 - 5 A
35 A
Super-Quick-Acting FF
PCB,SMT
-55 °C to 90 °C
55/125/21 acc. to IEC 60068-1
Thermoset
Gold-Plated Copper Alloy
0.004 g
0 °C to 60 °C, max. 70% r.h.

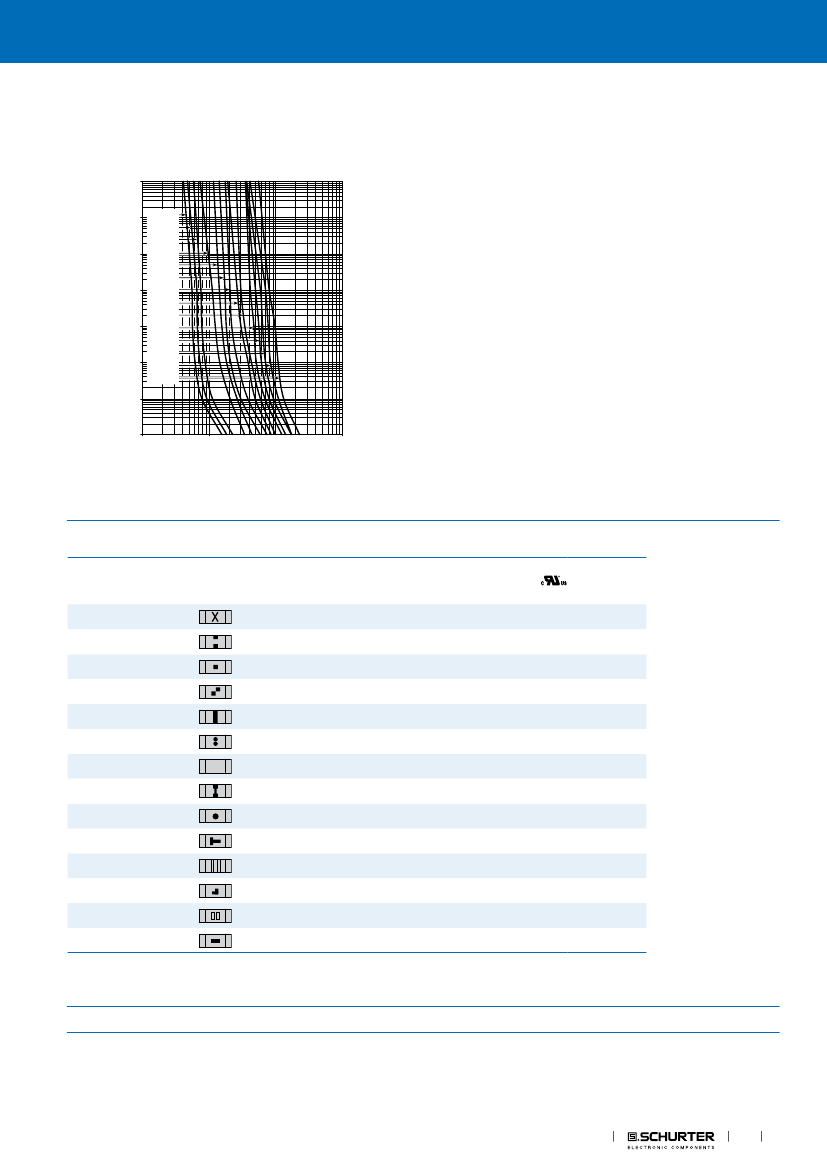

see table of variants
Soldering Methods
Solderability
Resistance to Soldering Heat
Moisture Resistance Test
Terminal Strength
Case Resistance
Resistance to Solvents
Flammability
Reflow
Soldering Profile
245 °C / 3 sec acc. to IEC 60068-2-58,
Test Td
260 +0/-5 °C / 30 sec acc. to IPC/JE-
DEC J-STD-020D, Level 1
MIL-STD-202, Method 106E
(50 cycles in a temp./mister chamber)
MIL-STD-202, Method 211A
(Deflection of board 1 mm for 1 minute)
acc. to EIA/IS-722, Test 4.7
>100 MΩ (between leeds and body)
MIL-STD-202, Method 215A
min. UL 94V-1
(acc. to EIA/IS-722, Test 4.12)
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: USF 0402
Approval Logo
Certificates
UL Approvals
CSA Approvals
Certification Body
UL
CSA
Description
UL File Number: E41599
CSA Certification Record: 248899
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Standard
UL 248-14
CSA22.2 No. 248.14
Description
Low voltage fuses - Part 14: Additional fuses
Low-Voltage Fuses - Part 14: Supplemental Fuses
