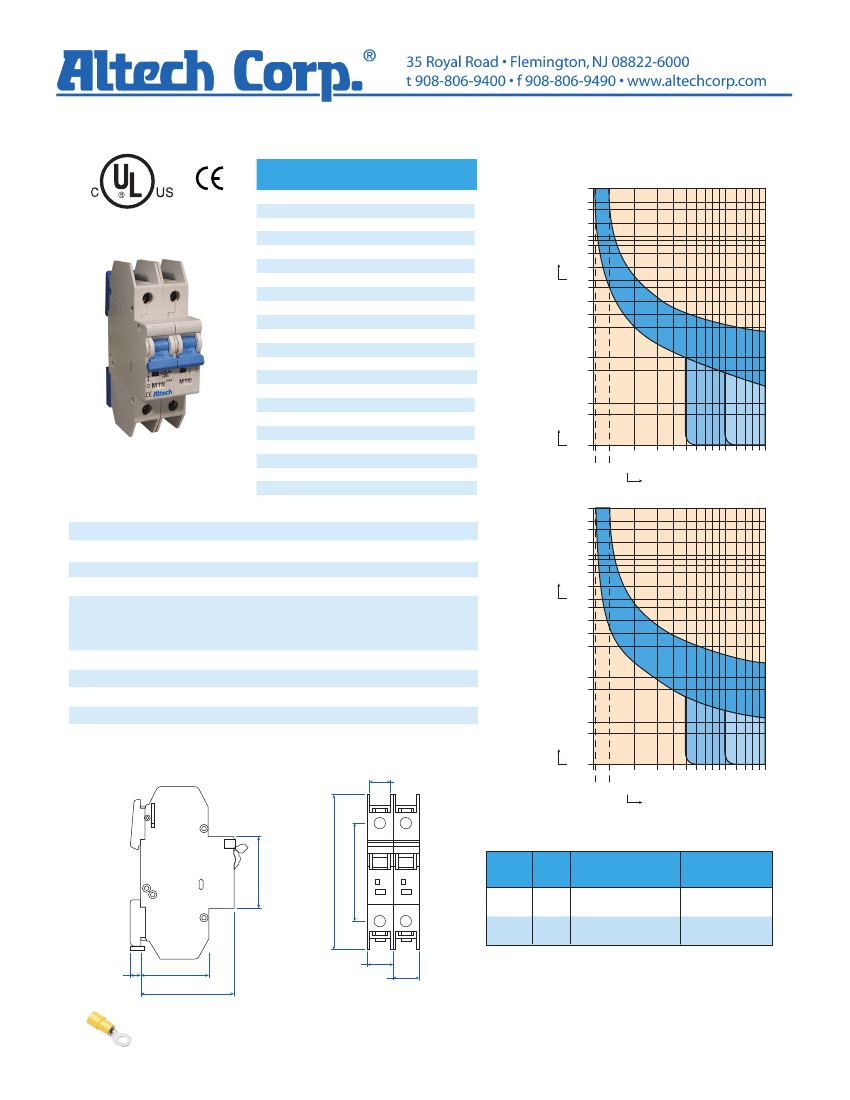

L-Series - UL489 Miniature Molded Case Circuit Breaker -
2 pole C-Trip /
DC
Rated
Current
0.2A
0.5A
1.0A
1.6A
2.0A
3.0A
4.0A
5.0A
6.0A
8.0A
10A
12A
13A
15A
16A
20A
25A
30A
32A
40A
50A
60A
63A
Type/
Cat. No.
DC2CU02L
DC2CU05L
DC2CU1L
DC2CU1.6L
DC2CU2L
DC2CU3L
DC2CU4L
DC2CU5L
DC2CU6L
DC2CU8L
DC2CU10L
DC2CU12L
DC2CU13L
DC2CU15L
DC2CU16L
DC2CU20L
DC2CU25L
DC2CU30L
DC2CU32L
DC2CU40L
DC2CU50L
DC2CU60L
DC2CU63L
C and D Trip, Less than 10A
120
60
40
20
Minutes
LISTED
E305318
10
8
6
4
2
1
40
20
10
5
Tripping time t
1
0.5
Seconds
0.05
0.1
Two Pole
Standard Pack:
4
Weight:
1.7kg (3.74 lb.)
0.01
C
1
2
3
4
Multiple of Rated Current
D
5 6 7 8 9 10 12 14 16 20
1.05 1.3
C and D Trip, 10A and higher
7200
3600
2400
1200
Minutes
Tripping time t
DC Version Current/ Voltage Rating
0.2-63A/125/250VDC
Calibration Temperature
Operating Temperature
Storage Temperature
Terminal Size Acceptability:
Solid Wire
Stranded Wire
Terminal Torque
Terminal Protection Degree
Electrical Life
Mechanical Life
Wire Connection
18 AWG -10 AWG
18 AWG -6 AWG
2.8 Nm (25 lb-in.)
IP20
6000 cycles on/off
Seconds
40°C (104°F)
-25° to 60°C (-13° to 140°F)
-25° to 75°C (-13° to 167°F)
600
480
360
240
120
60
40
20
10
5
1
0.5
100000 cycles on/off
copper wire only 60/75°C
0.05
0.1
0.01
C
1
2
3
4
Multiple of Rated Current
D
14.5mm (0.57 in.)
5 6 7 8 9 10 12 14 16 20
1.05 1.3
109mm (4.29 in.)
45mm (1.77 in.)
69mm (2.72 in.)
DC
- short CirCuit interruptinG ratinG
No.
Poles
1
2
Type
DC
DC
0.2-32A
10kA@125V
10kA@250V
33-63A
10kA@125V
10kA@250V
6.5mm
(0.26 in.)
17.5mm (0.69 in.)
44mm (1.73 in.)
60mm (2.36 in.)
35mm (1.38 in.)
For ring tongue terminal version, replace “U” with “R” in part number. For example
1CR20L
instead of
1CU20L.
