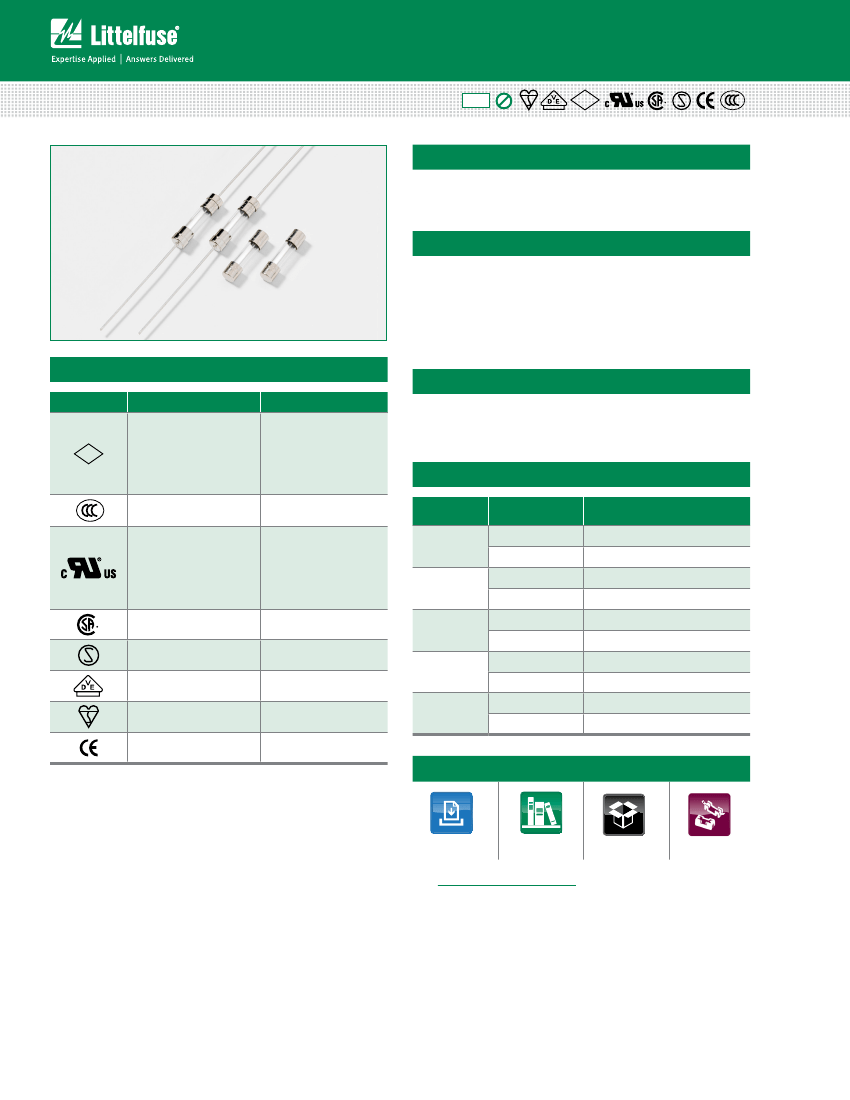

Axial Lead & Cartridge Fuses
5×20 mm > Time-Lag > 219XA Series
219XA Series, 5×20mm, Time-Lag Fuse
RoHS
Pb
PS
E
Description
5×20mm time-Lag glass body cartridge fuse designed to
IEC specification.
Features
• Designed to International
IEC Standards for use
globally
• Meets the IEC 60127-2,
Sheet 6 specification for
time-Lag fuses
Agency Approvals
Agency
Agency File Number
Ampere Range
• Available in cartridge and
axial lead form
• RoHS compliant and
lead-free
Applications
Used as supplementary protection in appliance or
utilization equipment to provide individual protection for
components or internal circuits.
Electrical Characteristics for Series
% of Ampere
Rating
150%
Ampere Rating
0.04A - 0.1A
0.125A – 6.3A
0.04A - 0.1A
0.125A – 6.3A
0.04A - 0.1A
0.125A – 6.3A
0.04A - 0.1A
0.125A – 6.3A
0.04A - 0.1A
0.125A – 6.3A
Opening Time
1 hours, Minimum
1 hours, Minimum
2 minutes, Maximum
2 minutes, Maximum
0.2 sec., Min; 10 sec. Max
0.6 sec., Min; 10 sec. Max
0.04 sec., Min; 3 sec. Max
.15 sec., Min; 3 sec. Max
.01 sec., Min; 0.3 sec. Max
.02 sec., Min; 0.3 sec. Max
PS
E
Cartridge:
NBK220604-E10480A
NBK120802-E10480C
Leaded:
NBK220604-E10480B
NBK120802-E10480D
2004010207110266
2003010207079982
1A – 5A
6.3A
1A – 5A
6.3A
0.125A – 0.800A
1A – 6.3A
E10480
0.040A – 6.3A
210%
29862
1402844
40016080
KM41462
N/A
0.125A – 6.3A
0.040A – 6.3A
275%
400%
0.040A – 6.3A
0.125A – 6.3A
0.040A – 6.3A
1000%
Additional Information
Datasheet
Resources
Samples
Accessories
For recommended fuse accessories for this product series,
see ‘Recommended
Accessories’
section.
© 2017 Littelfuse, Inc.
Application testing is strongly recommended. Specifications are subject to change without notice.
Revised: 05/08/17
Axial Lead & Cartridge Fuses
5×20 mm > Time-Lag > 219XA Series
Electrical Characteristic Specifications by Item
Nominal
Amp Voltage
Amp
Interrupting
Cold
Rating Rating
Code
Rating
Resistance
(A)
(V)
(Ohms)
.040
.050
.063
.100
.125
.160
.200
.250
.315
.400
.500
.630
.800
001.
1.25
01.6
002.
02.5
3.15
004.
005.
06.3
0.040
0.050
0.063
0.100
0.125
0.160
0.200
0.250
0.315
0.400
0.500
0.630
0.800
1.00
1.25
1.60
2.00
2.50
3.15
4.00
5.00
6.3
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
150A @
250VAC
31.8620
21.2920
14.2685
6.0180
4.2000
2.5500
1.6000
1.0495
0.8475
0.5350
0.3700
0.2750
0.1635
0.1165
0.0817
0.0551
0.0452
0.0305
0.0231
0.0158
0.0117
0.0107
Nominal
Melting
I
2
t
(A
2
sec)
0.01640
0.01700
0.03800
0.07900
0.13000
0.31000
0.32000
0.54000
1.23000
1.40000
3.00000
4.82000
9.35000
19.20000
27
.15000
44.20000
92.70500
138.00000
202.00000
330.00000
544.00000
1093.03500
Maximum Maximum
Voltage Drop
Power
at Rated
Dissipation
Current
at 1.5ln
(mV)
(W)
4000
3500
3000
2500
2000
1900
1500
1300
1100
1000
900
300
250
150
150
150
150
120
100
100
100
100
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
Agency Approvals
PS
E
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
*4A-6.3A have an Interrupting rating 100A@350Vac.
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/08/17
Axial Lead & Cartridge Fuses
5×20 mm > Time-Lag > 219XA Series

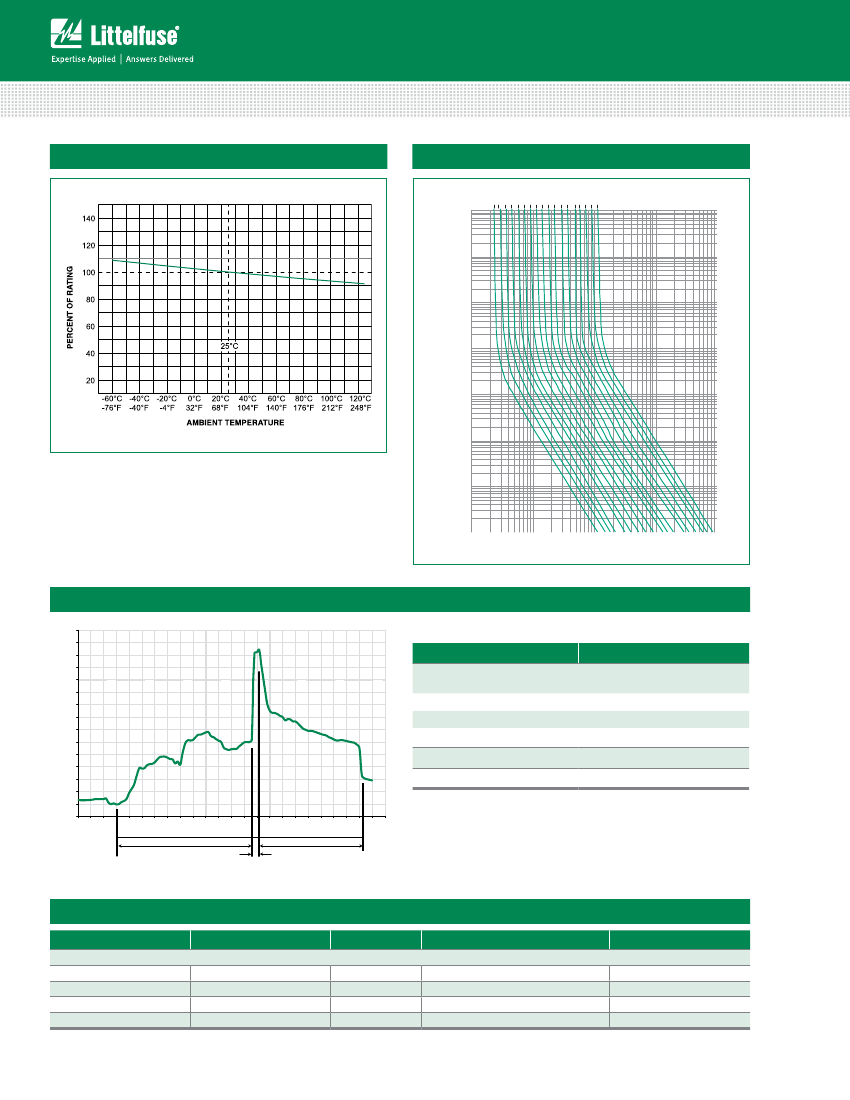

Temperature Re-rating Curve
Average Time Current Curves
0.125A
0.160A
0.200A
0.250A
0.315A
0.400A
0.500A
0.630A
0.800A
1A
1.25A
1.6A
2A
10000
1000
100
TIME IN SECONDS
10
1
0.1
0.01
0.001
0.1
1
10
CURRENT IN AMPERES
100
1000
2.5A
3.15A
4A
5A
6.3A
Soldering Parameters - Wave Soldering
300
Recommended Process Parameters:
Wave Parameter
Preheat:
(Depends on Flux Activation Temperature)
(Typical Industry Recommendation)
Temperature (°C) - Measured on bottom side of board
280
260
240
220
200
180
160
140
120
100
80
60
40
20
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
10
20
30
40
50
60
70
80
90
0
0
Lead-Free Recommendation
Temperature Minimum:
Temperature Maximum:
Preheat Time:
Solder Pot Temperature:
Solder Dwell Time:
100
°
C
150
°
C
60-180 seconds
260
°
C Maximum
2-5 seconds
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350°C +/- 5°C
Heating Time: 5 seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
Time (Seconds)
Preheat Time
Dwell Time
Cooling Time
Packaging
Packaging Option
219XA Series
Bulk
Bulk
Reel and Tape
Bulk
Packaging Specification
N/A
N/A
EIA 296-E
N/A
Quantity
1000
1000
1000
1000
Quantity & Packaging Code
MXA
MXAE
MRAET1
MXG
Taping Width
N/A
N/A
T1=53mm (2.087”)
N/A
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/08/17
Axial Lead & Cartridge Fuses
5×20 mm > Time-Lag > 219XA Series
Product Characteristics
Materials
Terminal
Strength
Solderability
Product Marking
Packaging
Body: Glass
Cap: Nickel Plated Brass
Leads: Tin Plated Copper
MIL-STD-202, Method 211.
Test Condition A
MIL-STD-202 Method 208
Cap 1: Brand logo, current and voltage rating
Cap 2: Agency approval markings Series
Available in Bulk (M=1000 pcs/pkg) or on
Tape/Reel (MRET1=1000 pcs/reel)
Operating
Temperature
Shock
Vibration
Humidity
Salt Spray
–55ºC to +125ºC
MIL
-STD-202, Method 107 Test Condition B: (5
,
cycles –65
O
C to +125
O
C)
MIL
-STD-202, Method 201
MIL
-STD-202, Method 103, Test Condition A
high RH (95%) and elevated temperature (40
O
C) for 240 hours.
MIL
-STD-202 Method 101, Test Condition B
Dimensions
All dimensions in mm
20+0.5
Part Numbering System
0219 xxxx M XA E P
Series
Amp Code
Lead-free
Option Codes
Blank : Cartidge Type Fuse
E
: Axial Leaded Fuse
0219
000XAP
5.1+0.6
5.1+0.6
5.2+0.1
-0.2
0219.040XAEP
to
0219.100XAEP
40±1.0
21.5±1.0
5.6±0.4
Refer to Amp Code column of
Electrical Characteristics Table
Quantity Code
0.65±0.05
40±1.0
21.5±1.0
5.5±0.3
Packaging Code
X = Filler
A = Enhanced l sq t
M = 1000
0219.125XAEP
to
021906.3XAEP
0.65±0.05
Recommended Accessories
Accessory
Type
Series
345_ISF
Holder
345
830
520
Block
646
658
520_W
Clip
111
445
Description
Panel Mount Shock-Safe Fuseholder
Shock-Safe Fuseholder with PC Mount, Solder Mount and Panel Mount options
PC Mount Shock-Safe Miniature Fuseholder
Metric OMNI-BLOK® Fuse Block
PC Mount Miniature Fuse Block
Surface Mount Miniature Fuse Block
PC Mount Miniature Fuse Clip
PC Board Mount Fuse Clip
PC Board Mount Fuse Clip
250
Max
Application
Voltage
Max
Application
Amperage
10
20
16
10
6.3
10
6.3
10
10
Notes:
1. Do not use in applications above rating.
2. Please refer to fuseholder data sheet for specific re-rating information.
3. Please contact factory for applications greater than the max voltage and amperage shown.
Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and
test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications.
Read complete Disclaimer Notice at
www.littelfuse.com/disclaimer-electronics.
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/08/17
