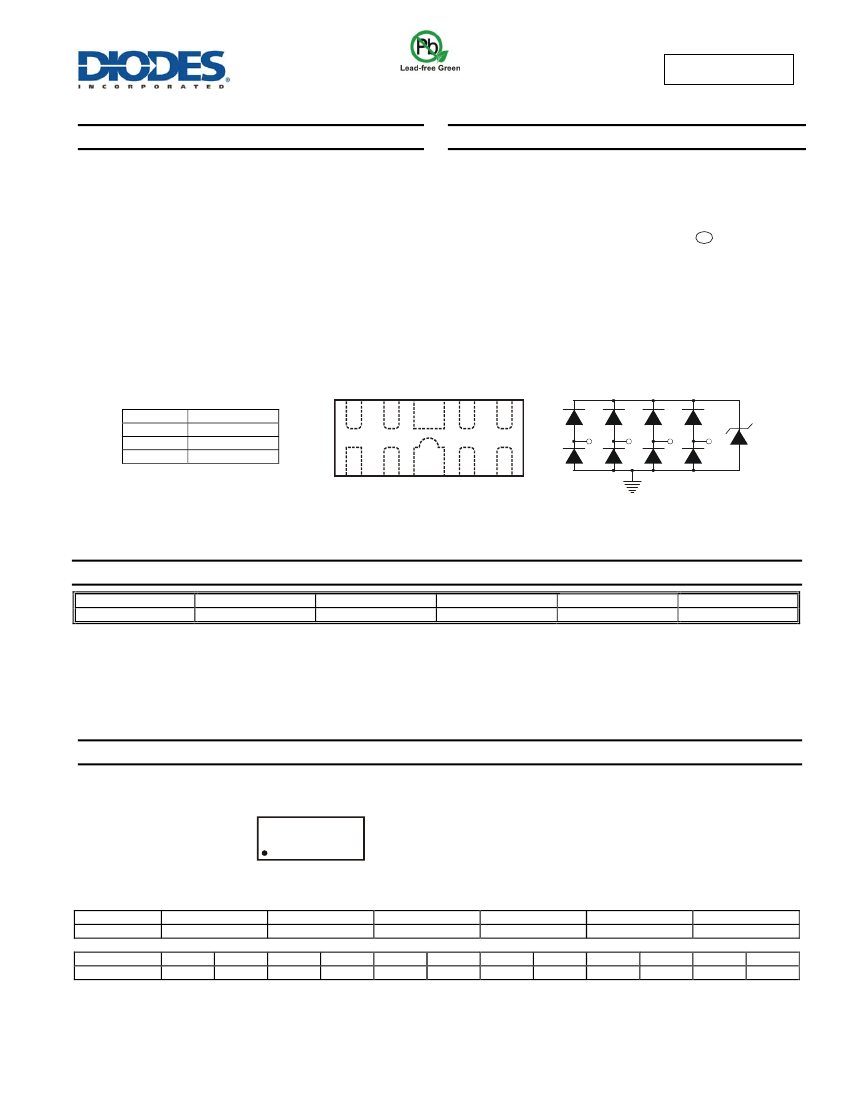

DT1240-04LP
4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
Features & Applications
Clamping Voltage: 9V at 10A 100ns, TLP
9.4V at 5.5A 8μs/20μs
IEC 61000-4-2 (ESD): Air — ±16kV, Contact — ±14kV
IEC 61000-4-5 (Lightning): ±5.5A (8/20µs)
4 Channels of ESD protection
Low Channel Input Capacitance of 0.55pF Typical
TLP Dynamic Resistance: 0.25Ω
Typically Used for High Speed Ports such as USB 2.0, USB 3.0
DVI, HDMI, Ethernet Port, IEEE, MDDI, PCI Express, SATA/
eSATA
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: U-DFN2510-10
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: NiPdAu over Copper leadframe (Lead Free Plating).
Solderable per MIL-STD-202, Method 208
e4
Weight: 0.038 grams (approximate)
ADVANCED INFORMATION
ADVANCE INFORMATIO
Pin #
1, 2, 4, 5
6, 7, 9, 10
3, 8
Description
I/O
No Connection
Vss
10
9
8
7
6
Pin 1
Pin 2
Pin 4
Pin 5
1
2
3
4
5
3,8
Pin Description (Top View)
Device Schematic
Ordering Information
(Note 4)
Product
DT1240-04LP-7
Notes:
Compliance
Standard
Marking
BC7
Reel Size (inches)
7
Tape Width (mm)
8
Quantity per Reel
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
TF2 YM
BC7
BC7 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
Jan
1
2013
A
Feb
2
Mar
3
2014
B
Apr
4
May
5
2015
C
Jun
6
Jul
7
2016
D
Aug
8
Sep
9
2017
E
Oct
O
Nov
N
2018
F
Dec
D
DT1240-04LP
Document number: DS36312 Rev. 2 - 2
1 of 5
www.diodes.com
September 2013
© Diodes Incorporated
DT1240-04LP

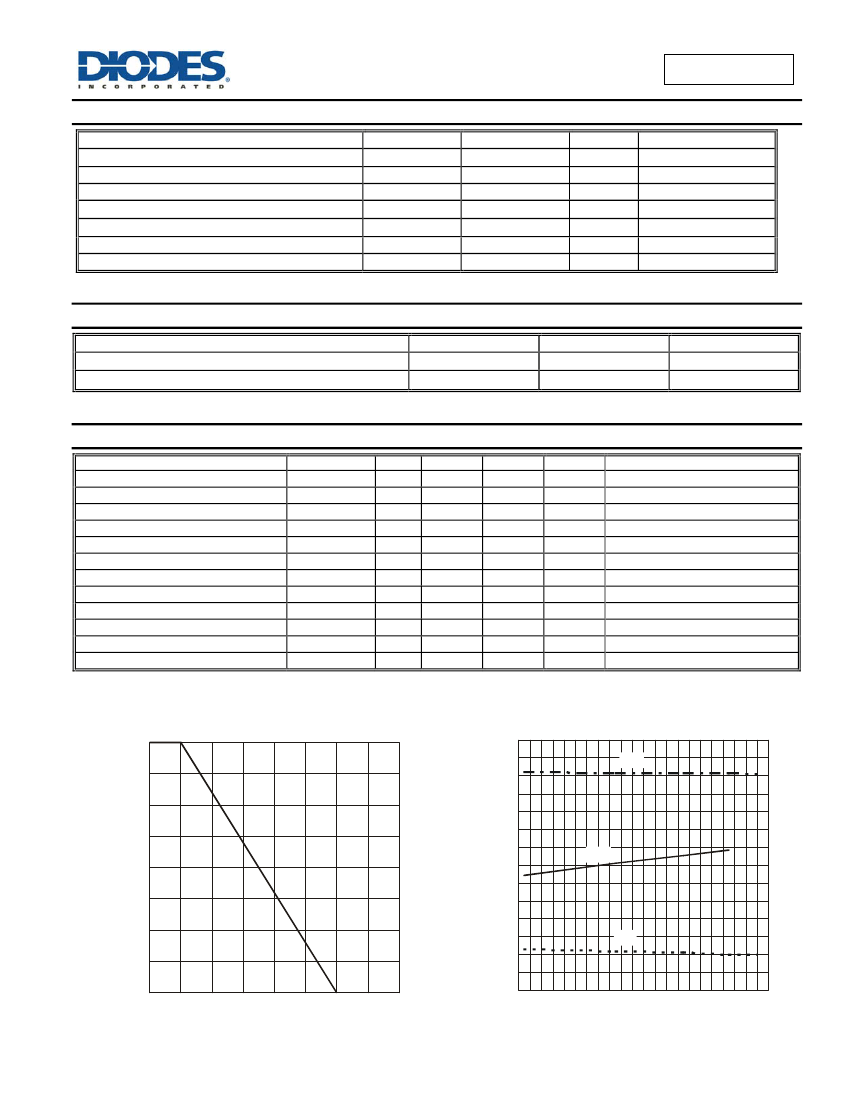

Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Peak Pulse Current, per IEC 61000-4-5
Peak Pulse Power, per IEC 61000-4-5
Operating Voltage (DC)
ESD Protection – Contact Discharge, per IEC 61000-4-2
ESD Protection – Air Discharge, per IEC 61000-4-2
Operating Temperature
Storage Temperature
Symbol
I
PP
P
PP
V
DC
V
ESD_Contact
V
ESD_Air
T
OP
T
STG
Value
5.5
60
6
±14
±16
-55 to +85
-55 to +150
Unit
A
W
V
kV
kV
°C
°C
Conditions
I/O to V
SS
, 8/20µs
I/O to V
SS
, 8/20µs
I/O to V
SS
I/O to V
SS
I/O to V
SS
—
—
ADVANCED INFORMATION
ADVANCE INFORMATIO
Thermal Characteristics
Characteristic
Power Dissipation Typical (Note 5)
Thermal Resistance, Junction to Ambient Typical (Note 5)
Symbol
P
D
R
JA
Value
350
360
Unit
mW
°C/W
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Working Voltage
Reverse Current
Reverse Breakdown Voltage
Forward Clamping Voltage
Holding Voltage
Reverse Clamping Voltage (Note 6)
Trigger Voltage
ESD Clamping Voltage
Dynamic Reverse Resistance
Dynamic Forward Resistance
Channel Input Capacitance (Note7)
Delta C
I/O
Notes:
Symbol
V
RWM
I
R
V
BR
V
F
V
H
V
C
V
TRIG
V
ESD
R
DIF-R
R
DIF-F
C
I/O
C
I/OMAX
-C
I/OMIN
Min
—
—
6
-1.0
5.5
—
—
—
—
—
—
—
Typ
—
—
—
-0.85
—
9.4
—
9
0.25
0.25
0.55
0.04
Max
5.5
0.5
—
—
—
11
9.5
—
—
—
0.65
—
Unit
V
μA
V
V
V
V
V
V
Ω
Ω
pF
pF
Test Conditions
I
R
=1mA, , I/O to V
SS
V
R
= 5V, I/O to V
SS
I
R
= 1mA, I/O to V
SS
I
F
= -15mA, I/O to V
SS
—
I
PP
= 5.5A, I/O to V
SS
, 8/20µs
—
TLP, 10A, tp = 100 ns, I/O to V
SS
TLP, 10A, tp = 100 ns, I/O to V
SS
TLP, 10A, tp = 100 ns, V
SS
to I/O
V
I/O
= 2.5V, V
SS
= 0V, f = 1MHz
C
I/OMAX
-
C
I/OMIN
5. Device mounted on FR-4 PCB pad layout (2oz copper) as shown on Diodes, Inc. suggested pad layout AP02001, which can be found on our website at
http://www.diodes.com.
6. Clamping voltage value is based on an 8x20µs peak pulse current (I
pp
) waveform.
7. C
I/O1
=C
PIN1
+C
PIN10
, C
I/O2
=C
PIN2
+C
PIN9
, C
I/O3
=C
PIN4
+C
PIN7
, C
I/O4
=C
PIN5
+C
PIN6
BREAKDOWN VOLTAGE, TRIGGER VOLTAGE,
HOLDING VOLTAGE (V)
100
9.5
V
TRIG
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
9.0
8.5
8.0
7.5
7.0
V
H
75
BV
50
25
6.5
6.0
-60 -40 -20 0 20 40 60 80 100 120 140 160
T
A
, AMBIENT TEMPERATURE (°C)
Figure 2 BV, Trigger Voltage, Holding Voltage
vs. Ambient Temperature
0
0
25
50
75
100 125 150 175
T
A
, AMBIENT TEMPERATURE (°C)
Figure 1 Pulse Derating Curve
200
DT1240-04LP
Document number: DS36312 Rev. 2 - 2
2 of 5
www.diodes.com
September 2013
© Diodes Incorporated
DT1240-04LP

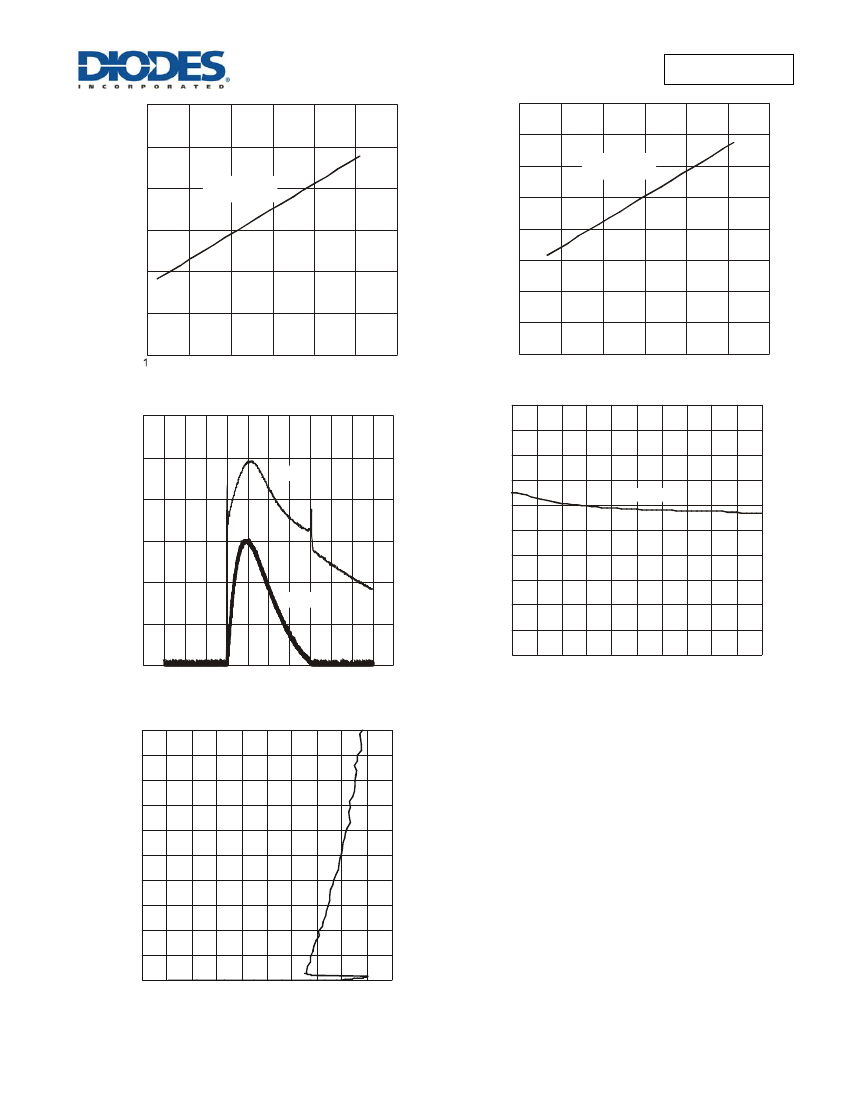

11.0
4.0
3.5
V
F
, FORWARD VOLTAGE (V)
10.0
V
C
, CLAMPING VOLTAGE (V)
IEC61000 - 4- 5
(Lighting)
3.0
2.5
2.0
1.5
1.0
0.5
0.0
IEC61000 - 4- 5
(Lighting)
9.0
ADVANCED INFORMATION
ADVANCE INFORMATIO
8.0
7.0
6.0
5.0
2
3
4
5
6
CURRENT FROM I/O TO V
SS
(A)
Figure 3 Clamping Voltage Characteristic
7
1
2
3
4
5
6
CURRENT FROM V
SS
TO I/O (A)
Figure 4 Forward Voltage Characteristic
7
12
CLAMPING VOLTAGE CURRENT (V, A)
1.0
0.9
C
I/O
INPUT CAPACITANCE (pF)
10
Voltage
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0
V
I/O
INPUT VOLTAGE (V)
Figure 6 Input Capacitance vs. Input Voltage
f=1MHz
8
6
4
Ampere
2
0
-40 -30 -20 -10 0 10 20 30 40 50 60 70 80
t, TIME (
s)
Figure 5
Waveform of Clamping Voltage,
Current vs.Time (8/20us, I/O to Vss)
10
CURRENT FROM I/O to V
SS
(A)
9
8
7
6
5
4
3
2
1
0
0
2
4
6
8
VOLTAGE FROM I/O to V
SS
(V)
Figure 7 Current vs. Voltage
10
DT1240-04LP
Document number: DS36312 Rev. 2 - 2
3 of 5
www.diodes.com
September 2013
© Diodes Incorporated
DT1240-04LP

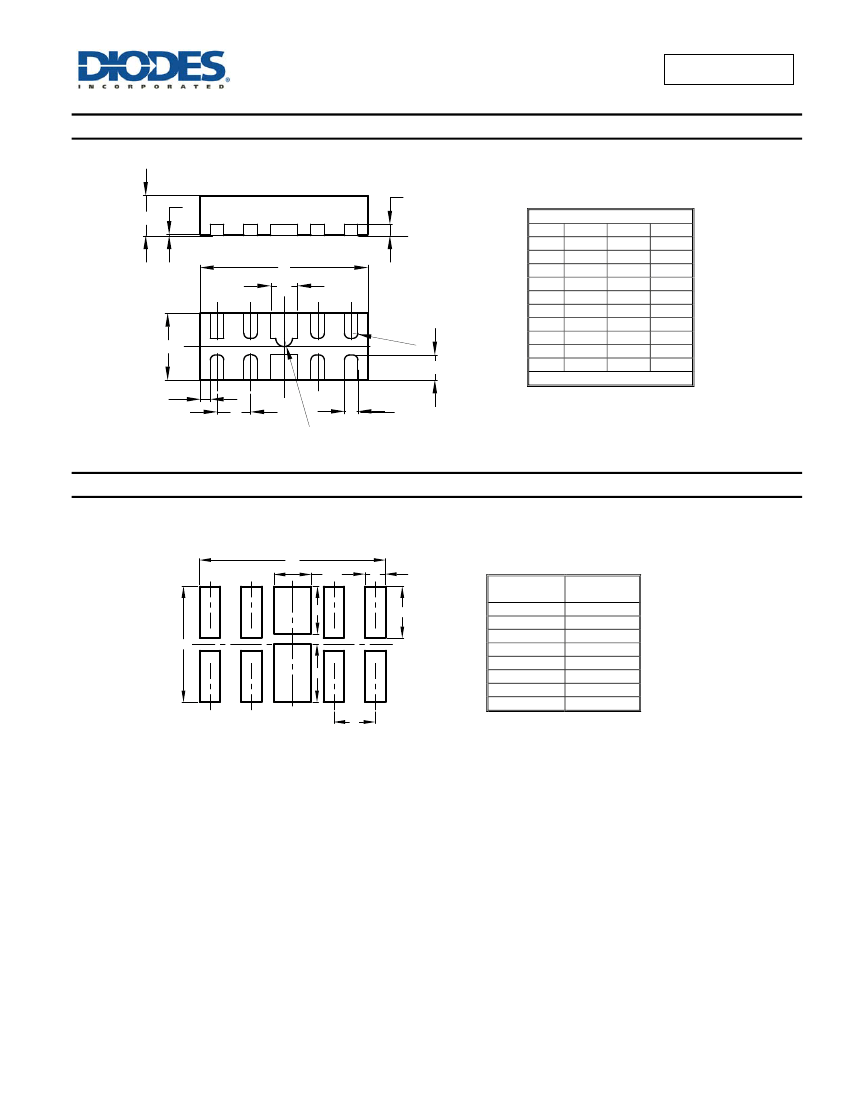

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
A 3
ADVANCED INFORMATION
ADVANCE INFORMATIO
A
A 1
S e a ti n g P l a n e
D
b 1
E
R 0.0 7 5
L
Z
e
U-DFN2510-10
Dim
Min
Max
Typ
A
0.545 0.605 0.575
A1
0
0.05
0.03
A3
-
-
0.13
b
0.15
0.25
0.20
b1
035
0.45
0.40
D
2.450 2.575 2.500
e
-
-
0.50
E
0.950 1.075 1.000
L
0.325 0.425 0.375
Z
-
-
0.150
All Dimensions in mm
b
2
R 0.1
5
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X 2
X 1
X
Dimensions
Y 1
Y
Y 3
Y 2
C
C
X
X1
X2
Y
Y1
Y2
Y3
Value
(in mm)
0.500
0.250
0.450
2.250
0.625
0.575
0.700
1.400
DT1240-04LP
Document number: DS36312 Rev. 2 - 2
4 of 5
www.diodes.com
September 2013
© Diodes Incorporated
DT1240-04LP
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2013, Diodes Incorporated
www.diodes.com
ADVANCED INFORMATION
ADVANCE INFORMATIO
DT1240-04LP
Document number: DS36312 Rev. 2 - 2
5 of 5
www.diodes.com
September 2013
© Diodes Incorporated
