0672001.MXEP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 0672001.MXEP

0672001.MXEP: DescriptionCartridge Fuses 1A Glass Body Fast Acting; CategoryCircuit protection; File Size40KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

0672001.MXEP Overview

Cartridge Fuses 1A Glass Body Fast Acting

0672001.MXEP Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Cartridge Fuses
RoHS	Details
Product	Glass Fuse
Current Rating	1 A
Fuse Type	Fast Blow
Fuse Size / Group	3.6 mm x 10 mm
Voltage Rating AC	250 VAC
Mounting Style	Board Mount
Termination Style	Axial
Packaging	Bulk
Body Style	Cylindrical Leaded
Diameter	3.6 mm
Indicator Style	Without Indicator
Length	10 mm
Factory Pack Quantity	1000
Unit Weight	0.021164 oz

Preview

Download Datasheet

View All

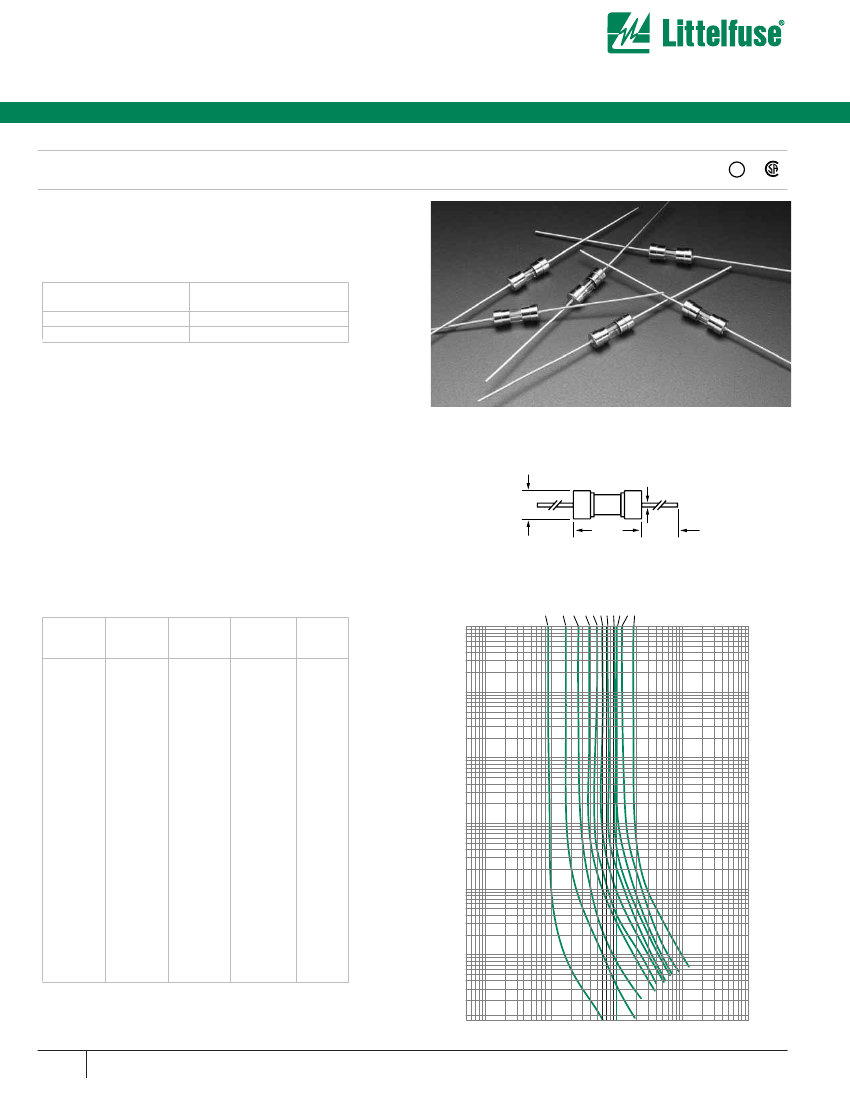

Axial Lead and Cartridge Fuses

Glass Body

3.6 x 10 mm

Fast-Acting Fuse 672 Series

• Designed to UL/CSA 248 Standard.

• Fast-Acting, glass body fuse in a compact package.

• This space saving fuse is ideally suited for lighting, power supply,

and adapter applications.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Opening

Rating

Time

100%

200%

4 hours, Minimum

5 seconds, Max.

AGENCY APPROVALS:

Listed by Underwriters

Laboratories and Certified by CSA from 0.050 through

10 Amps.

INTERRUPTING RATING:

50A@250V AC

672

000

Series

3.9 (.153")

0.6 (.024") ( 0.1 -5A)

0.8 (.031") (6 -7A)

1.0 (.039") (8 -10A)

PACKAGING OPTIONS:

Please refer to the following suffixes when ordering:

Bulk (1000 pieces): Add MXE suffix to the catalog part number.

Tape and Reel (1500 pieces): Add DRT4 suffix to the catalog

part number.

TAPE AND REEL SPECIFICATIONS:

Per EIA-296 with 10mm pitch and 56.5mm

inside tape spacing.

11.0

(.433")

30.0

(1.181") TYP.

Axial Lead Material: Solder coated copper.

Average Time Current Curves

Catalog

Number

0672.100

0672.125

0672.200

0672.250

0672.300

0672.400

0672.500

0672.600

0672.750

0672.800

0672

001.

0672

01.5

0672

01.6

0672

002.

0672

02.5

0672

3.15

0672

004.

0672

04.5

0672

005.

0672

006.

0672

06.3

0672

06.5

0672

007.

0672

008.

0672

010.

Ampere

Rating

.100

.125

.200

.250

.300

.400

.500

.600

.750

.800

1.00

1.50

1.60

2.00

2.50

3.15

4.00

4.50

5.00

6.00

6.30

6.50

7.00

8.00

10.0

Voltage

Rating

250

Nominal

Resistance Melting i

Cold mOhms A

Sec.

4.8250

0.00194

3.8620

0.00289

1.7302

0.0114

1.6120

0.0225

0.9250

0.0295

0.5840

0.0695

0.2322

0.128

0.1765

0.218

0.1310

0.254

0.1215

0.304

0.1056

0.508

0.0595

0.884

0.0565

0.965

0.0378

2.27

0.0342

3.73

0.0253

5.95

0.0174

8.86

0.0170

9.77

0.0145

15.6

0.0132

18.0

0.0120

19.3

0.0118

21.9

0.0111

25.8

0.0088

33.2

0.0056

88.5

1000

1.5A

3.15A

10A

1.25A

ORDERING INFORMATION:

100

TIME IN SECONDS

0.1

0.010

0.001

0.1

100

1000

500mA

CURRENT IN AMPERES

432

w w w. l i t t e l f u s e . c o m
