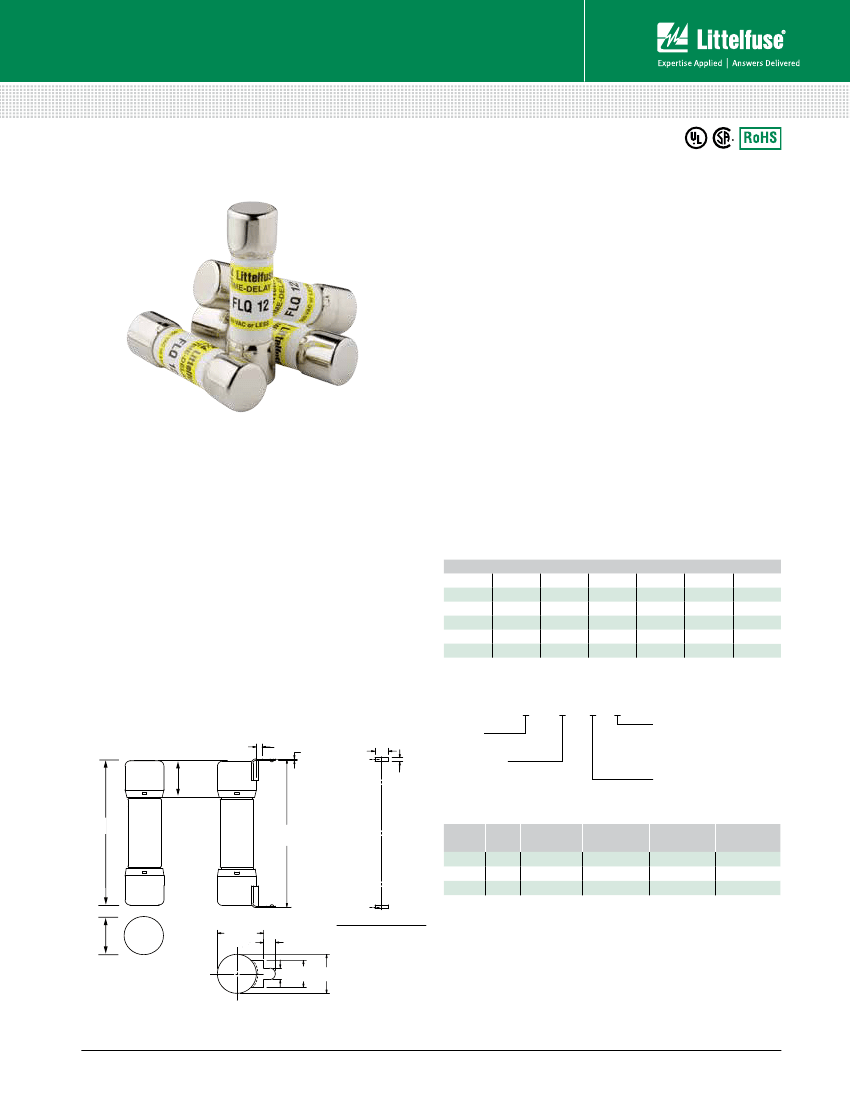

POWR-GARD
®
Fuse Datasheet
FLQ SERIES MIDGET (10x38mm) FUSES
500 Vac • Time-Delay •
1
/
10
-30 A
Specifications
Voltage Rating
Amperage Rating
Interrupting Rating
Approvals
Environmental
Material:
AC: 500 Vac or less
DC: 300 V
1
/
10
– 30 A
AC: 10 kA rms symmetrical
DC: 10 kA self-certified
AC: UL Listed (File: E10480)
CSA Certified (File: LR29862)
DC: Littelfuse self-certified
RoHS Compliant
Body: Paper: 1/10A-5A
Melamine 5-6/10A-30A
Caps: Copper Alloy (Nickel plated)
Mexico
Description
The FLQ series 500 Vac time-delay fuses provide excellent
supplemental protection of control power transformers,
solenoids, and circuits with high inrush currents.
Country of Origin
Ordering Information
AMPERAGE RATINGS
1
1
/
8
2
1
/
2
5
1
1
/
4
3
5
6
/
10
1
1
/
2
3
2
/
10
6
1
6
/
10
3
1
/
2
6
1
/
4
2
4
7
2
1
/
4
4
1
/
2
8
Features/Benefits
• Ideal for 480 Vac systems
• Time-Delay
Applications
• Control power transformers
• Solenoids
• Circuits with high inrush current
/
/
15
/
100
3
/
16
2
/
10
1
/
4
1 10
1 8
/
/
1
/
2
6
/
10
8
/
10
1
3 10
4 10
9
10
12
14
15
20
25
30
—
—
—
—
Part Numbering System
FLQ xxx H XR
.06 (1.52)
.02 (.51)
.14
(3.56)
.04
(1.02)
Dimensions Inches (mm)
Series
Amp Code
Mounting Options
Blank = Ferrule
XR = PCB 1-tab
(
100 pack only)
.378
(9.60)
Refer to Amp Code in
Ordering Information
Table: Page 2
SERIES AMP
FLQ
FLQ
FLQ
1 10
Package Quantity
T = 10
H = 100
1.5 (38.1)
1.53
(38.86)
/
2
15
PACKAGE
QUANTITY
10
100
100
MOUNTING
METHOD
FERRULE
FERRULE
PCB 1-TAB
CATALOG
NUMBER
FLQ.100
FLQ005
FLQ015R
ORDERING
NUMBER
0FLQ.100T
0FLQ002.H
0FLQ015.HXR
Note: additional ordering information on page 2
.406
(10.31)
.50 (12.7)
MOUNTING HOLE
DETAIL
Recommended Fuse Holders
Littelfuse LFPSM Dead-Front Series
Littelfuse L60030M Open-Face Series
.12 (3.05)
.12 .28
(3.05) (7.11)
.406 (10.31)
Web Resources
Download technical information:
littelfuse.com/flq
littelfuse.com/flq
1 of 5
© 2017 Littelfuse POWR-GARD
®
Products
Rev: 4-B-041217
POWR-GARD
®
Fuse Datasheet
FLQ SERIES MIDGET (10x38mm) FUSES

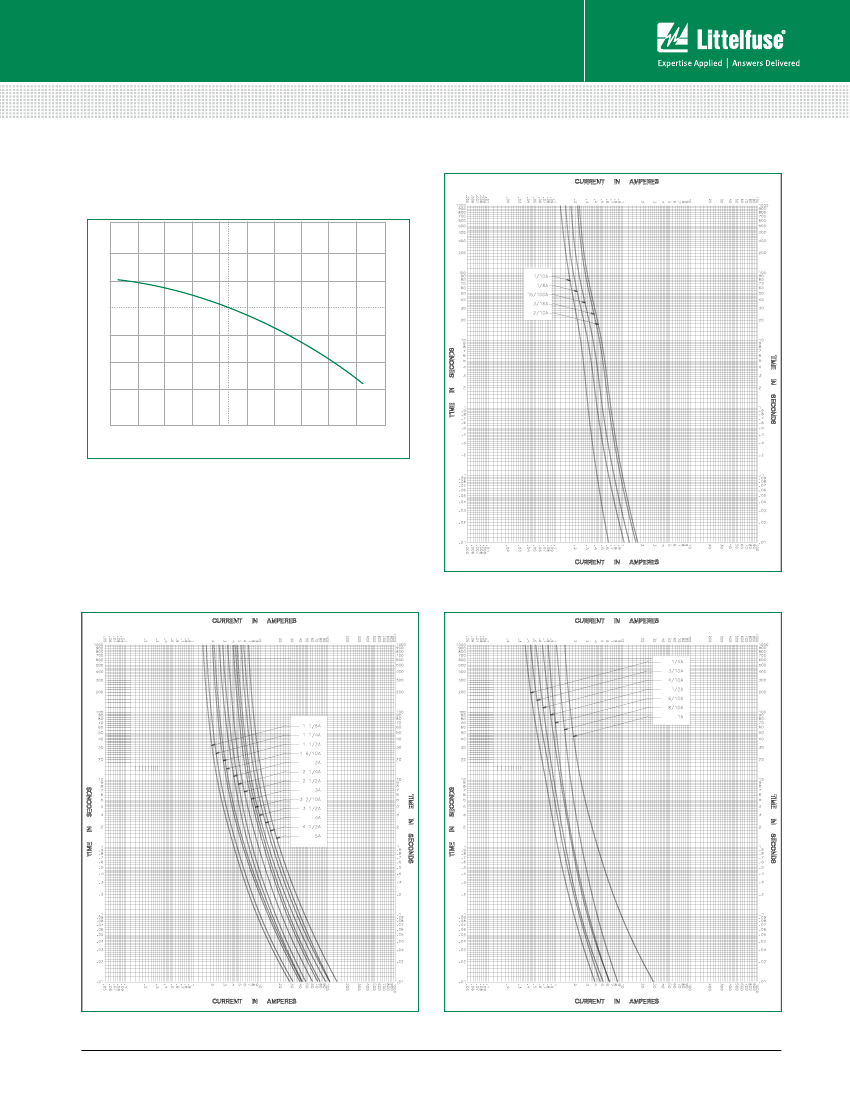

Temperature Rerating Curve
(Temperature of Air Immediately Surrounding Fuse)
Time Current Curves
PERCENT OF UPRATING
60
40
20
0
0
PERCENT OF DOWNRATING
20
40
60
-60°C
-76°F
-40°C
-40°F
-20°C
-4°F
0°C
32°F
20°C
40°C
60°C
68°F
104°F
140°F
AMBIENT TEMPERATURE
80°C
176°F
100°C
212°F
120°C
248°F
140°C
284°F

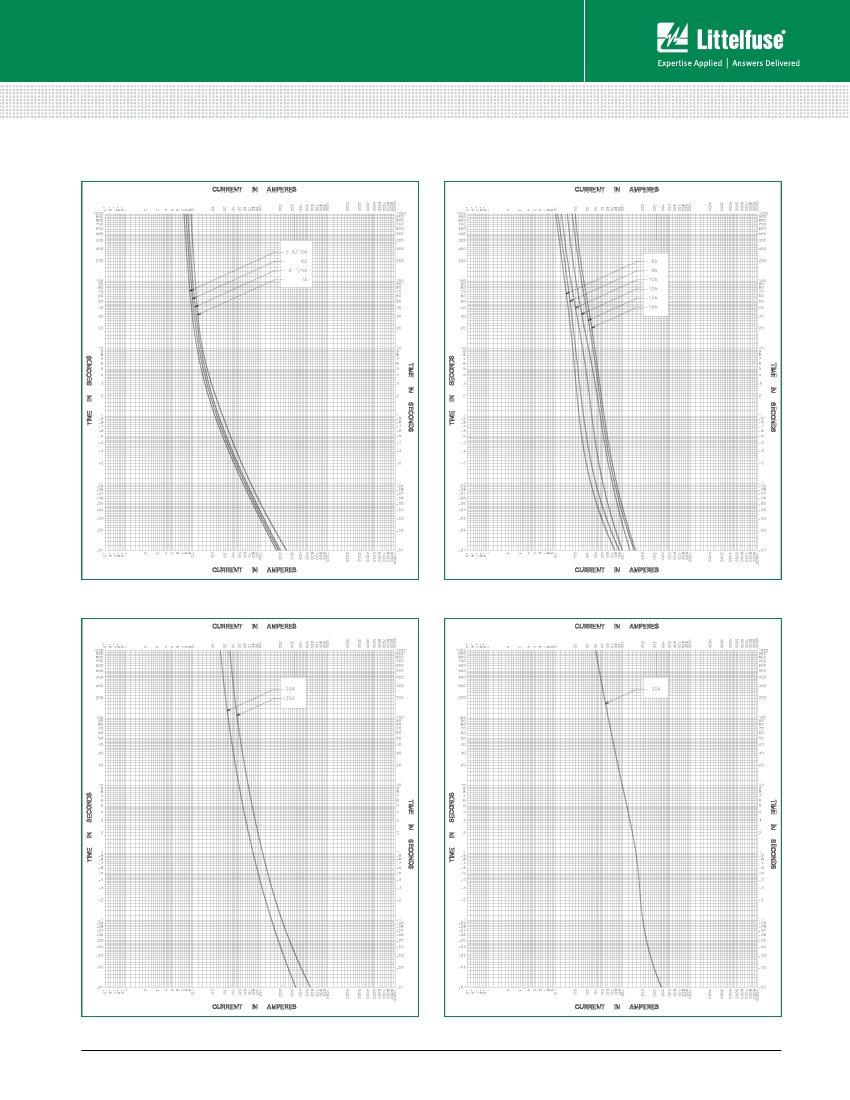

Time Current Curves
littelfuse.com/flq
4 of 5
© 2017 Littelfuse POWR-GARD
®
Products
Rev: 4-B-041217
