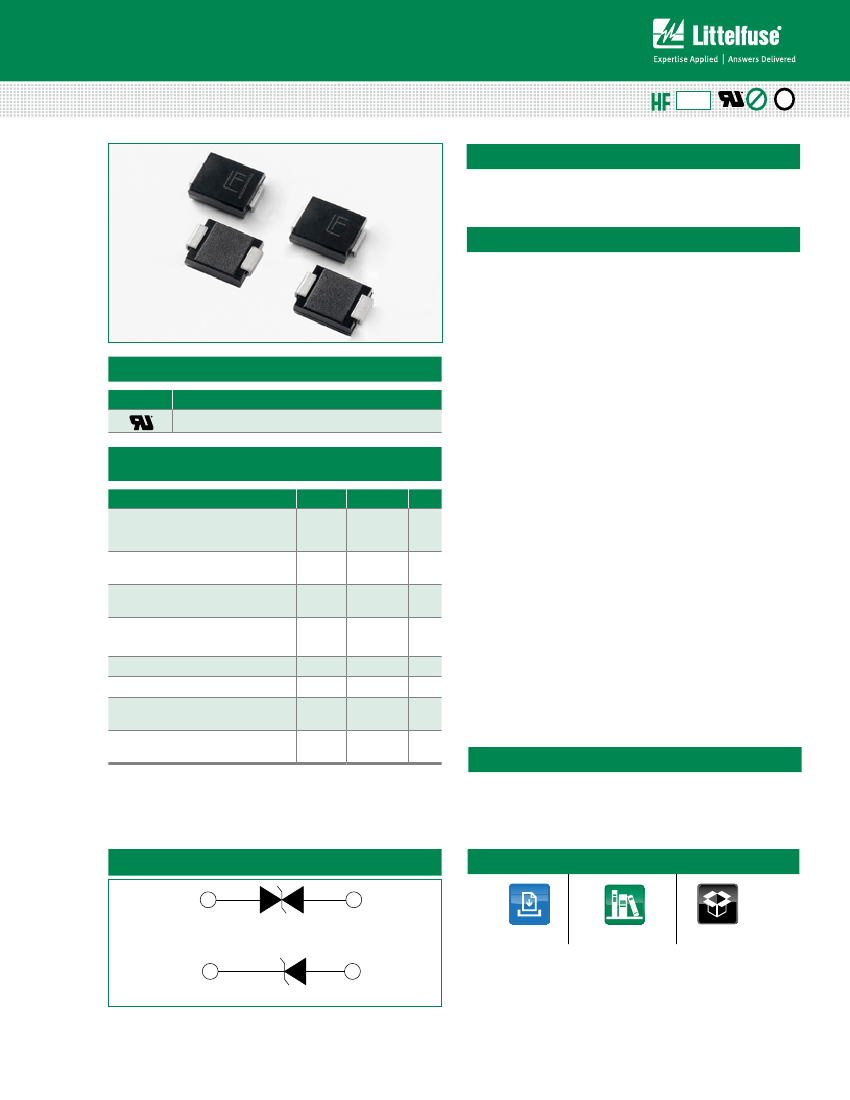

Transient Voltage Suppression Diodes
Surface Mount – 5000W > 5.0SMDJ series
5.0SMDJ Series
Uni-directional
Bi-directional
Description
RoHS
Pb
e3
The 5.0SMDJ series is designed specifically to protect
sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events.
Features
• 5000W peak pulse power
capability at 10/1000μs
waveform, repetition rate
(duty cycles):0.01%
• For surface mounted
applications to optimize
board space
• Low profile package
• Typical failure mode is
short from over-specified
voltage or current
• Whisker test is conducted
based on JEDEC
JESD201A per its table 4a
and 4c
• IEC-61000-4-2 ESD
30kV(Air), 30kV (Contact)
• ESD protection of data
lines in accordance with
IEC 61000-4-2
• EFT protection of data
lines in accordance with
IEC 61000-4-4
• Built-in strain relief
• Glass passivated chip
junction
• Fast response time:
typically less than 1.0ps
from 0V to BV min
Applications
TVS devices are ideal for the protection of I/O Interfaces,
V
CC
bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic
applications.
Additional Infomarion
• Excellent clamping
capability
• Low incremental surge
resistance
• Typical I
R
less than 5μA
when V
BR
min>22V
• High temperature
to reflow soldering
guaranteed: 260°C/40sec
• V
BR
@ T
J
= V
BR
@25°C
x (1+
α
T x (T
J
- 25))
(
α
T:Temperature
Coefficient, typical value
is 0.1%)
• Plastic package is
flammability rated V-0 per
Underwriters Laboratories
• Meet MSL level1, per
J-STD-020, LF maximun
peak of 260
°
C
• Matte tin lead–free plated
• Halogen free and RoHS
compliant
• Pb-free E3 means 2nd
level interconnect is
Pb-free and the terminal
finish material is tin(Sn)
(IPC/JEDEC J-STD-
609A.01)
Agency Approvals
AGENCY
AGENCY FILE NUMBER
E230531
Maximum Ratings and Thermal Characteristics
(T
A
=25
O
C unless otherwise noted)
Parameter
Peak Pulse Power Dissipation at
T
L
=25
O
C by 10/1000µs Waveform
(Fig.2)(Note 1), (Note 2)
Power Dissipation on Infinite Heat
Sink at T
L
=50
O
C
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 3)
Maximum Instantaneous Forward
Voltage at 100A for Unidirectional
Only
Operating Temperature Range
Storage Temperature Range
Typical Thermal Resistance Junction
to Lead
Typical Thermal Resistance Junction
to Ambient
Symbol
P
PPM
P
D
I
FSM
V
F
T
J
T
STG
R
θJL
R
θJA
Value
5000
6.5
300
5.0
-65 to 150
-65 to 175
15
75
Unit
W
W
A
V
°C
°C
°C/W
°C/W
Notes:
1. Non-repetitive current pulse , per Fig. 4 and derated above T
J
(initial) =25
O
C per Fig. 3.
2. Mounted on copper pad area of 0.31x0.31” (8.0 x 8.0mm) to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional
device only,duty cycle=4 per minute maximum.
Functional Diagram
Bi-directional
Datasheet
Anode
Resources
Samples
Cathode
Uni-directional
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/20/15
Transient Voltage Suppression Diodes
Surface Mount – 5000W > 5.0SMDJ series
Electrical Characteristics
(T =25°C unless otherwise noted)
A
Part
Number
(Uni)
5.0SMDJ12A
5.0SMDJ13A
5.0SMDJ14A
5.0SMDJ15A
5.0SMDJ16A
5.0SMDJ17A
5.0SMDJ18A
5.0SMDJ20A
5.0SMDJ22A
5.0SMDJ24A
5.0SMDJ26A
5.0SMDJ28A
5.0SMDJ30A
5.0SMDJ33A
5.0SMDJ36A
5.0SMDJ40A
5.0SMDJ43A
5.0SMDJ45A
5.0SMDJ48A
5.0SMDJ51A
5.0SMDJ54A
5.0SMDJ58A
5.0SMDJ60A
5.0SMDJ64A
5.0SMDJ70A
5.0SMDJ75A
5.0SMDJ78A
5.0SMDJ85A
5.0SMDJ90A
5.0SMDJ100A
5.0SMDJ110A
5.0SMDJ120A
5.0SMDJ130A
5.0SMDJ150A
5.0SMDJ160A
5.0SMDJ170A
Part
Number
(Bi)
5.0SMDJ12CA
5.0SMDJ13CA
5.0SMDJ14CA
5.0SMDJ15CA
5.0SMDJ16CA
5.0SMDJ17CA
5.0SMDJ18CA
5.0SMDJ20CA
5.0SMDJ22CA
5.0SMDJ24CA
5.0SMDJ26CA
5.0SMDJ28CA
5.0SMDJ30CA
5.0SMDJ33CA
5.0SMDJ36CA
5.0SMDJ40CA
5.0SMDJ43CA
5.0SMDJ45CA
5.0SMDJ48CA
5.0SMDJ51CA
5.0SMDJ54CA
5.0SMDJ58CA
5.0SMDJ60CA
5.0SMDJ64CA
5.0SMDJ70CA
5.0SMDJ75CA
5.0SMDJ78CA
5.0SMDJ85CA
5.0SMDJ90CA
5.0SMDJ100CA
5.0SMDJ110CA
5.0SMDJ120CA
5.0SMDJ130CA
5.0SMDJ150CA
5.0SMDJ160CA
5.0SMDJ170CA
Marking
UNI
5PEP
5PEQ
5PER
5PES
5PET
5PEU
5PEV
5PEW
5PEX
5PEZ
5PFE
5PFG
5PFK
5PFM
5PFP
5PFR
5PFT
5PFV
5PFX
5PFZ
5PGE
5PGG
5PGK
5PGM
5PGP
5PGR
5PGT
5PGV
5PGX
5PGZ
5PHE
5PHG
5PHK
5PHM
5PHP
5PHR
BI
5BEP
5BEQ
5BER
5BES
5BET
5BEU
5BEV
5BEW
5BEX
5BEZ
5BFE
5BFG
5BFK
5BFM
5BFP
5BFR
5BFT
5BFV
5BFX
5BFZ
5BGE
5BGG
5BGK
5BGM
5BGB
5BGR
5BGT
5BGV
5BGX
5BGZ
5BHE
5BHG
5BHK
5BHM
5BHB
5BHR
Reverse
Stand off
Voltage
V
R
(Volts)
12.0
13.0
14.0
15.0
16.0
17
.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
130.0
150.0
160.0
170.0
Breakdown
Voltage V
BR
(Volts) @ I
T
MIN
13.30
14.40
15.60
16.70
17
.80
18.90
20.00
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47
.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77
.80
83.30
86.70
94.40
100.00
111.00
122.00
133.00
144.00
167
.00
178.00
189.00
MAX
14.70
15.90
17
.20
18.50
19.70
20.90
22.10
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
104.00
111.00
123.00
135.00
147
.00
159.00
185.00
197
.00
209.00
Maximum Maximum Maximum
Test
Agency
Peak
Reverse
Current Clamping
Approval
Voltage V
C
Pulse
Leakage I
R
I
T
@ I
pp
Current I
pp
@ V
R
(mA)
(V)
(A)
(µA)
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
19.9
21.5
23.2
24.4
26.0
27
.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77
.4
82.4
87
.1
93.6
96.8
103.0
113.0
121.0
126.0
137
.0
146.0
162.0
177
.0
193.0
209.0
243.0
259.0
275.0
252.00
233.00
216.00
205.00
193.00
181.00
172.00
155.00
141.00
129.00
119.00
110.00
103.00
93.90
86.10
77
.60
72.10
68.80
64.70
60.70
57
.50
53.50
51.70
48.60
44.30
41.40
39.70
36.50
34.30
30.90
28.30
26.00
24.00
20.60
19.30
18.20
800
500
200
100
50
20
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
For bidirectional type having V
R
of 20 volts and less, the I
R
limit is double.
For parts without A , the V
BR
is ± 10% and V
C
is 5% higher than with A parts
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/20/15
Transient Voltage Suppression Diodes
Surface Mount – 5000W > 5.0SMDJ series
I-V Curve Characteristics
Uni-directional
Bi-directional
I
pp
Vc V
BR
V
R
I
R
V
F
I
T
V
Vc V
BR
V
R
I
T
I
R
I
R
I
T
V
R
V
BR
Vc
V
I
pp
I
pp
P
PPM
V
R
V
BR
V
C
I
R
V
F
Peak Pulse Power Dissipation
-- Max power dissipation
Stand-off Voltage
-- Maximum voltage that can be applied to the TVS without operation
Breakdown Voltage
-- Maximum voltage that flows though the TVS at a specified test current (I
T
)
Clamping Voltage
-- Peak voltage measured across the TVS at a specified Ippm (peak impulse current)
Reverse Leakage Current
-- Current measured at V
R
Forward Voltage Drop for Uni-directional

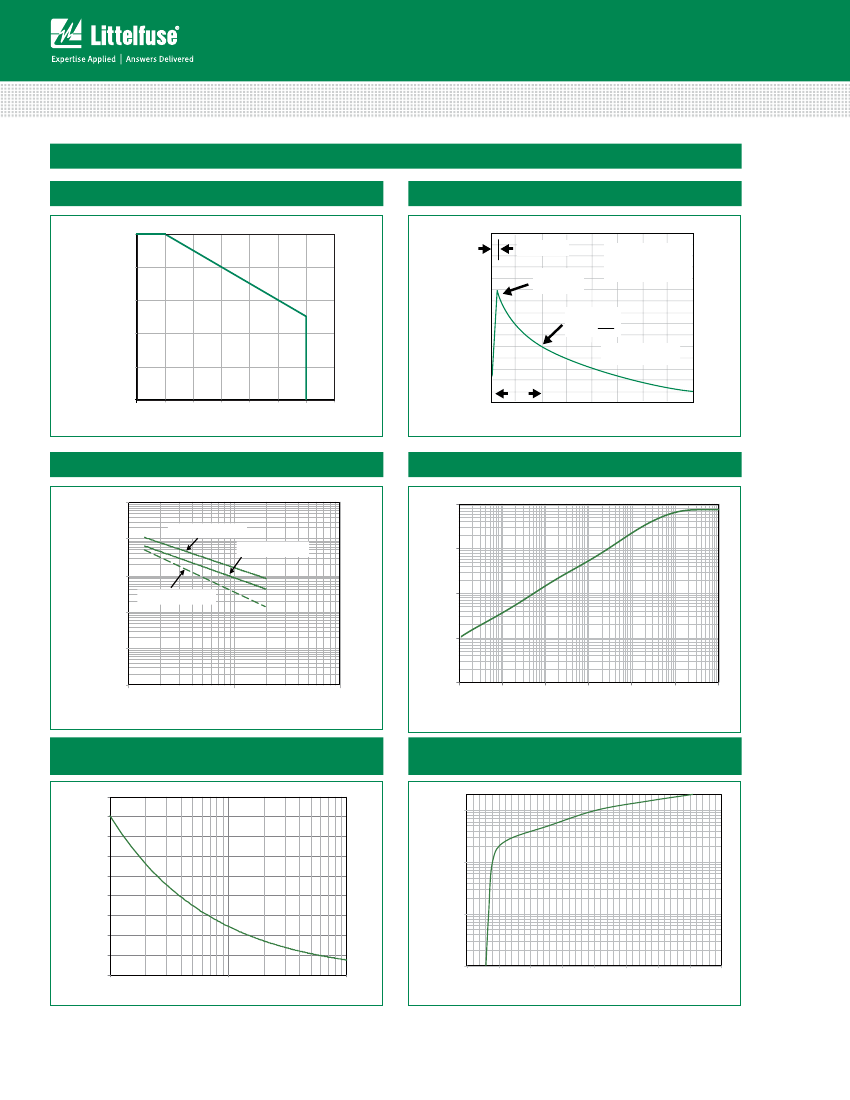

Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
A
Figure 1 - TVS Transients Clamping Waveform
Voltage Transients
Figure 2 - Peak Pulse Power Rating
1000
Voltage Across TVS
Voltage or Current
P
PPM
-Peak Pulse Power (KW)
TJ initial = Tamb
100
5kW at 10x1000µs,
25°C
Current Through TVS
10
1
0.001
Time
0.01
0.1
1
10
t
d
-Pulse Width (ms)
continues on next page.
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/20/15
Transient Voltage Suppression Diodes
Surface Mount – 5000W > 5.0SMDJ series
Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
(Continued)
A
Figure 3 - Peak Pulse Power Derating Curve
100
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
80
60
40
20
0
Figure 4 - Pulse Waveform
150
I
PPM
- Peak Pulse Current, % I
RSM
tr=10µsec
Peak Value
IPPM
TJ=25°C
Pulse Width(td) is defined
as the point where the peak
current decays to 50% of IPPM
100
Half Value
IPPM
IPPM
2
( )
10/1000µsec. Waveform
as defined by R.E.A
50
0
25
50
75
100 125 150
T
J
- Initial Junction Temperature (ºC)
175
0
td
0
1.0
2.0
t-Time (ms)
3.0
4.0
Figure 5 - Typical Junction Capacitance
100000
Figure 6 - Typical Transient Thermal Impedance
100
10000
Uni-direc onal V=0V
Bi-direc onal V=0V
Transient Thermal Impedance (
°
C/W)
10
Cj(pF)
1000
Uni/Bi-direc onal V=V
R
100
1
10
0.1
1
10
100
1000
0.01
0.001
0.01
0.1
1
10
100
1000
V
BR
- Reverse Breakdown Voltage(V)
T
P
- Pulse Duration (s)
Figure 7 - Maximum Non-Repetitive Peak Forward
Surge Current Uni-Directional Only
450
Figure 8 - Peak Forward Voltage Drop vs Peak Forward
Current (Typical Values)
IFSM - Peak Forward Surve Current(A)
350
300
250
200
150
100
50
0
1
10
Number of Cycles at 60 Hz
100
IF- Peak Forward Current(A)
400
100.0
10.0
1.0
0.1
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
VF-Peak Forward Voltage(V)
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/20/15
Transient Voltage Suppression Diodes
Surface Mount – 5000W > 5.0SMDJ series
Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (min to max) (t
s
)
Average ramp up rate (Liquidus Temp (T
A
)
to peak
T
S(max)
to T
A
- Ramp-up Rate
Reflow
- Temperature (T
A
) (Liquidus)
- Time (min to max) (t
s
)
Lead–free
assembly
150°C
200°C
60 – 180 secs
3°C/second max
3°C/second max
217°C
60 – 150 seconds
260
+0/-5
°C
20 – 40 seconds
6°C/second max
8 minutes Max.
280°C
High Temp. Storage
JESD22-A103
JESD22-A108
JESD22-A104
JEDEC-J-STD-020, Level 1
JESD22-A101
JESD22-A111
Temperature (T)
T
P
Ramp-up
t
p
Critical Zone
T
L
to T
P
T
L
T
s(max)
t
L
T
s(min)
Ramp-down
Preheat
t
s
25˚C
t 25˚C to Peak
Time (t)
Peak Temperature (T
P
)
Time within 5°C of actual peak
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
Environmental Specifications
Physical Specifications
Weight
Case
Polarity
Terminal
0.007 ounce, 0.21 grams
JEDEC DO214AB. Molded plastic body
over glass passivated junction
Color band denotes positive end
(cathode) except Bidirectional.
Matte Tin-plated leads, Solderable per
JESD22-B102
HTRB
Temperature Cycling
MSL
H3TRB
RSH
Dimensions
DO-214AB (SMC J-Bend)
Cathode Band
(for Uni-directional products only)
Dimensions
A
B
C
D
Inches
Min
0.114
0.260
0.220
0.079
0.030
-
0.305
0.006
0.129
0.094
-
0.094
Max
0.126
0.280
0.245
0.103
0.060
0.008
0.320
0.012
-
-
0.165
-
Millimeters
Min
2.900
6.600
5.590
2.060
0.760
-
7
.750
0.152
3.300
2.400
-
2.400
Max
3.200
7
.110
6.220
2.620
1.520
0.203
8.130
0.305
-
-
4.200
-
A
B
H
D
F
G
J
K
L
C
E
F
G
H
I
J
K
L
E
I
Solder Pads
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/20/15
(all dimensions in mm)
FPGA/CPLD
京公网安备 11010802033920号
EEWORLD
