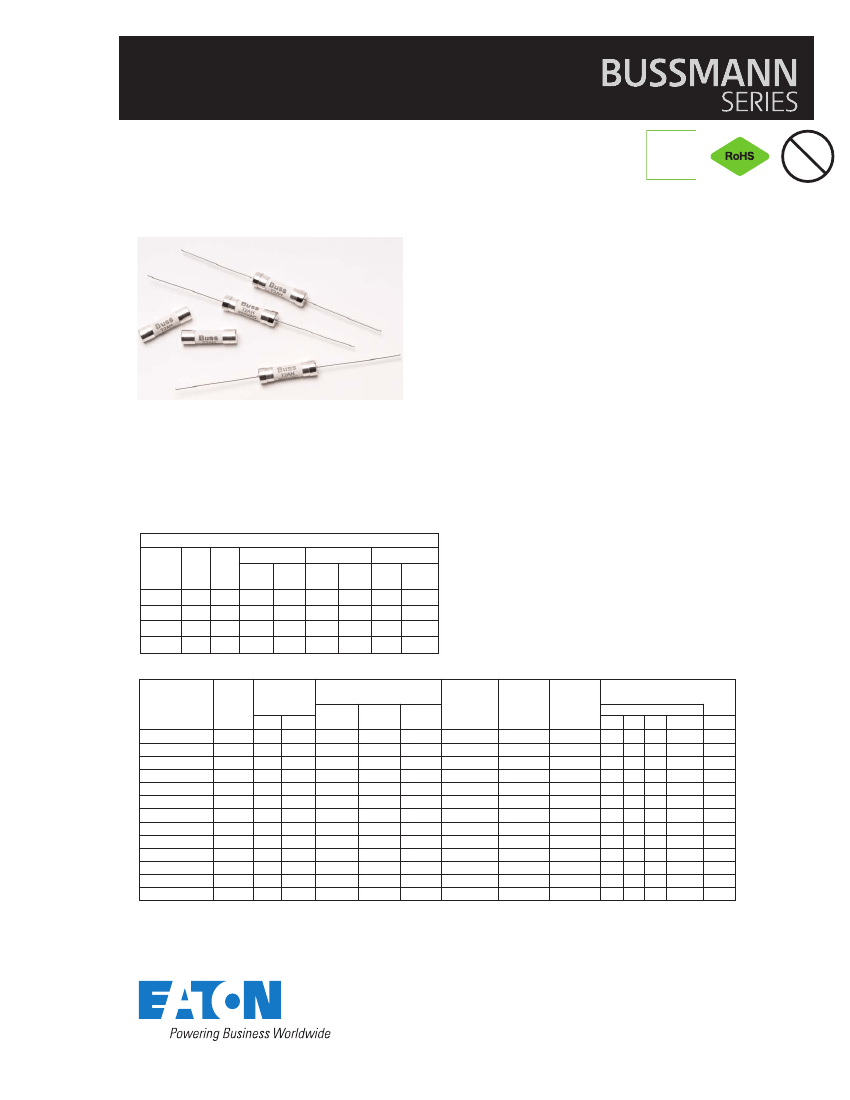

Technical Data
4406
Effective
June
2017
Supersedes
November
2011
HALOGEN
S505H
HF
Pb
FREE
5 mm x 20 mm 400 Vdc/500-600 Vac time-delay fuses
Applications
•
•
•
•
•
•
•
•
•
Power supplies - adapters
Desktops/notebooks
TVs / Displays
Set top boxes
Lighting ballasts
Battery chargers
Printers
Game systems
Air conditioners
Product features
•
•
•
•
•
•
•
Agency information
S505H-XXX-R (Ferrule)
•
•
•
•
•
400 Vdc/500-600 Vac rating
Time-delay, high breaking capacity
5 mm x 20 mm physical size
Ceramic tube with plated end cap construction
Designed to IEC 60127-2, Standard, Sheet 5
RoHS Compliant, lead free and halogen free
Optional axial leads available
Electrical Characteristics
1.5In
Amps
<1A
4A-6.3A
8A-10A
Min
min.
>60
>60
>30
2.1In
Max
min.
<30
<30
<30
<30
2.75In
Min
ms
>250
>750
>750
>750
Max
s
<80
<80
<80
<80
Min
ms
>50
>95
>150
>150
4In
Max
s
<5
<5
<5
<5
Min
ms
>5
>10
>10
>10
10In
Max
ms
<150
<150
<150
<150
cURus approval: Guide JFHR2, File E56412 and Guide
JFHR8, File E56412
CCC: 2A-4A, Cert. No.: 2010010207395946;
5A-6.3A Cert. No.: 2010010207390567
CQC Approval: 8A-10A, Cert. No.: CQC10012043350
TUV Approval: 2A-10A, Cert. No.: R50172128
PSE Approval: 1A-5A, Cert. No.: JET1641-31003-1009;
6.3A-10A, Cert. No: JET1641-31003-1011
PSE Approval: 1A-5A, Cert. No.: JET1641-31003-1010;
6.3A-10A, Cert. No: JET1641-31003-1012
cURus approval: Guide JFHR2, File E56412 and Guide
JFHR8, File E56412
S505H-V-XXX-R (Axial Leads)
•
•
1A-3.15A >60
Specifications
Catalog
Number
S505H-500-R
S505H-800-R
S505H-1-R
S505H-1.25-R
S505H-1.6-R
S505H-2-R
S505H-2.5-R
S505H-3.15-R
S505H-4-R
S505H-5-R
S505H-6.3-R
S505H-8-R
S505H-10-R
Typical
Voltage Max. Voltage Interrupting Rating (A)
Under DC Cold
1
Rating
Rating
250
Max
400
Resistance
Vac
AC
DC
Vac
Volts
Vdc
Ω
3
250 600 400
1500
100
1500
0.507
250 600 400
1500
100
1500
0.237
250 600 400
1500
100
1500
0.14
250 600 400
1500
100
1500
0.108
250 600 400
1500
100
1500
0.07
250 600 400
1500
100
1500
0.055
250 600 400
1500
100
1500
0.04
250 600 400
1500
100
1500
0.031
250 600 400
1500
100
1500
0.019
250 600 400
1500
100
1500
0.015
250 500 400
1500
100
1500
0.011
250 500 400
1500
100
1500
0.007
250 500 400
1500
100
1500
0.006
2
Typical
Voltage
Drop
4
(mV)
295
189
153
150
125
128
126
121
90
89
80
76
72
Typical
Value
I
2
t (A
2
s)
5
0.188
0.632
1.28
2.22
6.78
11.44
24.23
43.55
38.45
71.3
111.4
228.2
349.5
Agency Approvals
250Vac
6
6
TUV CQC CCC
6
PSE/JET cURus
7
x
x
X
x
X
x
X
x
X
X
X
x
X
X
X
x
X
X
X
x
X
X
X
x
X
X
X
x
X
X
X
x
X X
X
x
X X
X
x
1. Max. Voltage rating: Base on the breaking capacity test according to UL.
2. - Breaking Capacity of 250 VAC/1500 A is tested by all agency approvals, test
condition is 250 Vac, PF: 0.7-0.8.
- Breaking Capacity of Max. voltage is tested by UL, PF:1.
- Breaking Capacity Test of DC is tested by UL under Capacitor Bank 4800 mF
(for 400 V, 1500 A), 2400 mF (for 400 V, 500 A).
3.
4.
5.
6.
7.
Cold Resistance: Measure at <10% rated current.
Typical Voltage Drop: Voltage drop is measured under ambient 20 °C with rated current
Typical Pre-Arc I
2
t: Measured at 10In DC
Does not apply to axial leaded versions.
600/500 Vac, 400 Vdc.

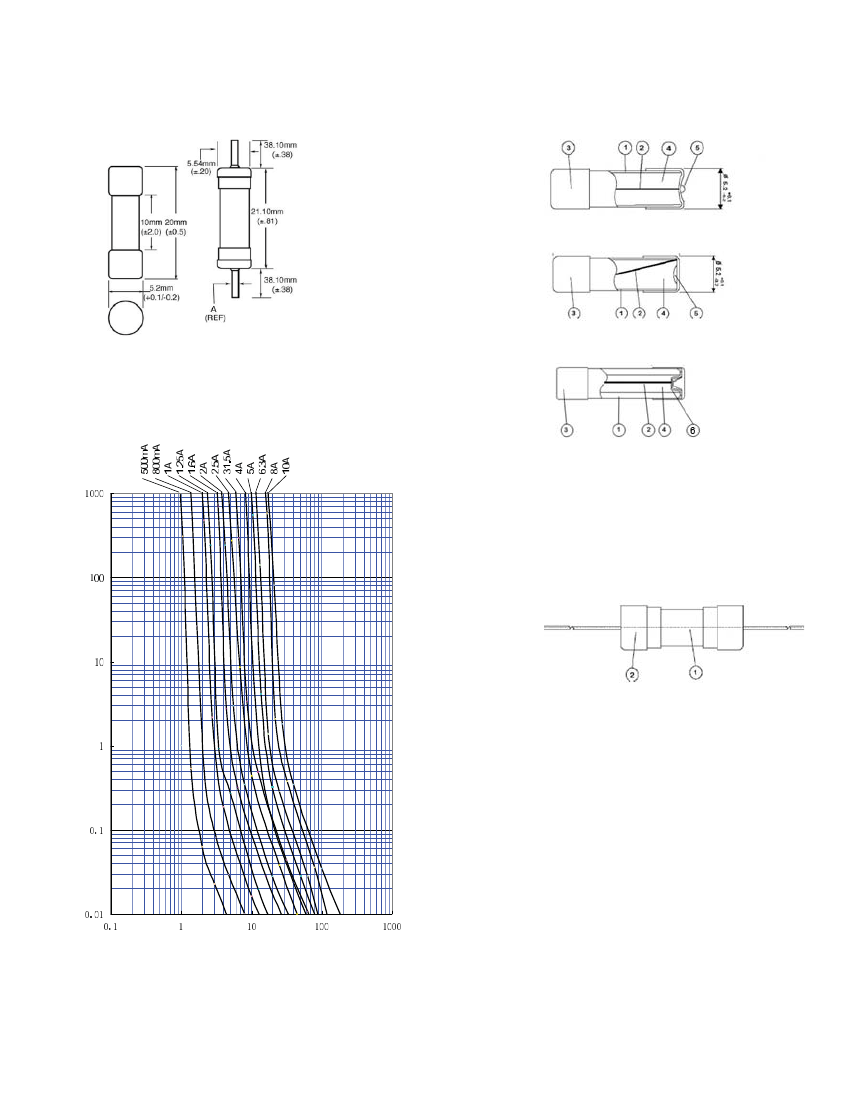

S505H
5 mm x 20 mm 400 Vdc/500-600 Vac time-delay fuses
Technical Data
4406
Effective
June
2017
Wave Soldering Parameters
Note: These devices are NOT recommended for IR or convection reflow
processes.

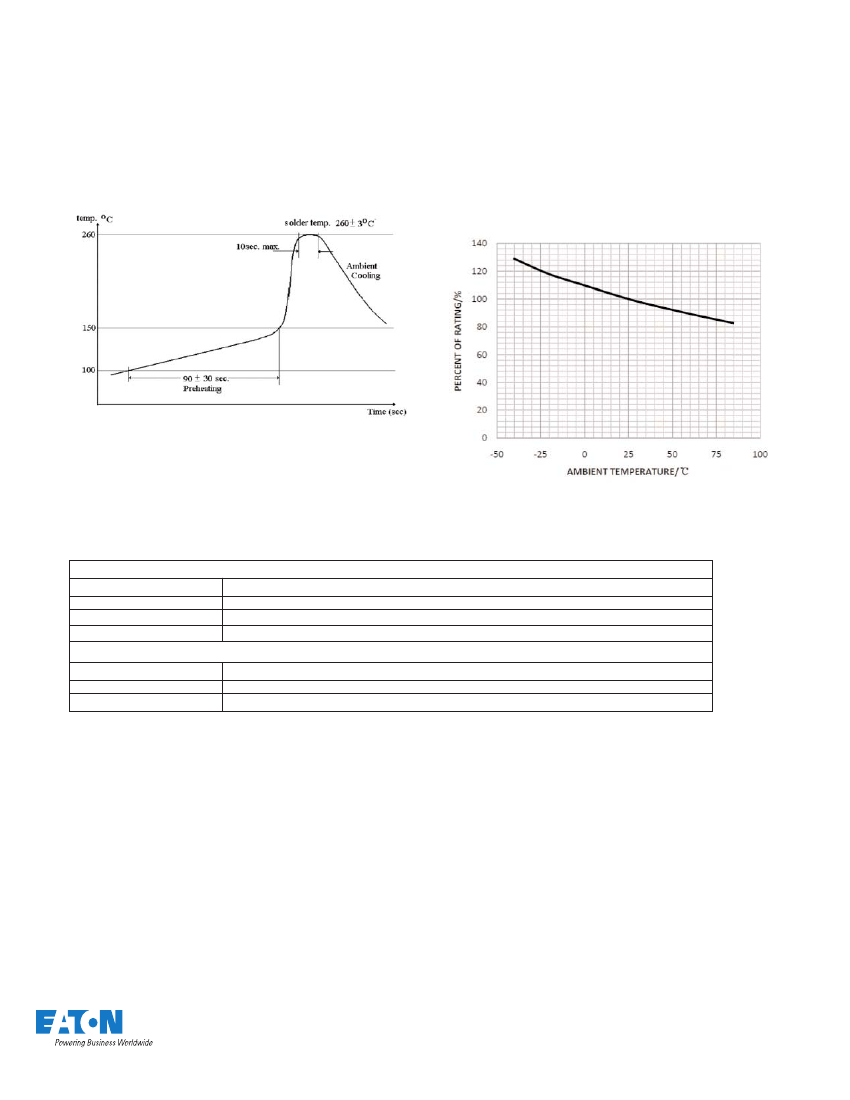

Operating Temperature Range
• -40°C to +85°C (see temperature derating curve below for percentage of
fuse rating per ambient temperature)
Temperature Derating Curve
• Reservoir Temperature: 260°C ± 3°C
• Soldering Time: 10 seconds max.
Recommended Hand Solder Parameters
• Soldering Iron Tip Temperature: 350°C ± 5°C
• Heating Time: 5 seconds max.
Packaging Code
Packaging Code Pre x
BK-
BK1-
TR2-
Option Code
-V
-R
Description
100 fuses packed into a cardboard carton with aps folded
1000 fuses packed into a poly bag
1500 axial leaded fuses on tape and reel
Option Code
Description
Axial leads – copper tinned wire with nickel plated brass end caps
RoHS compliant version
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
www.eaton.com/electronics
© 2017 Eaton
All Rights Reserved
Printed in USA
Publication No.
4406
BU-SB11276
June
2017
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
