FWK-30A20F Overview

Specialty Fuses 30A 750V TRAC FUSE

FWK-30A20F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	RATED BREAKING CAPACITY AT 750 VDC: 45000 A
body height	127 mm
Body length or diameter	20.5 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	800 J
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	20.5mm x 127mm
Rated breaking capacity	45000 A
Rated current	30 A
Rated voltage (AC)	750 V
Rated voltage (DC)	750 V
Guideline	CE
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

High Speed Fuses

Ferrule — FWK 750V: 5-60A

FWK 5-30A (20 x 127mm

35-60A (25 x 146mm)

Specifications

Description:

Ferrule style high speed fuses.

Dimensions:

See Dimensions illustrations.

Ratings:

Volts: — 750Vac

— 750Vdc (Time constant = 10-15mS)

Amps: — 5-60A

IR: — 45kA RMS Sym.

Agency Information:

CE

Catalog Numbers

Catalog

Numbers

FWK-5A20F

FWK-8A20F

FWK-10A20F

FWK-15A20F

FWK-20A20F

FWK-25A20F

FWK-30A20F

FWK-35A25F

FWK-40A25F

FWK-50A25F

FWK-60A25F

Electrical Characteristics

Rated

I

2

t (A

2

Sec)

Current

Clearing

RMS-Amps

Pre-arc

at 750Vdc

5

8.5

16

8

50

100

10

95

200

15

100

240

20

125

315

25

400

1100

30

800

2600

35

1300

4300

40

1600

5300

50

3100

12000

60

5900

24000

High Speed

Fuses

Features and Benefits

• Excellent cycling capability and DC performance

• Low arc voltage and low energy let-through (I

2

t)

• Low watts loss in a compact size

• Used with finger-safe holders/blocks

Typical Applications

• DC common bus

• DC drives

• Power converters/rectifiers

• Reduced voltage starters

Size

20 x 127mm

(

13

⁄

16

” x 5”)

25 x 146mm

(1” x 5

3

⁄

4

”)

Recommended fuseholders for 20x127, CH127-1, -2, -3

Recommended fuseclips for 20x127, 1A1837

Recommended fuseclips for 25x146, A3354705

Dimensions - mm (inches)

Fig. 1: 5-30A

127.0

(5.000")

20.5

(0.807")

16.0

(0.630")

Fig. 2: 35-60A

146.05

(5.75")

25.4

(1")

20.64

(0.813")

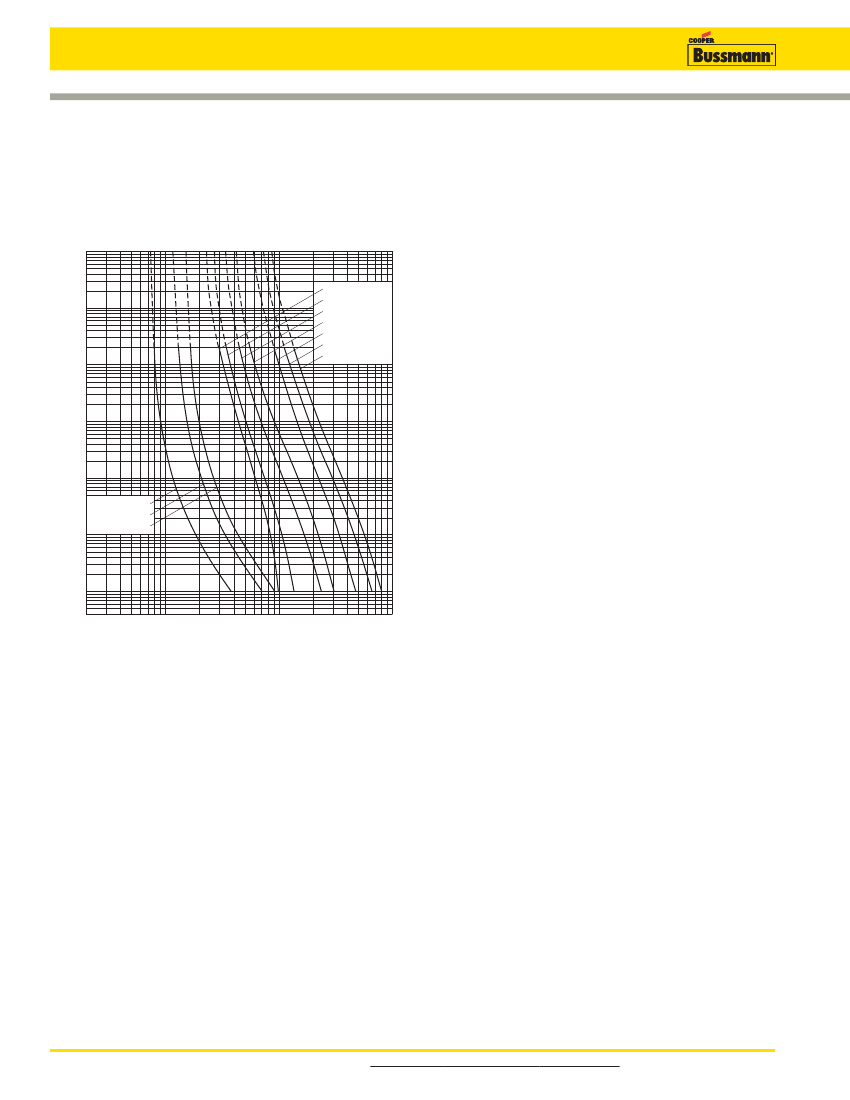

Data Sheet: 720039

For product data sheets, visit www.cooperbussmann.com/datasheets/ulcsa

211
