BC6031B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> BC6031B

BC6031B: DescriptionFuse Holder 1P 600V 30A Block w/Box Lug Terminal; CategoryCircuit protection; File Size61KB，1 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric Compare View All

BC6031B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BC6031B	-	-	View	Buy Now

BC6031B Overview

Fuse Holder 1P 600V 30A Block w/Box Lug Terminal

BC6031B Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Eaton
Product Category	Fuse Holder
RoHS	Details
Product	Fuse Blocks
Type	Class CC
Mounting Style	Panel
Number of Poles	1 Pole
Current Rating	30 A
Voltage Rating	600 V
Termination Style	Lug
Packaging	Bulk
Color	Black
Illumination	Not Illuminated
Factory Pack Quantity	10
Unit Weight	1.520000 oz

Preview

Download Datasheet

View All

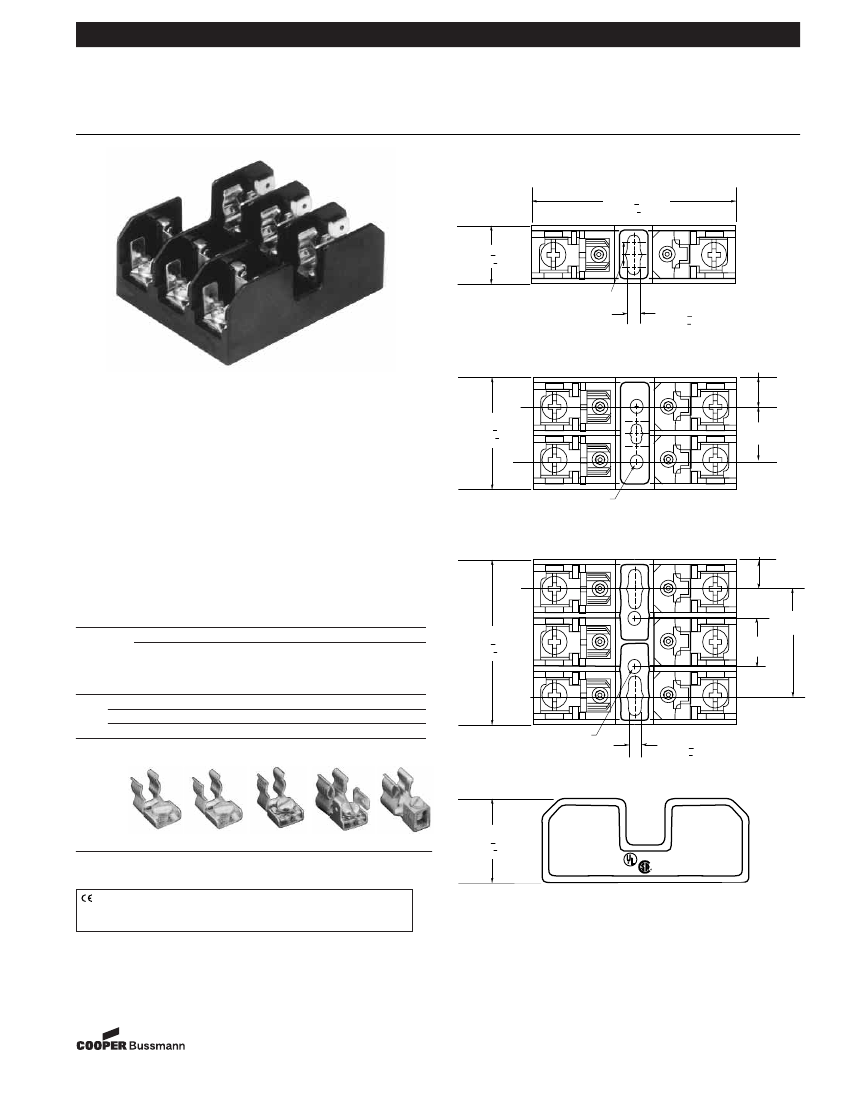

Bussmann

Class CC Fuseblocks

600 Volt, 30 Amps

Dimensional Data

1 POLE

(76.20mm + 0.38mm)

Series

3.000" + 0.015"

(21.03mm + 0.38mm)

0.828" + 0.015"

0.360"

(9.14mm)

(5.08mm + 0.08mm)

0.200" + 0.003"

2 POLE

0.425"

(10.80mm)

Catalog Symbol:

BC Series

Class CC Fuseblocks

For use with Class CC Fuses (Bussmann LP-CC, KTK-R,

and FRQ-R)

Ampere Rating:

⁄Ω¡º to 30A

Voltage Rating:

600V

Withstand Rating:

200,000A RMS Sym.

Agency Information:

UL Listed, UL 512, Guide IZLT, File E14853

CSA Certified, C22.2 No. 39, Class 6225-01, File 47235

UL Flammability:

94VO

Materials:

Base - Thermoplastic

Clips - Bright tin-plated bronze

DIN-RAIL Adapters:

DRA-1 and DRA-2

Catalog Data

Terminal Type

Screw with

Quick

Connect*

BC6031SQ

BC6032SQ

BC6033SQ

Pressure

Plate w/

Quick

Connect*

BC6031PQ

BC6032PQ

BC6033PQ

(41.28mm + 0.38mm)

1.625" + 0.015"

0.765"

(19.43mm)

.169"

.210"

4.29mm

5.33mm

Typ. 2

3 POLE

0.425"

(10.80mm)

1.530"

(38.86mm)

(60.33mm + 0.38mm)

2.375" + 0.015"

.750"

(19.05mm)

Poles

Amps

⁄Ω¡º

Screw

BC6031S

BC6032S

BC6033S

Pressure

Plate

BC6031P

BC6032P

BC6033P

Box

Lug

BC6031B

BC6032B

BC6033B

.172"

(4.37mm)

Typ. 2

(5.08mm + 0.08mm)

0.200" + 0.003"

FUSEBLOCK LABEL

(EXAMPLE SHOWN)

Wire

Range

CU Only

#10-#14

#6-#14

(30.73mm + 0.38mm)

BC6031S

REPLACES CC60030-18

Buss

1.210" + 0.015"

30A

600V

BUSSMANN

COOPER INDUSTRIES

ST. LOUIS, MO 63178

MADE IN U.S.A.

75 C WIRE

200,000A RMS SYM

WITHSTAND RATING

XXXX

* QUICK CONNECT RATED FOR 20A MAXIMUM.

CLASS CC

FUSES ONLY

CU ONLY

10-14

20 LB IN.

CE logo denotes compliance with European Union Low Voltage Directive

(50-1000 Vac, 75-1500 Vdc). Refer to Data Sheet: 8002 or contact

Bussmann Application Engineering at 636-527-1270 for more information.

The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is

intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change

design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information con-

tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.

9-18-02

SB02295

Form No. BC Series

Page 1 of 1

Data Sheet: 1105
