8CLPT-10E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 8CLPT-10E

8CLPT-10E: DescriptionCartridge Fuses 8.3kV 10A; CategoryCircuit protection; File Size8MB，72 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

8CLPT-10E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8CLPT-10E	-	-	View	Buy Now

8CLPT-10E Overview

Cartridge Fuses 8.3kV 10A

8CLPT-10E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Eaton
Product Category	Cartridge Fuses
RoHS	Details
Packaging	Bulk
Factory Pack Quantity	1
Unit Weight	1.500 lbs

Preview

Download Datasheet

View All

Technical Data 6002

Effective March 2016

Supersedes December 2015

BUSSMANN

SERIES

PT Medium voltage fuses for potential and

small power transformers

Features and benefits

•

Low amp, current-limiting E-Rated PT

medium voltage fuses are general purpose

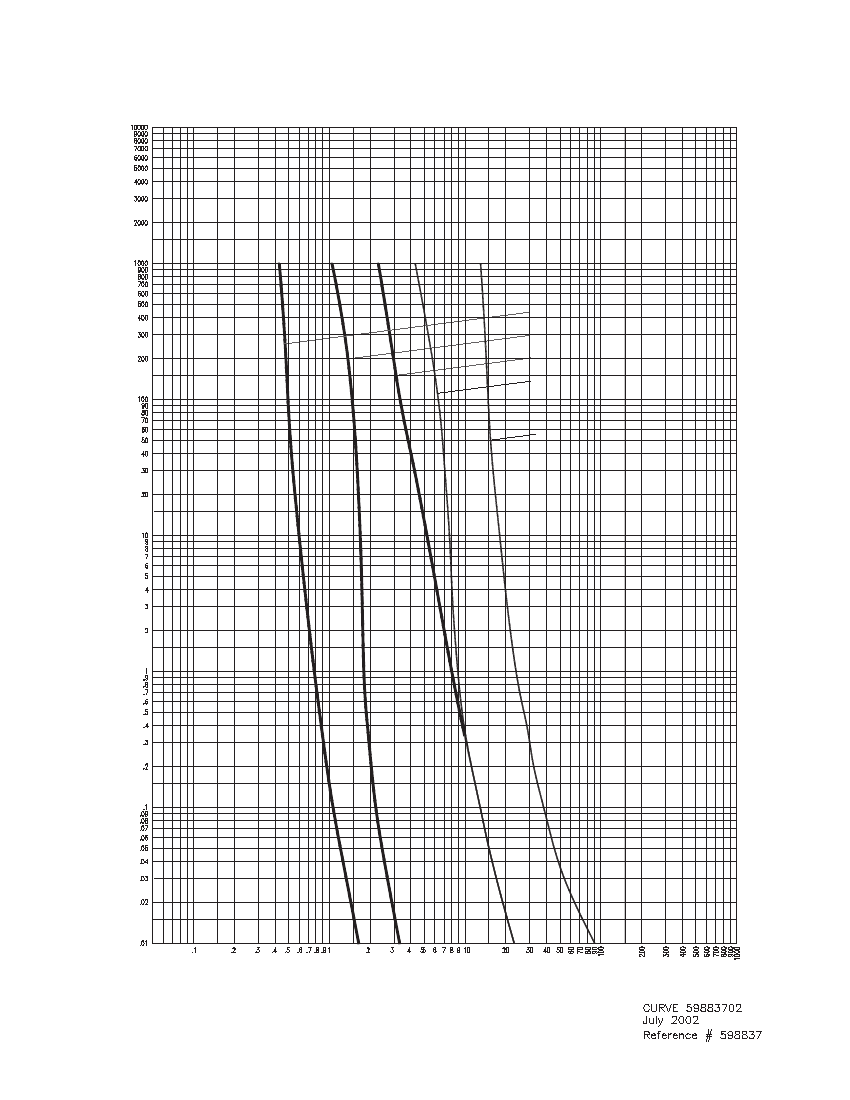

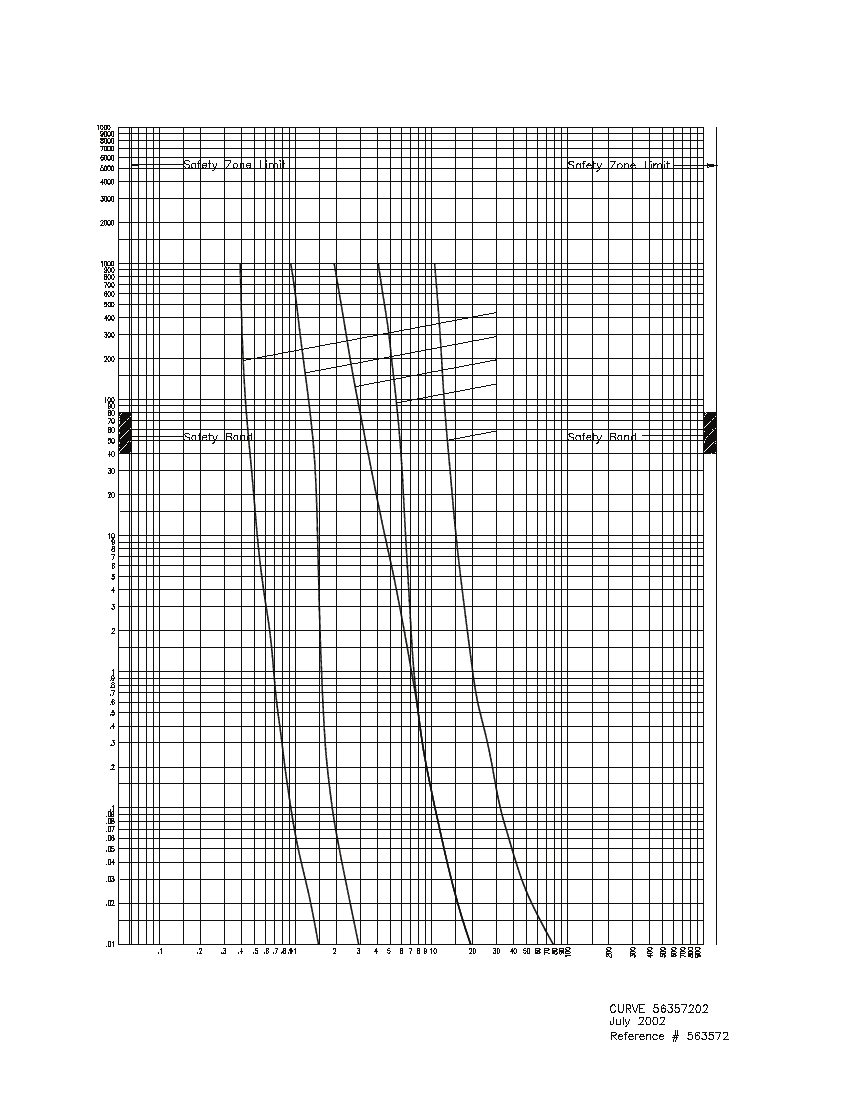

fuses defined by their melting time-current

characteristic that permit their electrical

interchangeability with other fuses of the

same E Rating.

E-Rated general purpose fuses must have

a current responsive element that will melt

in 300 seconds at an RMS current within

the range of 200% to 240% of the fuse’s

nameplate current rating, fuse refill, or link

per ANSI C37.46 for fuses rated 100E or less.

PT fuses are physically dimensioned for easy

installation in existing hardware.

Space saving size eases design

considerations for new installations.

Current-limiting fuses provide positive

interruption even on low fault currents.

The fuse limits the magnitude of

electromechanical stresses in the protected

apparatus.

These fuses are in a self-contained, non-

venting package for installation indoors or

outdoors in an enclosure.

Available in indicating and non-indicating

versions.

Open fuse indicator speeds troubleshooting

by providing a positive visual indication of

fuse operation.

•

Description:

•

Bussmann

series Indicating and non-

indicating E-Rated, current-limiting, medium

voltage fuses for potential, small power and

control transformers.

•

Contents

Description

Page

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2.475kV fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

3.6kV fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9

5.5kV fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 10-26

7.2kV fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 27-29

8.3kV fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 30-39

12kV fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 40-42

15.5kV fuses . . . . . . . . . . . . . . . . . . . . . . . . . 43-52

17.5kV fuses . . . . . . . . . . . . . . . . . . . . . . . . . 53-54

24kV fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 55-56

25.5kV fuses . . . . . . . . . . . . . . . . . . . . . . . . . 57-60

36kV fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 61-62

38kV fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 63-69

Fuse mountings . . . . . . . . . . . . . . . . . . . . . . 70-71

•

Typical applications:

•

Primary protection of:

•

Medium voltage potential transformers

•

Small medium voltage service

transformers

Small medium voltage control

transformers.

•
