CMF5.0A
THRU
CMF170A
SURFACE MOUNT
UNI-DIRECTIONAL SILICON
TRANSIENT VOLTAGE SUPPRESSOR
200 WATTS, 5.0 THRU 170 VOLTS
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMF5.0 Series
of Transient Voltage Suppressors are designed to
protect sensitive electronic components from high
voltage, high-energy transients. High surge capability,
low impedance, low clamping voltage, fast response
time and small size make this an excellent choice for
industrial/consumer applications, such as cell phones,
power supplies and portable devices.
MARKING CODE: SEE ELECTRICAL
CHARACTERISTICS TABLE
FEATURES:
SOD-123F CASE
APPLICATIONS:
•
•
•
•
Digital cameras
Cell phones and accessories
Desktop and laptop computers
PDAs
•
•
•
•
•
Stand-off voltage 5 to 170 Volts
Very low leakage current
Low clamping voltage
200 Watt peak power dissipation
Small, high thermal efficiency, SOD-123F flat lead package
SYMBOL
PPP
VESD
TJ, Tstg
UNITS
W
kV
°C
MAXIMUM RATINGS:
(TA=25°C)
Peak Pulse Power (10/1000µs Waveform)
ESD Voltage (HBM)
Operating and Storage Junction Temperature
200
25
-65 to +150
ELECTRICAL CHARACTERISTICS:
(TJ=25°C unless otherwise noted)
Reverse
Stand-Off
Voltage
Type
VRWM
V
CMF5.0A
CMF6.0A
CMF6.5A
CMF7.0A
CMF7.5A
CMF8.0A
CMF8.5A
CMF9.0A
CMF10A
CMF11A
CMF12A
CMF13A
CMF14A
CMF15A
CMF16A
CMF17A
CMF18A
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10
11
12
13
14
15
16
17
18
Breakdown
Voltage
VBR @ IT
MIN
V
6.4
6.67
7.22
7.78
8.33
8.89
9.44
10
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20
MAX
V
7.0
7.37
7.98
8.6
9.21
9.83
10.4
11.1
12.3
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
Test
Current
IT
mA
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Reverse
Leakage
Current
IR @ VRWM
µA
400
400
250
100
50
25
10
5.0
2.5
2.5
2.5
1.0
1.0
1.0
1.0
1.0
1.0
Maximum
Clamping
Voltage
VC @ IPP
V
9.2
10.3
11.2
12
12.9
13.6
14.4
15.4
17
18.2
19.9
21.5
23.2
24.4
26
27.6
29.2
Peak
Pulse
Current
IPP
A
21.7
19.4
17.9
16.7
15.5
14.7
13.9
13
11.8
11
10.1
9.3
8.6
8.2
7.7
7.2
6.8
CM05A
CM06A
CM065
CM07A
CM075
CM08A
CM085
CM09A
CM10A
CM11A
CM12A
CM13A
CM14A
CM15A
CM16A
CM17A
CM18A
Marking
Code
R3 (8-January 2010)
CMF5.0A
THRU
CMF170A
SURFACE MOUNT
UNI-DIRECTIONAL SILICON
TRANSIENT VOLTAGE SUPPRESSOR
200 WATTS, 5.0 THRU 170 VOLTS
ELECTRICAL CHARACTERISTICS - Continued:
Reverse
Stand-Off
Voltage
Type
VRWM
V
CMF20A
CMF22A
CMF24A
CMF26A
CMF28A
CMF30A
CMF33A
CMF36A
CMF40A
CMF43A
CMF45A
CMF48A
CMF51A
CMF54A
CMF58A
CMF60A
CMF64A
CMF70A
CMF75A
CMF78A
CMF85A
CMF90A
CMF100A
CMF110A
CMF120A
CMF130A
CMF150A
CMF160A
CMF170A
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
85
90
100
110
120
130
150
160
170
Breakdown
Voltage
VBR @ IT
MIN
V
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40
44.4
47.8
50
53.3
56.7
60
64.4
66.7
71.1
77.8
83.3
86.7
94.4
100
111
122
133
144
167
178
189
MAX
V
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.3
71.2
73.7
78.6
86
92.1
95.8
104
111
123
135
147
159
185
197
209
Test
Current
IT
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Reverse
Leakage
Current
IR @ VRWM
µA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Maximum
Clamping
Voltage
VC @ IPP
V
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103
113
121
126
137
146
162
177
193
209
243
259
275
Peak
Pulse
Current
IPP
A
6.2
5.6
5.1
4.8
4.4
4.1
3.8
3.4
3.1
2.9
2.8
2.6
2.4
2.3
2.1
1.8
1.7
1.5
1.4
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
0.7
0.6
CM20A
CM22A
CM24A
CM26A
CM28A
CM30A
CM33A
CM36A
CM40A
CM43A
CM45A
CM48A
CM51A
CM54A
CM58A
CM60A
CM64A
CM70A
CM75A
CM78A
CM85A
CM90A
CM100
CM110
CM120
CM130
CM150
CM160
CM170
Marking
Code
SOD-123F CASE - MECHANICAL OUTLINE
R3 (8-January 2010)
w w w. c e n t r a l s e m i . c o m
CMF5.0A
THRU
CMF170A
SURFACE MOUNT
UNI-DIRECTIONAL SILICON
TRANSIENT VOLTAGE SUPPRESSOR
200 WATTS, 5.0 THRU 170 VOLTS

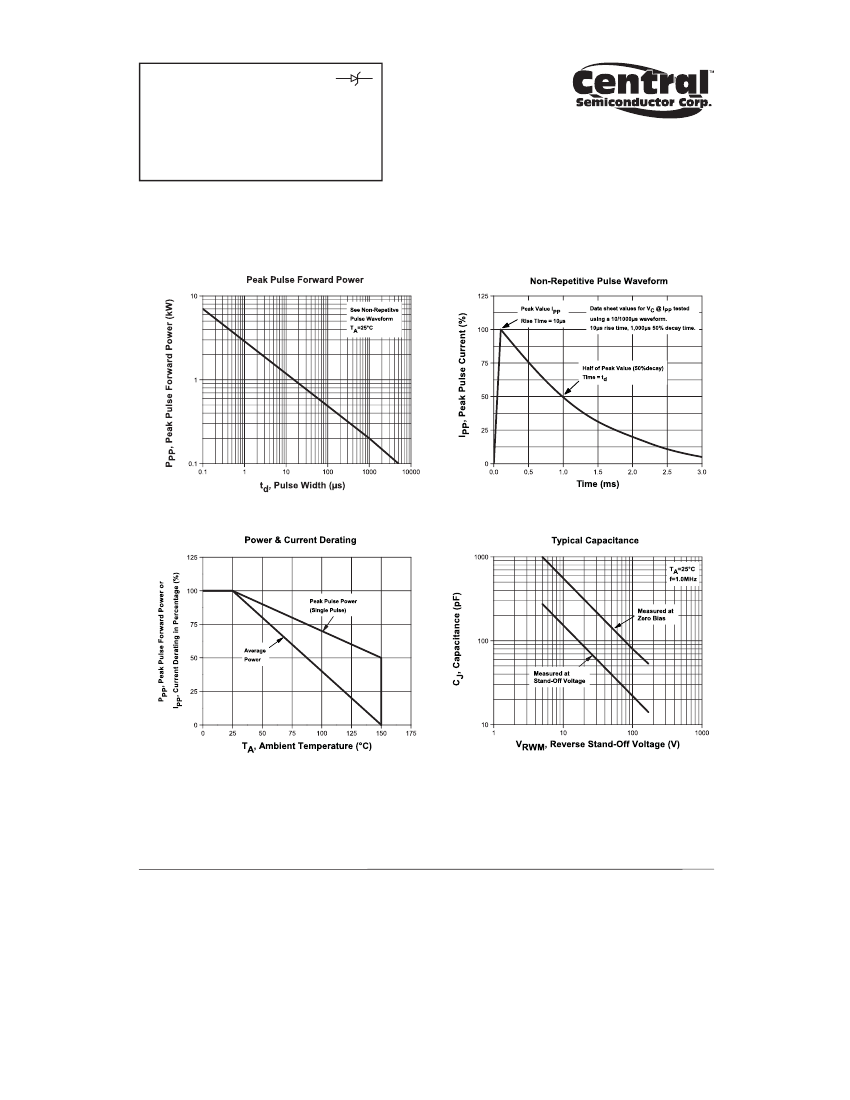

TYPICAL ELECTRICAL CHARACTERISTICS
R3 (8-January 2010)
w w w. c e n t r a l s e m i . c o m
