TVS Diodes
Axial Leaded – 5000W > 5KP-HRA series

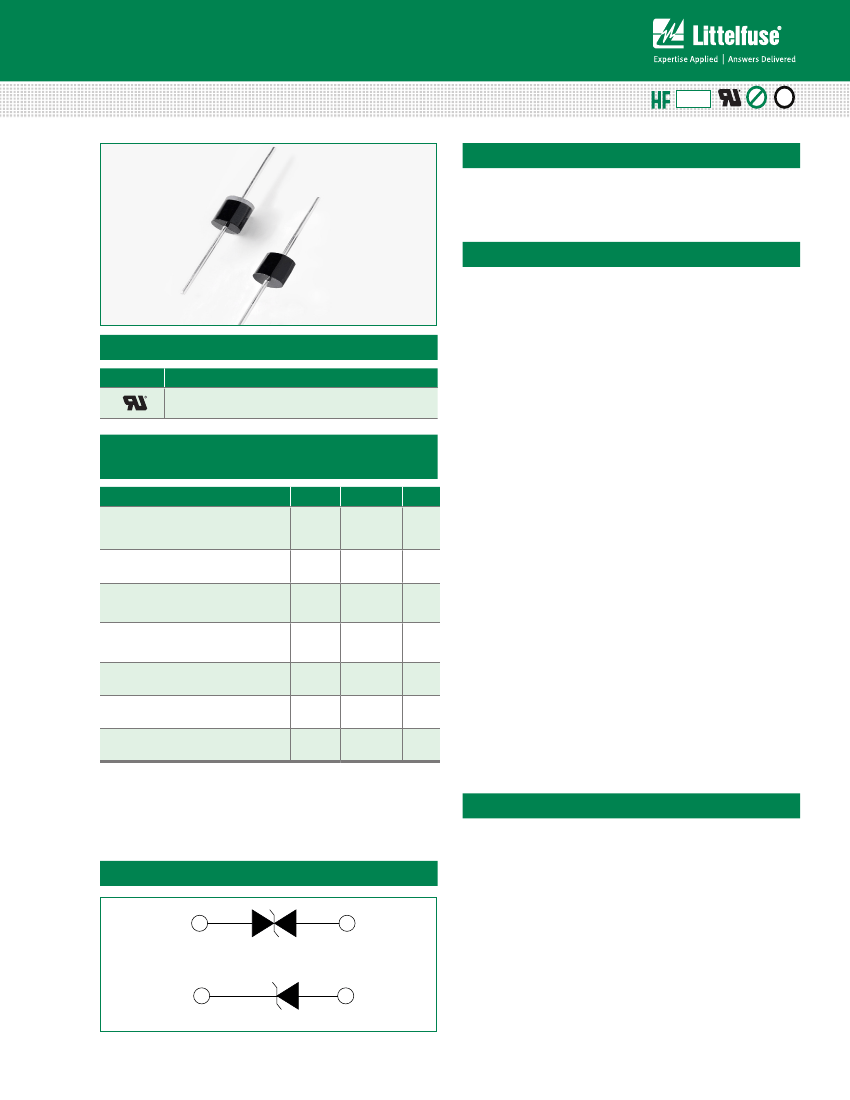

5KP-HRA Series
Description
Uni-directional
RoHS
Pb
e3
The 5KP-HRA High Reliability Series is designed specifically
to protect sensitive electronic equipment from voltage
transients induced by lightning and other transient voltage
events.
Bi-directional
Features
• 5000W peak pulse
capability at 10/1000μs
waveform, repetition rate
(duty cycles):0.01%
• Glass passivated chip
junction in P600 package
• Fast response time:
typically less than 1.0ps
from 0 Volts to BV min
• Excellent clamping
capability
• Typical failure mode is
short from over-specified
voltage or current
• Whisker test is conducted
based on JEDEC
JESD201A per its table 4a
and 4c
• IEC-61000-4-2 ESD
30kV(Air), 30kV (Contact)
• ESD protection of data
lines in accordance with
IEC 61000-4-2
• EFT protection of data
lines in accordance with
IEC 61000-4-4
• Low incremental surge
resistance
•Typical I
R
less than 2μA
when V
BR
min>12V
• High temperature
to reflow soldering
guaranteed: 260°C/10sec
/ 0.375” (9.5mm) lead
,
length, 5 lbs., (2.3kg)
tension
• V
BR
@ T
J
= V
BR
@25°C
x (1+
α
T x (T
J
- 25))
(
α
T:Temperature
Coefficient, typical value
is 0.1%)
• Plastic package is
flammability rated V-0 per
Underwriters Laboratories
• Lead-free matte tin plated
package
• Halogen free and RoHS
compliant
• Pb-free E3 means 2nd
level interconnect is
Pb-free and the terminal
finish material is tin(Sn)
(IPC/JEDEC J-STD-
609A.01)
Agency Approvals
AGENCY
AGENCY FILE NUMBER
E230531
Maximum Ratings and Thermal Characteristics
(T
A
=25
O
C unless otherwise noted)
Parameter
Peak Pulse Power Dissipation by
10/1000μs Test Waveform (Fig.2)
(Note 1)
Steady State Power Dissipation on
Infinite Heat Sink at T
L
=75ºC
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave Unidirectional
Only (Note 2)
Maximum Instantaneous Forward
Voltage at 100A for Unidirectional
Only (Note 3)
Operating Junction and Storage
Temperature Range
Typical Thermal Resistance Junction
to Lead
Typical Thermal Resistance Junction
to Ambient
Symbol
P
PPM
P
D
I
FSM
V
F
T
J
, T
STG
R
uJL
R
uJA
Value
5000
8.0
400
3.5/5.0
-55 to 175
8.0
40
Unit
W
W
A
V
°C
°C/W
°C/W
Notes:
1. Non-repetitive current pulse , per Fig. 4 and derated above T
J
(initial) =25
O
C per Fig. 3.
2. Measured on 8.3ms single half sine wave or equivalent square wave, duty cycle=4 per
minute maximum.
3. V
F
< 3.5V for single die parts and V
F
< 5.0V for stacked-die parts.
Applications
TVS devices are ideal for the protection of I/O interfaces,
V
CC
bus and other vulnerable circuits used in telecom,
computer, industrial and consumer electronic applications.
Functional Diagram
Bi-directional
Cathode
Uni-directional
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/10/16
Anode
TVS Diodes
Axial Leaded – 5000W > 5KP-HRA series
Electrical Characteristics
(T =25°C unless otherwise noted)
A
Part
Number
(Uni)
5KP5.0A-HRA
5KP6.0A-HRA
5KP6.5A-HRA
5KP7
.0A-HRA
5KP7
.5A-HRA
5KP8.0A-HRA
5KP8.5A-HRA
5KP9.0A-HRA
5KP10A-HRA
5KP11A-HRA
5KP12A-HRA
5KP13A-HRA
5KP14A-HRA
5KP15A-HRA
5KP16A-HRA
5KP17A-HRA
5KP18A-HRA
5KP20A-HRA
5KP22A-HRA
5KP24A-HRA
5KP26A-HRA
5KP28A-HRA
5KP30A-HRA
5KP33A-HRA
5KP36A-HRA
5KP40A-HRA
5KP43A-HRA
5KP45A-HRA
5KP48A-HRA
5KP51A-HRA
5KP54A-HRA
5KP58A-HRA
5KP60A-HRA
5KP64A-HRA
5KP70A-HRA
5KP75A-HRA
5KP78A-HRA
5KP85A-HRA
5KP90A-HRA
5KP100A-HRA
5KP110A-HRA
5KP120A-HRA
5KP130A-HRA
5KP150A-HRA
5KP160A-HRA
5KP170A-HRA
5KP180A-HRA
5KP190A-HRA
5KP200A-HRA
5KP210A-HRA
5KP220A-HRA
Note:
Part
Number
(Bi)
5KP5.0CA-HRA
5KP6.0CA-HRA
5KP6.5CA-HRA
5KP7
.0CA-HRA
5KP7
.5CA-HRA
5KP8.0CA-HRA
5KP8.5CA-HRA
5KP9.0CA-HRA
5KP10CA-HRA
5KP11CA-HRA
5KP12CA-HRA
5KP13CA-HRA
5KP14CA-HRA
5KP15CA-HRA
5KP16CA-HRA
5KP17CA-HRA
5KP18CA-HRA
5KP20CA-HRA
5KP22CA-HRA
5KP24CA-HRA
5KP26CA-HRA
5KP28CA-HRA
5KP30CA-HRA
5KP33CA-HRA
5KP36CA-HRA
5KP40CA-HRA
5KP43CA-HRA
5KP45CA-HRA
5KP48CA-HRA
5KP51CA-HRA
5KP54CA-HRA
5KP58CA-HRA
5KP60CA-HRA
5KP64CA-HRA
5KP70CA-HRA
5KP75CA-HRA
5KP78CA-HRA
5KP85CA-HRA
5KP90CA-HRA
5KP100CA-HRA
5KP110CA-HRA
5KP120CA-HRA
5KP130CA-HRA
5KP150CA-HRA
5KP160CA-HRA
5KP170CA-HRA
5KP180CA-HRA
5KP190CA-HRA
5KP200CA-HRA
5KP210CA-HRA
5KP220CA-HRA
Reverse
Stand off
Voltage V
R
(Volts)
5.0
6.0
6.5
7
.0
7
.5
8.0
8.5
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17
.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
130.0
150.0
160.0
170.0
180.0
190.0
200.0
210.0
220.0
Breakdown
Voltage V
BR
(Volts) @ I
T
MIN
6.40
6.67
7
.22
7
.78
8.33
8.89
9.44
10.00
11.10
12.20
13.30
14.40
15.60
16.70
17
.80
18.90
20.00
22.20
24.00
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47
.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77
.80
83.30
86.70
94.40
100.00
110.00
122.00
133.00
144.00
167
.00
178.00
189.00
200.00
211.00
222.00
233.00
244.00
MAX
7
.00
7
.37
7
.98
8.60
9.21
9.83
10.40
11.10
12.30
13.50
14.70
15.90
17
.20
18.50
19.70
20.90
22.10
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
104.00
111.00
123.00
135.00
147
.00
159.00
185.00
197
.00
209.00
221.00
233.00
246.00
258.00
270.00
Test
Current
I
T
(mA)
50
50
50
50
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Maximum
Clamping
Voltage
V
C
@ I
PP
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17
.0
18.2
19.9
21.5
23.2
24.4
26.0
27
.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77
.4
82.4
87
.1
93.6
96.8
103.0
113.0
121.0
126.0
137
.0
146.0
162.0
177
.0
193.0
209.0
243.0
259.0
275.0
292.0
310.0
329.2
349.5
371.1
Maximum
Peak
Pulse
Current I
PP
(A)
554.3
495.1
455.4
425.0
395.3
375.0
354.2
331.2
300.0
280.2
256.3
237
.2
219.8
209.0
196.2
184.8
174.7
157
.4
143.7
131.1
121.1
112.3
105.4
95.7
87
.8
79.1
73.5
70.2
65.9
61.9
58.6
54.5
52.7
49.5
45.1
42.1
40.5
37
.2
34.9
31.5
28.8
26.4
24.4
21.0
19.7
18.5
17
.5
16.5
15.5
14.6
13.7
Maximum
Reverse
Leakage
I
R
@ V
R
(µ A)
5000
5000
2000
1000
250
150
50
20
15
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Agency
Approval
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
1. For bidirectional type having V
R
of 10 volts and less, the I
R
limit is double.
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/10/16
TVS Diodes
Axial Leaded – 5000W > 5KP-HRA series
Screen Process
100% Vision Inspection
100% High Temperature Storage Life (168hrs,175°C)
100% Temperature Cycle Test (-55 to150°C, 20 cycles, dwell time 15 min)
100% Surge Test (2x)
MIL
-STD-750 method 2074
MIL
-STD-750 method 1031
MIL
-STD-750 method 1051
MIL
-STD-750 method 4066
100% HTRB 150°C Bias=VR(80% breakdown voltage, 96hrs, and each direction
MIL
-STD-750 method 1038
at 96 hrs for Bi-directional products)
Final Electrical Test( 100% 3 sigma limit, 100% dynamic test and PAT limit)
Note: Up-screen program can be specified by customer’s request via contacting Littelfuse service
MIL
-STD-750 method 4016.4021.4011
I-V Curve Characteristics
Uni-directional
Bi-directional
I
pp
Vc V
BR
V
R
I
R
V
F
I
T
V
Vc V
BR
V
R
I
T
I
R
I
R
I
T
V
R
V
BR
Vc
V
I
pp
I
pp
P
PPM
V
R
V
BR
V
C
I
R
V
F
Peak Pulse Power Dissipation
-- Max power dissipation
Stand-off Voltage
-- Maximum voltage that can be applied to the TVS without operation
Breakdown Voltage
-- Maximum voltage that flows though the TVS at a specified test current (I
T
)
Clamping Voltage
-- Peak voltage measured across the TVS at a specified Ippm (peak impulse current)
Reverse Leakage Current
-- Current measured at V
R
Forward Voltage Drop for Uni-directional
A

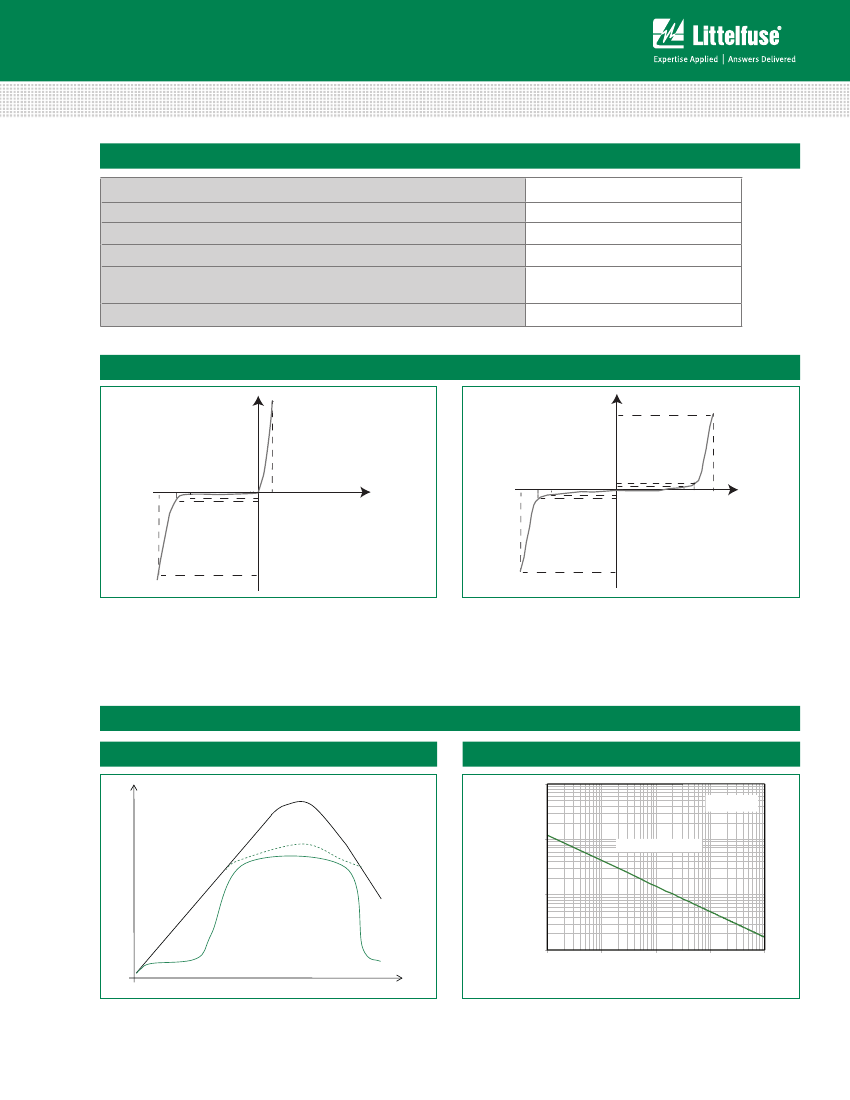

Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
Figure 1 - TVS Transients Clamping Waveform
Voltage Transients
Figure 2 - Peak Pulse Power Rating Curve
1000
Voltage Across TVS
Voltage or Current
P
PPM
-Peak Pulse Power (KW)
TJ initial = Tamb
100
5kW at 10/1000µs,
25°C
Current Through TVS
10
1
0.001
Time
0.01
0.1
1
10
t
d
-Pulse Width (ms)
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/10/16
TVS Diodes
Axial Leaded – 5000W > 5KP-HRA series

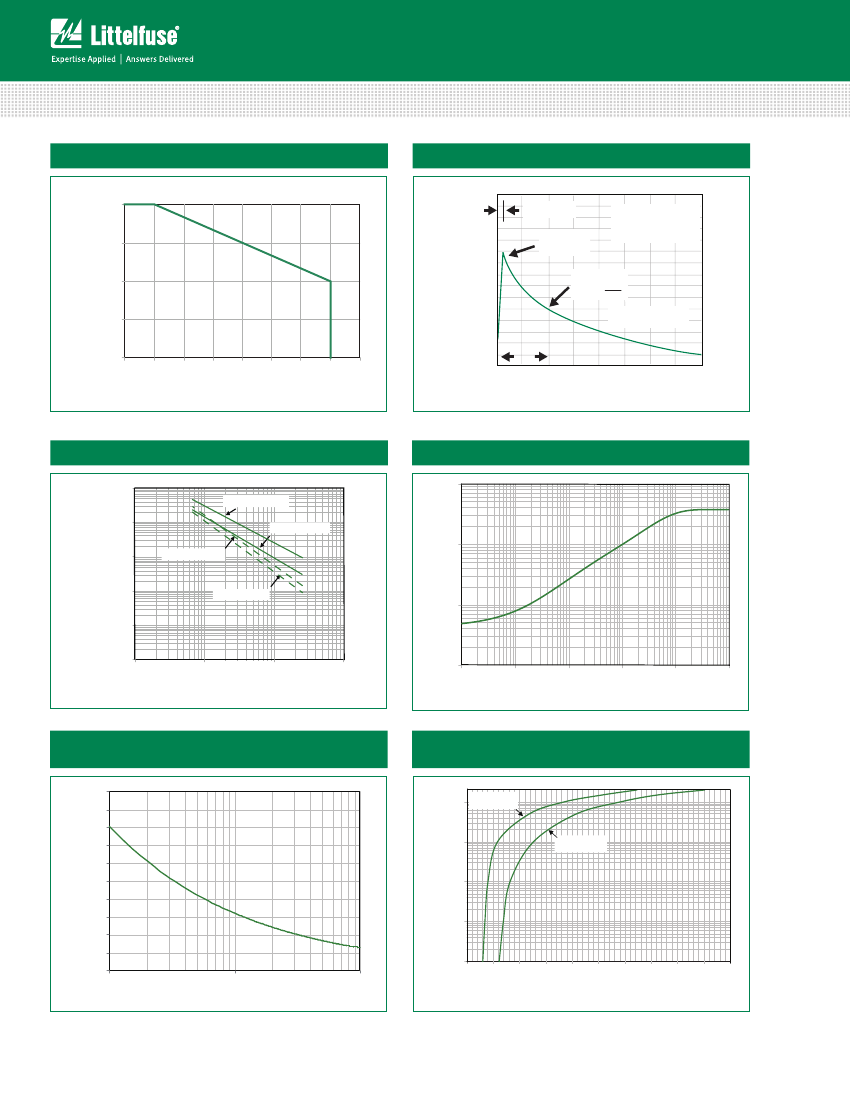

Figure 3 - Peak Pulse Power Derating Curve
Figure 4 - Pulse Waveform
150
I
PPM
- Peak Pulse Current, % I
RSM
tr=10µsec
Peak Value
IPPM
TJ=25°C
Pulse Width(td) is defined
as the point where the peak
current decays to 50% of IPPM
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
100
75
100
50
Half Value
IPPM
IPPM
2
( )
10/1000µsec. Waveform
as defined by R.E.A
25
50
0
0
25
50
75
100
125
150
175
200
0
td
T
J
- Initial Junction Temperature (ºC)
0
1.0
2.0
t-Time (ms)
3.0
4.0
Figure 5 - Typical Junction Capacitance
100000
Figure 6 - Typical Transient Thermal Impedance
100
Transient Thermal Impedance (°C/W)
1000
Uni-direc onal V=0V
10000
Bi-direc onal V=0V
Uni-direc onal V=
V
R
Cj (pF)
10
1000
100
Bi-direc onal V=
V
R
1
10
1
1
10
100
0.1
0.01
0.1
1
10
100
1000
TP - Pulse Duration (s)
V
BR
- Reverse Breakdown Voltage (V)
Figure 7 - Maximum Non-Repetitive Peak Forward
Surge Current Uni-Directional Only
500
IFSM
-
Peak Forward Surve Current (A)
Figure 8 - Peak Forward Voltage Drop vs Peak Forward
Current (Typical Values)
Single die
400
350
300
250
200
150
100
50
0
1
10
Number of Cycles at 60 Hz
IF- Peak Forward Current(A)
450
100
10
Stacked-die
1
0.1
0.01
100
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
VF-Peak Forward Voltage(V)
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/10/16
TVS Diodes
Axial Leaded – 5000W > 5KP-HRA series
Physical Specifications
Weight
Case
Polarity
Terminal
0.07oz., 2.1g
P600 molded plastic body over passivated
junction.
Color band denotes the cathode except
Bipolar.
Matte Tin axial leads, solderable per
JESD22-B102.
Environmental Specifications
High Temp. Storage
HTRB
Temperature Cycling
H3TRB
RSH
JESD22-A103
JESD22-A108
JESD22-A104
JESD22-A101
JESD22-B106
Dimensions
Dimensions
A
Inches
Min
1.000
0.340
0.048
0.340
Max
-
0.360
0.052
0.360
Millimeters
Min
25.40
8.60
1.22
8.60
Max
-
9.10
1.32
9.10
D
A
Cathode Band
(for Uni-directional products only)
C
B
P600
Part Numbering System
5KPxxx XX -HR A
B
C
D
A
Part Marking System
WITHOUT GROUP B TEST
HIGH RELIABILITY
TYPE CODE:
A
Uni-Directional (5%
V
BR
Voltage Tolerance)
CA
Bi-Directional (5%
V
BR
Voltage Tolerance)
V
R
VOLTAGE
(for Uni-directional
products only)
F
Cathode Band
YYWW
Trace Code Marking
YY:Year Code
WW: Week Code
Littelfuse Logo
5KPXXX-HRA
Product Type
SERIES CODE
Packing Options
Part Number
5KPxxxXX-HRA
Component
Package
P600
Quantity
800
Packaging
Option
Tape & Reel
Packaging Specification
EIA STD RS-296
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/10/16
京公网安备 11010802033920号
EEWORLD
