Bussmann
®
HRCI-CB Industrial Ceramic Body Fuse
Clip-In Mounting

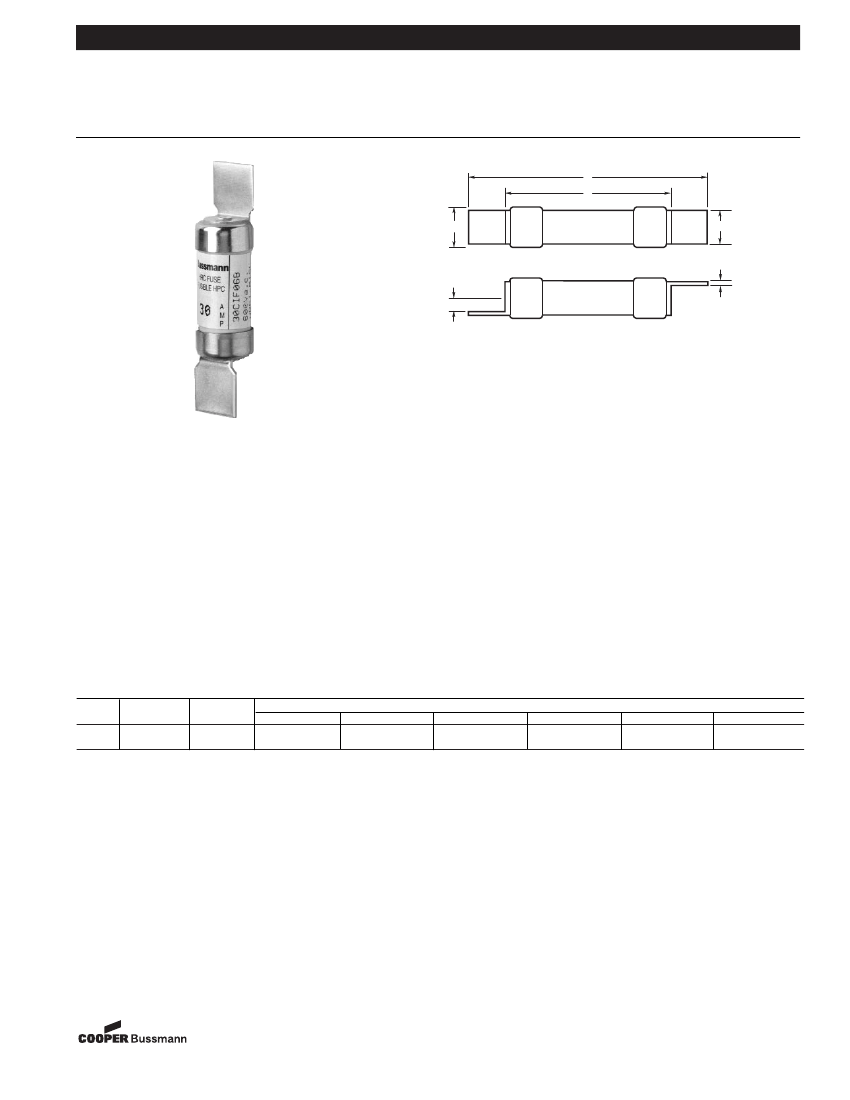

Dimensional Data
A
C
CIF06
D
E
N
F
Catalog Symbol:
CIF06B (1 - 30A)
600Vac; 250Vdc
Interrupting Rating:
200,000A RMS Symmetrical
CSA C22.2 NO. 106-M92 (3-30A only)
• Industrial miniature fuse with offset blades for clip-in mounting.
• Ground ceramic body with plated endcaps.
• Provides both short circuit and overload protection.
• CIF06 fits the 30A SafeLOC fuseholder.
Type
HRCI-CB
Catalog
Symbol
CIF06B
Amps
1-30A
Dimensions in Inches and (mm)
A
E
2.38
.50
(60.40)
(12.70)
F
.03
(0.81)
N
.14
(3.50)
C
1.44
(35.50)
D
.54
(13.80)
6-3-04
SB04168
Form No. HRCI-CB
Page 1 of 2
Data Sheet: 4128
Bussmann
®
HRCI-CB Industrial Ceramic Body Fuse
Clip-In Mounting

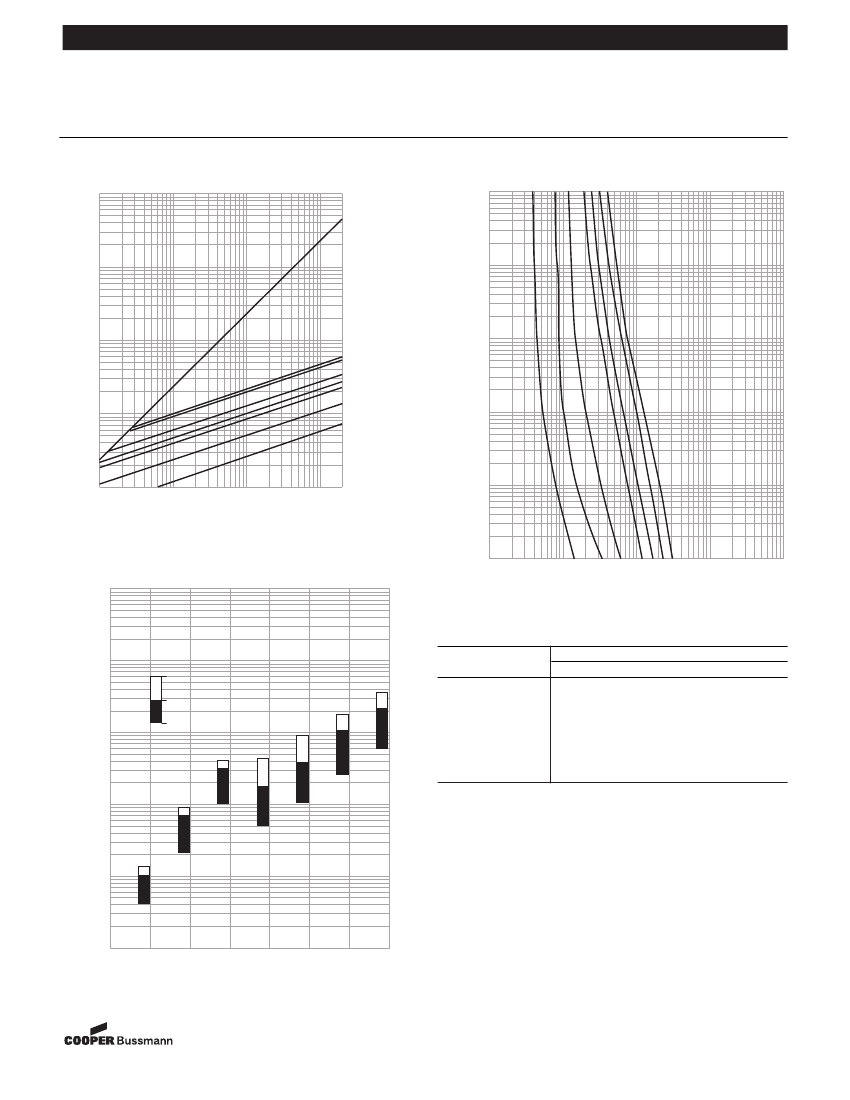

Peak Let-Through Curves (Cat. No. CIF06)
1,000
CIF06
Time/Current-Curves (Cat. No. CIF06)
1,000
AMPERE
RATING
10
15
20
25
30
3
6
100
PEAK CURRENT (KA)
100
TIME IN SECONDS
10
30
25
20
15
10
6
3
AMPERE
RATING
10
1
1
0.1
.1
PROSPECTIVE CURRENT (SYM. RMS KA)
100
10
1
.1
100,000
CURRENT IN AMPERES
10,000
Total I
2
t at 600V
AMPERE
2
SECONDS (I
2
t)
Total I
2
t at 460V
Pre-Arcing I
2
t
1,000
Power Dissipation @ Rated Amps
Catalog No.
1CIF06
3CIF06B
6CIF06B
10CIF06B
15CIF06B
20CIF06B
25CIF06B
30CIF06B
Watts
–
1.8
1.5
3.4
2.4
3.2
3.6
3.6
100
10
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann
Network Drive. All other copies of this Data Sheet are by definition uncontrolled.This bulletin is intended
to clearly present comprehensive product data and provide technical information that will help the end
user with design applications. Bussmann reserves the right, without notice, to change design or con-
struction of any products and to discontinue or limit distribution of any products. Bussmann also
reserves the right to change or update, without notice, any technical information contained in this
bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
10
15
20
25
3
6
FUSE RATING (AMPERES)
30
1
6-3-04
SB04168
Form No. HRCI-CB
Page 2 of 2
Data Sheet: 4128
10,000
1,000
100
10
1
Energy Let-Through Curves (Cat. No. CIF06)
.01
