SC-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> SC-5

SC-5: DescriptionIndustrial & Electrical Fuses 600VAC/170VDC 5A Time Delay; CategoryCircuit protection; File Size264KB，3 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

SC-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SC-5	-	-	View	Buy Now

SC-5 Overview

Industrial & Electrical Fuses 600VAC/170VDC 5A Time Delay

SC-5 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Eaton
Product Category	Industrial & Electrical Fuses
RoHS	Details
Product	Class G Fuse
Current Rating	5 A
Voltage Rating AC	600 VAC
Fuse Type	Time Delay / Slow Blow
Voltage Rating DC	170 VDC
Body Style	Cartridge Fuses
Mounting Style	Holder
Termination Style	Clip
Fuse Size / Group	Class G
Indicator Style	Without Indicator
Packaging	Bulk
Diameter	0.41 in
Length	1.31 in
Type	General
Interrupt Rating	100 kA
Factory Pack Quantity	10
Unit Weight	0.400000 oz

Preview

Download Datasheet

View All

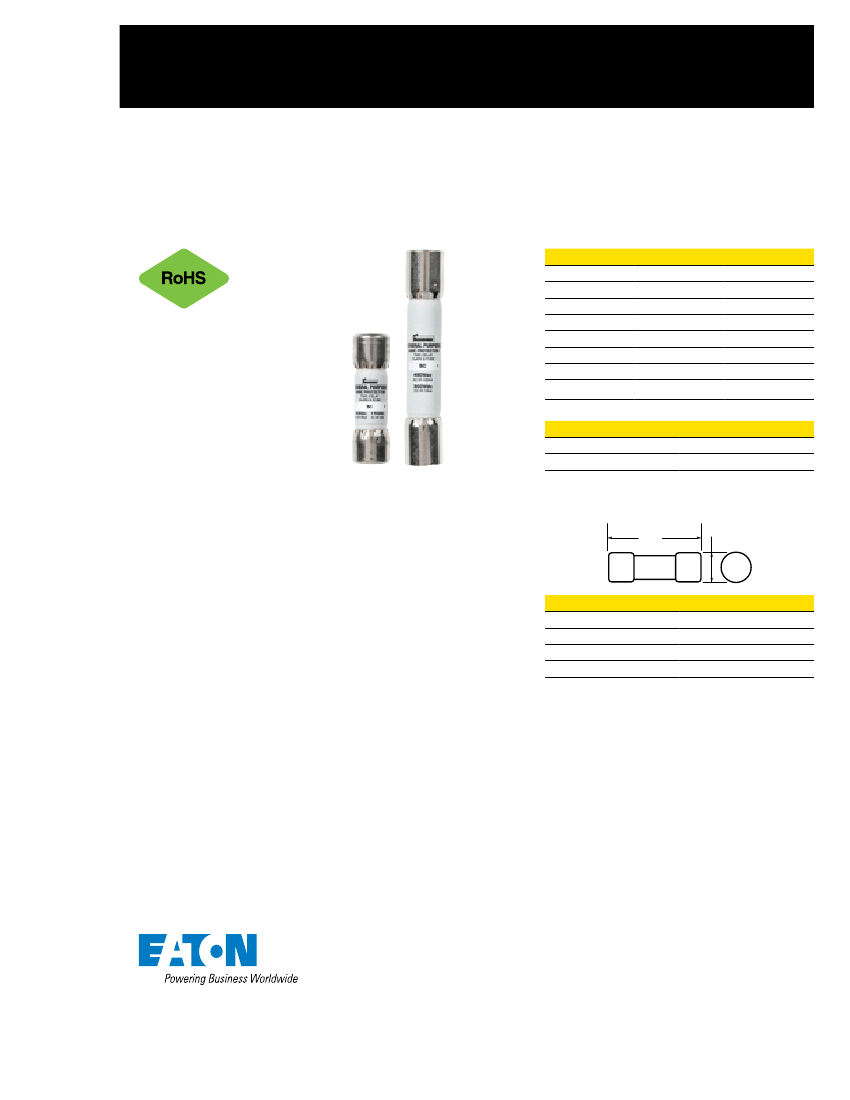

Technical Data 1024

Effective December 2015

Supersedes August 2013

BUSSMANN

SERIES

SC Class G, 600Vac/480Vac, 1⁄2-60A

size-rejecting fuses

Catalog numbers (amps)

SC-1⁄2

SC-6

SC-1

SC-7

SC-1-1⁄2

SC-8

SC-2

SC-10

SC-2-1⁄2

SC-12

SC-3

SC-15

SC-4

SC-20

SC-5

SC-25

SC-30

SC-35

SC-40

SC-45

SC-50

SC-60

Carton quantity:

Amp rating

1/2-20

25–60

Carton qty.

Catalog symbol:

•

Dimensions - in (mm):

(Length)

0.41”

(10.41mm)

SC-(amp)

Description:

Basic protection Class G size-rejecting, current

limiting fuses. 1/2 to 6A Fast-acting, 7 to 60A

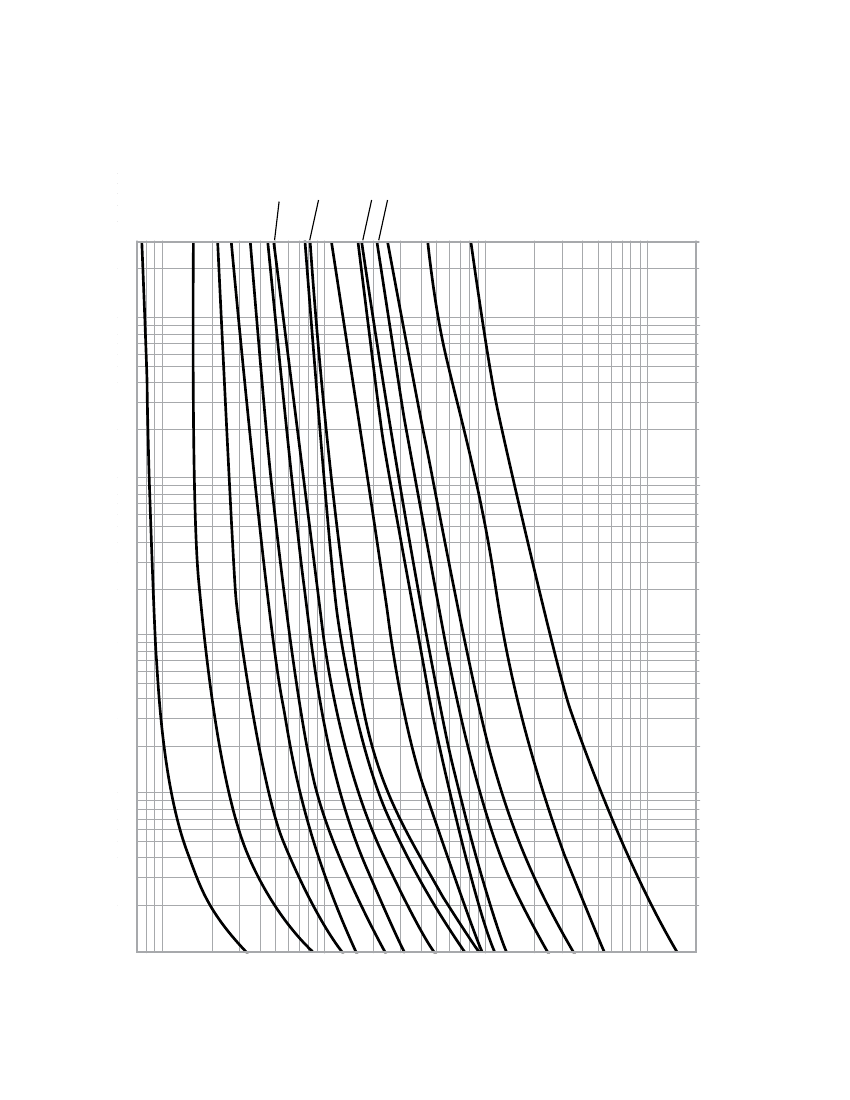

time-delay. Time-delay – 12 seconds (minimum)

at 200% of rated current.

Amp rating

1/2-15

25 to 30

35 to 60

Specifications:

Ratings

•

1.31 (33.3)

1.41 (35.8)

1.62 (41.1)

2.25 (57.1)

Volts

•

600Vac/170Vdc (½-20A)

•

Features:

•

480Vac/300Vdc (25-60A)

•

Amps 1/2-60A

•

Meets basic protection requirements of

NEC

, Canadian Electrical Code (CEC), UL

and CSA.

Most economical overcurrent protection

solution compared to circuit breakers.

For use in various non-demanding, general

purpose applications.

Compact branch-circuit units with high

interrupting rating and current-limitation.

With up to a 600V rating, they can be used in

120/208V, 120/240V, and 277/480V circuits.

Size rejection by length helps prevent

overfusing.

Fuses 7 amps and above have a degree of

overload time-delay that permits them to

pass temporary overloads.

100kA Vac RMS Sym.

10kA Vdc

•

Agency information

•

UL Listed, Std. 248-5, Class G,

Guide JDDZ, File E4273

•

CSA Certified, C22.2 No. 248.5,

Class 1422-01, File 53787

•

RoHS compliant

•
