1TL11-6 datasheet, PDF - EEWORLD Datasheet

1TL11-6: DescriptionToggle Switch, DPST, Momentary, 15A, 28VDC, Screw Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size60KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

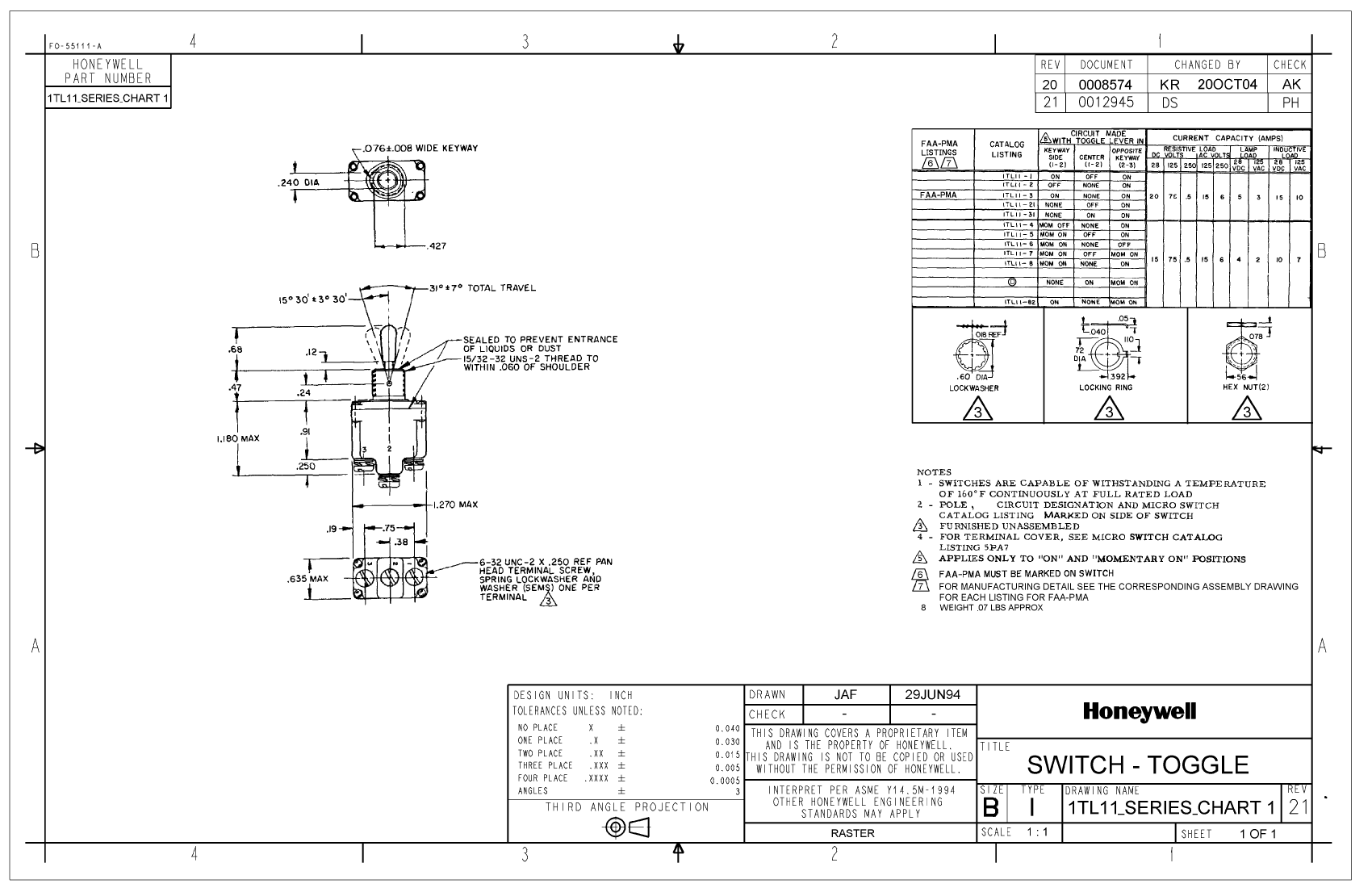

1TL11-6 Overview

Toggle Switch, DPST, Momentary, 15A, 28VDC, Screw Terminal, Panel Mount

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
body width	16.13 mm
body height	29.97 mm
Body length or diameter	32.26 mm
Contact (AC) maximum rated R load	15A@125VAC
Maximum contact current (AC)	15 A
Maximum contact current (DC)	15 A
Contact (DC) maximum rated R load	15A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Manufacturer's serial number	1TL11
Installation features	PANEL MOUNT
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	DPST
Switch type	TOGGLE SWITCH
Termination type	SCREW
Base Number Matches	1

	1TL11-6	07D561K	1TL11-21	1TL11-31	1TL11-4
Description	Toggle Switch, DPST, Momentary, 15A, 28VDC, Screw Terminal, Panel Mount	Varistor Type MYG	Toggle Switch, DPST, Latched, 20A, 28VDC, Screw Terminal, Panel Mount	Toggle Switch, DPDT, Latched, 20A, 28VDC, Screw Terminal, Panel Mount	Toggle Switch, DPDT, Momentary, 15A, 28VDC, Screw Terminal, Panel Mount
Reach Compliance Code	unknow	-	unknown	unknown	unknown
ECCN code	EAR99	-	EAR99	EAR99	EAR99
body width	16.13 mm	-	16.13 mm	16.13 mm	16.13 mm
body height	29.97 mm	-	29.97 mm	29.97 mm	29.97 mm
Body length or diameter	32.26 mm	-	32.26 mm	32.26 mm	32.26 mm
Contact (AC) maximum rated R load	15A@125VAC	-	15A@125VAC	15A@125VAC	15A@125VAC
Maximum contact current (AC)	15 A	-	15 A	15 A	15 A
Maximum contact current (DC)	15 A	-	20 A	20 A	15 A
Contact (DC) maximum rated R load	15A@28VDC	-	20A@28VDC	20A@28VDC	15A@28VDC
Maximum contact voltage (AC)	125 V	-	125 V	125 V	125 V
Maximum contact voltage (DC)	28 V	-	28 V	28 V	28 V
Manufacturer's serial number	1TL11	-	1TL11	1TL11	1TL11
Installation features	PANEL MOUNT	-	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	71 °C	-	71 °C	71 °C	71 °C
seal	DUST PROOF; WATER PROOF	-	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	-	NO	NO	NO
Switch action	MOMENTARY	-	LATCHED	LATCHED	MOMENTARY
switch function	DPST	-	DPST	DPDT	DPDT
Switch type	TOGGLE SWITCH	-	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	SCREW	-	SCREW	SCREW	SCREW
Base Number Matches	1	-	1	1	1
