Features
n
8 mm diameter, 6 mm long
n
UL Recognized
n
Custom configurations available
n
High surge current rating
n
Stable breakdown throughout life
n
RoHS compliant* versions available
OM
PL
IA
N
T
Applications
n
Telecommunications
n
Industrial electronics
n
Commercial electronics
n
Consumer electronics
n
Automotive, aircraft, military electronics
Characteristics
F
RE
E
Test Methods per ITU-T K.12, IEEE C62.31 and IEC 61643-311 GDT standards.
LE
AD
*R
oH
S

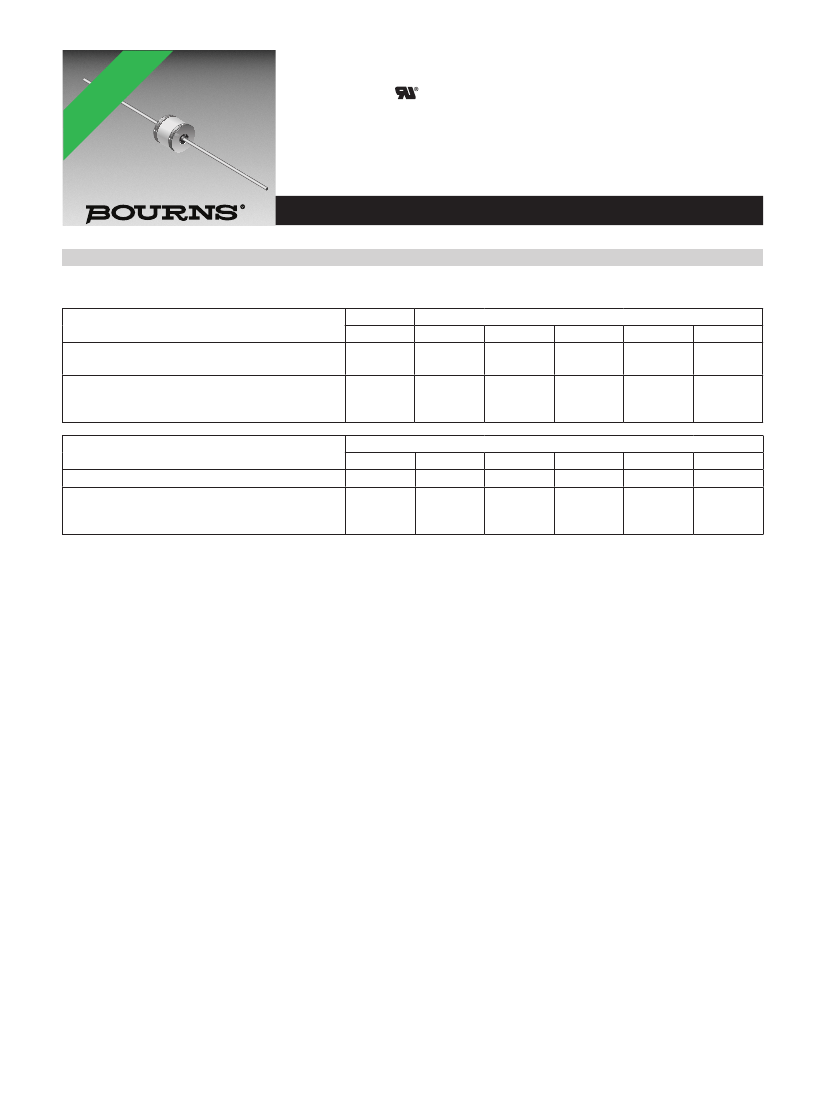

2027 Series - 2-Pole Gas Discharge Tube
C
Characteristic
300 V
500 V
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
DC Sparkover ±15 %
(±20 % for Models 2027-07 & 2027-09) @ 100 V/s
Impulse Sparkover
(1)
100 V/µs
1000 V/µs
Characteristic
DC Sparkover ±15 % @ 100 V/s
Impulse Sparkover
(1)
100 V/µs
1000 V/µs
(1)
2027-07
75 V
2027-09
90 V
300 V
500 V
2027-15
150 V
350 V
575 V
Model No.
2027-20
200 V
400 V
600 V
2027-23
230 V
450 V
675 V
2027-47
470 V
725 V
1000 V
2027-25
250 V
475 V
700 V
2027-60
600 V
850 V
1100 V
2027-30
300 V
550 V
800 V
2027-35
350 V
600 V
875 V
Model No.
2027-40
2027-42
400 V
420 V
650 V
925 V
675 V
950 V
Impulse Sparkover voltage is defined as typical values of distribution.
Insulation Resistance .........................100 V (50 V for Models 2027-07 and 2027–09) ..................... > 10
10
Ω
Glow Voltage ......................................10 mA ..................................................................................... ~ 70 V
Arc Voltage .........................................> 1A ........................................................................................ ~ 10 V
Glow-Arc Transition Current ............................................................................................................... < 0.5 A
Capacitance........................................1 MHz ..................................................................................... < 1 pF
DC Holdover Voltage
(2)
......................135 V, (52 V for Models 2027-07 and 2027-09,
80 V for Model 2027-15) ........................................................ < 150 ms
Impulse Discharge Current .................25000 A, 8/20 µs
(3)
................................................................. 1 operation minimum
10000 A, 8/20 µs .................................................................... > 10 operations
2500 A, 10/350 µs .................................................................. 2 operations
500 A, 10/1000 µs ................................................................. > 400 operations
100 A, 10/1000 µs or 10/700 µs ............................................. > 1000 operations
Alternating Discharge Current ............65 Arms, 11 cycles
(3)
.............................................................. 1 operation minimum
10 Arms, 1 s ........................................................................... > 10 operations
Operating Temperature....................................................................................................................... -55 to +125 °C
Climatic Category (IEC 60068-1)........................................................................................................ 40/90/21
Moisture Sensitivity Level .................................................................................................................. 1
ESD Classification (HBM) .................................................................................................................. 6
Notes:
• UL recognized component, UL File E153537.
• Model number marking on tube: 27-xxxV.
• Sparkover limits ±20 % after life, IR >10
8
Ω (-25 %, +30 % for Models 2027-07, 2027–09 and 2027–60).
• At delivery AQL 0.65 Level II, DIN ISO 2859.
(2)
(3)
Network applied.
DC Sparkover may exceed ±20 % after discharge, but will continue to protect without venting.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
2027 Series - 2-Pole Gas Discharge Tube
Product Dimensions
2027-XX-A
DIA.
2.5 ± 0.25
(.098 ± .010)
6.0 ± 0.3
(.236 ± .012)
2027-XX-B — 0.8 ± .04 mm (0.032 ± 0.002 in.) dia. lead wire
2027-XX-C — 1.0 ± .04 mm (0.039 ± 0.002 in.) dia. lead wire
66.0 ± 0.3
MIN.
(2.60 ± 0.012)
8.0 ± 0.4
DIA.
(.314 ± .016)
30.5 ± 0.4
LONG
(1.20 ± .016)
2 PLCS.
2027-XX-B19 — 0.8 ± 0.04 mm (0.032 ± 0.002 in.) dia. lead wire
(Not available in reelpack)
16.8 ± 0.4
(.661 ± .016)
2027-XX-B10 — 0.8 ± .04 mm (0.032 ± 0.002 in.) dia. lead wire
2027-XX-C10 — 1.0 ± .04 mm (0.039 ± 0.002 in.) dia. lead wire
(Not available in reelpack)
12.7 ± 0.3
(.500 ± .012)
6.4 ± 0.4
(.252 ± .016)
14.0 ± 0.4
(.551 ± .016)
DIMENSIONS:
MM
(INCHES)
1.5 ± 0.3
(.059 ± .012)
2.0 ± 0.3
(.079 ± .012)
8.1 ± 0.3
(.319 ± .012)
12.7 ± 0.5
(.500 ± .020)
Packaging Specifications
Model
2027-XX-A
2027-XX-B
2027-XX-C
2027-XX-B10
2027-XX-C10
2027-XX-B19
2027-XX-C19
2027-XX-BT1
2027-XX-CT1
Standard Packaging Quantity
Bulk (Bag)
Tray
Box
Reel
250
1000
100
500
100
500
100
1000
100
1000
100
500
100
500
1000
1000
How to Order
2027 - xx - x nn T1 LF
Model Number Designator
Voltage (Divided by 10)
07 = 75 V
30 = 300 V
09 = 90 V
35 = 350 V
15 = 150 V
40 = 400 V
20 = 200 V
42 = 420 V
23 = 230 V
47 = 470 V
25 = 250 V
60 = 600 V
Leads
A = None
B = 0.8 mm
C = 1 mm
2027-XX-BT1 — 0.8 ± 0.04 mm (0.032 ± 0.002 in.) dia. lead wire
Reel is 14-inches in diameter and 2.75-inches wide.
52.0
MIN.
(2.047)
Lead Shape
(See Product Dimension Drawings)
Packaging
Blank = Bulk Packaging (Standard)
T1 =
Reelpack (Optional - not available for Models 2027-xx-B19
and 2027-xx-B10/C10)
RoHS Compliant Option
Blank = Standard Product
LF = RoHS Compliant Product
10.0 ± 0.5
(0.4 ± .020)
REV. 04/18
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
