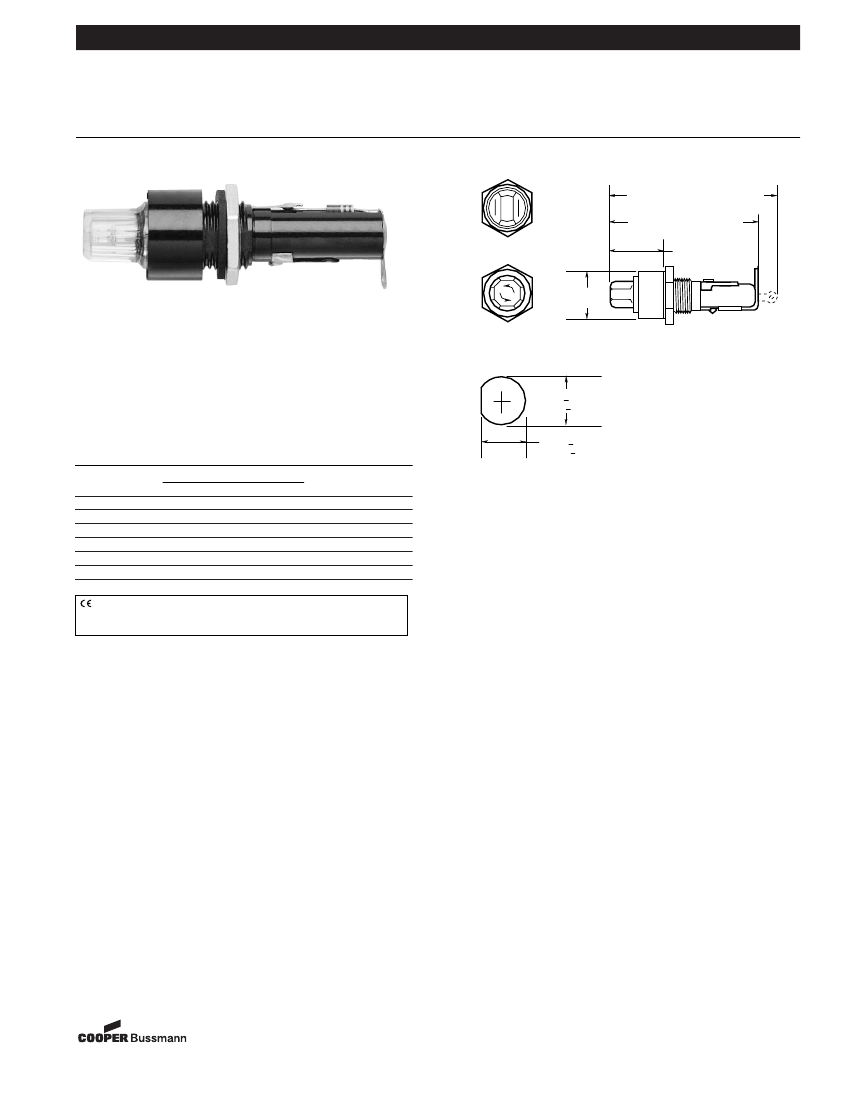

Panel-Mount—Indicating Fuseholder
For ⁄Ω¢∑ ≈ 1⁄Ω¢∑ Fuses
Dimensional Data
HK
Series
3.28" Max. (HKR through HKX)
(83.31mm Max.)
2.85" Max. (HKL, HKL-X)
(71.4mm Max.)
Flat Sides
1.19"
(30.2mm)
0.81"
(20.6mm)
Catalog Symbol:
HKL, HKR, HKT, HKU, and HKX
Panel-Mount—Indicating
Ampere Rating:
15 and 20A
Temperature Rating (RTI):
130°C
Agency Information:
*UL Recognized, Guide IZLT2, File E14853
*CSA Certified, Class 6225-01, File 47235
Electrical Ratings
Catalog
Symbol
HKL *
HKL-X *
HKR
HKT
HKU
HKX
Lamp
Amps
15
15
20
20
20
20
Volts AC
90-250
90-250
22-30
13-22
4-6
22-33
Type
Neon
Neon
Incandescent
Incandescent
Incandescent
Incandescent
Knob
Color
Clear
Clear
Amber
Amber
Red
Amber
Knob
Type
Octagon
Flat Sided
Octagon
Octagon
Octagon
Flat Sided
Octagonal Sides
Punched Mounting Hole
(16.0mm + .13mm)
.630" + .005"
(14.6mm + .08mm)
.573" + .003"
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 314-527-1270 for more information.
General Information:
• For panels up to
‹Ω¡§∑
(4.8mm) thick.
• Vibration resistant.
• For
⁄Ω¢∑ ≈ 1⁄Ω¢∑
fuses.
• Light comes on when fuse opens.
• Steel nut – 9351.
• Neoprene washer – 6276.
• Line connection is the back terminal.
• Do not put tension on line (rear) terminal.
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
6-3-04
SB04184
Form No. HK Series
Page 1 of 1
Data Sheet: 2105
