3403.0172.11

Description
Surface Mount Fuses UMT 250 4A 277V Slow
CategoryCircuit protection    Circuit protection
File Size468KB,5 Pages
ManufacturerSCHURTER
Websitehttp://www.schurterinc.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

3403.0172.11 Overview

Surface Mount Fuses UMT 250 4A 277V Slow

3403.0172.11 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSCHURTER
package instructionROHS COMPLIANT
Reach Compliance Codenot_compliant
ECCN codeEAR99
Factory Lead Time18 weeks 3 days
Is SamacsysN
Other featuresRATED BREAKING CAPACITY AT 125 VDC: 100 A
Fusing characteristicsTIME LAG
body width3 mm
body height3 mm
Body length or diameter10.1 mm
Circuit protection typeELECTRIC FUSE
JESD-609 codee3
Joule integral nominal26 J
Installation featuresSURFACE MOUNT
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
method of packingBAG
physical size10.1mm x 3mm x 3mm
Pre-discharge time - minutes10 ms
Rated breaking capacity200 A
Rated current4 A
Rated voltage250 V
Rated voltage (AC)250 V
Rated voltage (DC)125 V
GuidelineCCC; CSA; IEC; KC; PSE; UL; UMF; VDE
surface mountYES
Terminal surfaceTin (Sn)
Terminal shapeWRAPAROUND
Base Number Matches1
Fuses
https://www.schurter.com /PG01_2
UMT 250

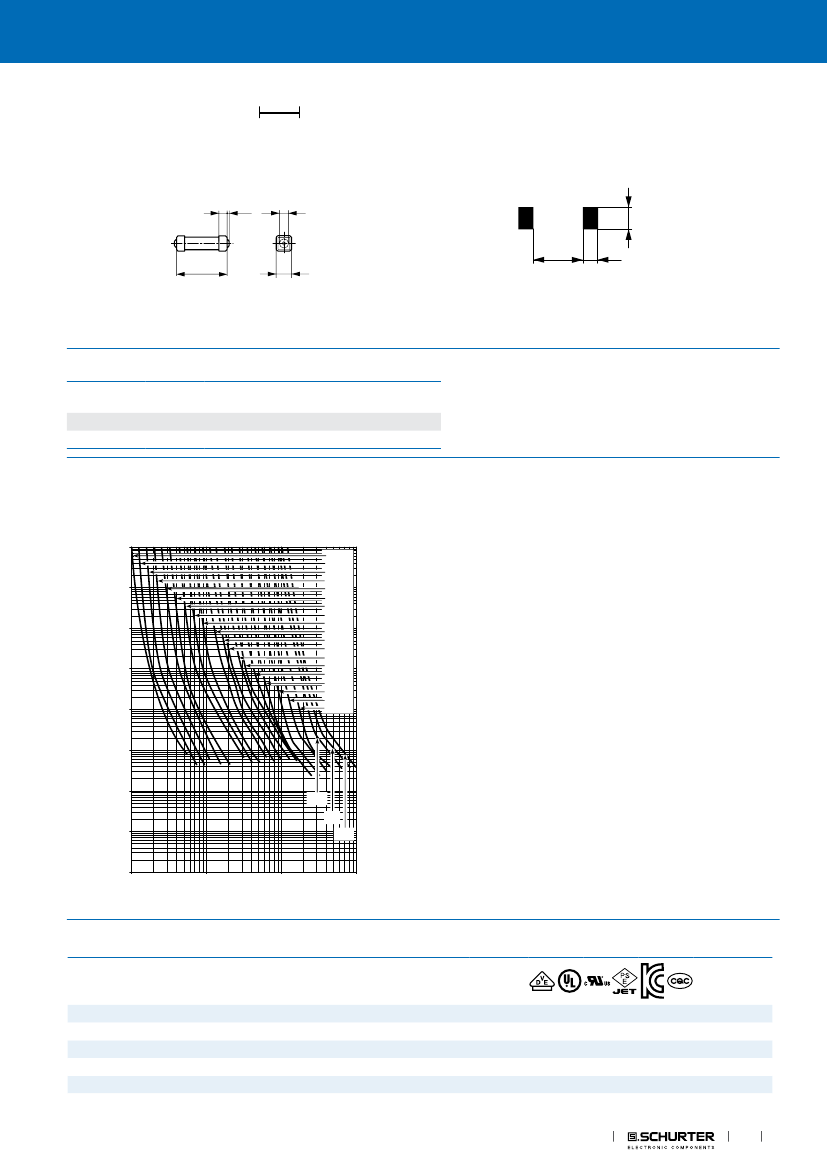

Surface Mount Fuse, 3 x 10.1 mm, Time-Lag T, 250 VAC, 125 VDC
IEC 60127-4 · 250 VAC · 125 VDC · Time-Lag T
Description
See below:
Approvals and Compliances
Applications
- Primary protection on SMD PCBs
- Medical equipment
- Battery protection
- High current range from 80 mA to 10 A
- High breaking capacity of 200 A @ 250 VAC (IEC)
- UL approval for 277 VAC and 250 VDC
Unique Selling Proposition
- Compact design
- Maximum breaking capacity at minimal footprint
- Suitable for pulse-shaped continuous currents
References
Weblinks
Packaging Details
Fuse Kit
Fuse Kit UMT 250 / UMZ 250
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Distributor-Stock-Check, Detailed request for product, Microsite
Application Note Primary Protection in Equipmentwith
further information on increased
Pulse Strength
and their test conditions according to inter-
national standards see
Impulse Withstand Voltage
Technical Data
Rated Voltage
Rated current
Breaking Capacity
Characteristic
Mounting
Admissible Ambient Air Temp.
Climatic Category
Material: Housing
Material: Terminals
Unit Weight
Storage Conditions
Product Marking
250 VAC, 125 VDC
0.08 - 10 A
35 A - 200 A
Time-Lag T
PCB,SMT
-55 °C to 125 °C
55/125/21 acc. to IEC 60068-1
Ceramic
Tin-Plated Copper Alloy
0.23 g
0 °C to 60 °C, max. 70% r.h.
, Rated current, Voltage, Cha-
racteristic, Breaking Capacity
Soldering Methods
Solderability
Resistance to Soldering Heat
Life Test
Moisture Resistance Test
Terminal Strength
Mechanical Shock
Resistance to Solvents
Flammability
Reflow, Wave
Soldering Profile
245 °C / 3 sec acc. to IEC 60068-2-58,
Test Td
260 °C / 40 sec acc. to IPC/JEDEC J-
STD-020D, 1 cycle
MIL-STD-202, Method 108A
(1000h @ 0.42*In @ 70°C)
MIL-STD-202, Method 106E
(50 cycles in a temp./mister chamber)
MIL-STD-202, Method 211A
(Deflection of board 1 mm for 1 minute)
MIL-STD-202, Method 213B
(Shock 50g, half sine wave, 11 ms)
MIL-STD-202, Method 215A
min. UL 94V-1
(acc. to EIA/IS-722, Test 4.12)
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national
and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF
16949, medical technology according to ISO 134485 or in the aerospace industry can be offered exclusively with customer-specific, individual agree-
ments by SCHURTER.
Fuses
1

3403.0172.11 Related Products

3403.0172.11 3403.0168.24 D25AP2001M35%BN 3403.0168.11
Description Surface Mount Fuses UMT 250 4A 277V Slow Surface Mount Fuses UMT 250 1.6A 277V Slow Fixed Resistor, Metal Glaze/thick Film, 0.25W, 1300000ohm, 200V, 5% +/-Tol, -200,200ppm/Cel, 1206, Surface Mount Fuses UMT 250 1.6A 277V Slow
Is it Rohs certified? conform to conform to conform to conform to
Reach Compliance Code not_compliant not_compliant unknown not_compliant
ECCN code EAR99 EAR99 EAR99 EAR99
JESD-609 code e3 e3 e4 e2
Maximum operating temperature 125 °C 125 °C 155 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C
method of packing BAG BLISTER TAPE AND REEL TR, Blister, 13 Inch BAG
Terminal surface Tin (Sn) Tin (Sn) Silver/Palladium (Ag/Pd) Tin/Copper (Sn/Cu)
Is it lead-free? Lead free Lead free - Lead free
Maker SCHURTER SCHURTER - SCHURTER
package instruction ROHS COMPLIANT ROHS COMPLIANT - ROHS COMPLIANT
Factory Lead Time 18 weeks 3 days 6 weeks 3 days - 6 weeks 3 days
Other features RATED BREAKING CAPACITY AT 125 VDC: 100 A RATED BREAKING CAPACITY AT 125 VDC: 100 A - RATED BREAKING CAPACITY AT 125 VDC: 100 A
Fusing characteristics TIME LAG TIME LAG - TIME LAG
body width 3 mm 3 mm - 3 mm
body height 3 mm 3 mm - 3 mm
Body length or diameter 10.1 mm 10.1 mm - 10.1 mm
Circuit protection type ELECTRIC FUSE ELECTRIC FUSE - ELECTRIC FUSE
Joule integral nominal 26 J 6 J - 6 J
Installation features SURFACE MOUNT SURFACE MOUNT - SURFACE MOUNT
physical size 10.1mm x 3mm x 3mm 10.1mm x 3mm x 3mm - 10.1mm x 3mm x 3mm
Pre-discharge time - minutes 10 ms 10 ms - 10 ms
Rated breaking capacity 200 A 200 A - 200 A
Rated current 4 A 1.6 A - 1.6 A
Rated voltage 250 V 250 V - 250 V
Rated voltage (AC) 250 V 250 V - 250 V
Rated voltage (DC) 125 V 125 V - 125 V
Guideline CCC; CSA; IEC; KC; PSE; UL; UMF; VDE CCC; CSA; IEC; KC; PSE; UL; UMF; VDE - CCC; CSA; IEC; KC; PSE; UL; UMF; VDE
surface mount YES YES - YES
Terminal shape WRAPAROUND WRAPAROUND - WRAPAROUND
Base Number Matches 1 1 - 1
