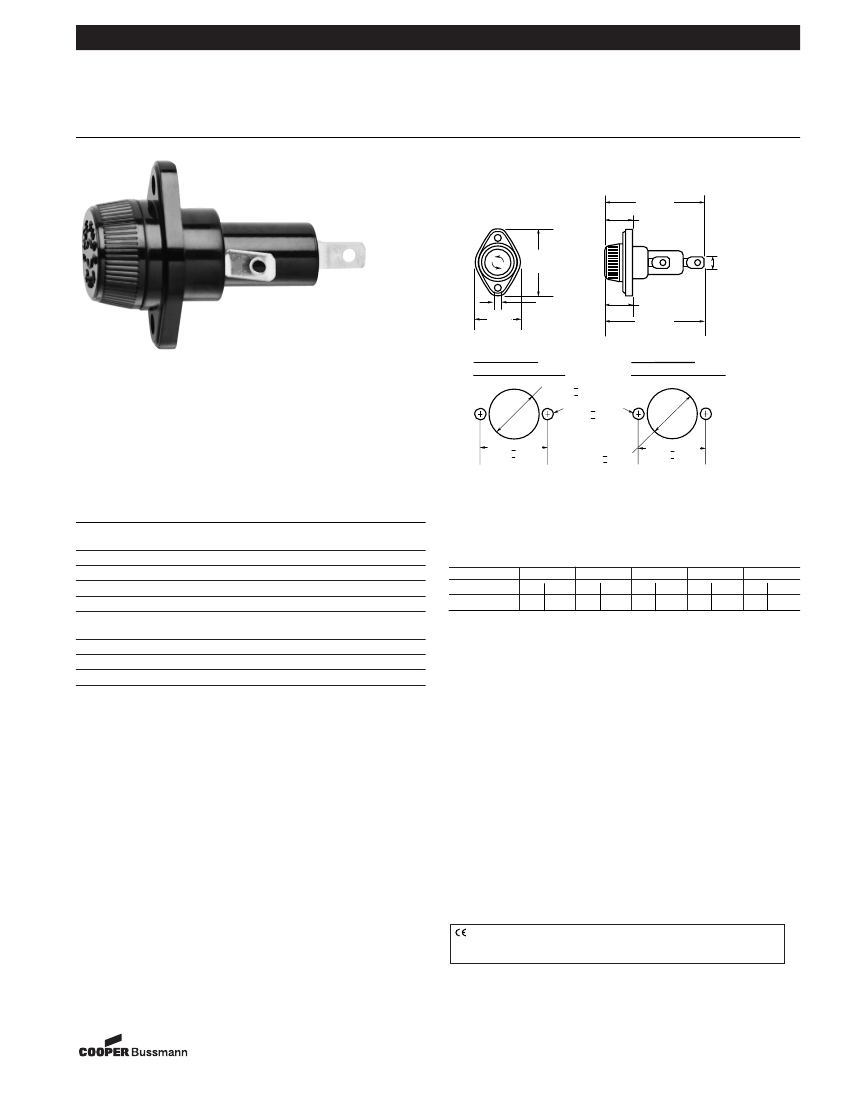

Bussmann
®
Panel-Mount Fuseholder
with Bayonet-type Knob
For ⁄‹Ω£™∑ ≈ 1fiΩ¡§∑ to 1⁄Ω™∑ and
SC and Class CC Fuses
Dimensional Data
With Fuse
2.81" Max.
(71.4mm)
HPS
Series
0.88"
(22.2mm)
FU
SE
F
1.78"
(45.2mm)
.250"
±
.003"
(6.35
±
.08mm)
(Typ. 2)
0.80"
(20.2mm)
US
E
1.125"
(28.6mm)
Mounting Hole
Flange
Rear
of Panel
Catalog Symbol:
HPS, HPS-EE, HPS-FF, HPS-JJ,
and HPS-RR
Panel Mount
Agency Information:
UL Recognized, Guide IZLT2,
File E14853
CSA Certified: Class 6225-01, File 47235
Flammability Rating:
UL 94 HB
Electrical Ratings
Catalog
Symbol
HPS
HPS-L
HPS-EE
HPS-JJ
Amps
30(3) (4)
5
15
Volts
AC
600
600
600
600
600
480
Fuse Description
⁄‹Ω£™∑ x 1⁄Ω™∑
BBS,⁄‹Ω£™∑ ≈ 1‹Ω•∑ fuses.
SC 0-15, ⁄‹Ω£™∑ ≈ 1fiΩ¡§∑ fuses.
SC 20, ⁄‹Ω£™∑ ≈ 1⁄‹Ω£™∑ fuses.
Sleeve on body, leaded for ⁄‹Ω£™∑ ≈1fiΩ¡§∑
fuses.
SC 25 & 30, ⁄‹Ω£™∑ ≈ 1fiΩ•∑ fuses.
(33.3mm + 0.08mm)
1.312" + 0.003"
Maximum panel thickness, mounting flange in front of panel
Assumes Pollution Degree 3 per UL 840:
Conductive pollution, or dry, nonconductive pollution that
becomes conductive due to condensation that is expected.
Maximum panel thickness
not including any sealing gaskets.
System Voltage
Fuseholder
HPS
600V
480
277
240
120
mm Inches mm Inches mm Inches mm Inches mm Inches
1.50 1/32” 2.39 3/32” 6.66 1/4” 7.21 9/32” 8.69 5/8”
20
HPS-F-EE(2) 15
30(3)
30(3)
HPS-FF(2)
HPS-RR(2)
Thicker panels may be used if fuse holder load terminal is fully insulated, using a
UL recognized (VW-1) insulative heat-shrink tubing, or if anticipated environment
is of Pollution Degree 1 or 2, or if panel is nonconductive.
Pollution Degree 2- Normally, only nonconductive pollution. However, a temporary
conductivity caused by condensation may be expected.
Pollution Degree 1- No pollution or only dry, nonconductive pollution.
The pollution has no influence.
Maximum panel thickness, mounting flange behind the panel:
5.08mm/0.200” (flush to knob collar)
600
KTK-R, LP-CC, FNQ-R Class CC fuses.
(1) (2) 30(3)
⁄‹Ω£™∑ ≈ 1fiΩ•∑ fuses.
HPS-W
600
(1)No UL Recognition
(2)No CSA Certification
(3)20A max when used with quick connect terminals.
(4)HPS rated at 25A for CSA.
General Information:
•
Bayonet-type knob.
•
Combination ⁄Ω¢∑ quick-connect/solder terminals. (Standard
solder type terminals available.)
•
The -EE, -JJ, -FF, and -RR holders are UL Recognized for
applications requiring branch circuit protection.
•
Do not put tension on line (rear) terminal.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
6-3-04
SB04184
FU
S
E
0.180"
(4.6mm)
2.41" Max.
(64.3mm)
Without Fuse
Mounting Hole
Flange
Front
of Panel
(26.2mm + 0.08mm)
(4.75mm + 0.05mm)
1.031" + 0.003"
0.187" + 0.002"
(22.6mm + 0.08mm)
0.890" + 0.003"
(33.3mm + 0.08mm)
1.312" + 0.003"
Form No. HPS Series
Page 1 of 1
Data Sheet: 2113
