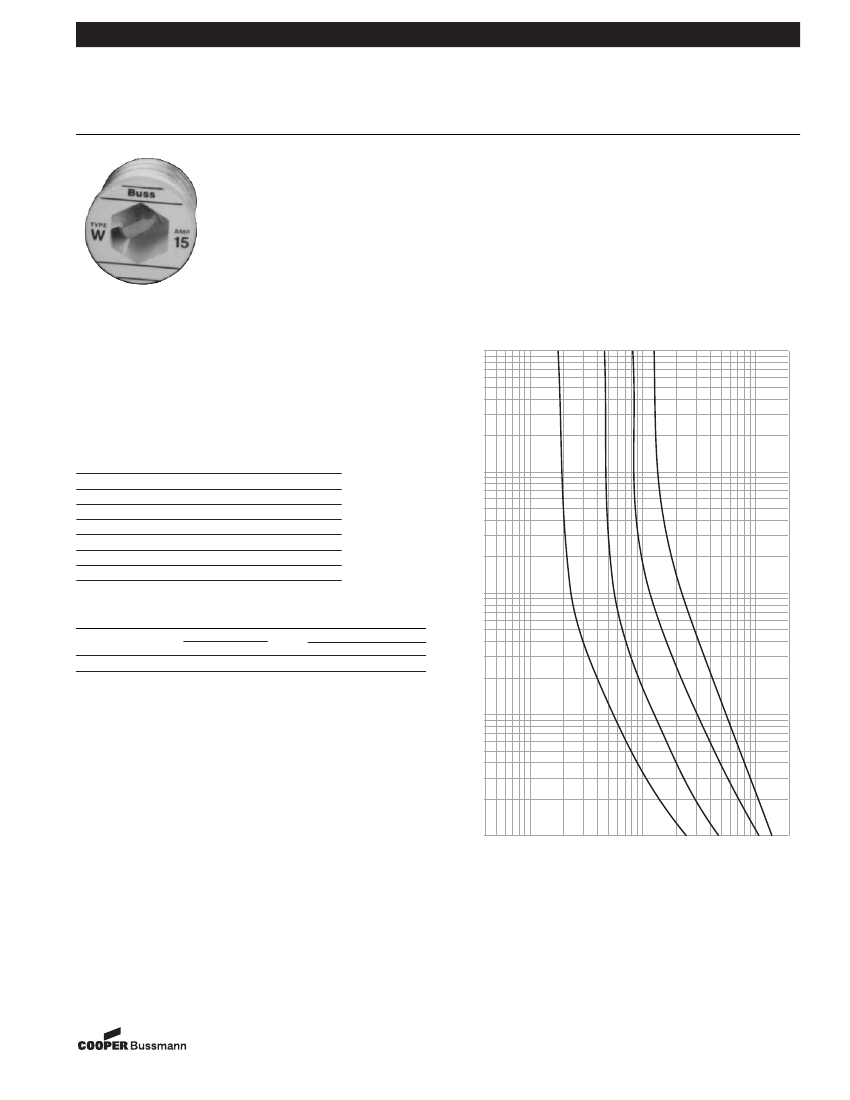

Bussmann
®
Plug Fuses
Fast-Acting
125 Volts, 1/2–12 Amps
Type W
• Fast-Acting Plug Fuse.
• For lighting, heating or other circuits that do not contain elec-
tric motors.
• Edison base size.
• These fuses thread into fuse receptacles.
• The General Purpose (W) fuse has no time-delay feature
and should not be used in circuits that contain motors.
Time-Current Characteristics–Total Clear
Catalog ssymbol:
W
Fast-Acting
1/2 To 30A
125Vac or less
UL Listed
(Guide #JEFV, File # E12112)
Electrical Ratings (Catalog Symbol and Amperes)
125V
W-1/2
W-5
W-1
W-6
W-1-8/10
W-6-1/2
W-2
W-7
W-2-1/2
W-8
W-3
W-10
W-4
W-12
100
10
TIME IN SECONDS
1
Package Quantity and Weight
Ampere
Ratings
15, 20, 25, & 30A
Quantity
Box
4
Card
1
Weight
Per Box
0.96
Per 5 Cards
1.20
W-15, W-20, W-25, and W-30 Plug Fuses Obsoleted
Suggest Replacing with either T-(Amp) or TL-(Amp) Plug Fuses
Both the T and TL Series plug fuses offer similar short circuit protec-
tion to the W Series plug fuses. In addition, the T and TL Series plug
fuses offer time-delay performance for overload currents (typically
between one and six times the rated current of the fuse). For most
applications, this feature is preferred to allow harmless inrush currents
to pass without causing the fuse to open unnecessarily. The TL Series
plug fuses (Data Sheet: 1035) utilize a loaded link construction and
provide medium-duty performance. The T Series plug fuses (Data
Sheet: 1034) utilize the advanced dual-element design for heavy-duty
performance. This construction makes the T Series the preferred
selection. For additional information, please see the applicable Data
Sheets.
.1
CURRENT IN AMPERES
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this Data Sheet are by definition uncontrolled. This bulletin is intended to clearly
present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any products
and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it
should be tested by the user in all possible applications.
6-11-03
SB03177
Form No.Type W
Page 1 of 1
Data Sheet: 1036
100
200
.4
1.
10
.01
10
1
3
6
AMPERE
RATING
