53486-1800: DescriptionBoard Stacking Connector, 180 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug; CategoryThe connector; File Size199KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

53486-1800 Overview

Board Stacking Connector, 180 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug

53486-1800 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Is Samacsys	N
Other features	POLARIZATION AVAILABLE
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (59)
Contact completed and terminated	TIN LEAD (39) OVER NICKEL (59)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	53486
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	180
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Stacking height: 5.0mm

s

Sizes 180 circuits

s

Polarizing pegs assist placement

s

PCB pegs provide added stability

Reference Information

Packaging: Tube

Mates With:

52770

Designed In: Millimeters

Mating Dimensions

53486 • 52770

H=5.0mm W=16.4mm

H

A

0.40 to 1.60mm (.016 to .063") Pitch

Electrical

Voltage: 100V

Current: 0.5A

Contact Resistance: 40m

Ω

max.

Dielectric Withstanding Voltage: 250V AC

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: White glass-filled LCP, UL 94V-0

Contact: Copper Alloy

Plating: Gold over Nickel

Operating Temperature: -55 to +85˚C

0.635mm (.025") Pitch

Twin-Stack

™

Board-to-Board

Plug

53486

SMT, Dual Row

Vertical Bridge Stacking

W

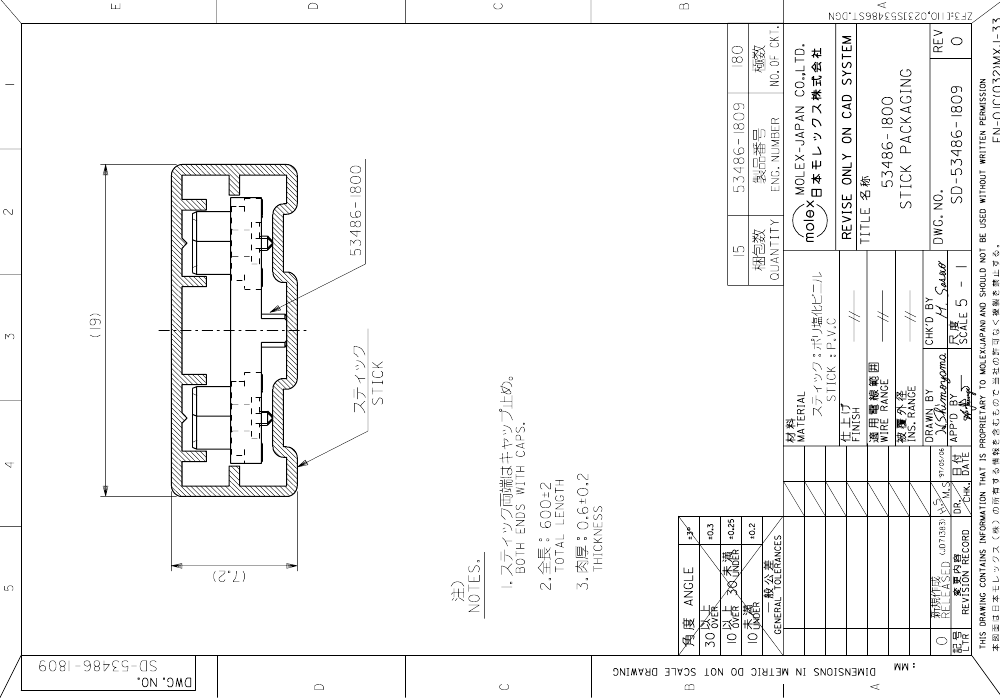

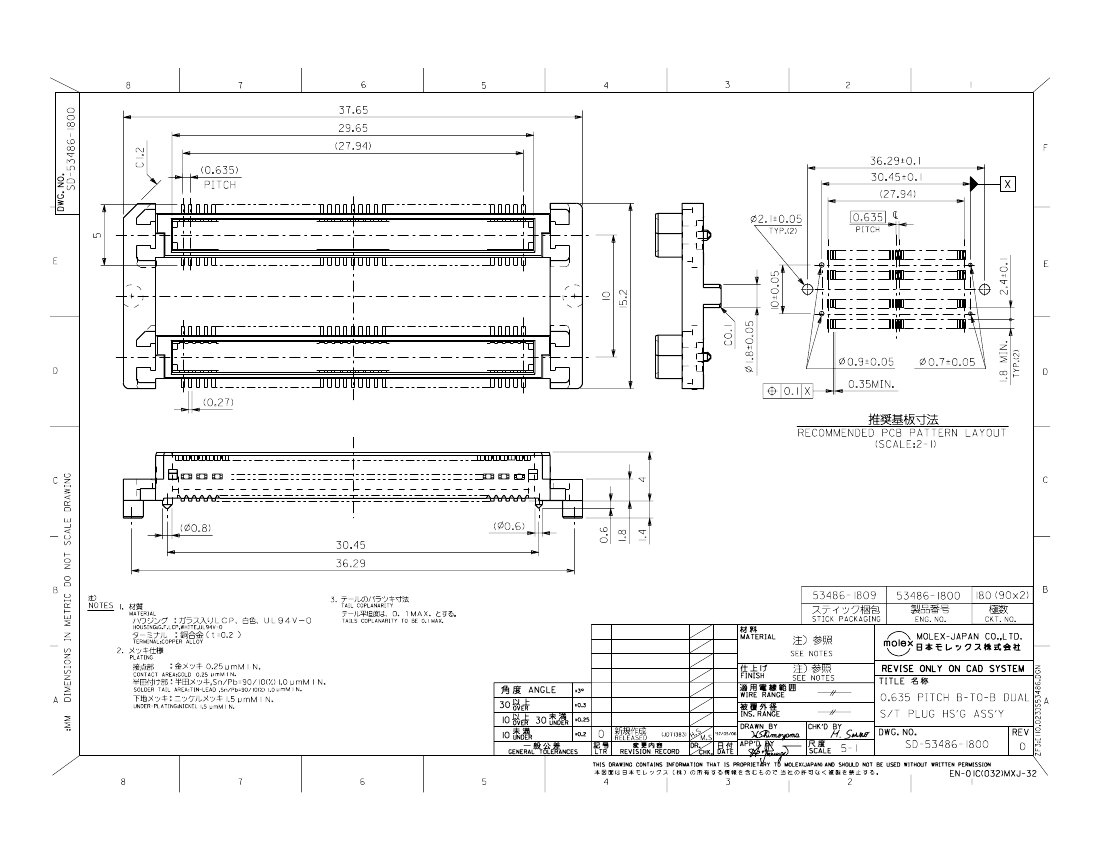

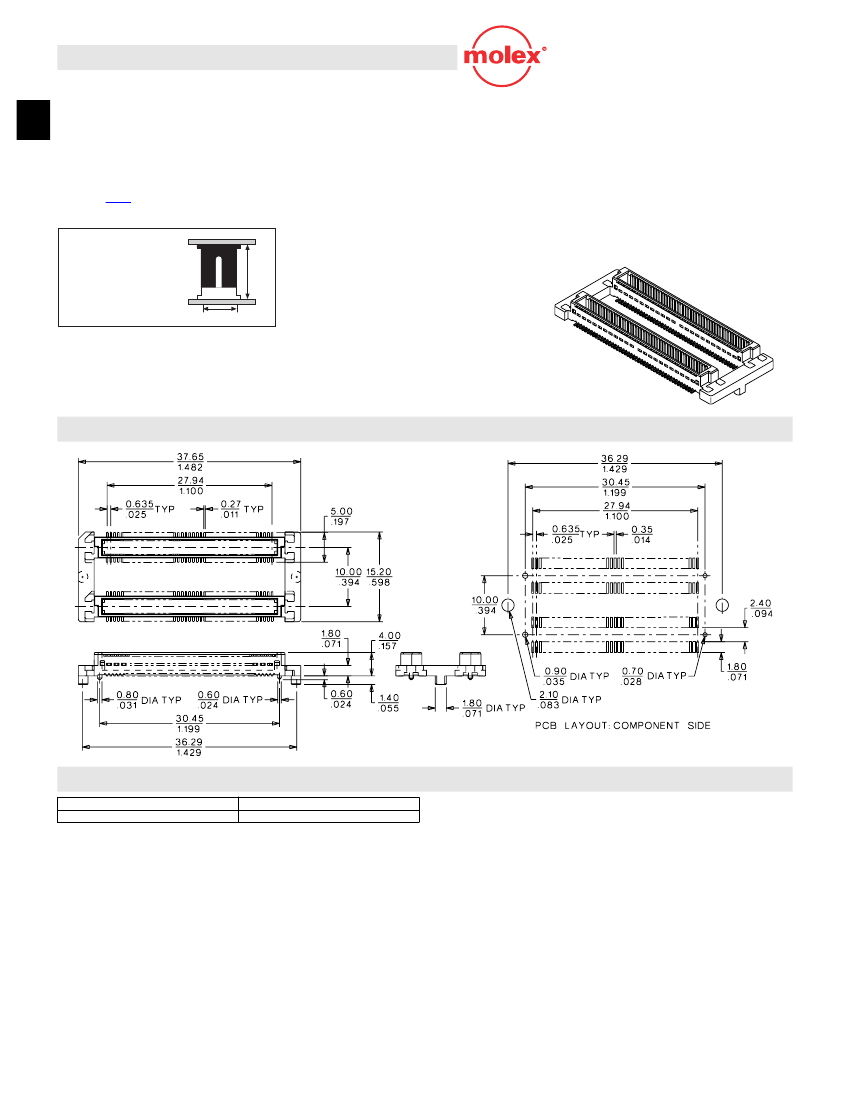

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION

Circuits

180

Order No.

53486-1809

Note: Use only one connector per daughterboard in order to insure proper mating alignment

A-52

MX01
