32104000021: DescriptionCartridge Fuses 5X25MM .400A M/TL Indicator; CategoryCircuit protection; File Size68KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

32104000021 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	32104000021	-	-	View	Buy Now

32104000021 Overview

Cartridge Fuses 5X25MM .400A M/TL Indicator

32104000021 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Cartridge Fuses
RoHS	N
Product	Ceramic Fuse
Current Rating	400 mA
Fuse Type	Medium / Normal Blow
Fuse Size / Group	5 mm x 25 mm
Mounting Style	Holder / Clip
Termination Style	Clip
Packaging	Bulk
Body Style	Cylindrical
Length	25 mm
Factory Pack Quantity	100
Unit Weight	0.042329 oz

Preview

Download Datasheet

View All

INIATURE

USES

5x25mm/

5x25mm No. 321

Indicator,

Indicator, 250V

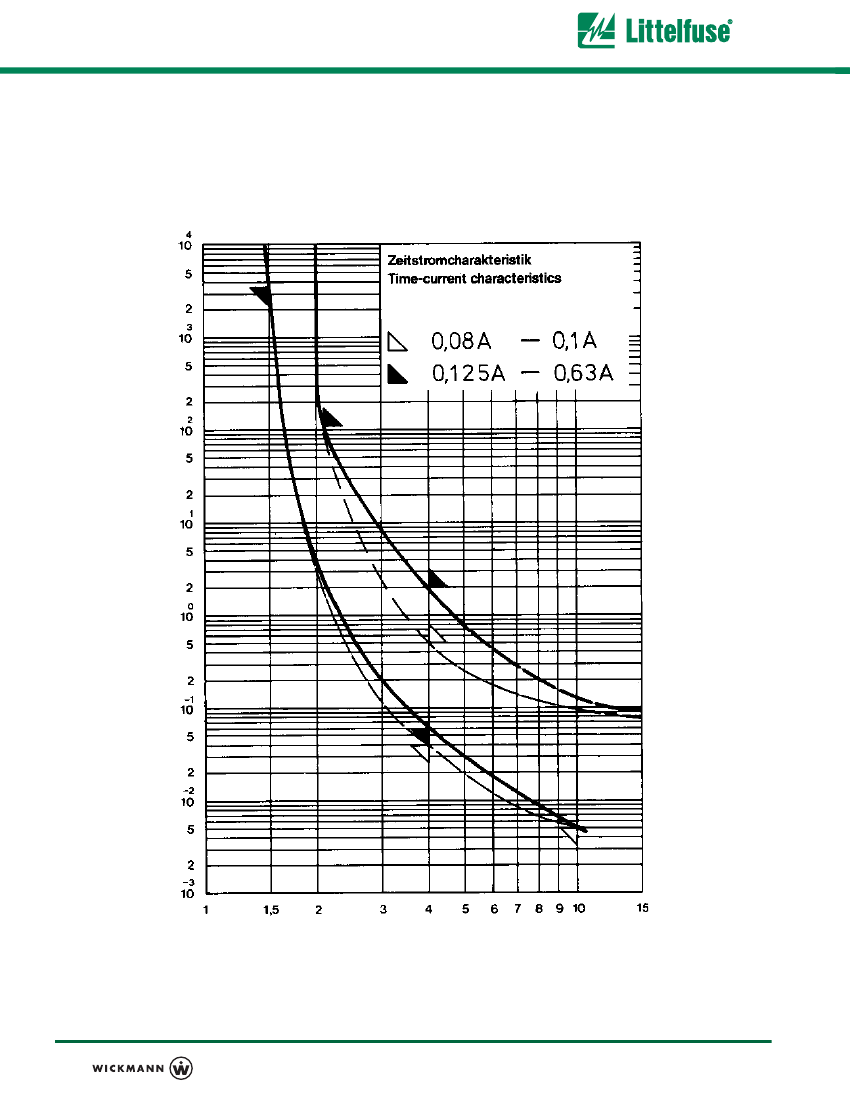

Time-Current
