Specification for release
Customer
:
Ordercode:
Description:
Package:
82402374
TVS Diode Array WE-TVS
SC70-5L
DATUM / DATE : 2010-01-27
A
Features:
•
ESD Protection for 4 Lines - unidirectional
•
Provide ESD Protection for each line to
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 35A (5/50ns)
IEC 61000-4-5 (Lightning) 6A (8/20µs)
•
Below 5V operating voltage: 2.5 - 3.3 - 4.2 - 5.0V
•
Array of surge rated equivalent TVS diodes
Mechanical Characteristics:
•
JEDEC SC70-5L Package
•
Molding compound flamability rating: UL94V-0
•
Packaging: Tape & Reel
B
Schematic and Pin Configuration:
5
4
1
2
3
C
Absolute Maximum Ratings:
Peak Pulse Current (tp = 8/20µs)
ESD per IEC 61000-4-2 (Air / Contact)
Operating Temperature
Storage Temperature
Symbol
I
PP
V
ESD
T
Op
T
Sto
Rating
6
16 / 10
-55 to +85
-20 to +60
Unit
A
kV
°
C
°
C
D
Electrical Characterisitcs:
Properties
Test Conditions
Value
min
V
RWM
V
BV
I
R
V
F
v
C
v
Cl
C
IN
Pin 1,3,4,5 to pin 2
I
BV
=1mA, pin 1,3,4,5 to pin 2
V
RWM
=5V, pin 1,3,4,5 to pin 2
I
F
= 15mA, pin 2 to pin 1,3,4,5
I
PP
=5A, tp=8/20µs, pin 1,3,4,5 to p.2
I
TLP
= 17A, pin 1,3,4,5 to pin 2
V
IO
=0V, f=1MHz, pin 1,3,4,5 to p.2
Value
typ
Value
max
5
Unit
V
V
6.0
2.5
0.6
0.8
6.8
8.5
13
17
1
µA
V
V
V
pF
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Phone (+49) (0) 7942 - 945 - 0 · Fax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
PAGE 1 OF 5
Specification for release
Customer
:
Ordercode:
Description :
Package:
82402374
TVS Diode Array WE-TVS
SC70-5L
DATUM / DATE : 2010-01-27
E
Typical Characteristics:
Peak Pulse Derating in % of PeakPulse Current in %
120
12
Temp
0
100
Ipp
100
100
20
Clamping Voltage [V]
10
Current
3,5
5
6
8
Voltage
6,2
6,8
7,3
25
85
85
80
0
60
6
40
4
20
2
0
0
25
50
Ambient Temperature ,T
A
(℃)
75
100
Waveform Parameters:
tr= 8 µs
td = 20µs
I/O to GND
3
4
5
Peak Pulse Current [A]
6
0
Power Derating Curve
Clamping Voltage vs. Peak Pulse Current
14
12
10
Capacitance [pF]
8
6
4
2
0
0
1
U
0
0,5
1
2
3
I/O to GND
5
f = 1MHz
C
13
11
9,7
8,3
7,6
7,1
6,7
C
4
2
Voltage [V]
3
4
5
Variation of C
IO
vs. V
IO
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Phone (+49) (0) 7942 - 945 - 0 · Fax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
PAGE 2 OF 5
Specification for release
Customer
:
Ordercode:
Description :
Package:
82402374
TVS Diode Array WE-TVS
SC70-5L
DATUM / DATE : 2010-01-27
E
Typical Characteristic:
18,0
16,0
14,0
12,0
TLP Current [A]
10,0
8,0
6,0
4,0
2,0
0,0
0
2
4
6
TLP Voltage [V]
8
10
12
I/O to GND
U
I/O to GND
0,5
9
9,5
I/O start
I/O end
VDD start
VDD end
6,2
8,4
7,5
11,8
0,1
0,1
0,1
0,2
17
I/O to I/O
0,1
0,1
0,1
Pulse
100ns
DUT
I
V
0,2
17
Rise time: 1ns

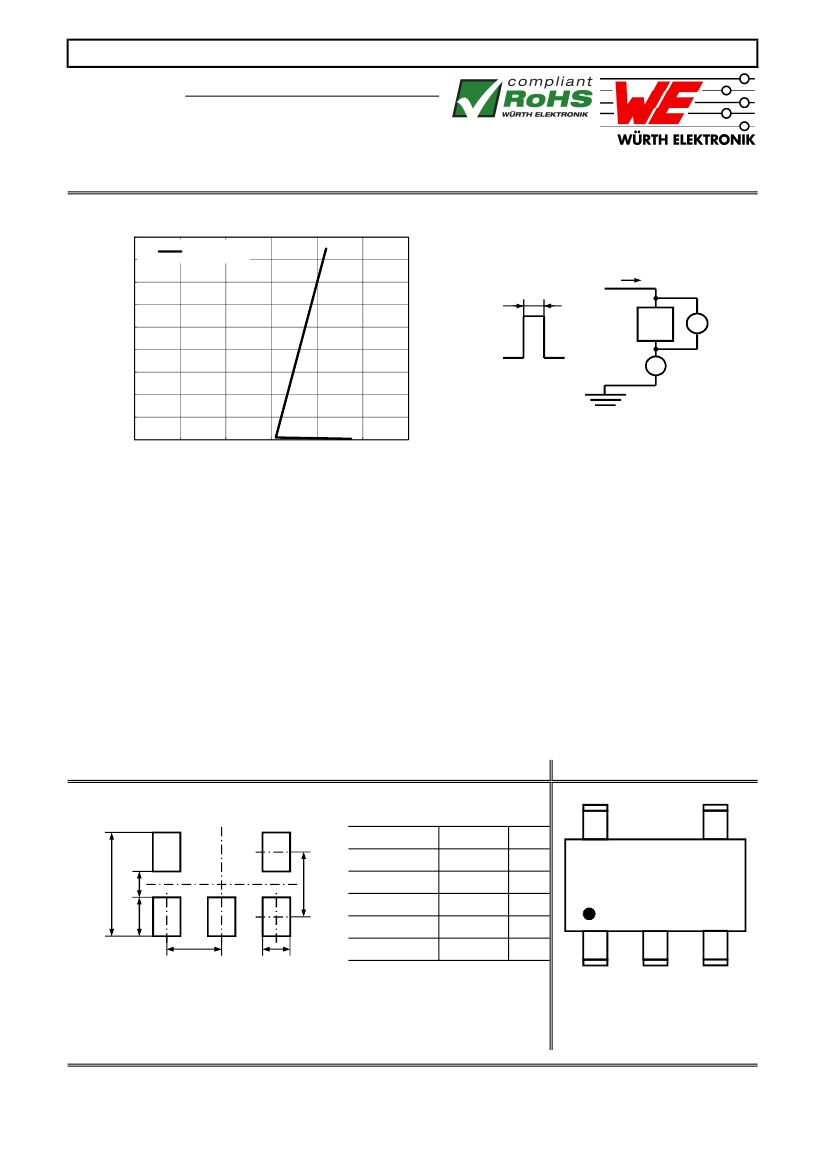

Transmission Line Pulsing (TLP) Measurement
Transmission Line Pulsing System
F
Recommended Land Layout:
G
Body Marking:
5
4
A
B
F
E
D
0.40
0.85
0.65
1.85
1.00
2.70
mm
mm
mm
mm
mm
mm
1
2
3
C
D
W23XY
W23: Device Code
X: Date Code
Y: Control Code
B
E
C
A
F
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Phone (+49) (0) 7942 - 945 - 0 · Fax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
PAGE 3 OF 5
Specification for release
Customer
:
Ordercode:
Description :
Package:
82402374
TVS Diode Array WE-TVS
SC70-5L
DATUM / DATE : 2010-01-27
H

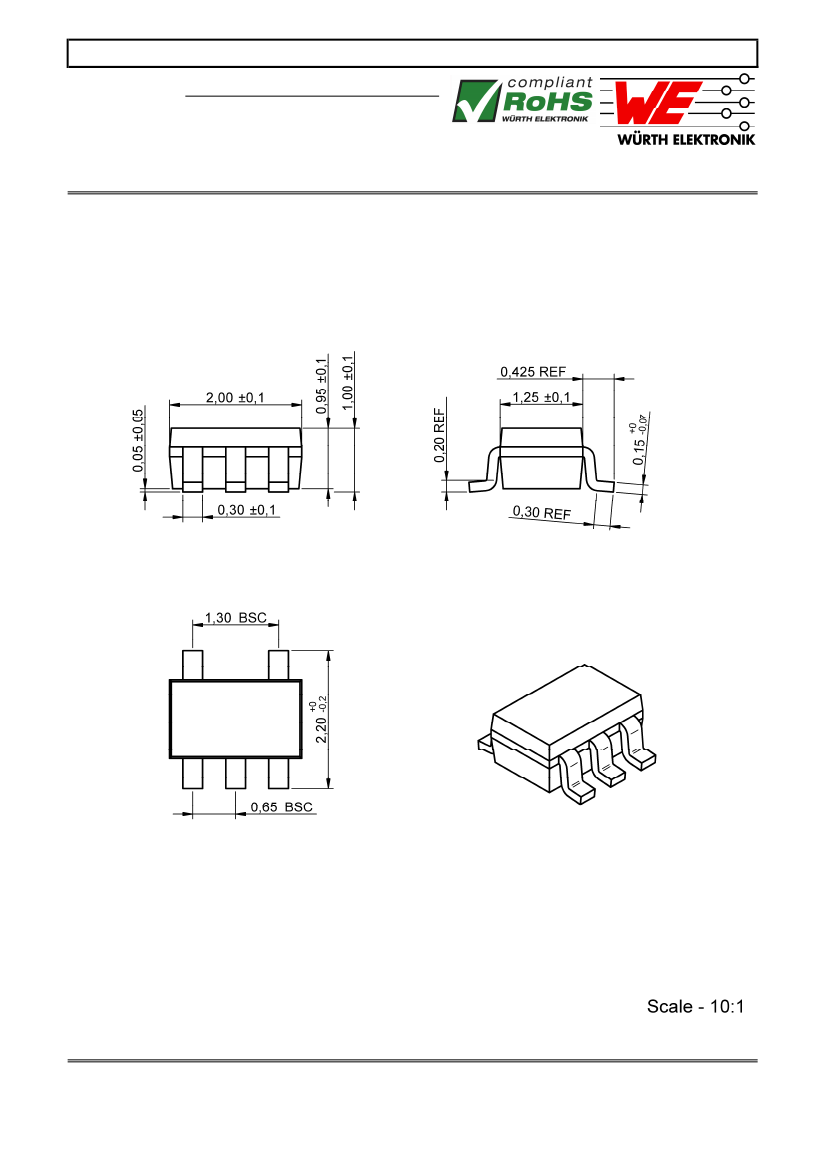

Dimensions:
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Phone (+49) (0) 7942 - 945 - 0 · Fax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
PAGE 4 OF 5
Specification for release
Customer
:
Ordercode:
Description :
Package:
82402374
TVS Diode Array WE-TVS
SC70-5L
I

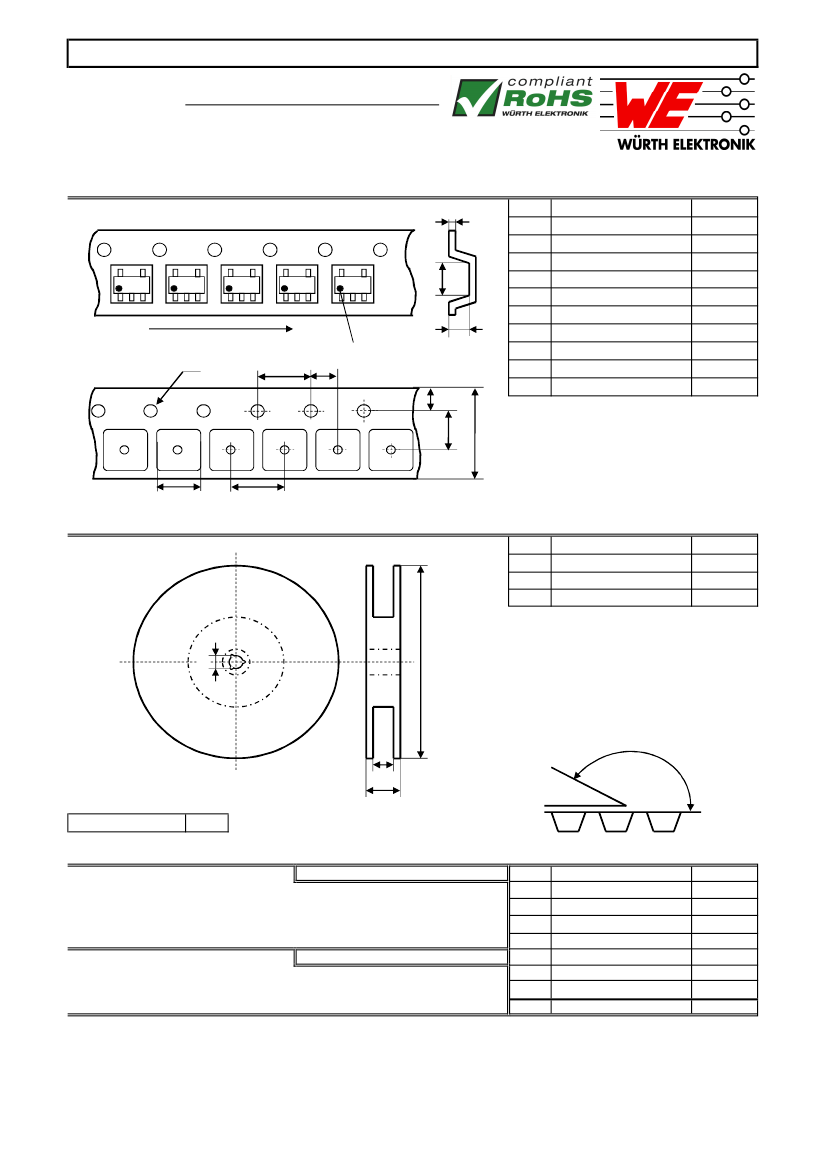

Tape:
K
I
Feeding Direction
Ø
D
E
F
Pin 1
J
A
B
C
D
E
F
G
H
I
J
K
C
2.25 REF
4.00 ± 0.10
8.00 ± 0.20
1.55 ± 0.05
4.00 ± 0.10
2.00 ± 0.05
1.75 ± 0.10
3.50 ± 0.05
2.4 REF
1.2 REF
0.30 ± 0.02
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
mm
G
H
A
B
J
Reel:
a
b
c
d
178.0 ± 2.0
13.0 ± 0.8
10.0 ± 1.5
12.5 ± 2.0
mm
mm
mm
mm
b
a
165° to 180°
c
d
Quantity per Reel:
3000
General Release:
Customer
..................................................................................
..................................................................................
Date
Signature
Würth Elektronik
..................................................................................
..................................................................................
JB
Name
Version 1
Modification
2010-01-27
Checked
Approved
Date
This electronic component has been designed and developed for usage in general electronic equipment. Before incorporating this component into any equipment where higher safety
and reliability is especially required or if there is the possibility of direct damage or injury to human body, for example in the range of aerospace, aviation, nuclear control, submarine,
transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc, Würth Elektronik eiSos GmbH must be
informed before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits
that require high safety and reliability functions or performance.
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Phone (+49) (0) 7942 - 945 - 0 · Fax (+49) (0) 7942 - 945 - 400
PAGE 5 OF 5
http://www.we-online.com
