53652-1611 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 53652-1611

Preview

53652-1611: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Straight, Solder Terminal; CategoryThe connector; File Size71KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

53652-1611 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

53652-1611 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Is Samacsys	N
Other features	STAGGERED CONFIGURATION
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	53652
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.5 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Flexible bridge-style mating ability allows

movement of daughterboard

s

Sizes 16 circuits

Reference Information

Packaging: Tray

Mates With:

52906

Designed In: Millimeters

Physical

Housing: PBTP, UL 94V-0

Contact: Phosphor Bronze

Plating: Pre-Tin

Operating Temperature: -40 to +85˚C

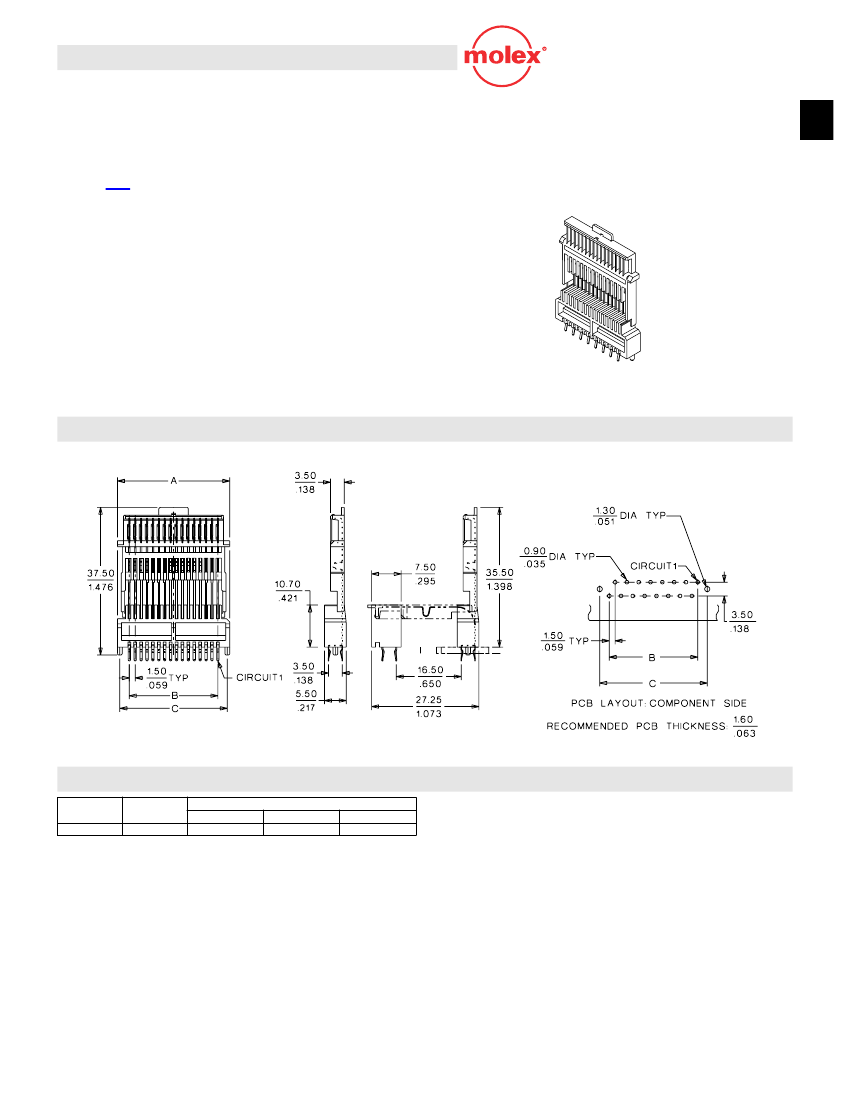

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

16

Order No.

53652-1611

A

28.50 (1.120)

Dimension

B

22.50 (.880)

C

27.30 (1.075)

MX01

A-91

0.40 to 1.60mm (.016 to .063") Pitch

Electrical

Voltage: 50V

Current: 1.0A

Contact Resistance: 80m

Ω

max.

Dielectric Withstanding Voltage: 500V AC

Insulation Resistance: 500 M

Ω

min.

1.50mm (.059") Pitch

Board-to-Board

Header

53652

Flexible

A
