5 x 20mm Fuses
S506 Series, Time-Delay, Glass Tube
Description
• Time-delay, low breaking capacity
• Optional axial leads available
• 5 x 20mm physical size
• Glass tube, nickel-plated brass endcap construction
• Designed to IEC 60127-2/3 (32mA-10A) &
extensions:12.5A-15A
S506 Electrical Characteristics
2.1 In
2.75 In
4 In
In
max
min
max
min
max
32mA-100mA 2 min 200 ms 10 sec 40 ms 3 sec
125mA-6.3A 2 min 600 ms 10 sec 150 ms 3 sec
8A-15A
2 min 600 ms 10 sec 150 ms 3 sec
10 In
min
max
10 ms 300 ms
20 ms 300 ms
20 ms 300 ms
Dimensions - mm
Drawing Not to Scale
Agency Information
• UL Recognized Card: Guide JDYX2, File E19180
• CSA Component Acceptance: File 1803366
• cURus Recognition: Guide JDYX8, File E19180
• SEMKO Approval: File 507078, 415434, 806492
• VDE Approval: File 40011926
• BSI Approval: File KM55676
• IMQ Approval: File E1921, CA03.00530
• PSE/JET: File JET1641-31003-1005,
JET1641-31003-1006
• CCC Approval: File 2005010207155693,
2002010207011294
• Ratings above 4A have a 0.81mm diameter lead
Ordering
Specify product code
• Insert packaging code prefix before part number. E.g.
BK/S506-1-R
Specify option code if desired
• For axial leads, insert “V” between catalog series and
amp rating. E.g. BK/S506-V-2-R
Specifications
Product
Code
S506-32-R
S506-40-R
S506-50-R
S506-63-R
S506-80-R
S506-100-R
S506-125-R
S506-160-R
S506-200-R
S506-250-R
S506-315-R
S506-400-R
S506-500-R
S506-630-R
S506-800-R
S506-1-R
S506-1.25-R
S506-1.6-R
S506-2-R
S506-2.5-R
S506-3.15-R
S506-4-R
S506-5-R
S506-6.3-R
S506-8-R
S506-10-R
S506-12.5-R
S506-15-R
Voltage Interrupting Rating
Typical DC
Typical
Typical
Agency Approvals
Rating (amps) at Rated Cold Resistance Melting I
2
t Voltage IMQ VDE BSI SEMKO UR CCC PSE/ CSA cURus
Vac Voltage (50Hz) Vac
(Ω)*
(amps) Drop (mV)‡
JET
250
35
21.0
0.0051
1050
X
X
X
X
X
X
250
35
13.90
0.0072
920
X
X
X
X
X
X
250
35
9.24
0.0095
800
X
X
X
X
X
X
X
250
35
6.96
0.021
760
X
X
X
X
X
X
X
250
35
4.42
0.038
580
X
X
X
X
X
X
X
250
35
2.80
0.045
490
X
X
X
X
X
X
X
250
35
1.97
0.063
390
X
X
X
X
X
X
X
250
35
1.27
0.093
320
X
X
X
X
X
X
X
250
35
1.00
0.114
340
X
X
X
X
X
X
X
250
35
0.640
0.265
270
X
X
X
X
X
X
X
250
35
0.450
0.621
250
X
X
X
X
X
X
X
250
35
0.31
0.872
210
X
X
X
X
X
X
X
250
35
0.183
0.827
140
X
X
X
X
X
X
X
X
250
35
0.186
1.33
150
X
X
X
X
X
X
X
X
250
35
0.129
2.78
75
X
X
X
X
X
X
X
X
250
35
0.0757
6.45
87.5
X
X
X
X
X
X
X
X
X
250
35
0.060
10.05
86
X
X
X
X
X
X
X
X
X
250
35
0.0425
21.7
82
X
X
X
X
X
X
X
X
X
250
35
0.03325
31.6
77
X
X
X
X
X
X
X
X
X
250
35
0.0255
59.4
72.5
X
X
X
X
X
X
X
X
X
250
35
0.0185
96.4
68.5
X
X
X
X
X
X
X
X
X
250
40
0.0139
71.8
67
X
X
X
X
X
X
X
X
X
250
50
0.00985
142.5
60.5
X
X
X
X
X
X
X
X
X
250
63
0.0071
237.6
54
X
X
X
X
X
X
X
X
X
250
80
0.007
255.8
55
X
X
X
X
X
X
X
X
250
100
0.005
450
54
X
X
X
X
X
X
X
X
250
125
0.004
1019.5
45
X
X
X
250
125
0.004
1091.7
65.5
X
X
X
* DC Cold Resistance (measured at <10% of rated current)
‡ Typical Voltage Drop (voltage drop was measured at 20°C ambient temperature at rated current)
0709
BU-SB08673
Page 1 of 2
Data Sheet 4332

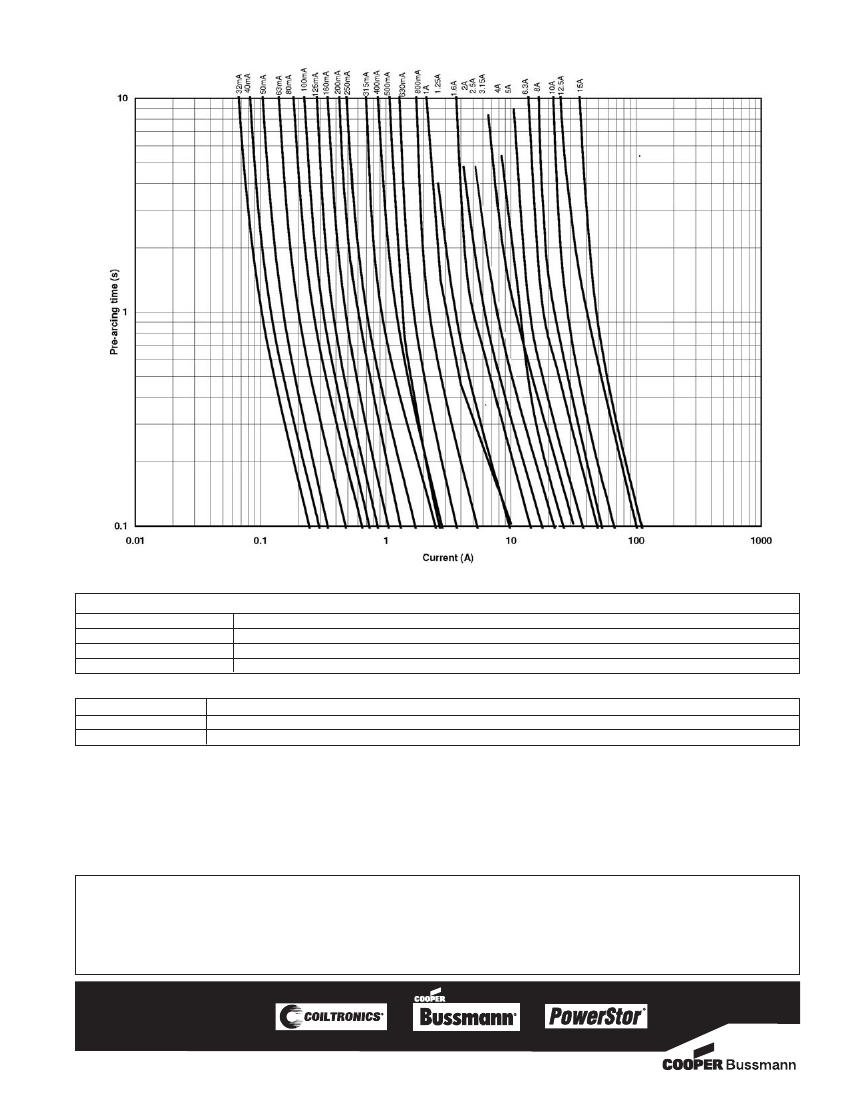

Nominal Time-Current Characterisitics of S506-R
Packaging Code
Packaging Code Suffix
BK
BK1
TR2
Description
100 fuses packed into a cardboard carton
1,000 fuses packed into a poly bag
1,500 fuses packed into tape on a reel (19.05mm lead wire length)
Option Code
Option Code
V
Description
Axial leads - copper tinned wire with nickel plated brass endcaps
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained
in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life support
systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in
significant injury to the user.
© 2009 Cooper Bussmann
St. Louis, MO 63178
www.cooperbussmann.com
0709 BU-SB08673
Page 2 of 2
Data Sheet 4332
