BK/GDA-630MA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BK/GDA-630MA

BK/GDA-630MA: DescriptionCartridge Fuses 250V .63A Fast Acting; CategoryCircuit protection Circuit protection; File Size247KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BK/GDA-630MA Overview

Cartridge Fuses 250V .63A Fast Acting

BK/GDA-630MA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Fusing characteristics	FAST
body height	20 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	5x20mm
Joule integral nominal
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	5.2mm x 20mm
Pre-discharge rating	0.064 A2/s
Rated breaking capacity	1500 A
Rated current	0.63 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal surface	Nickel (Ni)
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

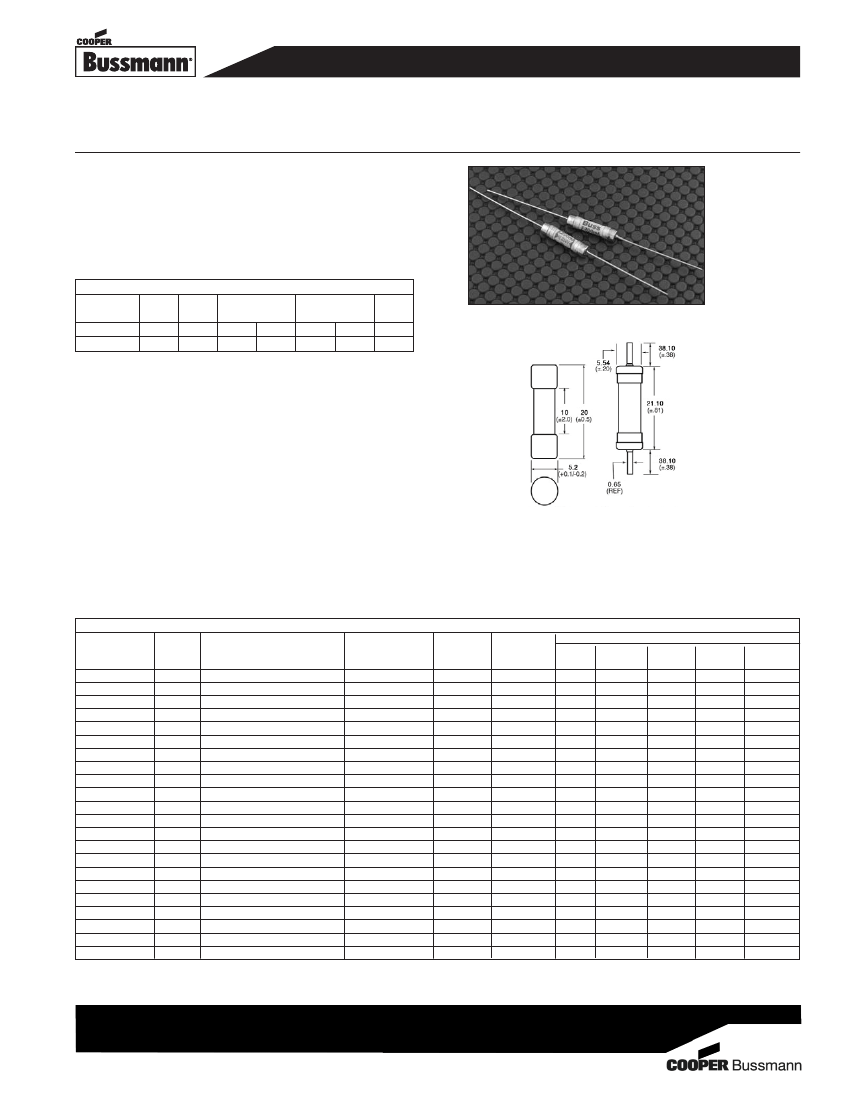

5 x 20mm Fuses

GDA Series, Fast-Acting, Ceramic Tube

Description

• Fast-acting, high breaking capacity

• 5 x 20mm physical size

• Ceramic tube, nickel-plated brass endcap construction

• Silver-plated endcap construction (50mA-400mA)

• Optional axial leads are 0.032" x 1.5" copper tinned

• Designed to IEC 60127-2

Electrical Characteristics

1.5 In 2.1 In

2.75 In

4 In

10 In

min

max

min

max

min

max

50mA-3.15A 60 min 30 min 10 ms 2 sec 3 ms 300 ms 20 ms

4A-10A

60 min 30 min 10 ms 3 sec 3 ms 300 ms 20 ms

Dimensions - mm

Drawing Not to Scale

Agency Information

• UL Recognized Card: Guide JDYX2, File E19180

• CSA Component Acceptance: File 53787

• Semko Approval: File 413779, File 512433

• IMQ Approval: File EB405

• CCC: File 2005010207155691

Ordering

Specify product code

• Insert packaging code prefix before part number. E.g.

BK/GDA-250mA

Specify option code if desired

• For axial leads, insert “V” between catalog series and

amp rating. E.g. BK/GDA-V-250mA

• With TR2 packaging code, lead wire length is 19.05mm

Specifications

Part Number

GDA-50mA

GDA-63mA

GDA-80mA

GDA-100mA

GDA-125mA

GDA-160mA

GDA-200mA

GDA-250mA

GDA-315mA

GDA-400mA

GDA-500mA

GDA-630mA

GDA-800mA

GDA-1A

GDA-1.25A

GDA-1.6A

GDA-2A

GDA-2.5A

GDA-3.15A

GDA-4A

GDA-5A

GDA-6.3A

Voltage Interrupting Rating (amps)

Typical DC

Typical

Rating at Rated Voltage (50Hz) Cold Resistance Melting I

t Voltage

Vac

(Ω)*

(amps) Drop (mV)‡

250

1500

157.5

0.0017

9000

250

1500

39.0

0.0005

3300

250

1500

27.9

0.0011

2600

250

1500

20.0

0.0018

2300

250

1500

12.3

0.0037

1900

250

1500

8.5

0.008

1600

250

1500

6.0

0.020

1350

250

1500

4.4

0.027

1300

250

1500

3.3

0.010

1400

250

1500

2.2

0.018

1200

250

1500

0.460

0.038

1050

250

1500

0.340

0.064

1200

250

1500

0.245

0.097

490

250

1500

0.231

0.146*

330

250

1500

0.176

0.313*

297

250

1500

0.113

0.748*

239

250

1500

0.073

2.0

205

250

1500

0.053

3.9

190

250

1500

0.037

8.1

160

250

1500

0.027

160

250

1500

0.019

155

250

1500

0.014

150

IMQ

Agency Approvals

SEMKO

CCC

CSA

X**

‡ Typical Voltage Drop (Voltage drop was measured at 20ºC ambient temperature at rated current)

t of 1A, 1.25A, 1.6A is measured at 10In DC.

**CSA Approvals on these ratings will not be marked on the fuse cap.

0209

BU-SB08725

Page 1 of 2

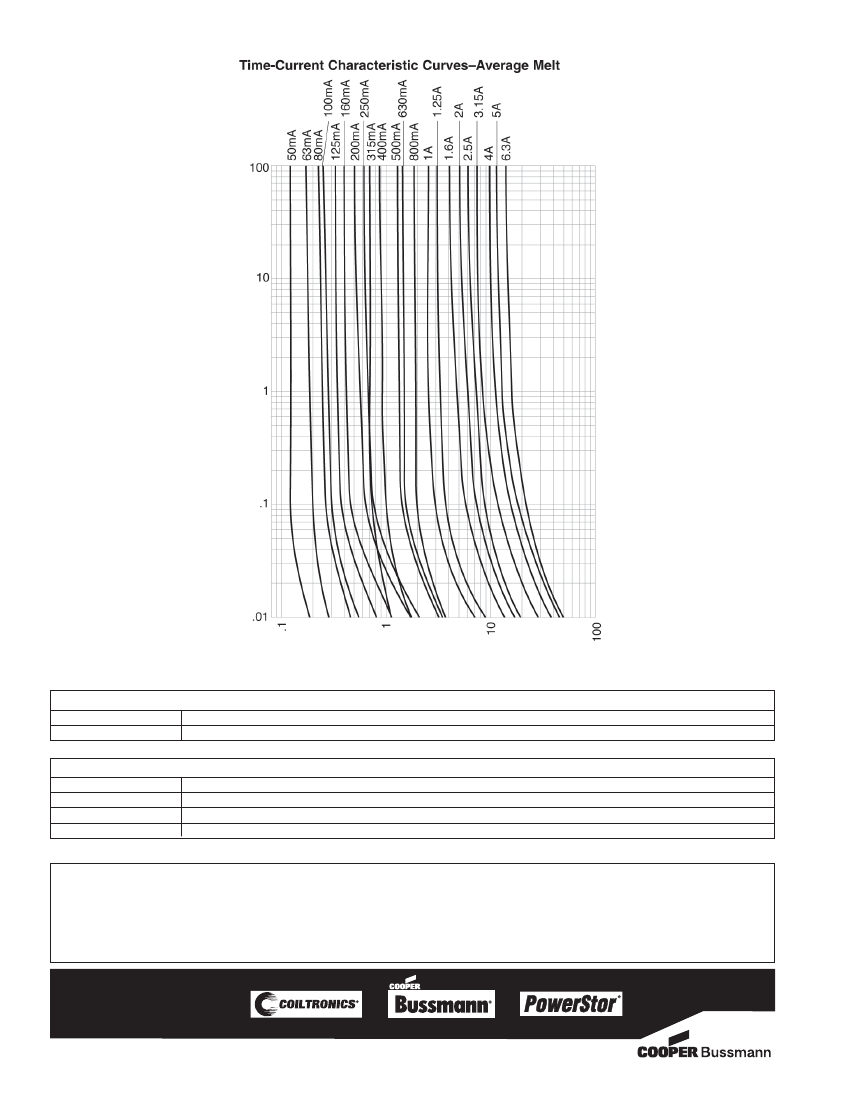

Data Sheet 2014

BK/GDA-630MA Related Products

	BK/GDA-630MA	GDA-4A	GDC-2A	GDA-2A	GDA-5A	GDA-1A
Description	Cartridge Fuses 250V .63A Fast Acting	Cartridge Fuses 4 AMP 250V FAST ACTING	Cartridge Fuses 2 AMP 250V TIME DELAY	Cartridge Fuses 2 AMP 250V FAST ACTING	Cartridge Fuses 5 AMP 250V FAST ACTING	Cartridge Fuses 1 AMP 250V FAST ACTING
Is it Rohs certified?	incompatible	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Fusing characteristics	FAST	FAST	TIME DELAY	FAST	FAST	FAST
body height	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
Body length or diameter	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Fuse size	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm
physical size	5.2mm x 20mm	5.2mm x 20mm	5.2mm x 20mm	5.2mm x 20mm	5.2mm x 20mm	5.2mm x 20mm
Rated breaking capacity	1500 A	1500 A	35 A	1500 A	1500 A	1500 A
Rated current	0.63 A	4 A	2 A	2 A	5 A	1 A
Rated voltage	250 V	250 V	250 V	250 V	250 V	250 V
Guideline	CSA; UL	CCC, CSA, IMQ, SEMKO, UL	BSI; IMQ; MITI; SEMKO; UL; VDE	CCC; CSA; IMQ; SEMKO; UL	CCC, CSA, IMQ, SEMKO, UL	CCC, SEMKO, UL
Terminal shape	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP
Pre-discharge rating	0.064 A2/s	14 A2/s	-	2 A2/s	25 A2/s	0.146 A2/s
Maker	-	Eaton	Eaton	Eaton	-	Eaton
Factory Lead Time	-	8 weeks	6 weeks	8 weeks	-	8 weeks
