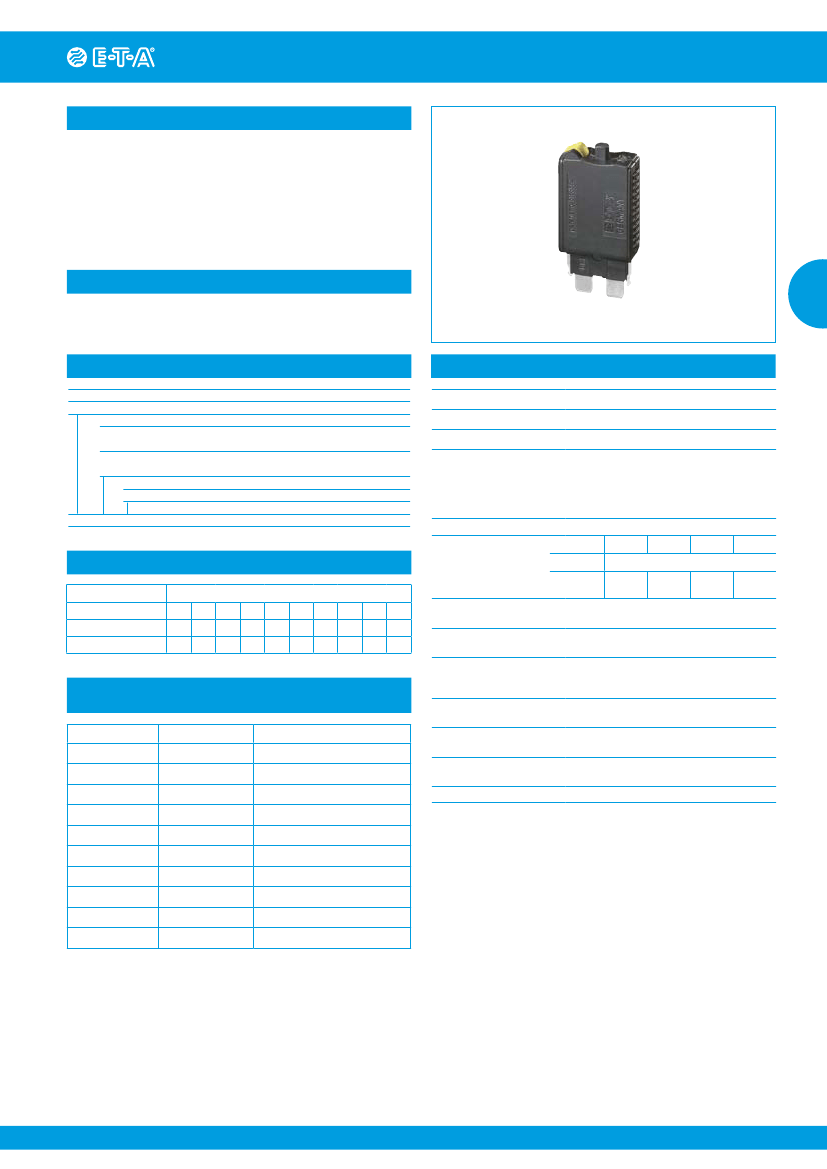

Thermal Automotive Circuit Breaker 1170-...
Description
Compact single pole thermal circuit breaker with push-to-reset, tease
free, trip free, snap action mechanism and separate (colour coded)
manual release. Combining full feature circuit breaker protection and
convenience with low cost of ownership benefits. Fitted with blade
terminals for plug-in mounting.
Type III to SAE J 553.
Version 1176 is available especially for the automotive industry (current
ratings correspond to those of blade fuses).
Typical applications
Extra low voltage wiring systems on all types of vehicles and marine
craft.
1
1170-...
Technical data
Voltage rating (U
N
)
Max. voltage (U
smax
)
Current ratings
Typical life
U
N
DC 24
U
N
DC 24
U
N
DC 24
U
N
DC 48
Ambient temperature
Interrupting capacity
I
cn
to ISO10924
V
V
V
V
I
N
U
N
DC 24 V
U
N
DC 48 V
>100x
at 75 A
Ordering information
Type No.
1170
plug-in
Design standard
21
blade terminals for automotive fuse blocks (standard)
with retaining clips, to DIN 72581, part 3
22
blade terminals for automotive fuse blocks,
without retaining clips, to DIN 72581, part 3
Current ratings
3...25 A
1170 - 21 - 15 A
ordering example
DC 12 V / 24 V / 48 V
DC 58 V
3...25 A
at rated current:
3...25 A 6 000 operations att 1 x I
N
3...20 A 3 000 operations at 2 x I
N
25 A
1 000 operations at 2 x I
N
3...25 A 500 operations at 1 x I
N
-40...85 °C (-40...+185 °F)
3...10 A
15 A
20 A
25 A
400 A (0-C0-C0)
>100x
at 100 A
>100x
at 135 A
>10x at
200 A
Preferred types
Preferred types
1170-21-
1170-22-
Standard current ratings (A)
3
x
x
4
x
x
5
x
x
6
x
x
7.5
x
x
8
x
x
10
x
x
15
x
x
20
x
x
25
x
x
Absolute breaking
capacity to ISO 10924
Degree of protection
(IEC 60529)
Vibration
≥ 1 break operation at 2 000 A
(L/R = 2,5 ms)
operating area IP40
terminal area IP00
10 g (57-500 Hz) ± 0.76 mm (10-57 Hz),
to IEC 60068-2-6, test Fc, 10 frequency
cycles/axis
50 g (11 ms),
to IEC 60068-2-27, test Ea
96 hours at 5 % salt mist,
to IEC 60068-2-11, test Ka
240 hours at 95 % RH
to IEC 60068-2-78, test Cab
approx. 10 g
Standard current ratings, typical voltage drop values and
actuator colours (manual release)
Current rating (A)
3
4
5
6
7.5
8
10
15
20
25
Voltage drop (mV)
< 300
< 300
< 300
< 150
< 150
< 150
< 150
< 150
< 150
< 150
Actuator colour
violet
pink
light brown
mossy-green
brown
honey
red
blue
yellow
white
Shock
Corrosion
Humidity
Mass
1737
www.e-t-a.de
1
Thermal Automotive Circuit Breaker 1170-...

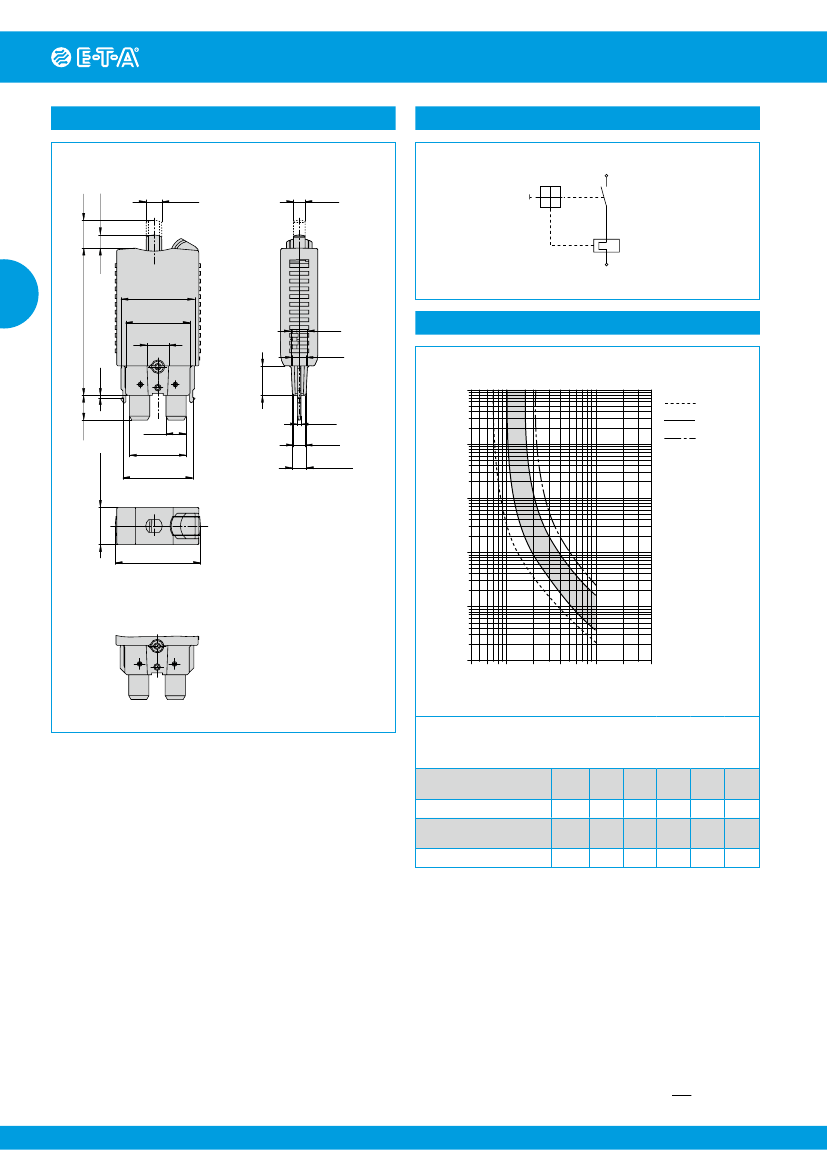

Dimensions
1170-21
ø4
ø.157
OFF
ø3
ø.118
ON
Internal connection diagram
1
3.4
.134
7.2
.283
2
18.8
.740
1
38
1.49
0.6
.024
16.6
.653
5.6
.220
7.6
.299
4.2
.165
3.6
.142
Typical time/current characteristics at +23°C7+73.4°F
3...25 A
10000
+ 85 °C
5.2
.205
14.5
.571
18
.709
0.8
.031
3.1
.122
Trip time in seconds
max. 3.8
max. .149
6.4
.252
+ 23 °C
1000
- 40 °C
max. 9.8
max. .386
100
22
.866
10
1170-22
1
0,1
0,4
0,8 1
2
4
6 8 10
20
40
... times rated current
The time/current characteristic curve depends on the ambient temperature
prevailing. In order to eliminate nuisance tripping, please multiply the circuit
breaker current ratings by the derating factor shown below. See also section
Technical information.
Ambient temperature °F
Ambient temperature °C
Derating factor
Ambient temperature °F
Ambient temperature °C
Derating factor
-40
-40
0,77
+73.4
+23
1
-22
-30
0.80
+104
+40
1.08
-4
-20
0.84
+122
+50
1.16
+14
-10
0.89
+140
+60
1.24
+32
0
0.94
+158
+70
1.33
+50
+10
0.96
+185
+85
1.42
This is a metric design and millimeter dimensions take precedence ( mm )
inch
2
www.e-t-a.de
1737
Thermal Automotive Circuit Breaker 1170-...

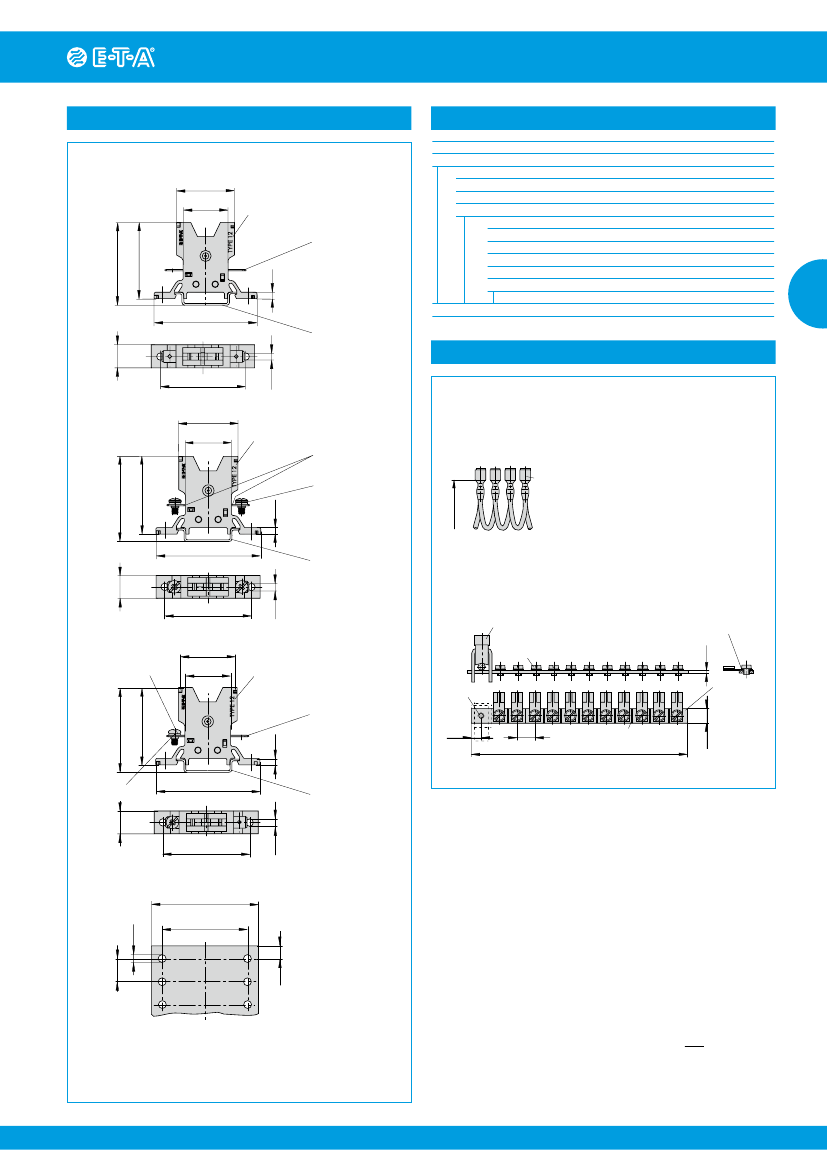

Accessories
Ordering information Mounting socket 12
Type No.
12
Mounting socket
Terminal design
P10
blade terminals A6.3-0.8 (QC .250)
J20
screw terminals 6-32 UNC
A10
1 blade terminal A6.3-0.8 (QC .250)/1 screw terminal 6-32 UNC
Version
(blank) single socket
20
two-way
30
three-way
40
four-way
60
six-way
12 - P10 - 20
symmetrical hat rail
EN 50022-35x7.5
Socket 12-P10
32.6
1.29
25.4
1.00
Weidmüller style label
(not supplied)
blade terminal
DIN 46244-A6.3-0.8
(QC .250)
47
1.85
43
1.69
3.5
.138
58
2.28
12.7
.500
ordering example
1
Accessories for mounting socket 12
48
1.89
ø3.9
.154
Socket 12-J20
32.6
1.29
25.4
1.00
Weidmüller style label
(not supplied)
terminal screw
6-32 UNC
tightening torque
max. 1.2 Nm
Connector bus links -P10
X 210 588 01/
1.5 mm
2
(AWG 16), brown (up to 13 A max. load)
X 210 588 02/
2.5 mm
2
(AWG 14), black (up to 20 A max. load)
X 210 588 03/
2.5 mm
2
(AWG 14), red (up to 20 A max. load)
X 210 588 04/
2.5 mm
2
(AWG 14), blue (up to 20 A max. load)
100 quick-connect tabs 6.3 (.250)
DIN 46247 tinned brass,
insulated
~70
~2.76
spring washer
47
1.85
43
1.69
3.5
.138
58
2.28
12.7
.500
symmetrical hat rail
EN 50022-35x7.5
Bus bar
(supplied as a complete package)
(up to 100 A max. load)
X 211 157 01
with terminal
X 211 157 02
without terminal
Phoenix terminal AKG 35
max.cross section 35 mm
2
(AWG 2)
cylinder head screw ISO1207-M4x4
nickel plated
washer A 4.3 DIN 125
nickel plated
2
.079
Cu rail,
tin-plated
10
.394
48
1.89
Socket 12-A10
terminal screw
6-32 UNC
tightening torque
max. 1.2 Nm
32.6
1.29
25.4
1.00
Weidmüller style label
(not supplied)
M4
blade terminal
DIN 46244-A6.3-0.8
(QC .250)
3.5
.138
47
1.85
43
1.69
ø3.9
.154
7
.276
12.8
.504
154.8
6.09
fusible link 1.1mm (.043 in.)
thick constriction)
spring washer
12.7
.500
58
2.28
symmetrical hat rail
EN 50022-35x7.5
48
1.89
Dimensions for surface mounting
60
2.36
48
1.89
13
.512
ø4
.157
.276
7
ø3.9
.154
Other sockets available to special order
Labels:
Weidmüller, D-33102 Paderborn
This is a metric design and millimeter dimensions take precedence ( mm )
inch
All dimensions without tolerances are for reference only. In the interest of improved design,
performance and cost effectiveness the right to make changes in these specifications
without notice is reserved.Product markings may not be exactly as the ordering codes.
Errors and omissions excepted.
1737
www.e-t-a.de
3
