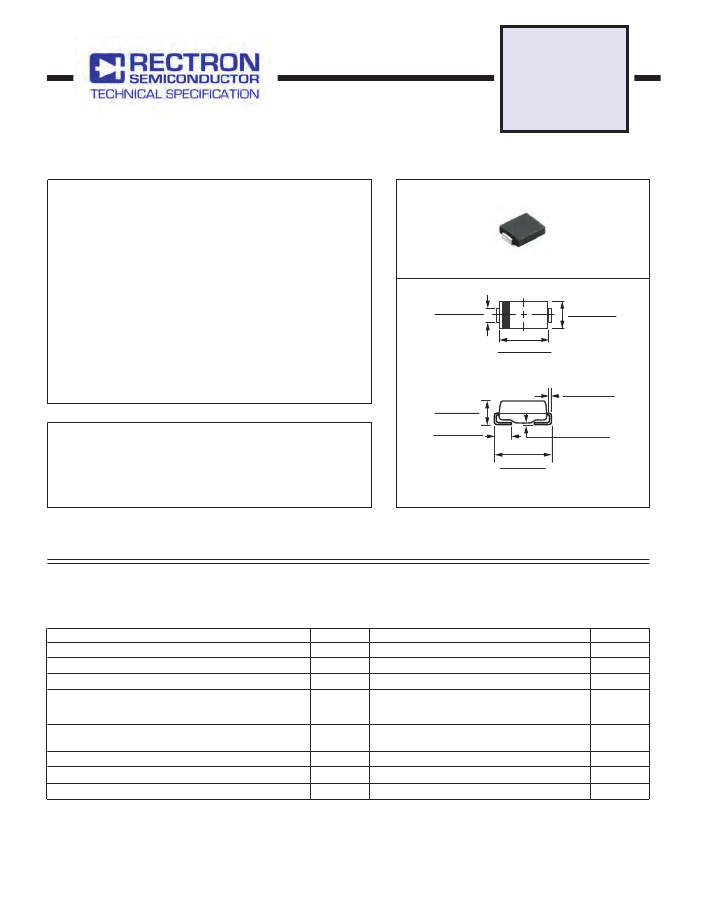

1500 WATT PEAK POWER 6.5 WATTS STEADY STATE
FEATURES
*
*
*
*
*
*
SURFACE MOUNT GPP
TRANSIENT VOLTAGE SUPPRESSOR
TVS
TFMCJ
SERIES
Plastic package has underwriters laboratory
Glass passivated chip construction
1500 watt surage capability at 1ms
Excellent clamping capability
Low zener impedance
Fast response time
0.125 (3.17)
0.115 (2.92)
0.280 (7.11)
0.260 (6.60)
DO-214AB
0.245 (6.22)
0.220 (5.59)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
0.103 (2.62)
0.079 (2.06)
0.060 (1.52)
0.030 (0.76)
0.320 (8.13)
0.305 (7.75)
0.012 (0.305)
0.006 (0.152)
0.008 (0.203)
0.004 (0.102)
Dimensions in inches and (millimeters)
DEVICES
FOR
BIPOLAR APPLICATIONS
For Bidirectional use C or CA suffix for types TFMCJ5.0 thru TFMCJ170
Electrical characteristics apply in both direction
MAXIMUM RATINGS (At T
A
= 25
o
C unless otherwise noted)
RATINGS
Peak Power Dissipation with a 10/1000uS (Note 1,2, Fig.1)
Peak Pulse Current with a 10/1000uS waveform ( Note 1, Fig.3 )
Steady State Power Dissipation at T
L
= 75 C (Note 2)
Peak Forward Surge Current 8.3mS single half sine-wave
superimposed on rated load (JEDEC method) (Note 3,4)
unidirectional only
Maximum Instantaneous Forward Voltage at 100A for unidirectional
only
Operating and Storage Temperature Range
Thermal Resistance Junction to Ambient Air
Thermal Resistance Junction to Leads
NOTES :
o
o
SYMBOL
P
PPM
I
PPM
P
M
(
AV
)
I
FSM
V
F
T
J
, T
STG
R q
JA
R q
JL
VALUE
Minimum 1500
SEE TABLE 1
6.5
200
SEE NOTE 5
-55 to + 150
75
15
UNITS
Watts
Amps
Watts
Amps
Volts
0
0
0
C
C/W
C/W
2009-1
REV:B
1. Non-repetitive current pulse, per Fig.3 and derated above T
A
= 25 C per Fig.2.
2. Mounted on 0.31 X 0.31”( 8.0 X 8.0mm) copper pad to each terminal.
3. Lead temperature at T
L
= 25
o
C
4. Measured on 8.3mS single half sine-wave duty cycle = 4 pules per minute maximum.
5. V
F
= 3.5V on TFMCJ-5.0 thru TFMCJ-90 devices and V
F
= 5.0V on TFMCJ-100 thru TFMCJ-170 devices.
6”Fully ROHS compliant”,”100% Sn plating(Pb-free).

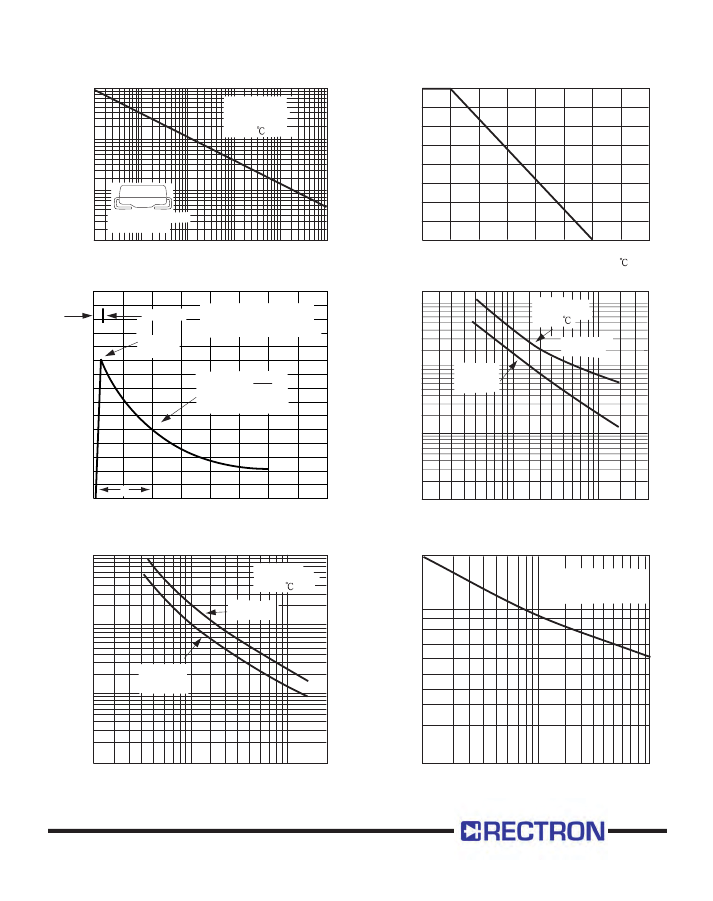

RATING AND CHARACTERISTIC CURVES ( TFMCJ5.0 THRU TFMCJ170CA )
P
PPM
, PEAK PULSE POWER, KW
100
PEAK PULSE POWER (PPP) OR CURRENT
(IPP) DERATING IN PERCENTAGE,%
FIG. 1 - PEAK PULSE POWER RATING CURVE
Non-Repetitive
Pulse Waveform
Shown in Fig.3
T
A
= 25
100
75
50
25
0
FIG. 2 - PULSE DERATING CURVE
10
1.0
0.31X0.31"(8.0X8.0mm)
copper pad areas
0.1
0.1uS
1.0uS
10uS
100uS 1.0mS
T
P
, PULSE WIDTH, sec
FIG. 3 - PULSE WAVEFORM
tr = 10usec.
Peak Value
IPPM
10mS
0
150
I
PPM
, PEAK PULSE CURRENT,%
Pulse Width (td) is Defined
as the Point Where the Peak
Current Decays to 50% of I
PPM
C
J
, JUNCTION CAPACITANCE,pF
20000
10000
75 100 125 150 175 200
50
T
A
, AMBIENT TEMPERATURE,( )
FIG. 4 - TYPICAL JUNCTION CAPACITANCE
UNIDIRECTIONAL
25
f = 1.0 MHz
Vsig = 50mVp-p
TJ = 25
100
Measured at
Zero Bias
1000
I
PPM
HALF VALUE -
2
10/1000usec. Waveform
as Defined by R.E.A.
Measured at
Stand off
Voltage,VWM
50
100
0
td
0
10000
IFSM, PEAK FORWARD SURGE CURRENT AMPERES
2.0
3.0
4.0
t, TIME,mS
FIG. 5 - TYPICAL JUNCTION CAPACITANCE
BIDIRECTIONAL
f = 1.0 MHz
Vsig = 50mVp-p
T
J
= 25
Measured at
Zero Bias
1.0
10
1.0
200
10
100 200
V(
WM
), BREAKDOWN VOLTACE, VOLTS
FIG. 6 - MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT UNIDIRECTIONAL
8.3ms Single Half Sine-Wave
(JEDED Method)
C
J
, JUNCTION CAPACITANCE,pF
Unidirectional only
100
1000
100
Measured at
Stand off
Voltage,V
WM
10
1.0
10
100 200
V(
WM
), BREAKDOWN VOLTACE, VOLTS
10
1
10
NUMBER OF CYCLES AT 60 Hz
100
TRANSIENT VOLTAGE SUPPRESSORS
1500W SERIES TVS DIODES/DO-214AB ( CASE 4 ) 1500W
Breakdown Voltage
Rectron
Industry No.
SMCJ5.0
SMCJ5.0A
SMCJ6.0
SMCJ6.0A
SMCJ6.5
SMCJ6.5A
SMCJ7.0
SMCJ7.0A
SMCJ7.5
SMCJ7.5A
SMCJ8.0
SMCJ8.0A
SMCJ8.5
SMCJ8.5A
SMCJ9.0
SMCJ9.0A
SMCJ10
SMCJ10A
SMCJ11
SMCJ11A
SMCJ12
SMCJ12A
SMCJ13
SMCJ13A
SMCJ14
SMCJ14A
SMCJ15
SMCJ15A
SMCJ16
SMCJ16A
SMCJ17
SMCJ17A
SMCJ18
SMCJ18A
SMCJ20
SMCJ20A
SMCJ22
SMCJ22A
SMCJ24
SMCJ24A
SMCJ26
SMCJ26A
SMCJ28
SMCJ28A
SMCJ30
SMCJ30A
SMCJ33
SMCJ33A
SMCJ36
SMCJ36A
Rectron
House No.
TFMCJ5.0
TFMCJ5.0A
TFMCJ6.0
TFMCJ6.0A
TFMCJ6.5
TFMCJ6.5A
TFMCJ7.0
TFMCJ7.0A
TFMCJ7.5
TFMCJ7.5A
TFMCJ8.0
TFMCJ8.0A
TFMCJ8.5
TFMCJ8.5A
TFMCJ9.0
TFMCJ9.0A
TFMCJ10
TFMCJ10A
TFMCJ11
TFMCJ11A
TFMCJ12
TFMCJ12A
TFMCJ13
TFMCJ13A
TFMCJ14
TFMCJ14A
TFMCJ15
TFMCJ15A
TFMCJ16
TFMCJ16A
TFMCJ17
TFMCJ17A
TFMCJ18
TFMCJ18A
TFMCJ20
TFMCJ20A
TFMCJ22
TFMCJ22A
TFMCJ24
TFMCJ24A
TFMCJ26
TFMCJ26A
TFMCJ28
TFMCJ28A
TFMCJ30
TFMCJ30A
TFMCJ33
TFMCJ33A
TFMCJ36
TFMCJ36A
VBR
(Volts)
MIN.
6.40
6.40
6.67
6.67
7.22
7.22
7.78
7.78
8.33
8.33
8.89
8.89
9.44
9.44
10.0
10.0
11.1
11.1
12.2
12.2
13.3
13.3
14.4
14.4
15.6
15.6
16.7
16.7
17.8
17.8
18.9
18.9
20.0
20.0
22.2
22.2
24.4
24.4
26.7
26.7
28.9
28.9
31.1
31.1
33.3
33.3
36.7
36.7
40.0
40.0
MAX.
7.82
7.07
8.15
7.37
8.82
7.98
9.51
8.60
10.2
9.21
10.9
9.83
11.5
10.4
12.2
11.1
13.6
12.3
14.9
13.5
16.3
14.7
17.6
15.9
19.1
17.2
20.4
18.5
21.8
19.7
23.1
20.9
24.4
22.1
27.1
24.5
29.8
26.9
32.6
29.5
35.3
31.9
38.0
34.4
40.7
36.8
44.9
40.6
48.9
44.2
@IT
(mA)
10
10
10
10
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Reverse
Stand off
Voltage
VWM
(Volts)
5.0
5.0
6.0
6.0
6.5
6.5
7.0
7.0
7.5
7.5
8.0
8.0
8.5
8.5
9.0
9.0
10.0
10.0
11.0
11.0
12.0
12.0
13.0
13.0
14.0
14.0
15.0
15.0
16.0
16.0
17.0
17.0
18.0
18.0
20.0
20.0
22.0
22.0
24.0
24.0
26.0
26.0
28.0
28.0
30.0
30.0
33.0
33.0
36.0
36.0
Maximum
Reverse
Leakage
at VWM
ID(uA)
1000
1000
1000
1000
500.0
500.0
200.0
200.0
100.0
100.0
50.0
50.0
25
25
10
10
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Maximum
Peak Pulse
Current
IPPM
(Amps)
156.3
163.0
131.6
145.6
122.0
133.9
112.8
125.0
104.9
116.3
100.0
110.3
94.3
104.2
88.8
97.4
79.8
88.2
74.6
82.4
68.2
75.4
63.0
69.8
58.1
64.7
55.8
61.5
52.1
57.7
49.2
54.3
46.6
51.4
41.9
46.3
38.1
42.3
34.9
38.6
32.2
35.6
30.0
33.0
28.0
31.0
25.4
28.1
23.3
25.8
Maximum
Clamping
Voltage
at IPPM
VC (Volts)
9.6
9.2
11.4
10.3
12.3
11.2
13.3
12.0
14.3
12.9
15.0
13.6
15.9
14.4
16.9
15.4
18.8
17.0
20.1
18.2
22.0
19.9
23.8
21.5
25.8
23.2
26.9
24.4
28.8
26.0
30.5
27.6
32.2
29.2
35.8
32.4
39.4
35.5
43.0
38.9
46.6
42.1
50.1
45.4
53.5
48.4
59.0
53.3
64.3
58.1
TRANSIENT VOLTAGE SUPPRESSORS
1500W SERIES TVS DIODES/DO-214AB ( CASE 4 ) 1500W
Rectron
Industry No.
SMCJ40
SMCJ40A
SMCJ43
SMCJ43A
SMCJ45
SMCJ45A
SMCJ48
SMCJ48A
SMCJ51
SMCJ51A
SMCJ54
SMCJ54A
SMCJ58
SMCJ58A
SMCJ60
SMCJ60A
SMCJ64
SMCJ64A
SMCJ70
SMCJ70A
SMCJ75
SMCJ75A
SMCJ78
SMCJ78A
SMCJ85
SMCJ85A
SMCJ90
SMCJ90A
SMCJ100
SMCJ100A
SMCJ110
SMCJ110A
SMCJ120
SMCJ120A
SMCJ130
SMCJ130A
SMCJ150
SMCJ150A
SMCJ160
SMCJ160A
SMCJ170
SMCJ170A
Rectron
House No.
TFMCJ40
TFMCJ40A
TFMCJ43
TFMCJ43A
TFMCJ45
TFMCJ45A
TFMCJ48
TFMCJ48A
TFMCJ51
TFMCJ51A
TFMCJ54
TFMCJ54A
TFMCJ58
TFMCJ58A
TFMCJ60
TFMCJ60A
TFMCJ64
TFMCJ64A
TFMCJ70
TFMCJ70A
TFMCJ75
TFMCJ75A
TFMCJ78
TFMCJ78A
TFMCJ85
TFMCJ85A
TFMCJ90
TFMCJ90A
TFMCJ100
TFMCJ100A
TFMCJ110
TFMCJ110A
TFMCJ120
TFMCJ120A
TFMCJ130
TFMCJ130A
TFMCJ150
TFMCJ150A
TFMCJ160
TFMCJ160A
TFMCJ170
TFMCJ170A
Breakdown Voltage
VBR
@IT
(Volts)
MIN.
44.4
44.4
47.8
47.8
50.0
50.0
53.3
53.3
56.7
56.7
60.0
60.0
64.4
64.4
66.7
66.7
71.1
71.1
77.8
77.8
83.3
83.3
86.7
86.7
94.4
94.4
100
100
111
111
122
122
133
133
144
144
167
167
178
178
189
189
MAX.
54.3
49.1
58.4
52.8
61.1
55.3
65.1
58.9
69.3
62.7
73.3
66.3
78.7
71.2
81.5
73.7
86.9
78.6
95.1
86.0
102
92.1
106
95.8
115
104
122
111
136
123
149
135
163
147
176
159
204
185
218
197
231
209
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Reverse
Stand off
Voltage
VWM
(Volts)
40
40
43
43
45
45
48
48
51
51
54
54
58
58
60
60
64
64
70
70
75
75
78
78
85
85
90
90
100
100
110
110
120
120
130
130
150
150
160
160
170
170
Maximum
Reverse
Leakage
at VWM
ID(uA)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Maximum
Peak Pulse
Current
IPPM
(Amps)
21.0
23.3
19.6
21.6
18.7
20.6
17.5
19.4
16.5
18.2
15.6
17.2
14.6
16.0
14.0
15.5
13.2
14.6
12.0
13.3
11.2
12.4
10.8
11.9
9.9
10.9
9.4
10.3
8.4
9.3
7.7
8.5
7.0
7.8
6.5
7.2
5.6
6.2
5.2
5.8
4.9
5.5
Maximum
Clamping
Voltage
at IPPM
VC (Volts)
71.4
64.5
76.7
69.4
80.3
72.7
85.5
77.4
91.1
82.4
96.3
87.1
103
93
107
96
114
103
125
113
134
121
139
126
151
137
160
146
179
162
196
177
214
193
231
209
268
243
287
259
304
275
Notes :
1. V
BR
measured after I
T
applied for 300ms. I
T
= square pulse or equivalent.
2. For bidirectional use C or CA suffixs for all types (ex. SMCJ5.0C,SMCJ170CA)
electrical characteristics apply in both directions.
3. For bidirectional types having VWM of 10 volts and less, the ID limit is doubled.
4. All devices UL listed file# E211196.
Mounting Pad Layout
0.185 MAX.
(4.69 MAX.)
0.121 MIN.
(3.07 MIN.)
0.060 MIN.
(1.52 MIN.)
0.320 REF
Dimensions in inches and (millimeters)
京公网安备 11010802033920号
EEWORLD
