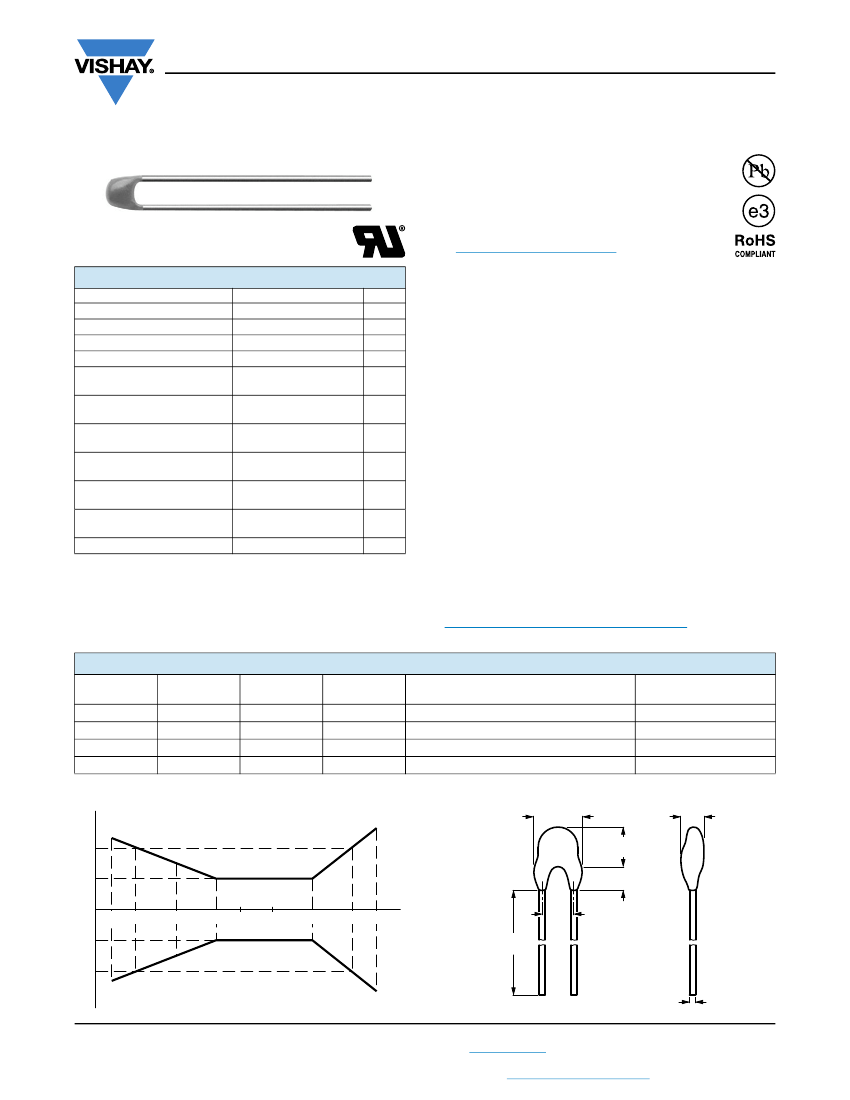

NTCLE101E3...SB0
www.vishay.com
Vishay BCcomponents
NTC Thermistors, Radial Leaded Special Accuracy
FEATURES
• Excellent accuracy between 25 °C and 85 °C
• High stability over a long life
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
QUICK REFERENCE DATA
PARAMETER
Resistance value at 25 °C
Tolerance on
R
25
-value
B
25/85
-value
Tolerance on B
25/85
-value
Operating temperature range
at zero dissipation
Accuracy for T measured
between 25 °C and 85 °C
Maximum power dissipation
at 55 °C
Dissipation factor
δ
(for information only)
Response time
(for information only)
(1)
Thermal time constant
τ
(for information only)
Weight
VALUE
4.7K to 100K
± 2.19 to ± 2.29
3977 to 4190
± 0.75; ± 1.5
-40 to +125
± 0.5
250
7
1.2
11
≈
0.22
UNIT
Ω
%
K
%
°C
°C
mW
mW/K
s
s
g
APPLICATIONS
• Temperature measurement, sensing, and control
DESCRIPTION
These thermistors have a NTC chip soldered between two
tin-plated copper leads. It has a grey lacquered body but is
not insulated. These thermistors have an accuracy of
± 0.5 °C over a trajectory from 25 °C to 85 °C.
PACKAGING
The thermistors are packed in cardboard boxes, each box
contains 500 units.
MARKING
Grey lacquered body.
MOUNTING
By soldering in any position. Not intended for potted
applications.
Note
(1)
Response time in silicone oil MS 200/50. This is the time needed
for the sensor to reach 63.2 % of the total temperature
difference when subjected to a temperature change from 25 °C
in air to 85 °C in oil
DESIGN-IN SUPPORT
For complete curve computation, please visit:
www.vishay.com/thermistors/ntc-curve-list/.
ELECTRICAL DATA AND ORDERING INFORMATION
R
25
(Ω)
4700
10 000
47 000
100 000
R
25
-TOL.
(± %)
2.19
2.19
2.23
2.29
B
25/85
(K)
3977
3977
4090
4190
B
25/85
-TOL.
(± %)
0.75
0.75
1.5
1.5
DESCRIPTION
NTC copper 0.6 lead 4.7K special tol bulk e3
NTC copper 0.6 lead 10K special tol bulk e3
NTC copper 0.6 lead 47K special tol bulk e3
NTC copper 0.6 lead 100K special tol bulk e3
SAP MATERIAL AND
ORDERING NUMBER
NTCLE101E3472SB0
NTCLE101E3103SB0
NTCLE101E3473SB0
NTCLE101E3104SB0
TEMPERATURE ACCURACY GRAPH
T
(K)
1.0
0.5
0
-0.5
-1.0
DIMENSIONS
in millimeters
3.3 ± 0.5
5
max.
2±1
3
max.
-40
-25
0
25
40
60
85
110 125
T (°C)
17
min.
2.54
Ø 0.6
Revision: 12-Jun-17
Document Number: 29046
1
