BK/AGW-15

Description
Cartridge Fuses SMALL DIM FUSE FA
CategoryCircuit protection    Circuit protection
File Size232KB,2 Pages
ManufacturerEaton
Download Datasheet Parametric View All

BK/AGW-15 Overview

Cartridge Fuses SMALL DIM FUSE FA

BK/AGW-15 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerEaton
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time8 weeks 1 day
Fusing characteristicsFAST
body height22.35 mm
Body length or diameter6.35 mm
Circuit protection typeELECTRIC FUSE
Joule integral nominal585 J
Installation featuresINLINE/HOLDER
method of packingBOX
physical size6.35mm x 22.35mm
Rated breaking capacity1000 A
Rated current15 A
Rated voltage (AC)32 V
surface mountNO
Terminal shapeEND CAP
Fast-Acting
1
4
˝ x
7
8
˝ Glass Tube Fuses

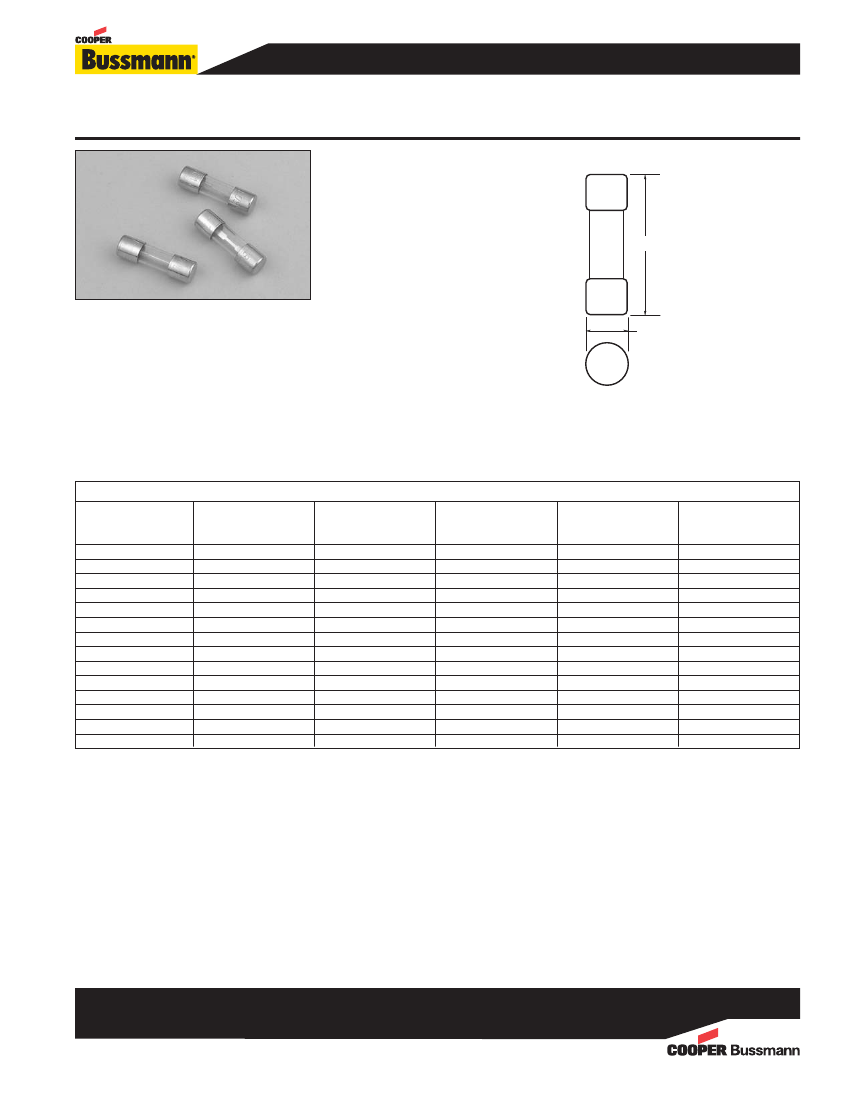

AGW Series
Dimensions - in
0.88"
Description
• Fast-acting
1
4
" x
7
8
" (6.3 x 22.2mm) physical size
• Glass tube, nickel-plated brass endcap construction
• Mounts in inline holders HHB, HHH, HRK or
1
4
" clips
Ordering
Specify product code
• Insert packaging code prefix before part number.
E.g., BK/AGW-1
0.25"
Specifications
Product Code
AGW-1
AGW-1-1/2
AGW-2
AGW-2-1/2
AGW-3
AGW-4
AGW-5
AGW-6
AGW-7-1/2
AGW-10
AGW-15
AGW-20
AGW-25
AGW-30
Voltage
Rating
Vac
32
32
32
32
32
32
32
32
32
32
32
32
32
32
Interrupting
Rating (amps)at
Rated Voltage AC
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
Typical DC Cold
Resistance
Ω
(Ω)*
0.1175
0.0695
0.0490
0.0346
0.0318
0.0207
0.0158
0.0124
0.0101
0.0069
0.0041
0.0029
0.0023
0.0018
Typical
Melt I
2
t
AC
7.4
0.220
8.44
57.438
72
7.3
105
204.48
213.75
406
585
832
1056.25
2745
Typical
Voltage
Drop (V)**
0.152
0.098
0.138
0.130
0.119
0.024
0.0112
0.096
0.104
0.103
0.087
0.078
0.077
0.076
* DC Cold Resistance (Measured at <10% of rated current)
** Typical Voltage drop (Voltage drop was measured at 25°C ambient temperature at rated current)

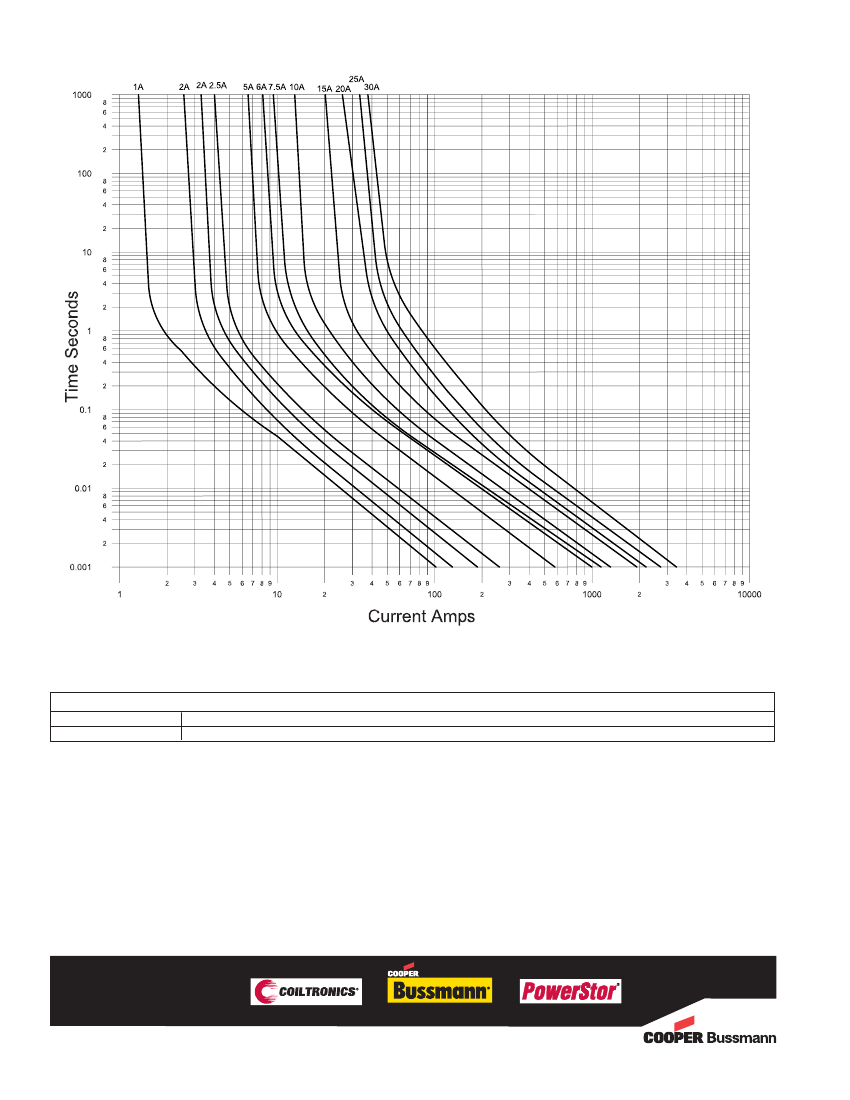

0610
SB-BU091105
Page 1 of 2
Data Sheet 2040
