38511500440: DescriptionFuses with Leads (Through Hole) Interface Protector 125V 1.5A; CategoryCircuit protection; File Size748KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

38511500440 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	38511500440	-	-	View	Buy Now

38511500440 Overview

Fuses with Leads (Through Hole) Interface Protector 125V 1.5A

38511500440 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Fuses with Leads (Through Hole)
RoHS	Details
Product	PCB Mount Fuse
Current Rating	1.5 A
Voltage Rating AC	125 VAC
Fuse Type	Time Delay / Slow Blow
Body Style	Leaded Fuses
Termination Style	Radial
Fuse Size / Group	TE5
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Resistance	62 mOhms
Packaging	Bulk
Indicator Style	Without Indicator
Type	Specialty Fuses
Interrupt Rating	50 A at 125 VAC
Factory Pack Quantity	1400

Preview

Download Datasheet

View All

Radial Lead Fuses

TE5 > Time-Lag Fuse > 392 Series

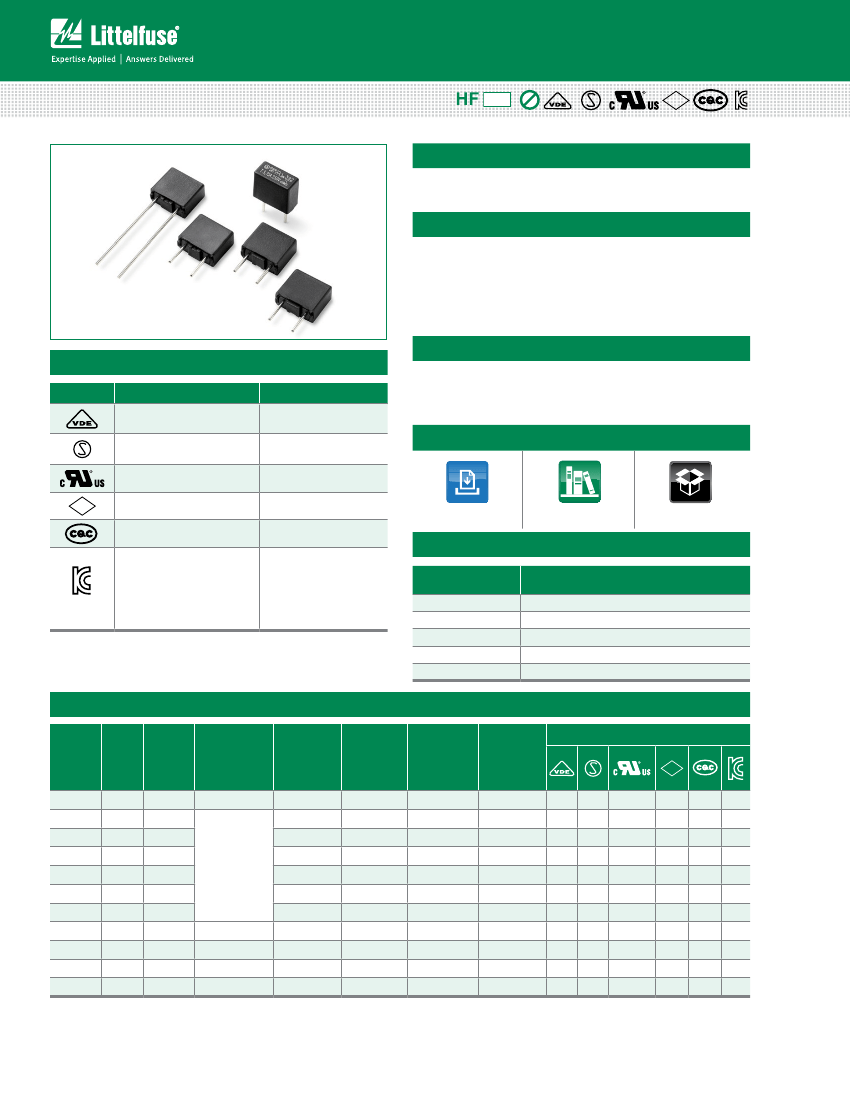

392 Series, TE5 Time-Lag Fuse

RoHS

Pb

PS

E

Description

TE5 Fuse, Time-Lag type, 250V rated, designed in

accordance to IEC 60127-3.

Features

• Reduced PCB space

requirements

• Direct solderable or

plug-in versions

• Internationally approved

• Low internal resistance

Agency Approvals

Agency

Agency File Number

Ampere Range

• Shock safe casing

• Vibration resistant

• Halogen free, Lead-free

and RoHS compliant

• Red Phosphorus Free

Applications

• Battery Chargers

• Consumer Electronics

• Power supplies

Additional Information

• Industrial Controllers

• Chargers

126983

1410866

1026673

E67006

PS

E

0.28A - 6.3A*

0.8A - 4A

5A - 6.3A

0.28A - 6.3A

1A - 5A

0.8A - 6.3A

JET1896-31007-2002

CQC07012021162

SU05024 - 7013A

SU05024 - 7014A

SU05024 - 7015A

SU05024 - 7016A

SU05024 - 7017A

SU05024 - 7018A

Datasheet

Resources

Samples

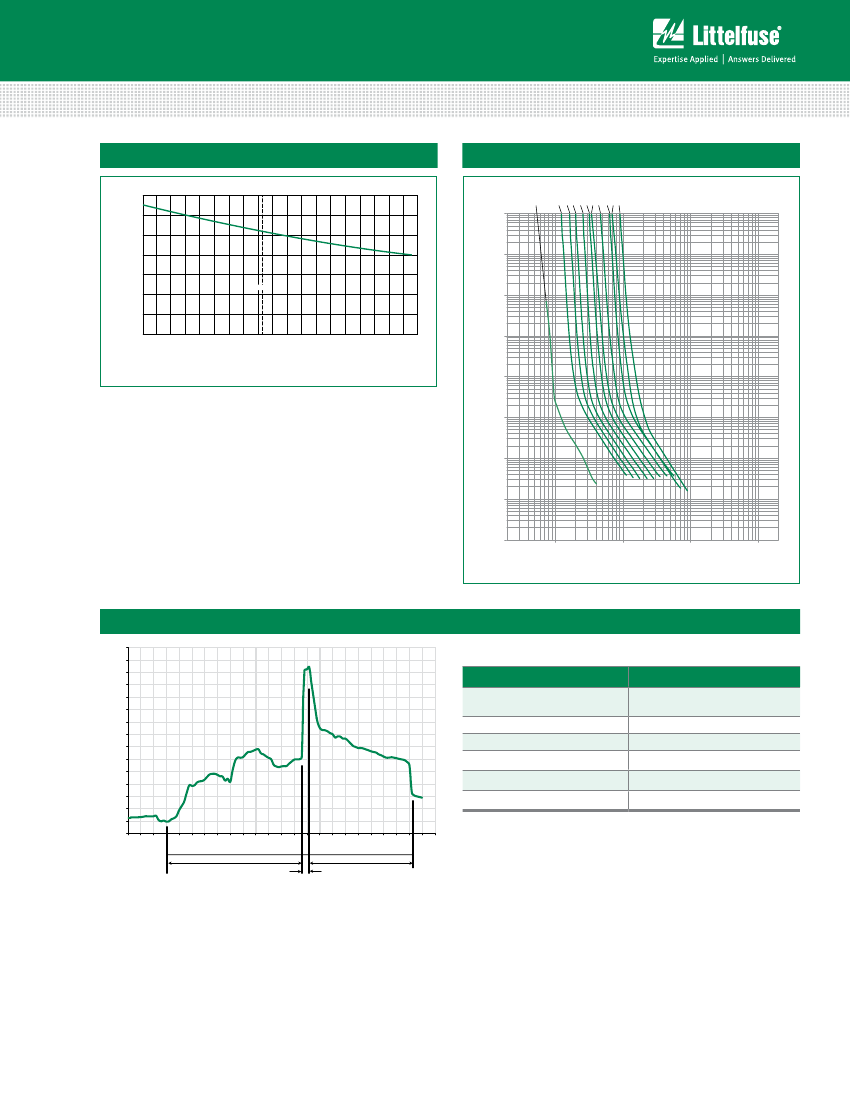

Electrical Characteristics for Series

% of Ampere

Rating

150%

210%

275%

400%

1000%

Opening Time

1 Hour,

Min.

120 s,

Max.

400 ms

Min.

; 10 Sec.

Max.

150 ms

Min.

; 3 Sec.

Max.

20 ms

Min.

; 150 ms

Max.

0.8A - 6.3A

*Red Phosphorus Free from 0.28A to 5A.

Electrical Characteristic Specifications by Item

Rated

Current

280 mA

800 mA

1.00 A

1.25 A

1.60 A

2.00 A

2.50 A

3.15 A

4.00 A

5.00 A

6.30 A

Amp

Code

0280

0800

1100

1125

1160

1200

1250

1315

1400

1500

1630

Voltage

Rating

250V

Breaking

Capacity

35A@250VAC

Nominal

Cold

Resistance

(Ohms)

0.3300

0.0960

0.0715

0.0569

Voltage

Drop

1.0×I

N

max. (mV)

115

110

115

100

95

90

85

80

75

70

65

Power

Dissipation

1.5×I

N

max. (mW)

168

280

400

500

600

700

750

1100

1200

1000

1200

Melting

Integral

10×I

N

max. (A

2

s)

0.048

5.120

8.00

11.95

18.43

29.00

47

.81

78.39

126.40

106.25

160.74

x

Agency Approvals

PS

E

x

25A@250VAC

0.0400

0.0298

0.0240

32A@250VAC

40A@250VAC

50A@250VAC

63A@250VAC

0.0170

0.0128

0.0101

0.0077

Notes:

1) 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

2) Resistance is measured at 10% of rated current, 25ºC.

Application testing is strongly recommended. Specifications are subject to change without notice.

Revised: 02/14/18

38511500440 Related Products

	38511500440	39000320000	39212000440	38706300000	39211600440	39211250440	39213150440
Description	Fuses with Leads (Through Hole) Interface Protector 125V 1.5A	Fuses with Leads (Through Hole) .032A Protector TE5	Fuses with Leads (Through Hole) 250V IEC TL SL 2A TE5	Fuses with Leads (Through Hole) PRTCR TE5 TELECOM AMMO .630A	Fuses with Leads (Through Hole) 250V IEC TL SL 1.6A TE5	Fuses with Leads (Through Hole) 250V IEC TL SL 1.25A TE5	Fuses with Leads (Through Hole) 250V IEC TL SL 3.15A TE5
Is it Rohs certified?	-	-	conform to	-	conform to	conform to	conform to
package instruction	-	-	HALOGEN FREE AND ROHS COMPLIANT	-	HALOGEN FREE AND ROHS COMPLIANT	HALOGEN FREE AND ROHS COMPLIANT	HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	-	-	compliant	-	compliant	compliant	compliant
ECCN code	-	-	EAR99	-	EAR99	EAR99	EAR99
Fusing characteristics	-	-	TIME LAG	-	TIME LAG	TIME LAG	TIME LAG
body width	-	-	4 mm	-	4 mm	4 mm	4 mm
body height	-	-	8 mm	-	8 mm	8 mm	8 mm
Body length or diameter	-	-	8.5 mm	-	8.5 mm	8.5 mm	8.5 mm
Circuit protection type	-	-	ELECTRIC FUSE	-	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Fuse size	-	-	TE5	-	TE5	TE5	TE5
JESD-609 code	-	-	e3	-	e3	e3	e3
Joule integral nominal	-	-	21 J	-	13 J	9 J	55 J
Installation features	-	-	THROUGH HOLE	-	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE
Maximum operating temperature	-	-	85 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-	-	-40 °C	-	-40 °C	-40 °C	-40 °C
method of packing	-	-	BULK	-	BULK	BULK	BULK
physical size	-	-	8.5mm x 4mm x 8mm	-	8.5mm x 4mm x 8mm	8.5mm x 4mm x 8mm	8.5mm x 4mm x 8mm
Pre-discharge rating	-	-	21 A2/s	-	13.5 A2/s	9.75 A2/s	55 A2/s
Rated breaking capacity	-	-	25 A	-	25 A	25 A	32 A
Rated current	-	-	2 A	-	1.6 A	1.25 A	3.15 A
Rated voltage	-	-	250 V	-	250 V	250 V	250 V
Rated voltage (AC)	-	-	250 V	-	250 V	250 V	250 V
Guideline	-	-	CQC; KTL; PSE; SEMKO; UL; VDE	-	CQC; KTL; PSE; SEMKO; UL; VDE	CQC; KTL; PSE; SEMKO; UL; VDE	CQC; KTL; PSE; SEMKO; UL; VDE
surface mount	-	-	NO	-	NO	NO	NO
Terminal surface	-	-	Matte Tin (Sn)	-	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	-	-	PIN WIRE	-	PIN WIRE	PIN WIRE	PIN WIRE
Base Number Matches	-	-	1	-	1	1	1
