CATALOG NO.
BCCMM603-3SQ
TERMINAL TYPE
7
W/O INDICATION
CVR-CCM-QC
SEE NOTES 6
6
IP20 FINGER SAFE COVERS
INDICATION
CVRI-CCM-QC
SEE NOTES 6
NO. OF
POLES
5
REV
A
4
ZONE
3
REVISIONS
DESCRIPTION
PRE-RELEASE
2
DATE
5/8/14
1
ECN
BU-SB14TBD
BY
AVM
SCREW W/ QUICK CONNECT
PRESSURE PLATE W/ QUICK CONNECT
3
3
F
BCCMM603-3PQ
F
CC HOLDER
CC HOLDER
MIDGET
HOLDER
E
CC HOLDER
CC HOLDER
MIDGET
HOLDER
LOCKOUT TAGOUT RING
SEE NOTE 6
E
4
.2
10
.4
77
3.0
95
3.7
TYP
D
60
2.4
TYP
59
2.3
TYP
20
.8
TYP
#10-32
SCREW
16
.6
TYP
D
33
1.3
39
1.5
TYP
BCCMM603-3xQ
SHOWN WITH COVER
C
BCCMM603-3PQ
BCCMM603-3SQ
C
B
B
NOTES:
1) VOLTAGE RATING: 600V
2) AMPERAGE: 30A (20A QUICK CONNECT)
3) WITHSTAND RATING: 200kA
4) -SQ/PQ WIRE RANGE: (1) CU 75/90C
10-18 AWG = 20 LB-IN (2.3NM)
5) USE 4MM DIA. CABLE LOCK
6) CVR-CCM-QC AND CVRI-CC-QC
10AWG MAX WIRE + QUICK CONNECT OPENINGS AT ENDS AND TOP
7) RECOMMEND USING DIN-RAIL END STOPS FOR DIN RAIL MOUNTED APPLICATIONS
BUSSMANN PART NUMBERS BRKT-ND OR BRKT-NDSCREW2
3D VIEW FOR BCCMM603-3PQ
SCALE NONE
MODEL SOURCE DATA
MODEL VERSION
3D VIEW FOR BCCMM603-3SQ
SCALE NONE
PRODUCT MANAGER
3D VIEW FOR BCCMM603-3xQ
WITH COVER CVRI-CCM-QC
SCALE NONE
CUSTOMER PRINT
.
BCCMM-603-3SQ
THIS DRAWING IS AN UNCONTROLLED COPY IF
PRINTED OR SENT ELECTRONICALLY,
DO NOT SCALE DRAWING
GENERAL DRAWING PRACTICES IN
ACCORDANCE WITH
ASME - Y14.100-2004
DIMENSIONS AND TOLERANCES IN
ACCORDANCE WITH
ASME - Y14.5M-1994
APPROVALS
DATE
D. McDowell
A.VZM
--
5/08/2014
5/08/2014
--/--/----
TITLE
ENGINEER
A
SLA3_BUSS_NAE_GENRL_REV_A
EATON CORPORATION - CONFIDENTIAL AND PROPRIETARY
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN
NOTICE TO PERSONS RECEIVING THIS DOCUMENT AND/OR TECHNICAL INFORMATION
MILLIMETERS TOLERANCES TO BE
THIS DOCUMENT, INCLUDING THE DRAWING AND INFORMATION CONTIANED THEREON,
IS CONFIDENTIAL AND IS THE EXCLUSIVE PROPERTY OF EATON CORPORATION AND
IS MERELY ON LOAN AND SUBJECT TO RECALL BY EATON AT ANY TIME. BY TAKING
POSSESSION OF THE DOCUMENT, THE RECIPIENT ACKNOWLEDGES AND AGREES THAT
THIS DOCUMENT CANNOT BE USED IN ANY MANNER ADVERSE TO THE INTERESTS OF
EATON AND THAT NO PORTION OF THIS DOCUMENT MAY BE COPIED OR OTHERWISE
REPRODUCED WITHOUT THE PRIOR WRITTEN CONSENT OF EATON. IN THE CASE OF
CONFLICTING CONTRACTUAL PROVISIONS, THIS NOTICE SHALL GOVERN THE
STATUS OF THIS DOCUMENT.
C
2012 Eaton Corporation, All Rights Reserved.
QUALITY
ONE PLACE X.X
TWO PLACE X.X X
ALL ANGLES X.X
= ±
0.3
mm
= ±
0.13
mm
= ±
1
°
A
DWG NO.
REV
MATERIAL
SPECIAL CHARACTERISTIC
SIGNIFICANT CHARACTERISTIC
8
7
6
5
4
THIRD ANGLE PROJECTION
(
0
)
(
0
)
N/A
FINISH

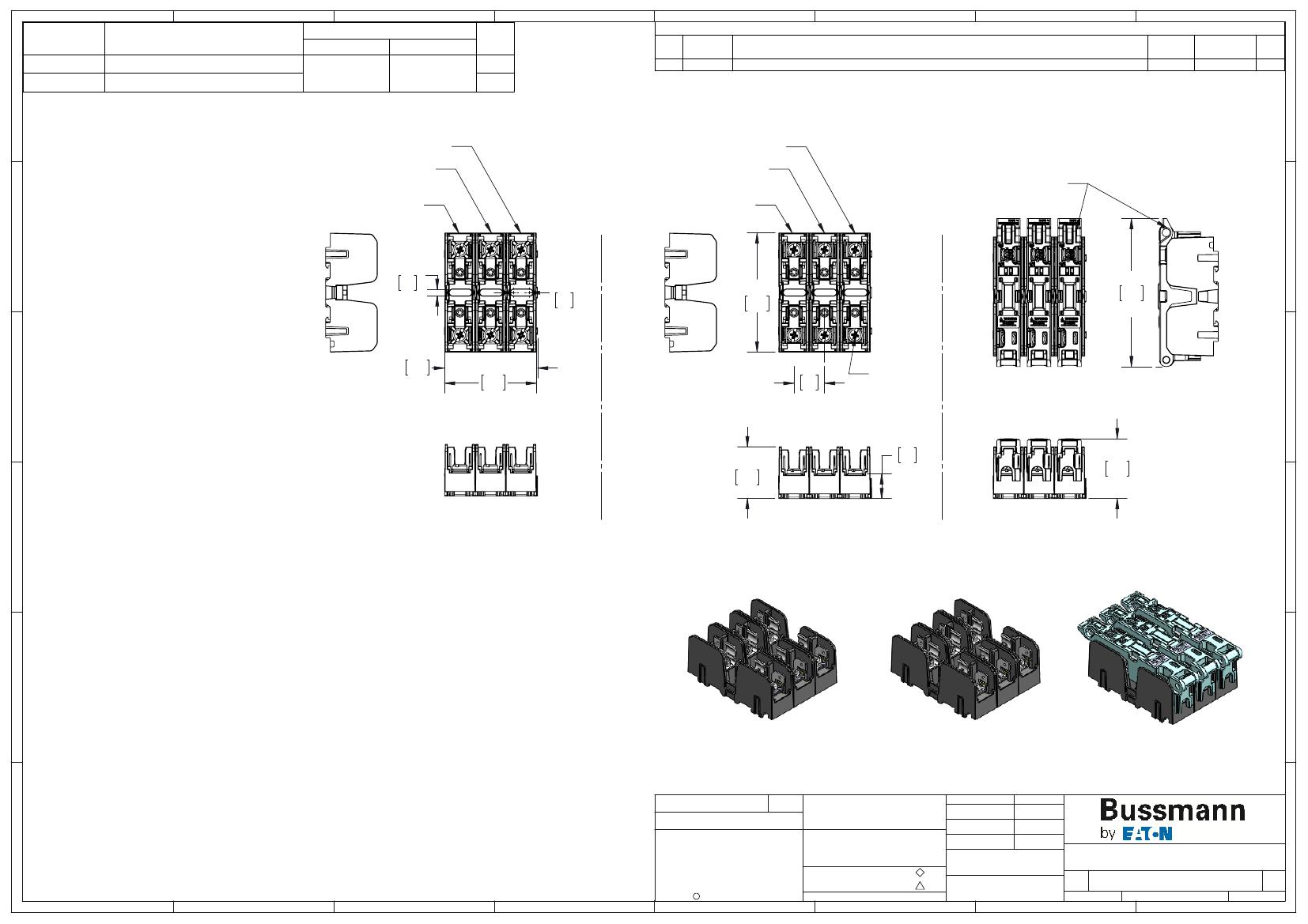

600V / 30A CC AND MIDGET FUSE BLOCK
SIZE
N/A
A3
SCALE:
3
2
1:2
BCCMM603-SERIES-CP A
SHEET
1
1 OF 2
Tue Oct 01, 2013 4:0X PM GPK
8
7
6
5
4
3
2
1
F
F
E
THIS SECTION MAY BE CUT
OUT FOR USE WITH VERTICALLY
ORIENTED QUICK CONNECTS
E

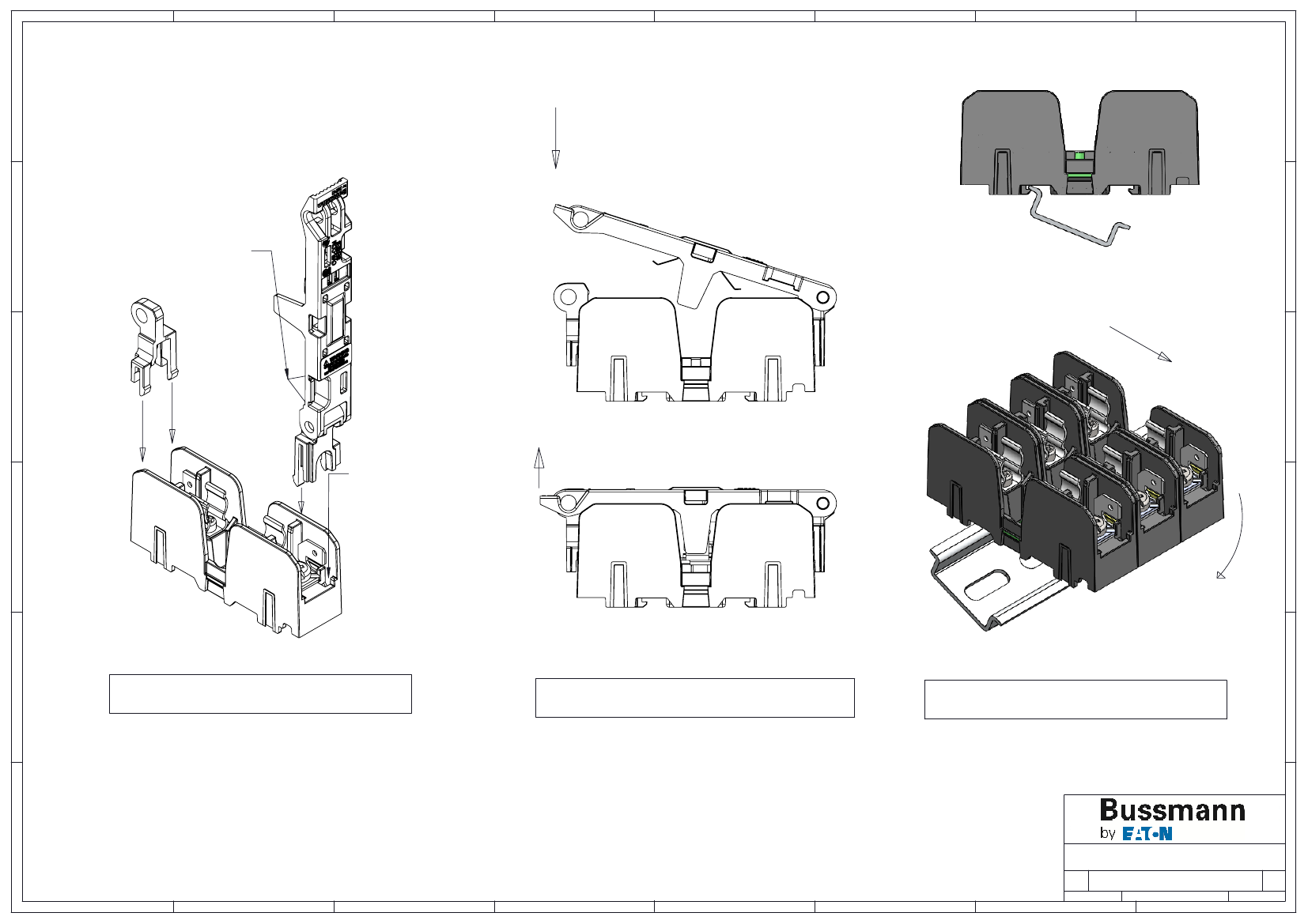

1. HOOK DIN RAIL SNAPS ON ONE SIDE OF THE DIN RAIL
2. PUSH DOWN TO DEFLECT THE SNAPS
D
D
C
PUSH COVER PIVOT
AND END PIECE
SNAPS INTO SLOTS
IN BASE. THE COVER
MAY BE ORIENTED IN
EITHER DIRECTION.
C
3. ROTATE UNTIL THE
OPPOSITE SIDE SNAPS
ONTO DIN RAIL
B
COVER INSTALLATION
ONCE INSTALLED THE COVER CANNOT BE
REMOVED
OPENING AND CLOSING
PUSH/PULL ON END TAB, ROTATE UNTIL
CLOSED/OPEN
INSTALLATION ON DIN RAIL
END STOPS MAY BE NECESSARY FOR SOME
ASSEMBLY CONDITIONS - SEE NOTE 7
B
.
CUSTOMER PRINT
A
SLA3_BUSS_NAE_GENRL_REV_A
TITLE
A
DWG NO.
REV
600V / 30A CC AND MIDGET FUSE BLOCK
SIZE
A3 BCCMM603-SERIES-CP A
SCALE:
8
7
6
5
4
3
2
1:2
SHEET
1
2 OF 2
Tue Oct 01, 2013 4:0X PM GPK
