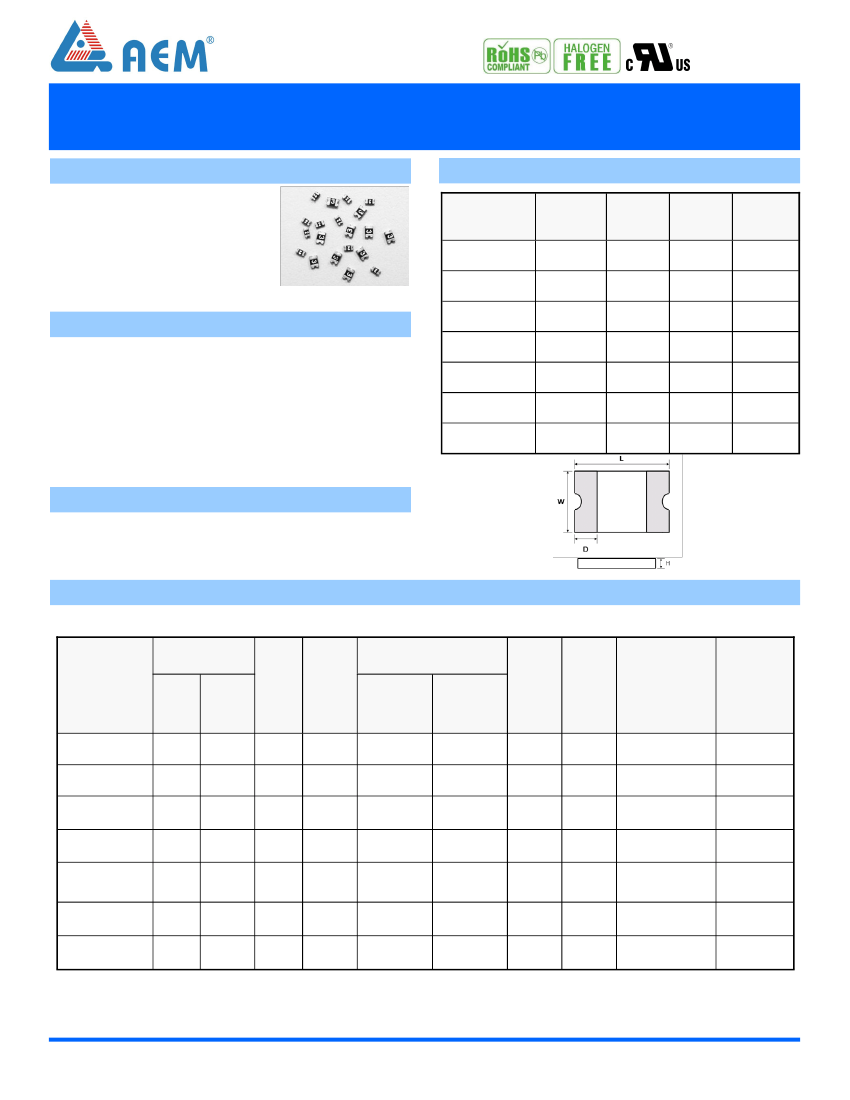

Surface Mount Polymer PTCs
PMS Series, 0603 Size
Features:
Resettable over-current protection
Small size of 0603
Fast time-to-trip
RoHS compliant
Halogen free
Shape and Dimensions:
Part Number
PMS0603-005
PMS0603-010
PMS0603-020
PMS0603-025
PMS0603-035
PMS0603-050
PMS0603-075
L (mm)
Max.
1.85
1.85
1.85
1.85
1.85
1.85
1.85
W (mm)
Max.
1.05
1.05
1.05
1.05
1.05
1.05
1.05
H (mm)
Max.
1.00
1.00
1.00
1.00
1.00
1.10
1.10
D (mm)
Min.
0.15
0.15
0.15
0.15
0.15
0.15
0.15
Application Fields:
Battery packs
Portable electronic devices
Industrial controls
Multimedia
Game machines
Telecom & broadband instruments
Agency Approval:
Recognized Under the Components Program of Underwriters
Laboratories. File Number: E355716.
Typical Ratings and Characteristics (@25℃):
Operating Temperature:
-40 to +85°C
Current (A)
Part Number
V
Max
Hold
(I
H
)
PMS0603-005
PMS0603-010
PMS0603-020
PMS0603-025
PMS0603-035
PMS0603-050
PMS0603-075
1
Max. Time to Trip (sec)
(Vdc)
I
Max
(A)
Current (A)
40
40
40
40
40
40
40
0.5
0.5
1.0
8.0
8.0
8.0
8.0
Time (sec)
1.00
1.00
0.60
0.08
0.10
0.10
0.10
Typical
Power
Resista
nce
One Hours Post
Reflow
Resistance R
1
Max. (Ω)
1
10.000
6.000
3.500
3.000
1.400
0.800
0.450
√
√
√
√
√
UL
Certification
Trip (I
T
)
0.20
0.30
0.50
0.55
0.75
1.00
1.40
(Pd, W) Min. (Ω)
0.50
0.50
0.50
0.50
0.50
0.50
0.50
2.000
0.900
0.550
0.550
0.200
0.100
0.060
0.05
0.10
0.20
0.25
0.35
0.50
0.75
15
15
9
9
6
6
6
The max resistance of one-hour post reflow is a reference value. The value may change a little according to reflow conditions and soldering state.
73
Website:
www.aemchina.com & www.aemcomponents.com
Rev. Sep. 15
Surface Mount Polymer PTCs
PMS Series, 0603 Size
Thermal De-rating Hold Current (A) at Ambient Temperature (25
℃
):
Part Number
PMS0603-005
PMS0603-010
PMS0603-020
PMS0603-025
PMS0603-035
PMS0603-050
PMS0603-075
Ambient Temperature
-40°C
0.072
0.13
0.27
0.32
0.47
0.67
0.98
-20°C
0.065
0.12
0.25
0.29
0.41
0.59
0.85
0°C
0.058
0.11
0.23
0.27
0.38
0.54
0.81
25°C
0.05
0.10
0.20
0.25
0.35
0.50
0.75
40°C
0.041
0.08
0.17
0.21
0.29
0.41
0.60
50°C
0.037
0.07
0.14
0.18
0.26
0.37
0.54
60°C
0.033
0.06
0.12
0.16
0.24
0.34
0.44
70°C
0.030
0.05
0.10
0.13
0.20
0.29
0.40
85°C
0.024
0.03
0.07
0.09
0.14
0.20
0.31
Packaging and Marking Information:
Part Number
PMS0603-005
PMS0603-010
PMS0603-020
PMS0603-025
PMS0603-035
PMS0603-050
PMS0603-075
Part Marking
V
1
2
2
3
5
7
5,000
Tape & Reel Quantity (piece)

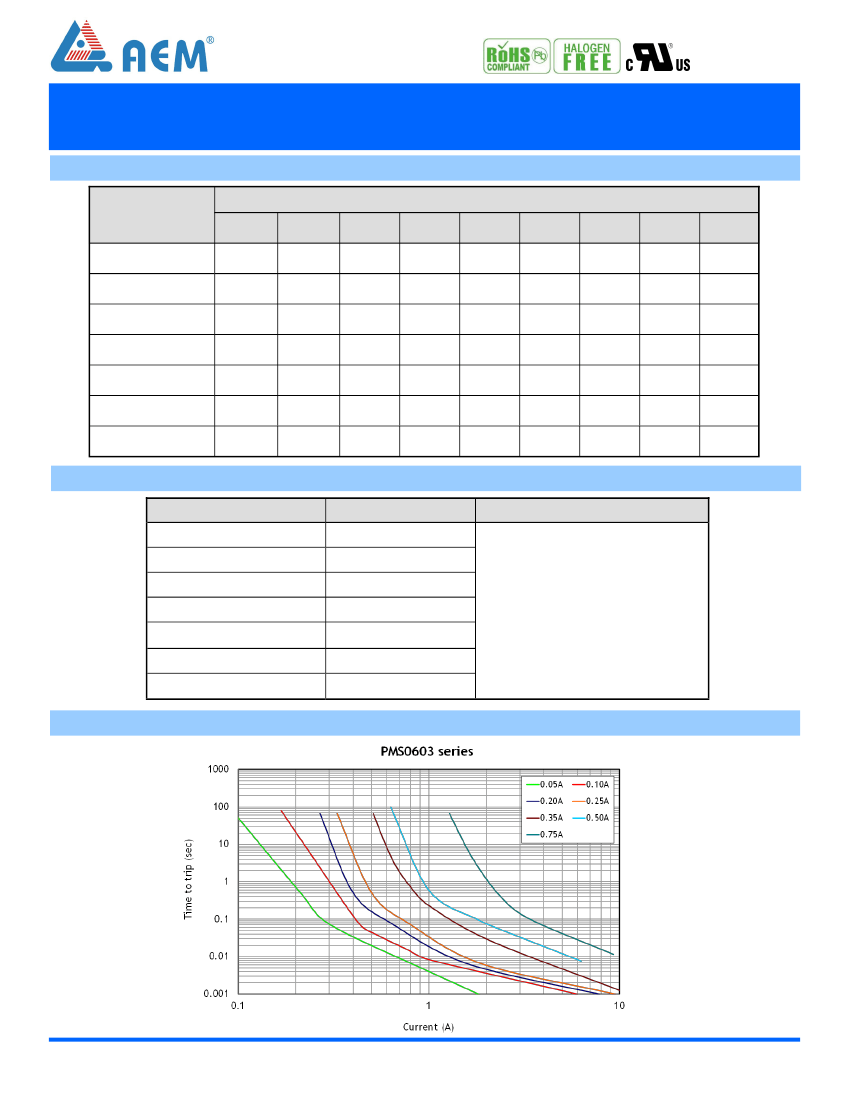

Typical Time to Trip (@25℃):
Website:
www.aemchina.com & www.aemcomponents.com
74
Rev. Sep. 15
Surface Mount Polymer PTCs

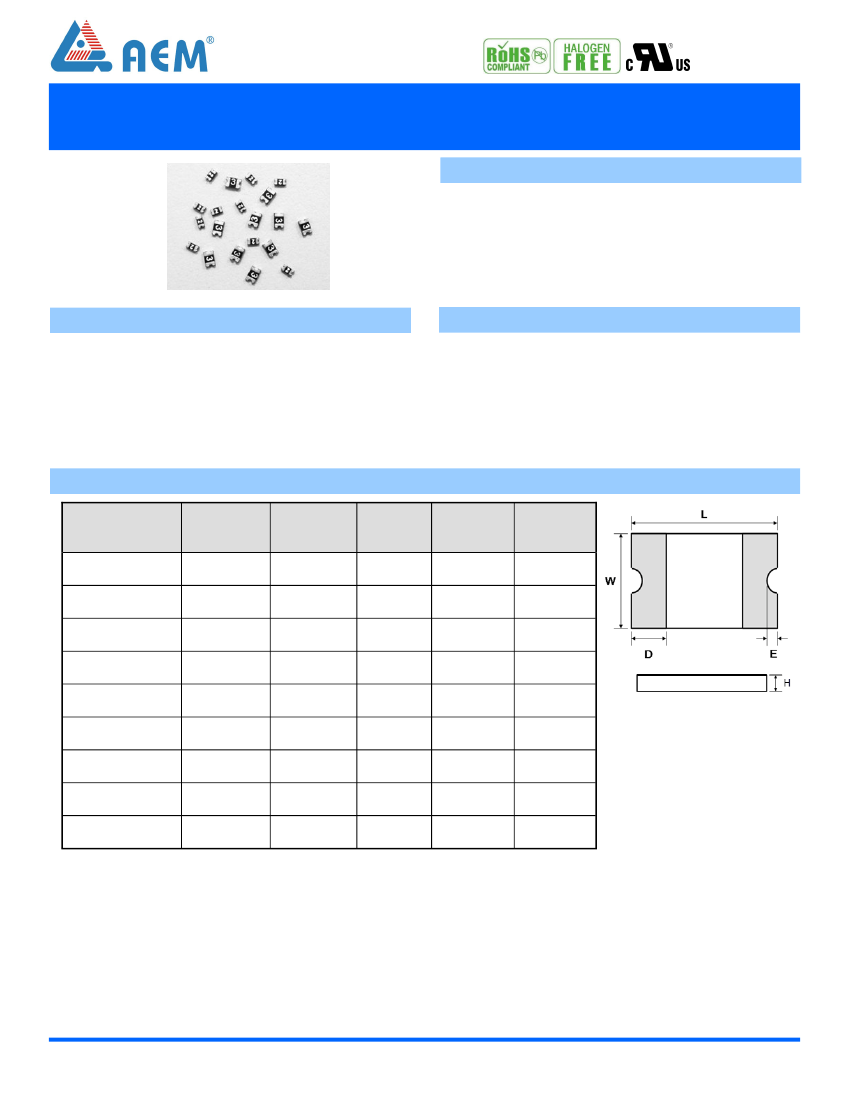

PMS Series, 0805 Size
Features:
Application Fields:
Battery packs
Portable electronic devices
Industrial controls
Multimedia
Game machines
Telecom & broadband instruments
Resettable over-current protection
Small size of 0805
Fast time-to-trip
RoHS compliant
Halogen free
Agency Approval:
Recognized Under the Components Program of Underwriters
Laboratories. File Number: E355716.
Shape and Dimensions:
Part Number
PMS0805-010
PMS0805-020
PMS0805-025
PMS0805-035
PMS0805-050
PMS0805-075
PMS0805-100
PMS0805-110
PMS0805-125
L (mm)
Max.
2.20
2.20
2.20
2.20
2.20
2.20
2.20
2.20
2.20
W (mm)
Max.
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
1.50
H (mm)
Max.
1.00
1.00
1.00
1.00
0.60
1.10
1.10
1.10
1.20
D (mm)
Min.
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
E (mm)
Min.
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
0.10
75
Website:
www.aemchina.com & www.aemcomponents.com
Rev. Sep. 15
Surface Mount Polymer PTCs
PMS Series, 0805 Size
Typical Ratings and Characteristics (@25℃):
Operating Temperature:
-40 to +85°C
Current (A)
Part Number
Hold
(I
H
)
PMS0805-010
PMS0805-020
PMS0805-025
PMS0805-035
PMS0805-050
PMS0805-075
PMS0805-100
PMS0805-110
PMS0805-125
1
Max. Time to Trip (sec)
V
Max
(Vdc)
I
Max
(A)
Typical
Power
Resista
nce
One Hours Post
Reflow
Resistance R
1
Max. (Ω)
1
6.000
3.500
3.000
1.200
0.850
0.385
0.230
0.210
0.140
√
√
√
√
√
√
UL
Certification
Trip
(I
T
)
0.30
0.50
0.55
0.75
1.00
1.50
1.95
2.20
2.50
Current (A)
Time (sec)
(Pd, W) Min. (Ω)
0.50
0.50
0.50
0.50
0.50
0.60
0.60
0.60
1.50
1.000
0.650
0.600
0.250
0.150
0.090
0.060
0.060
0.030
0.10
0.20
0.25
0.35
0.50
0.75
1.00
1.10
1.25
15
9
9
6
6
6
6
6
6
100
100
100
100
100
40
100
100
100
0.5
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
1.50
0.02
0.02
0.10
0.10
0.20
0.30
0.30
0.60
The max resistance of one-hour post reflow is a reference value. The value may change a little according to reflow conditions and soldering state.
Thermal De-rating Hold Current (A) at Ambient Temperature (25
℃
):
Part Number
Ambient Temperature
-40°C
0.14
0.28
0.35
0.47
0.68
1.00
1.35
1.45
1.65
-20°C
0.12
0.25
0.31
0.44
0.62
0.90
1.25
1.35
1.53
0°C
0.11
0.23
0.27
0.39
0.55
0.79
1.15
1.20
1.36
25°C
0.10
0.20
0.25
0.35
0.50
0.75
1.00
1.10
1.25
40°C
0.08
0.17
0.22
0.30
0.40
0.63
0.82
0.92
1.05
50°C
0.07
0.14
0.19
0.27
0.37
0.57
0.74
0.84
0.95
60°C
0.06
0.12
0.16
0.24
0.33
0.53
0.65
0.75
0.85
70°C
0.05
0.10
0.14
0.20
0.29
0.41
0.55
0.65
0.74
85°C
0.03
0.07
0.11
0.14
0.23
0.34
0.42
0.52
0.59
PMS0805-010
PMS0805-020
PMS0805-025
PMS0805-035
PMS0805-050
PMS0805-075
PMS0805-100
PMS0805-110
PMS0805-125
Website:
www.aemchina.com & www.aemcomponents.com
76
Rev. Sep. 15
Surface Mount Polymer PTCs
PMS Series, 0805 Size
Packaging and Marking Information:
Part Number
PMS0805-010
PMS0805-020
PMS0805-025
PMS0805-035
PMS0805-050
PMS0805-075
PMS0805-100
PMS0805-110
PMS0805-125
Part Marking
1
2
2
3
5
7
0
0
12
4,000
5,000
Tape & Reel Quantity
(piece)

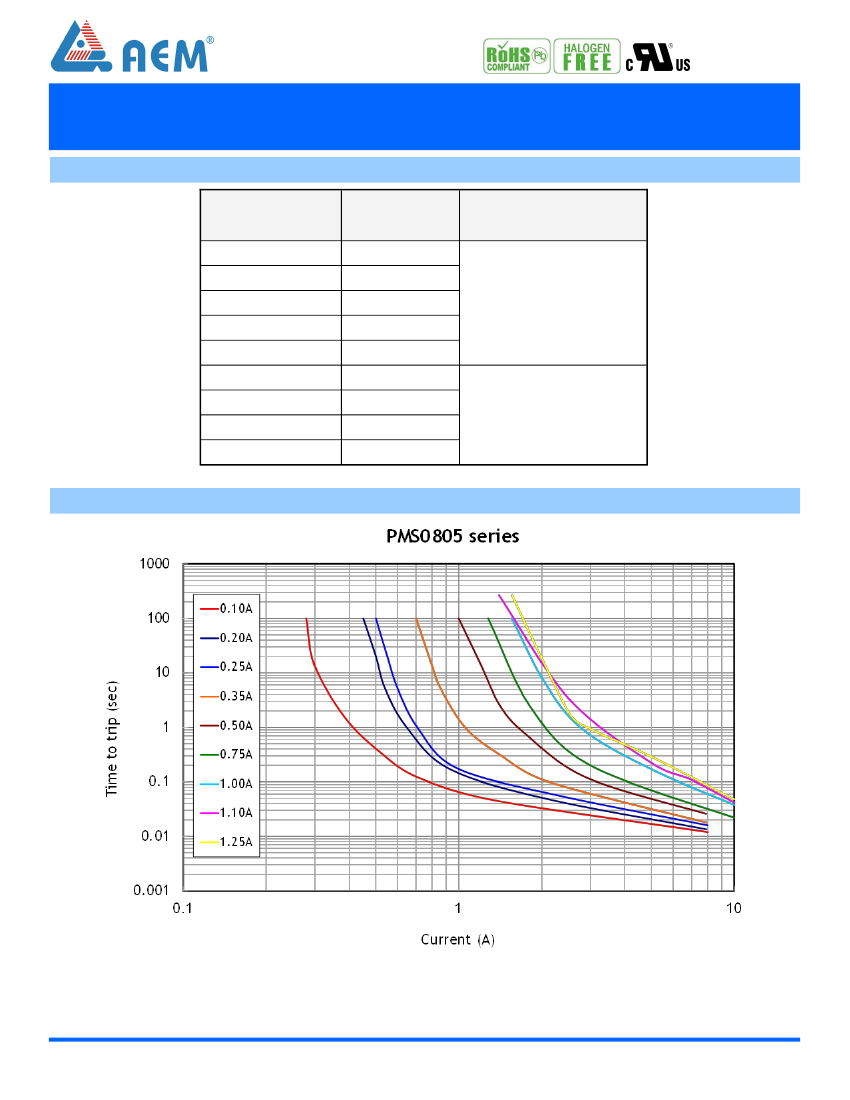

Typical Time to Trip (@25℃):
77
Website:
www.aemchina.com & www.aemcomponents.com
