AirMatrix
®
Surface Mount Fuses
AF Series, 2410 Size
Features:
Application Fields:
Power Supply, e.g. DC/DC converters, DC/AC inverters,
Backlight drivers , etc.
Consumer Electronics, e.g. LCD TVs, PDP, DVDs, PCM ,
etc.
Communication Technology, e.g. Telecom systems,
Networking, Modems, Routers, Changers, Base stations ,
etc.
Office Automation Electronics
IT Products, e.g. LCD monitors, Notebooks, PC servers,
etc.
Fast acting at 200% overload current level
Excellent inrush current withstanding capability
Fiberglass enforced epoxy fuse body
Copper or copper alloy composite fuse link
Copper termination with nickel and tin plating
Halogen free, RoHS compliant and 100% lead-free
Operating temperature range: -55° to +125° (with de-
C
C
rating)

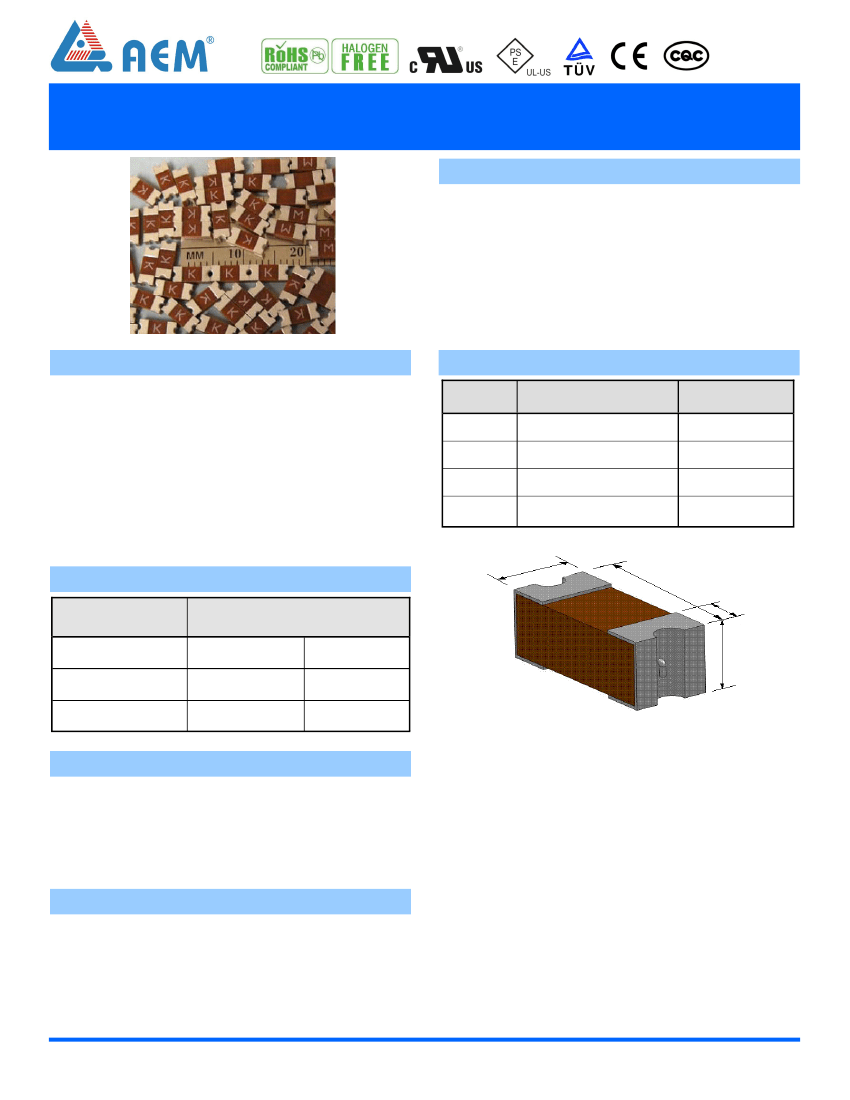

Shape and Dimensions:
Unit
L
W
T
B
Inch
0.240 ± 0.006
0.098 ± 0.006
0.085 ± 0.008
0.053 ± 0.015
mm
6.10 ± 0.15
2.49 ± 0.15
2.16 ± 0.20
1.35 ± 0.38
W

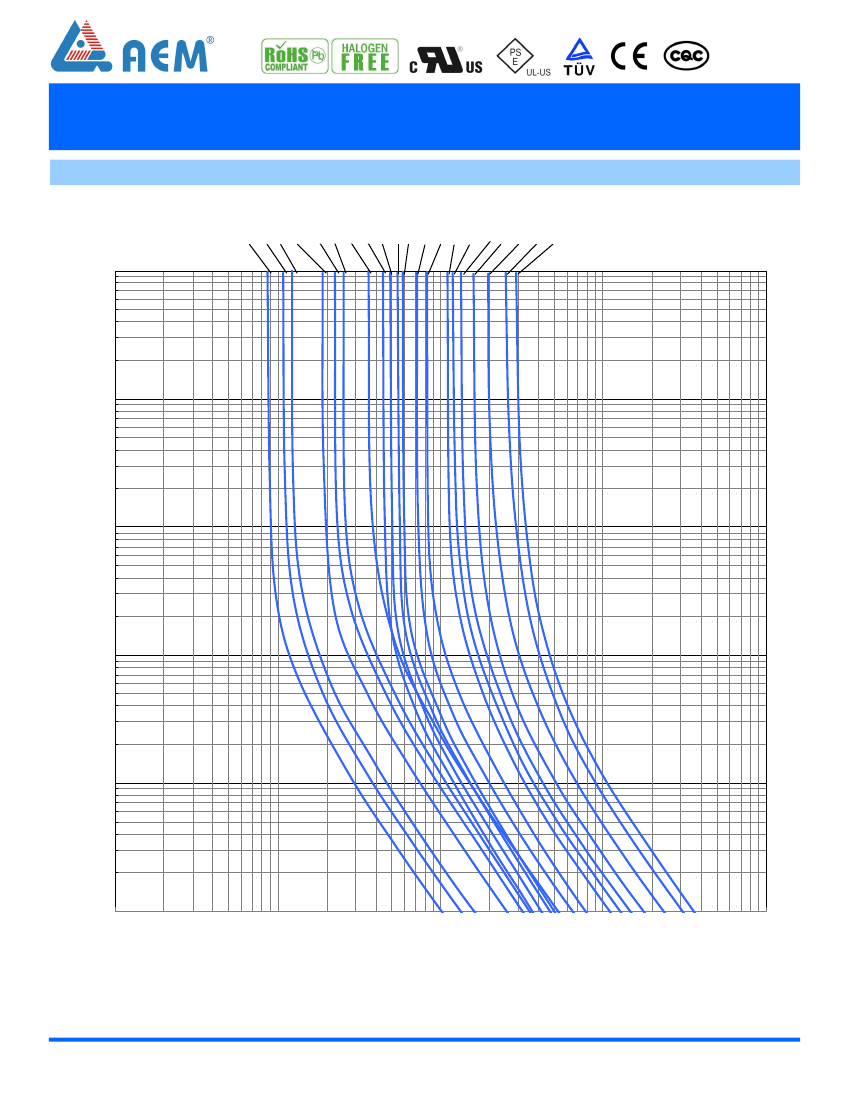

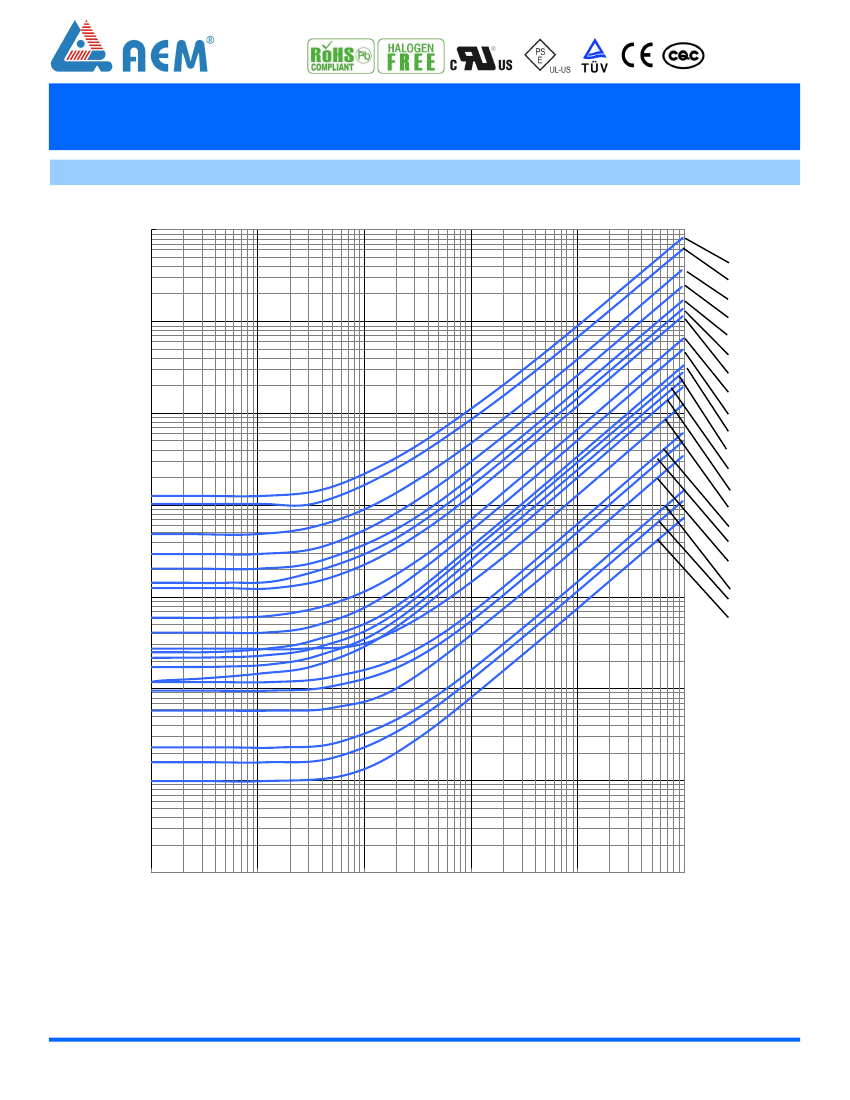

Clearing Time Characteristics:
%
of Current Rating
100%
200%(0.50~10.0 A)
200%(12.0~20.0 A)
L
B
Clearing Time at 25°
C
4 hours min.
0.01 seconds min.
0.01 seconds min.
5 seconds max.
20 seconds max.
T
Agency Approval:
Recognized Under the Components Program of
Underwriters Laboratories. File Number: E232989
PSE Certificate No: NBK180711-JP13710
TUV File Number: 50209083
CQC No.: CQC11012065955
Patents:
Patent numbers “ZL200810092353.3”, “ZL200910007157.6”,
“ZL201120450579.3”, “ZL201120536307.5”,
“ZL201220063222.4”, “ZL201110123326.X”.
Website:
www.aemchina.com & www.aemcomponents.com
