DFLT17A-7

Description
ESD Suppressors / TVS Diodes TVS UNIDIRECTIONAL
CategoryDiscrete semiconductor    diode
File Size301KB,5 Pages
ManufacturerDiodes Incorporated
Environmental Compliance
Download Datasheet Parametric View All

DFLT17A-7 Online Shopping

Suppliers Part Number Price MOQ In stock
DFLT17A-7 - - View Buy Now

DFLT17A-7 Overview

ESD Suppressors / TVS Diodes TVS UNIDIRECTIONAL

DFLT17A-7 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?conform to
MakerDiodes Incorporated
package instructionR-PDSO-F2
Contacts2
Manufacturer packaging codePOWERDI 123
Reach Compliance Codenot_compliant
ECCN codeEAR99
Factory Lead Time24 weeks
Other featuresEXCELLENT CLAMPING CAPABILITY
Maximum breakdown voltage20.9 V
Minimum breakdown voltage18.9 V
Breakdown voltage nominal value19.9 V
Shell connectionCATHODE
Maximum clamping voltage27.6 V
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
Maximum forward voltage (VF)3.5 V
JESD-30 codeR-PDSO-F2
JESD-609 codee3
Humidity sensitivity level1
Maximum non-repetitive peak reverse power dissipation225 W
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
polarityUNIDIRECTIONAL
Maximum power dissipation1 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage17 V
Maximum reverse current1 µA
Reverse test voltage17 V
surface mountYES
technologyAVALANCHE
Terminal surfaceMatte Tin (Sn)
Terminal formFLAT
Terminal locationDUAL
Base Number Matches1
Green
DFLT5V0A – DFLT220A
225W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
POWERDI
Features

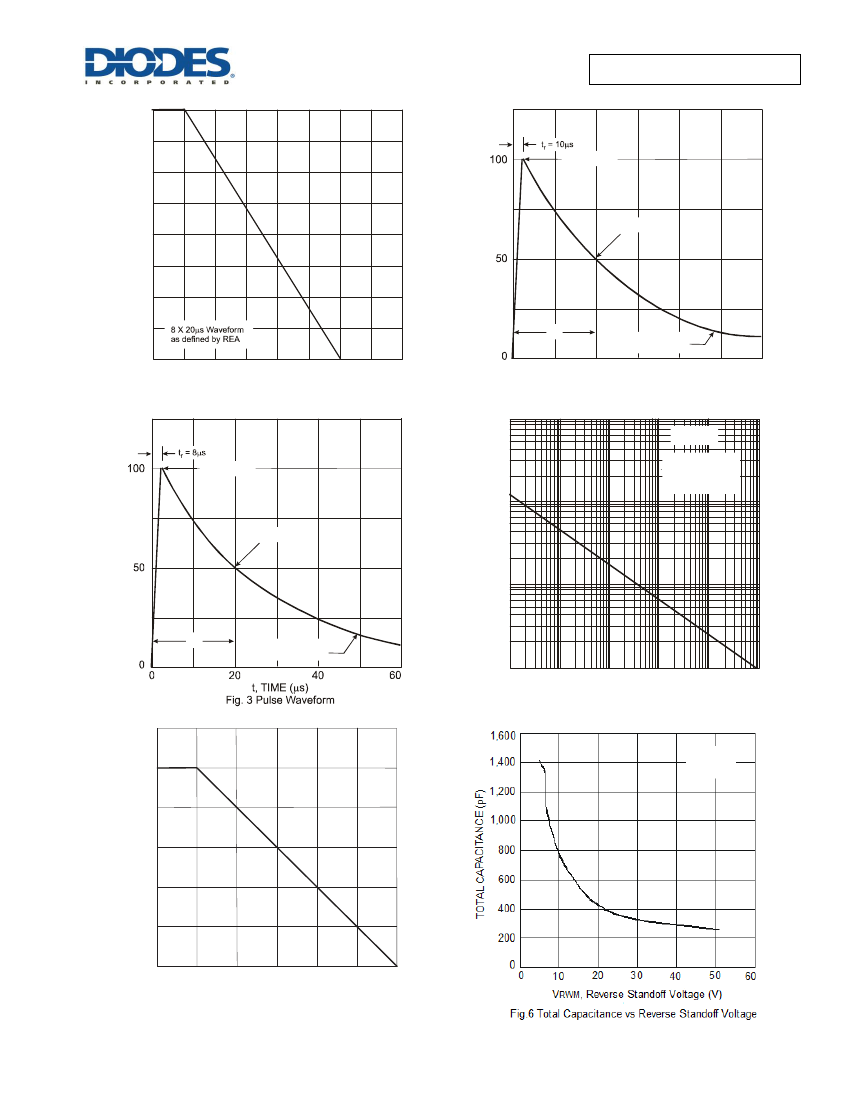

225W Peak Pulse Power Dissipation (10µs x 1000µs Waveform)
5.0V to 220V Standoff Voltages
Excellent Clamping Capability
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
An Automotive-Compliant Part is Available Under Separate
Datasheet (DFLTXXXAQ)

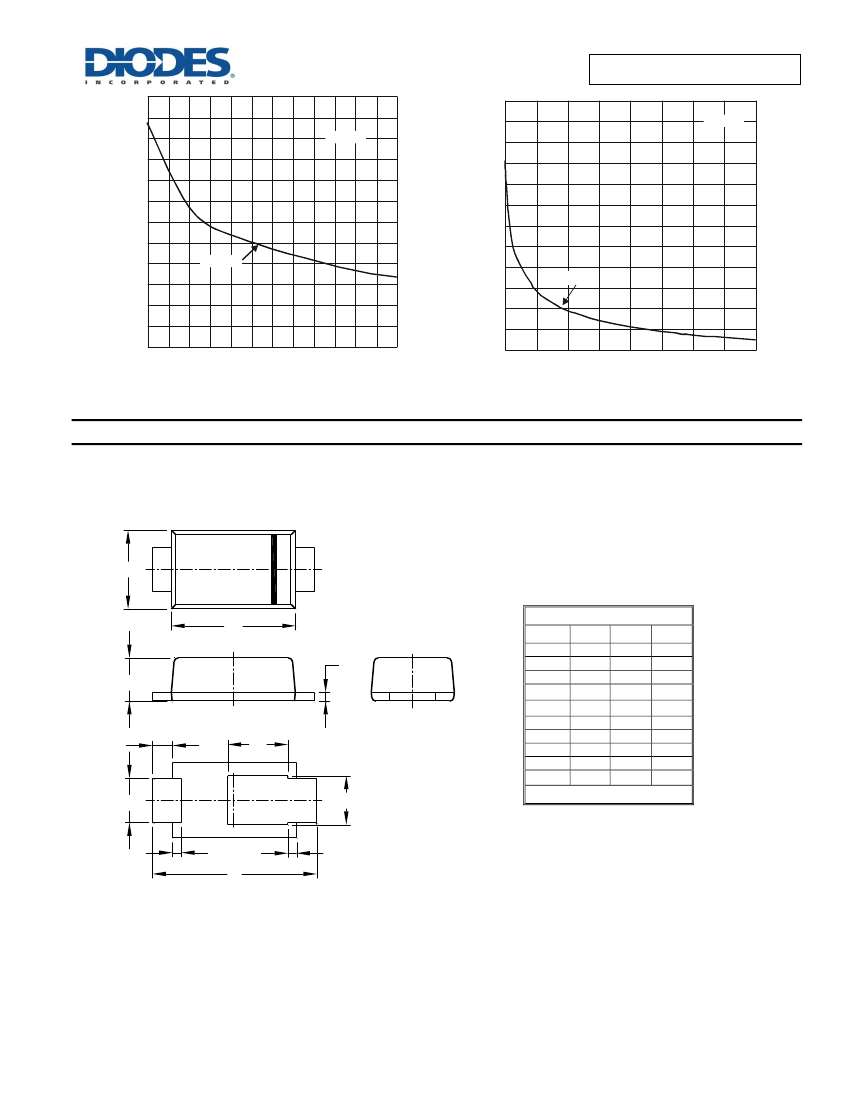

Mechanical Data
Case: PowerDI
®
123
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Band
Terminals: Finish
Matte Tin Annealed over Copper
Leadframe. Solderable per MIL-STD-202, Method 208
Weight: 0.01 grams (Approximate)
PowerDI
®
123
Top View
Ordering Information
(Note 4)
Product
DFLTxxxA-7*
Compliance
Commercial
Marking
Fxx
Reel Size(inches)
7
Tape Width(mm)
8
Quantity Per Reel
3,000/Tape & Reel
* Add "-7" to the appropriate type number in Electrical Characteristics Table on page 2. Example: 10V reverse standoff device = DFLT10A-7.
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Fxx = Product Type Marking Code
See Electrical Characteristics Table on Page 2
YM = Date Code Marking
Y = Year (ex: E = 2017)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2004
R
Jan
1
----
----
Feb
2
2012
Z
2013
A
Mar
3
2014
B
Apr
4
2015
C
May
5
2016
D
Jun
6
2017
E
2018
F
Jul
7
2019
G
Aug
8
2020
H
Sep
9
2021
I
Oct
O
2022
J
2023
K
Nov
N
2024
L
Dec
D
POWERDI is a registered trademark of Diodes Incorporated.
®
DFLT5V0A – DFLT220A
Document number: DS30581 Rev. 11 - 2
1 of 5
www.diodes.com
November 2017
© Diodes Incorporated
