600W Transient Voltage Suppressor
P6KE-G Series
Breakdown Voltage: 6.8 to 600 Volts
Peak Pulse Power: 600 Watts
RoHS Device
Features
- Glass passivated chip.
- 600W peak pulse power capability with a 10/1000µs
waveform, repetitive rate (duty cycle):0.01%
- Low leakage.
- Uni and Bidirectional unit.
- Excellent clamping capability.
- Very fast response time.
- UL recognized file # E349157
-
Range:
P6KE6.8(C)A thru. P6KE47(C)A
R
DO-15
1.000(25.40)
MIN.
0.033(0.84)
DIA.
0.027(0.71)
0.300(7.63)
0.230(5.85)
Mechanical Data
-Case: Molded plastic DO-15.
-Epoxy: UL 94V-0 rate flame retardant.
-Lead: Solderable per MIL-STD-202,
method 208 guranteed.
-Polarity: Color band denotes cathode end
except Bipolar.
-Monuting position: Any.
-Weight: 0.402 gram (approx.)
1.000(25.40)
MIN.
0.142(3.61)
DIA.
0.102(2.60)
Dimensions in inches and (millimeter)
Maximum Ratings
(T
A
=25°C unless otherwise noted)
Parameter
Peak power dissipation with a 10/1000μs
waveform (Note 1)
Peak pulse current with a 10/1000μs waveform
(Note 1)
Power dissipation on infinite heatsink at T
L
=75°C
Peak forward surge current, 8.3ms single
half sine-wave unidirectional only
(Note 2)
Maximum instantaneous forward voltage at
50 A for unidirectional only (Note 3)
Operating junction and storage
temperature range
Symbol
P
PP
Value
600
Unit
W
I
PP
P
D
See Next Table
5.0
A
W
I
FSM
100
A
V
F
3.5/5.0
V
T
J
, T
STG
-55 to +150
°C
NTOES:
(1) Non-repetitive current pulse per fig.5 and derated above T
A
=25°C per fig.1
(2) Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle=4 pulses per minute maximum
(3) V
F
<3.5V for devices of V
BR
<200V and V
F
<5.0V for devices of V
BR
>201V
Company reserves the right to improve product design , functions and reliability without notice.
QW-BTV06
REV:E
Page 1
Comchip Technology CO., LTD.
600W Transient Voltage Suppressor

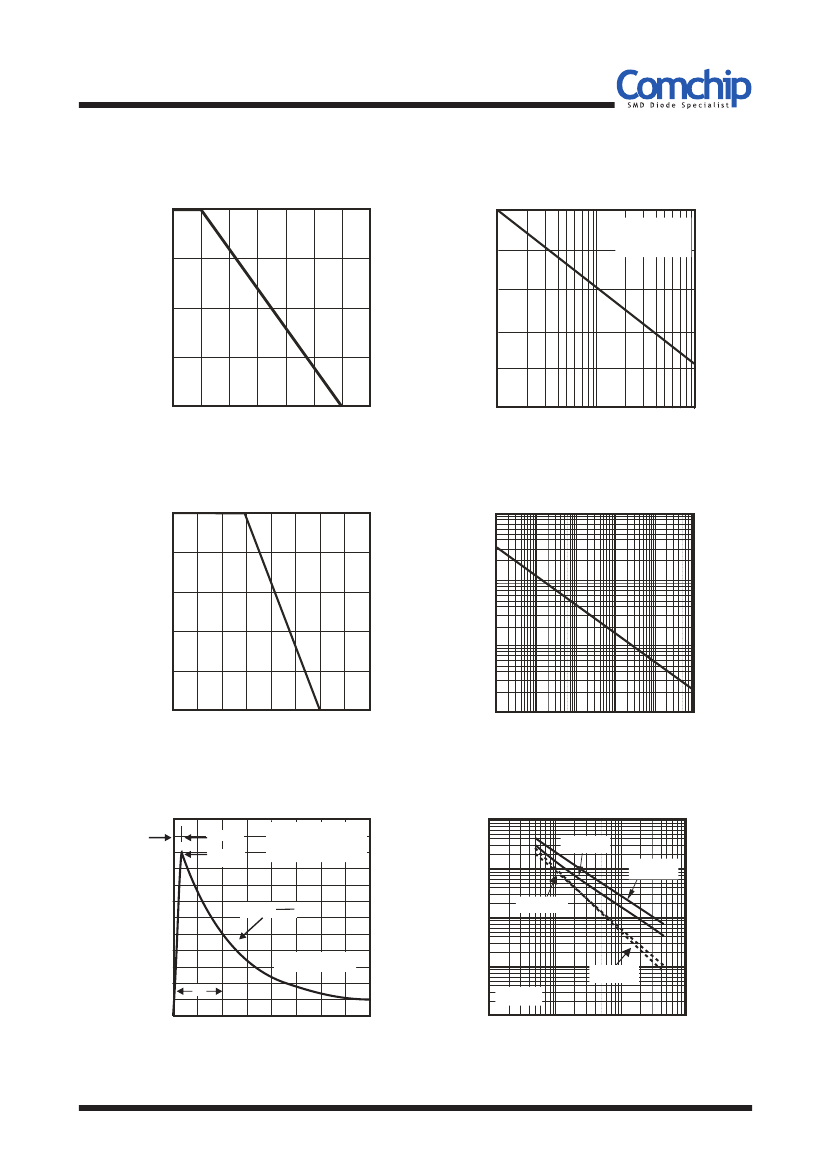

Rating and Characteristic Curves (P6KE-G Series)
Fig.1 - Pulse Derating Curve
100
100
Fig.2 - Maximum Non-Repetitive
Surge Current
Peak Forward Surge Current, (A)
8.3mS single half
sine-wave (JEDEC
method)
T
J
=T
J
Max.
Peak Pulse Derating in Percentage of
Peak Power or Current, (%)
75
80
60
50
40
25
20
0
0
25
50
75
100
125
150
175
0
1
10
100
Ambient Temperature, (°C)
Number of Cycle at 60Hz
Fig.3 - Steady State Power Derating Curve
Steady State Power Dissipation, (W)
5.0
Fig.4 - Peak Pulse Power Rating Curve
100
4.0
Peak Power, (kW)
25
50
75
100 125 150 175 200
10
3.0
2.0
1
1.0
0
0
0.1
0.1
1
10
100
1000
10000
Lead Temperature, TL (°C)
Pulse Width, td (μs)
Fig.5 - Pulse Waveform
10000
TR=10
μ
s
T
J
= 25°C
Pluse width(td) is defined as the
point where the peak current
decays to 50% of Ipp
Fig.6 - Typical Junction Capacitance
Peak Pulse Current, (%)
Peak value
(Ipp)
Junction Capacitance, (pF)
100
Bi-directional
@zero bias
1000
Uni-directional
@zero bias
Half Value= 2
Ipp
Uni-directional
@V
RWM
100
50
10 / 1000
μsec.
waveform
as defined by R.E.A.
10
T
J
=25°C
f=1.0MHz
Bi-directional
@V
RWM
td
0
1
0
1
2
3
4
1
10
100
1000
Time, (mS)
Reverse Breakdown Voltage, (V)
Company reserves the right to improve product design , functions and reliability without notice.
QW-BTV06
REV:E
Page 2
Comchip Technology CO., LTD.
600W Transient Voltage Suppressor
Electrical Characteristics (P6KE-G Series)
Breakdown voltage
Part No.
Min.
(V)
P6KE6.8(C)A-G
P6KE7.5(C)A-G
P6KE8.2(C)A-G
P6KE9.1(C)A-G
P6KE10(C)A-G
P6KE11(C)A-G
P6KE12(C)A-G
P6KE13(C)A-G
P6KE15(C)A-G
P6KE16(C)A-G
P6KE18(C)A-G
P6KE20(C)A-G
P6KE22(C)A-G
P6KE24(C)A-G
P6KE27(C)A-G
P6KE30(C)A-G
P6KE33(C)A-G
P6KE36(C)A-G
P6KE39(C)A-G
P6KE43(C)A-G
P6KE47(C)A-G
P6KE51(C)A-G
P6KE56(C)A-G
P6KE62(C)A-G
P6KE68(C)A-G
P6KE75(C)A-G
P6KE82(C)A-G
P6KE91(C)A-G
P6KE100(C)A-G
P6KE110(C)A-G
P6KE120(C)A-G
P6KE130(C)A-G
P6KE150(C)A-G
P6KE160(C)A-G
P6KE170(C)A-G
P6KE180(C)A-G
P6KE200(C)A-G
P6KE220(C)A-G
P6KE250(C)A-G
P6KE300(C)A-G
P6KE350(C)A-G
P6KE380(C)A-G
P6KE400(C)A-G
P6KE440(C)A-G
P6KE500(C)A-G
P6KE520(C)A-G
P6KE550(C)A-G
P6KE600(C)A-G
6.46
7.13
7.79
8.65
9.50
10.45
11.40
12.35
14.25
15.20
17.10
19.00
20.90
22.80
25.65
28.50
31.35
34.20
37.05
40.85
44.65
48.45
53.20
58.90
64.60
71.25
77.90
86.45
95.00
104.50
114.00
123.50
142.50
152.00
161.50
171.00
190.00
209.00
237.50
285.00
332.50
361.00
380.00
418.00
475.00
494.00
522.50
570.00
V
BR
@ I
T
Max.
(V)
7.14
7.88
8.61
9.56
10.50
11.55
12.60
13.65
15.75
16.80
18.90
21.00
23.10
25.20
28.35
31.50
34.65
37.80
40.95
45.15
49.35
53.55
58.80
65.10
71.40
78.75
86.10
95.55
105.00
115.50
126.00
136.50
157.50
168.00
178.50
189.00
210.00
231.00
262.50
315.00
367.50
399.00
420.00
462.00
525.00
546.00
577.50
630.00
I
T
(mA)
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Reverse
Leakage
@V
RWM
I
R
(uA)
1000
500
200
50
10
5.0
5.0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Working
Peak
Reverse
Voltage
V
RWM
(V)
5.8
6.4
7.0
7.8
8.6
9.4
10.2
11.1
12.8
13.6
15.3
17.1
18.8
20.5
23.1
25.6
28.2
30.8
33.3
36.8
40.2
43.6
47.8
53.0
58.1
64.1
70.1
77.8
85.5
94.0
102.0
111.0
128.0
136.0
145.0
154.0
171.0
185.0
214.0
256.0
299.3
324.9
342.0
376.2
427.5
444.6
470.3
513.0
Maximum
Reverse
Surge
Current
I
PP
(A)
57.14
53.10
49.59
44.78
41.38
38.46
35.93
32.97
28.30
26.67
23.81
21.66
19.61
18.07
16.00
14.49
13.13
12.02
11.13
10.12
9.26
8.56
7.79
7.06
6.52
5.83
5.31
4.80
4.38
3.95
3.64
3.35
2.90
2.74
2.56
2.44
2.19
1.83
1.74
1.45
1.24
1.14
1.09
0.99
0.87
0.84
0.79
0.72
Maximum
Clamping
Voltage
@I
PP
V
C
(V)
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77.0
85.0
92.0
103.0
113.0
125.0
137.0
152.0
165.0
179.0
207.0
219.0
234.0
246.0
274.0
328.0
344.0
414.0
482.0
524.4
548.0
607.2
690.0
717.6
759.0
828.0
Marking Code
UNI
P6KE6.8A
P6KE7.5A
P6KE8.2A
P6KE9.1A
P6KE10A
P6KE11A
P6KE12A
P6KE13A
P6KE15A
P6KE16A
P6KE18A
P6KE20A
P6KE22A
P6KE24A
P6KE27A
P6KE30A
P6KE33A
P6KE36A
P6KE39A
P6KE43A
P6KE47A
P6KE51A
P6KE56A
P6KE62A
P6KE68A
P6KE75A
P6KE82A
P6KE91A
P6KE100A
P6KE110A
P6KE120A
P6KE130A
P6KE150A
P6KE160A
P6KE170A
P6KE180A
P6KE200A
P6KE220A
P6KE250A
P6KE300A
P6KE350A
P6KE380A
P6KE400A
P6KE440A
P6KE500A
P6KE520A
P6KE550A
P6KE600A
BI
P6KE6.8CA
P6KE7.5CA
P6KE8.2CA
P6KE9.1CA
P6KE10CA
P6KE11CA
P6KE12CA
P6KE13CA
P6KE15CA
P6KE16CA
P6KE18CA
P6KE20CA
P6KE22CA
P6KE24CA
P6KE27CA
P6KE30CA
P6KE33CA
P6KE36CA
P6KE39CA
P6KE43CA
P6KE47CA
P6KE51CA
P6KE56CA
P6KE62CA
P6KE68CA
P6KE75CA
P6KE82CA
P6KE91CA
P6KE100CA
P6KE110CA
P6KE120CA
P6KE130CA
P6KE150CA
P6KE160CA
P6KE170CA
P6KE180CA
P6KE200CA
P6KE220CA
P6KE250CA
P6KE300CA
P6KE350CA
P6KE380CA
P6KE400CA
P6KE440CA
P6KE500CA
P6KE520CA
P6KE550CA
P6KE600CA
Note: 1) Suffix A denotes 5% tolerance devices.
2) Add suffix “C” or “CA” after part number to specify Bi-directional devices.
3) For Bi-Directional devices having V
R
of 10 volts and under, the I
R
limit is double.
Company reserves the right to improve product design , functions and reliability without notice.
QW-BTV06
REV:E
Page 3
Comchip Technology CO., LTD.
600W Transient Voltage Suppressor
Taping Specification For Axial Lead Diodes
A
Z
90° ± 5°
L
L1
B
H
L2
E
E
T
W
SYMBOL
A
5.00
±
0.50
B
52.00
±
0.50
Z
1.20 (max)
0.047 (max)
T
6.00
±
0.40
0.236
±
0.016
E
3.00 (max)
0.118 (max)
DO-15
(mm)
(inch)
SYMBOL
0.197
±
0.020 2.047
±
0.020
L1
1.00 (max)
0.039 (max)
L2
1.00 (max)
0.039 (max)
L
260.00
10.236
W
75.00
2.953
H
145.00
5.709
DO-15
(mm)
(inch)
Standard Packaging
AMMO PACK
Case Type
BOX
( pcs )
CARTON
( pcs )
DO-15
3,000
30,000
Company reserves the right to improve product design , functions and reliability without notice.
QW-BTV06
REV:E
Page 4
Comchip Technology CO., LTD.
